kralisec

Hello, A few change since the beginning: now DW1830 replace intel 8260 (don't forget to put a third cable), 16GB, High Sierra updated 10.13.6, Clover, drivers64UEFI and kexts/Other updated to latest version. Since 2 weeks I don't need ACPI patching with latest update, now memory size looks good for me with 1536Mb ram. for this result I use OS-X-Clover-Laptop-Config-master/config_HD515_520_530_540.plist with latest Lilu 1.2.6, IntelGraphicsFixup 1.2.7 and IntelGraphicsDVMTFixup 1.2.2 (no change with ig-platform-id 0x191b0000 ) One question: High Sierra recognize only 1 core (2 threads) with my i5-6300U , is-it a value I can changer post install ? generating my own SSD.aml file using latest beta ssdtPRGen.sh has no effect (or I don't know how to use it ...) I know I can provide my actual ACPI folder for patching, is-it another way to solve this point ? Good day.

You are correct, Legacy was enabled, I have no idea there is a relation with legacy and freeze with power plug / unplug :( Now I can also plug / unplug from docking, all is fine. Problem solved. Thank you for your help Jake Lo :)

Hello, More information: it's not related to the docking station, I have the exact same problem when I unplug power, I did not discover before. Any idea ?

Hello, Following this : Dell Latitude E5470 bios 1.18.6 Mobo: Dell 0VHKV0 (A0) (no trackpoint) CPU: Skylake i5-6300U Ram: 1*8GB DDR4 2133MHz Graphics: HD520 GT2 1920x1080 Storage: SSD SATA 512Go MX100 Crucial (2.5") Clover EFI r4439 with OsxAptioFixDrv-64.efi  Running High Sierra 10.13.4 , each time I dock or undock HS freeze, no CapsLock led, nothing, docking station model PR03X with no external display, any idea ? Thank you for reading.

More information for others reading this: 701 error was from a bad usb installer created with Sierra VM, app store show me only High Sierra to install (a few MB), I manage to create /Applications/Install\ macOS\ High\ Sierra.app with direct link For other with same hardware from config_HD515_520_530_540.plist ig-platform-id value 0x191b0000 I was able to boot after I change to 0x19160007, but it's NOT ENOUGH: 7MB video ram cause graphics glitch but I was able to install !!! Really thank you @Jake Lo your zip give me a really good looking running Mac OS, from this I create a good usb key, I just ordered DW1830 (with 1 cable) to replace my intel 8260 and I have a lot to read about ACPI ... There is no "post 1st install point to check" guide ?

First install ok In short the problem was with the key, I replace SharedSupport with all files following a tuto : "create boot without a Mac"

Done: same result, do you know a "sure" working bios for this hardware ? I can try to downgrade to test. Since I reset bios : do you need a new ACPI folder ?

Same error message with MX200 M.2 SSD : empty before 1st format HFSplus, don't try to bypass apfs. Before posting I search this error message with empty result Last point: I check InstallESD.dmg checksum from 10.13.4 file after download. Something to change with bios ?

Step (2) Install Clover with following config, add appropriate Sierra bootpacks Only + Generic EFI from post #2 above ( See note1 below for updating bootpack for HS) => for appropriate Sierra bootpacks + updating bootpack for HS: I use the zip like this: Clover EFI (boot only + ESP + OsxAptioFixDrv-64) + your zip ? If it's yes: same error message interesting: command for converttoapfs NO give the same exact error in command line ddrescue show me no badblock, since I only have usb 3.0 with laptop : for testing I use usb 2.0 from docking for format and boot test I have spare MX200 256 M.2 sata ssd : I will check and let you know.

I update EFI/CLOVER folder with your zip: noticeable difference, screen a little more brighter, but sorry: same error message can I provide some boot log file from clover to help ? (and how ...) With unzip I see some error message like this one: checkdir error: cannot create kexts/Other/CopyTo:L:E Invalid argument unable to process kexts/Other/CopyTo:L:E/AppleBacklightInjector.kext/. I expect it's file for a running system, I'm right ?

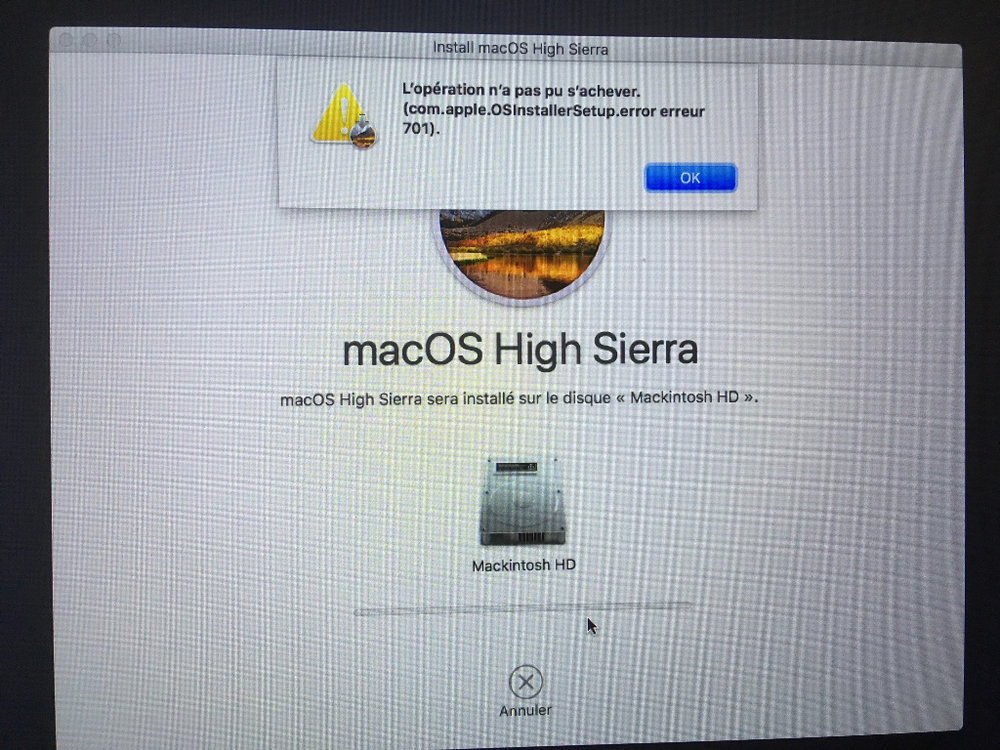

Hello, This is where I'm (around) 30 seconds after I select disk target: com.apple.OSInstallerSetup.error 701 Please note: I never see the expected "time to finish" count and below are the files on the target disk /.HFS+ Private Directory Data? /.journal /.journal_info_block /macOS Install Data /macOS Install Data/index.sproduct /macOS Install Data/Locked Files /macOS Install Data/Locked Files/.disk_label /macOS Install Data/Locked Files/.disk_label.contentDetails /macOS Install Data/Locked Files/.disk_label_2x /macOS Install Data/Locked Files/Boot Files Now the technical part: Dell Latitude E5470 bios 1.18.6 Mobo: Dell 0VHKV0 (A0) (no trackpoint) CPU: Skylake i5-6300U Ram: 1*8GB DDR4 2133MHz Graphics: HD520 GT2 1920x1080 Storage: SSD SATA 512Go MX100 Crucial (2.5") Clover EFI r4439 with OsxAptioFixDrv-64.efi Dual boot EFI W10 + Ubuntu Bios setup: Legacy + VT X + Serial + Parallel = Disabled With working Sierra VM I setup usb boot key using High Sierra 10.13.4 Install Media as source Inside EFI/CLOVER/kexts/Other/ FakeSMC.kext/ from RehabMan-FakeSMC-2018-0403.zip IntelGraphicsFixup.kext/ version 1.2.7 Lilu.kext/ version 1.2.3 VoodooPS2Controller.kext/ from RehabMan-Voodoo-2018-0418.zip Inside EFI/CLOVER/drivers64UEFI apfs.efi from APFS_10.13.4.zip (size: 583480) usual HFSPlus.efi (size: 24900) config_HD515_520_530_540.plist from OS-X-Clover-Laptop-Config-master.zip as config.plist My previous problem: what ever I tried with Clover Configurator I always ended with KP at first boot until I change ig-platform-id with 0x16160002 dunno if it's good or not, expected value should be 0x1916 based from my cpu i5 6300U HD520 GT2, 0x19160000 / 0x19160002 ended with KP. Now I can boot: no screen glitch in the installer place, I erase partition with hfsplus (journaled) format and select as target ending with error message you can see. This my F4 ACPI folder ACPI-origin.zip and the Full EFI folder (including ACPI) EFI-Full-04202018.zip Any idea are welcome, thank you for reading. Good day.
