woainba15

The sound is working after using this tool https://github.com/daliansky/dell7000/tree/master/ALCPlugFix

Still not work.

Hi, Bronxteck, How to manually selecting the headphones, when I insert the headphone, it's automatic detection.

Hi, Jake, Layout-id 11 is still not work. HDMI audio is not test Sleep / wake is not good EDID is not needed anymore, I just try the old way. Sorry for asking, is there any benefits to create USB port kext? because the USB port is working.

After install the Mojave on Dell Vostro 5568 with Jake's clover files, the HDMI is not work. So after google, I used Intel-FB-Patcher to patch the GPU and Audio, now the HDMI is working fine, and the sound is working fine with internal speakers and internal microphone, but the headphone port is not working. It's available to use. CLOVER.zip

Hi Jake, Works for me, thanks.

Hi Syonagar, Yes, the clover bootpack is from 10.13.6, I just update the latest kexts, and install the latest clover.

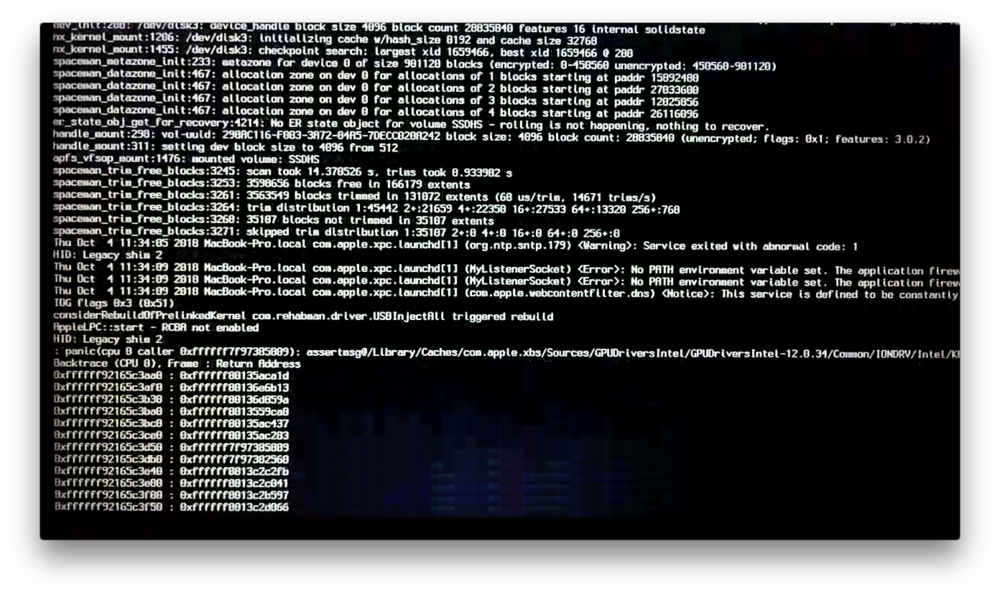

Hi, Jake, boot error is here Thanks

Dell Vostro 5568 is good for High Sierra (10.13) , but has some issue for Mojave (10.14), I updated clover to 4674 with newest Lilu.kext and FakeSMC.kext, also copy new apfs.efi to clover/drivers64UEFI, boot failure. CLOVER4674_dell_5568.zip

CLOVER.zip

yes

Changed the audio layout id from 13 to 56, the sound card is working perfect too. Open CLOVER/config.plist, find: <key>Audio</key> <dict> <key>Inject</key> <string>13</string> <key>ResetHDA</key> <true/> </dict> update 13 to 56, done!

Yes, working perfect.

After fixed the EDID, the internal monitor is working perfect. sudo cp -R ~/Desktop/DisplayVendorID-9e5 /System/Library/Displays/Contents/Resources/Overrides Tools I use: https://bitbucket.org/blackosx/darwindumper https://github.com/andyvand/FixEDID DisplayVendorID-9e5.zip

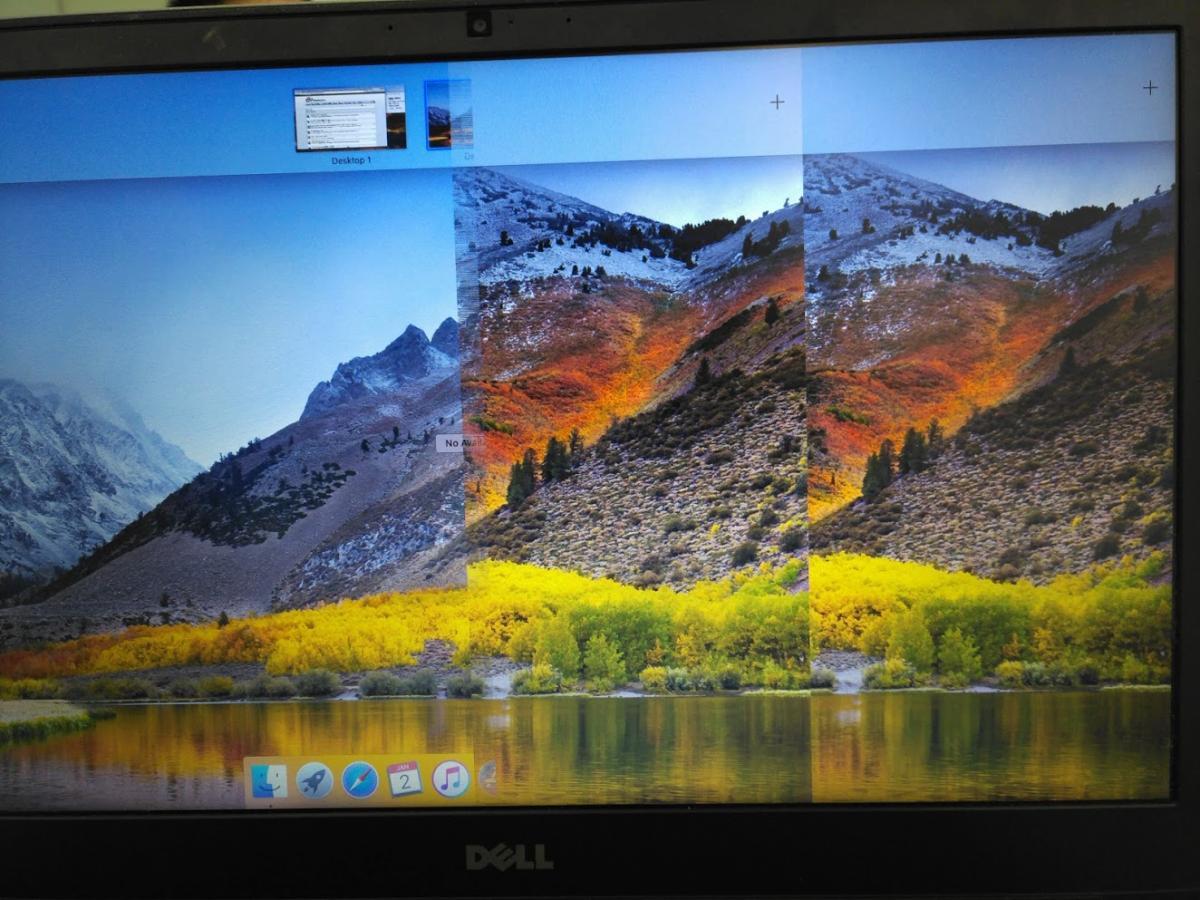

Hi Jake, I installed 10.13.2 successfully on my laptop with your clover config file, and there are still some issues: 1. The HDMI is working, but the internal monitor is black screen when HDMI is connected. 2. When the internal monitor awake from [display sleep], the screen is problematic. Thanks.
