ASUS N71JQ
Processor Intel® Core™ i7 720QM Processor
Chipset Intel® HM55 Express Chipset
Memory DDR3 1066 MHz SDRAM, 2 x SO-DIMM socket for expansion up to 8 G SDRAM
Display 17.3" 16:9 HD+ (1600x900) LED Backlight Asus Splendid Video Intelligent Technology
Graphic ATI Mobility™ Radeon® HD5730 with 1GB DDR3 VRAM
Storage 2.5" SATA
640GB 5400rpm
500GB 5400rpm/7200rpm
320GB 5400rpm/7200rpm
Optical Drive Blu-Ray DVD Combo
Super-Multi DVD
Card Reader 8 -in-1 card reader ( SD/ MS/ MS Pro/ MS Duo/ xD/ MMC/SM)
Camera 2.0 Mega Pixel web camera
Networking Integrated 802.11 b/g/n or 802.11 b/g
Built-in Bluetoothâ„¢ V2.1+EDR (Optional)
10/100/1000 Base T
Interface 1 x Microphone-in jack
2 x Headphone-out jack (1 x SPDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
1 x USB 3.0 port(s) (Optional)
3 x USB 2.0 port(s)
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x E-SATA (USB2.0 Combo) Ports
1 x WLAN On/Off Switch
1 x Express card
Audio Built-in Speakers And Microphone
Altec Lansing® Speakers
SRS Premium Sound
Requested data sent.
Added another one 4k SSD HDD.
Removed DVD unit and changed for a SATA HDD caddy.
8 GB of RAM
Mavericks works fine, no DSDT is used.
Need SMBios to inject HEX mac of ethernet card to avoid (unknow error) in apple store.
App Store, Shutdown/reboot, Audio, Webcam, Wifi, Ethernet, Bluetooth, Graphics, Card reader, suspend, keyboard, touchpad (simple), USB 2 and 3, Jacks, HDMI (vÃdeo) output works.
I have issues with:
Touchpad (multi)
HDMI output (No audio)
Some Fn buttons and ASUS buttons (doesn't works)
Battery status
Using myHack and Clover

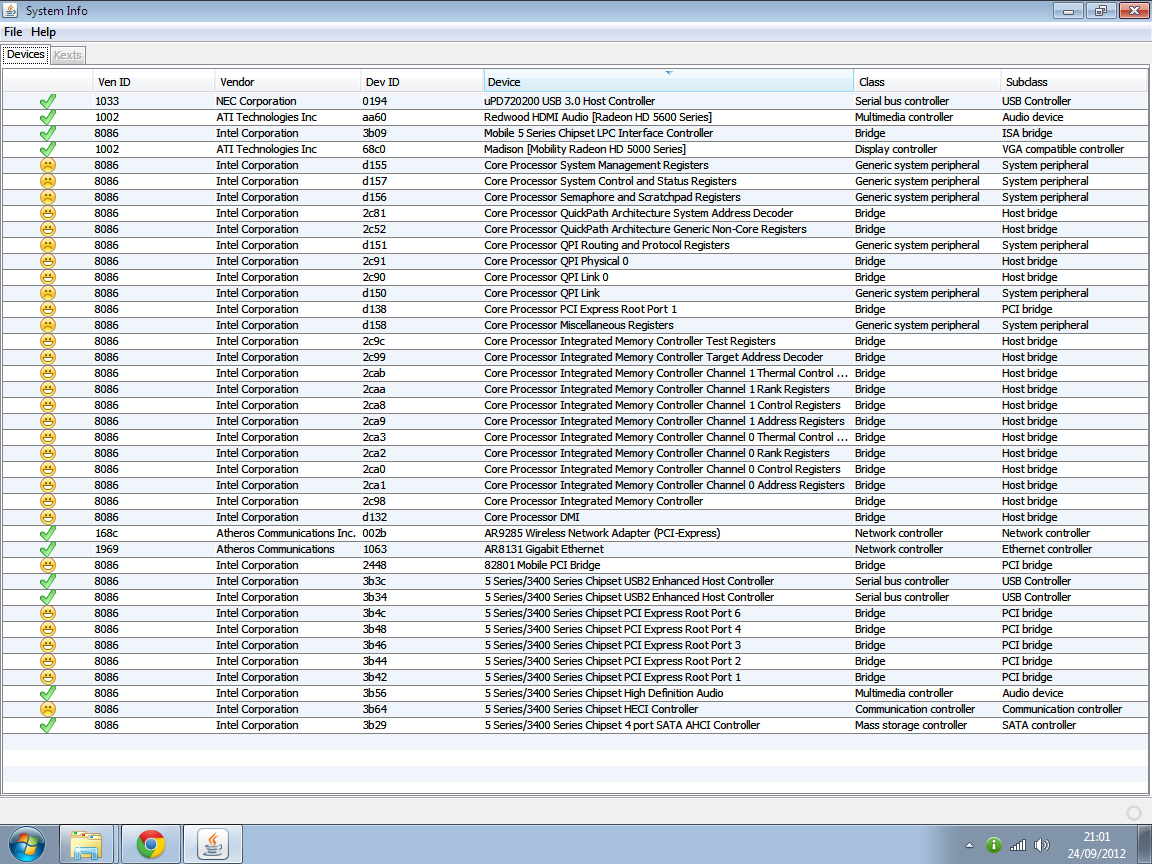

Kexts and Everest Data attached to the post.
ASUS N71JQ.zip
Asus N71JQ Everest Data Core i7.tar.gz
