Tuxedomoon

i did and everything is working now Thnx bronxtec all is fine now and I'm able to setup any D series Dell laptop....

Which keyboad/mouse kext. I choose the first option in kext configuration / apple one...

Okeeee.... Installed voodooHDA 2.7.2 and yes i do have sound now but lost my trackpad control

Installed VoodooHDA 2.7.2 and Yes i have sound and still a keyboard! but no trackpad?

waiting for your result, hopefully this workout..

i did this in my previous installation and trial to get sound working ( such a pity for all the work, install and update, time... ) but get a KP after the reboot and screwed my system. So I'm here again and a bit afraid to run this kext.. And check this out: https://osxlatitude.com/index.php?/topic/835-snow-leopard-d630nvidia-installation/ KP is related to apple.ps2.kext see this one: https://osxlatitude.com/index.php?/topic/607-sound-d630-with-lion-107/page__p__4049__hl__%2Bno+%2Bsound__fromsearch__1#entry4049 Maybe i should give it a try : http://code.google.com/p/voodoohda/downloads/list and run the right one

I've got it working! - yes.... after trail and error- several installations and ours on this forum - your support so far! almost there. Original dell A17 bios - turn off wifi and cpu speed enabler. Install from usb pen in -x mode reboot in -x mode and configure / setup basics. install edp 1.9.1 ( do not run anything - close the terminal ) and overwrite first the extra map with this one http://cl.ly/341g0O3U0v2O3X2Z1p1X the FakeSMC.kext and FakeSMC 21-48-08.kext. from edp 1.9.1 gives KP ( thank you Leon ) run edp tool command - and choose in kext installation for D630 with nvidia? option 7, Bronxteck mentioned NATIT loading? so i went for it... but i do have Intel chip? install chameleon - bootloader (Chameleon v2.0-RC5 r665.pkg) and add high resolution dsdt.aml reboot normal ( after boot, Keyboard and sound are not working ) mode and update Chameleon from EDP option 4 / 1 and update Mac osx 10.6.8 keyboard is back and working but still no sound! So please advise how to get SOUND working! only thing left................... btw Upgrade my D630 with a T7700 Intel® Core™2 Duo 2.40 MHz 4mb . so nice

O men, I've been going to hell with this dell d630 - it is a XWGA 1440x900 - Express 965 Intel Crestline Graphics / X3100 chip and i did upgrade OSX bios latest! GMA version... run the setup again with -s -v @Bronxteck - about the Natit this what happening during boot / setup installation.. Loading VoodooHDA 0.2.1 Controller: Intel 82801H (vendor ID: 8086, device ID: 284b) Natit: Starting. Natit: Found device with ID=0x2a02

hersly, two questions.. How did you >>> -Installed Kext installer from other website- (in safe mode -x my usb or network is not working) Image from? >> USB image from osxlatitude.com- you mean this one? premade SLD430USB.img.bz2

I think i found the problem, my premade SLD430USB.img.bz2 image is made out of a very old build... Darwin/x86 boot v5.0.132 - Chameleon v2.0-RC3 r658 Build date: 2009-09-06 Can i update the Chameleon? i mean put it in thee premade image?

It doesn't make any, nothing helps, Try to setup with all Dell bios available from A01 up to A17 include OSX version with SATA option set to AHCI or just SATA in the first minute of the pen installation it fails....

On a D430 and a D620 i get it all working with the same USB pen! EDP 1.9.1 With the D630 I'm not even able to setup / start with installation normal? have to run in -x mode... otherwise my screen will turn after a few seconds into black. after the first installation i have to boot in order to install EDP, but it stuck / hangs on what i describe...

LIke to bump in as well, same issue for me... https://osxlatitude.com/index.php?/topic/803-newbee-try-to-install-on-d630/

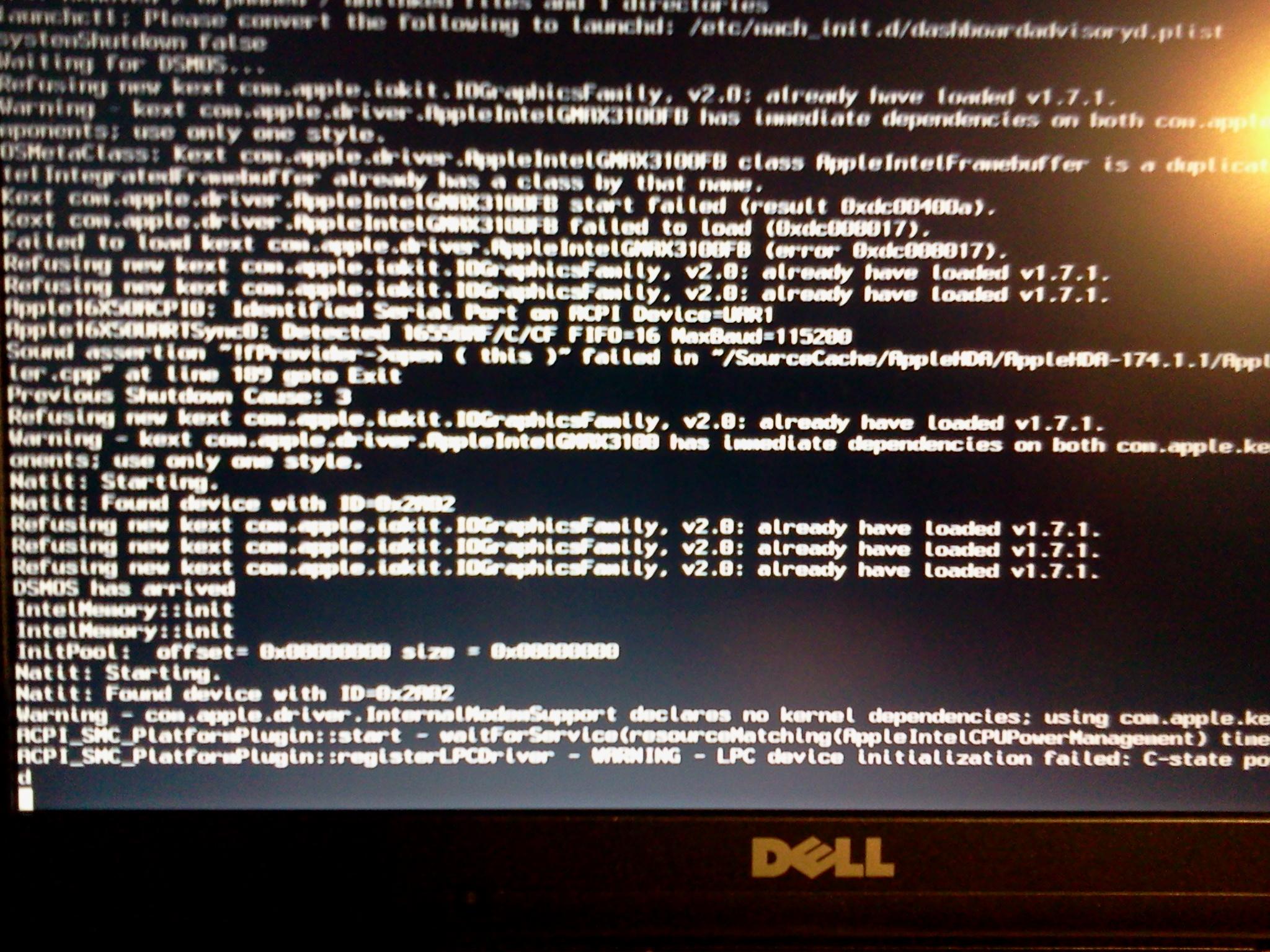

@Bronxteck, no is not working... and with Ubun boot the OSX drive is read only so i cant save on the volume.. When i boot it will end here, see attached screenshot, lpcdriver failed - C-state power management not initialized. Intel® ICH8/ICH8R Family LPC Interface Controller, in normal mode the boot stuck on this controller - so i cant go on, it is a part f the chipset! So what i need is a expert on DSDT / SSDT hacking! read this the solution? http://www.osx86.net/general-discussion/6618-full-working-powermanagement-native-appleintelcpupm-kext.html How to http://ipis-osx.wikidot.com/forum/t-178392 Sorry guys this is to much for me I'm a Noobe... able to install but on this level i do not have any idea... Went back to previous Dell bios roms for test and after all a black screen, that is where i start. -------------------------------------------------------------- So in the meanwhile, i'm lucky to have the whole Dell D series line available, i completed successfully and update to 10.6.8 my Dell D620 - OSX gma bios, Intel core duo processor 1.83 GHz, Intel 945GM..

I did the installation from the pen drive and succeed but straight after the reboot, still problems, something with power management! I'm not able to run the EDP - in normal mode i get the panic... so i can boot with -v -x but in safe mode i can't access my usb drive? to run EDP
