Hi Deepak, the first, thanks again for helping patch my sound, current everything is working (El captian 10.11.6) this is link to your help: https://osxlatitude.com/index.php?/topic/1946-complete-applehda-patching-guide/page-21 in while, i read your guide and try to patch my sound. i want to understand it to can help me and other. i installed macOS sierra 10.12 on another disk to patch sound, but my patch didn't work. If you have free time, can you help me/show me what's wrong in my patch? ( i tried extracting your config data in your kext patched and use them to patch applehda 10.12 but it's not working Thanks Deepak. card1-codec#2.txt

All kexts work ok Deepak

i tried installing 4 AppleHDA kext versions, but line-in don't work still, i searched google about difference between a line input and a mic input, i see they are difference so maybe it's hard to check line input on kext with a mic input. Thanks for help InsanelyDeepak

i installed AppleHDA v2 patched by you AppleHDA-274.9-ALC892.zip

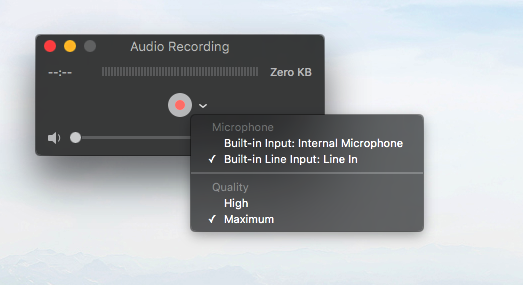

No work InsanelyDeepak, i made a record on QuickTime with sound input from line-in (blue port) and connect microphone of headphone to it but no sound.

i plugged microphone jack of headphone to line in (blue) and check with preferences/sound/input and skype, but don't have input sound. about sound on line out, current sound output is working well, i will report you if this problem happen again.

You can see sound port layout on my computer. i don't connect jump front sound jack to motherboard and S/DIF too. Speaker = OK (Green) Headphone = ? - i don't connect jump of front sound jack to motherboar -so i can't check it. LineOut 1 = OK (Black) LineOut 2 = OK (Orange) LineOut 3 = OK (Gray) Mic Internal = OK (pink) - i checked with microphone on my headphone Mic External = ? - i don't connect jump of front sound jack to motherboar -so i can't check it Line In = ? (blue) - i don't know how to check it i usually listen music by headphone so i connected my headphone to Line Out 2(Orange), some time sound off. so i go to System Preferences>Sound>Output, change sound to any another output and change it back to current output (lineout 2) sound came back.

Current i don't connect 2 front sound ports on my computer case to my motherboard and S/DIF port too, but 6 sound ports on back worked. I have 4 output sound ports (checked sound on each port), 1 micro port (checked with micro on my headphone) and 1 line port ( i haven't checked). Sometime sound is off when i listen music (youtube), and i must change out put sound to another port and change to back, sound is on. i don't know exactly what's happened. Anyway, thanks you so much

Wow wow OMG, thanks you so much i'm on 10.11.5 Thanks again

Hi InsanelyDeepak, thanks for help, i uploaded my codec dump http://www.dropbox.com/s/4gm9hbu5evbpt8t/CodecDump.zip?dl=0 my mainboard is Gigabyte B85M-d3H, so i think i have 6 sound ports on back, 1 jumb to export sound to S/DIF and 2 front sound ports

Sorry Jake Lo, i haven't. i'm trying patch manual to understand how to patch appleHDA.

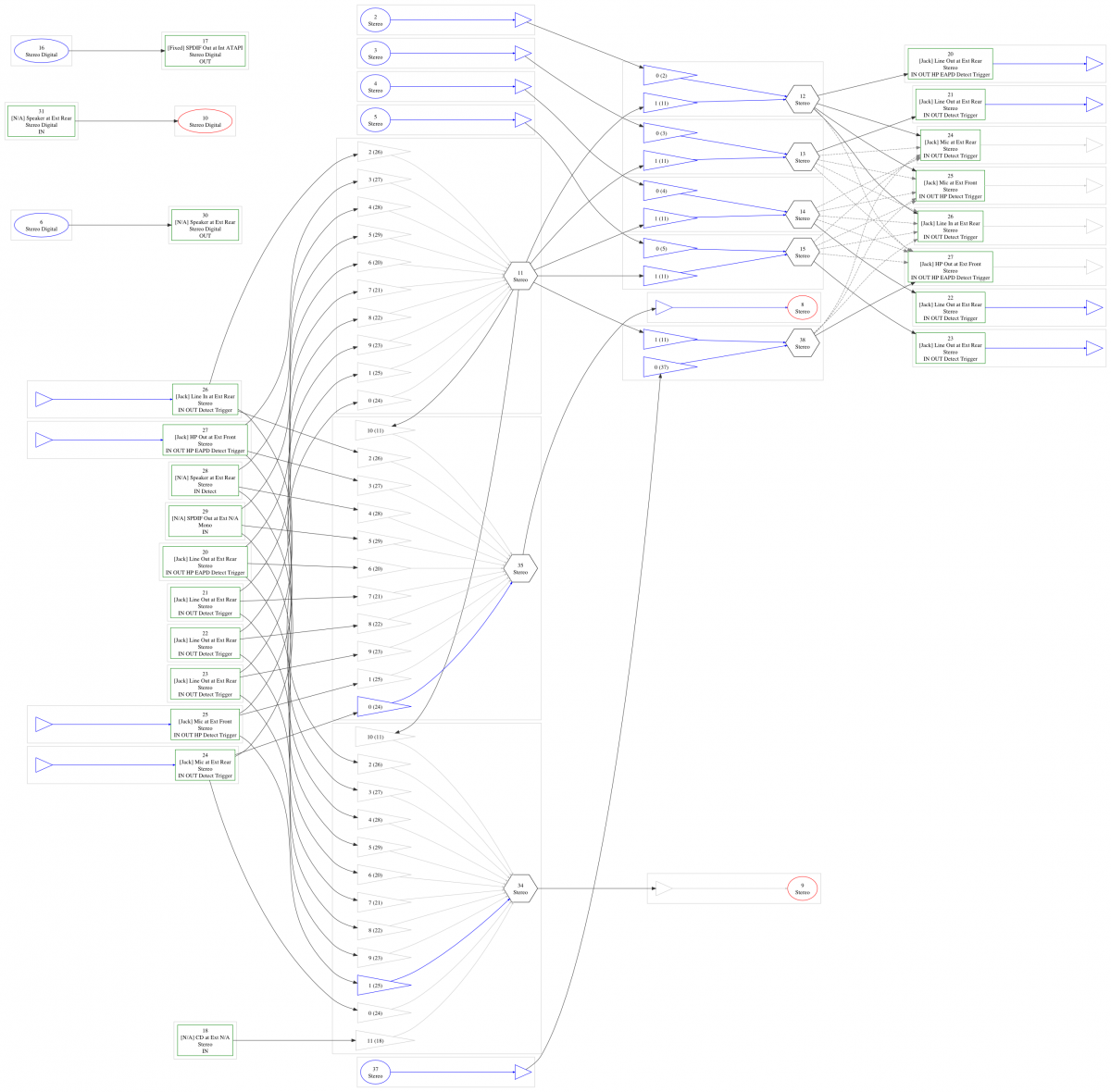

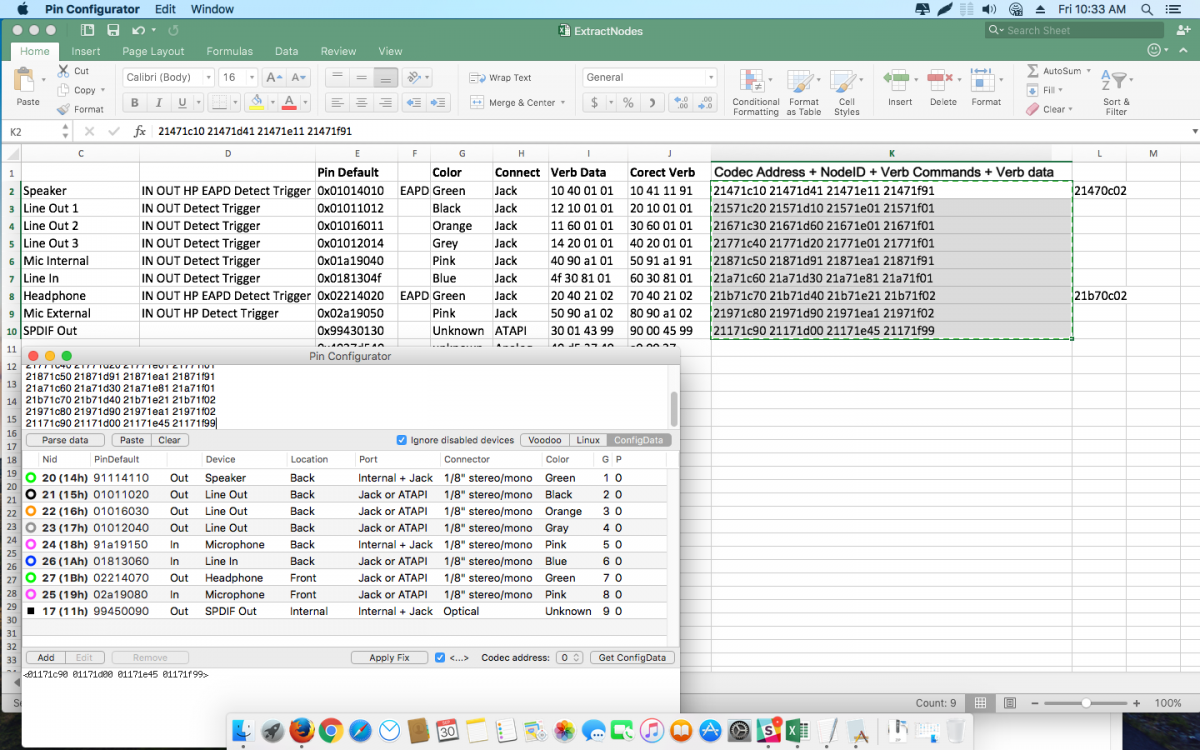

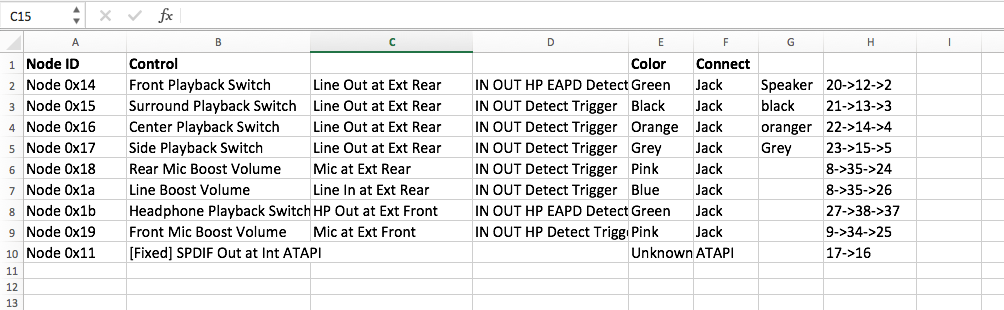

Hello, I'm trying patch appleHDA on my hackintosh, i use Gigabyte B85M-D3H rev 1.2. with ALC892 codec. I followed your guide to Section 1 of Part 2, and i have 8 pin complex nodes, and i don't know what i must do in next step, it's so difference with other codec dump Node 0x14 [Pin Complex] Pin Default 0x01014010 Control: name="Front Playback Switch" EAPD 0x2: EAPD Node 0x15 [Pin Complex] Pin Default 0x01011012 Control: name="Surround Playback Switch" Node 0x16 [Pin Complex] Pin Default 0x01016011 Control: name="Center Playback Switch" Node 0x17 [Pin Complex] Pin Default 0x01012014 Control: name="Side Playback Switch" Node 0x18 [Pin Complex] Pin Default 0x01a19040 Control: name="Rear Mic Boost Volume" Node 0x19 [Pin Complex] Pin Default 0x02a19050 Control: name="Front Mic Boost Volume" Node 0x1a [Pin Complex] Pin Default 0x0181304f Control: name="Line Boost Volume" Node 0x1b [Pin Complex] Pin Default 0x02214020 Control: name="Headphone Playback Switch" EAPD 0x2: EAPD can you help me in this step? i attached my codec dump. Thanks for help
