rschultz101

sleep - wake , bluetooth was lost after wake from sleep - sleep , does some disk activity for 2-3 sec before actually going to sleep - think it should be instant

docking port , E-Port , Display Port graphics not working on dell E7450 laptop , el capitan -> it is the small E-Port with 1x DP , the rear blue USB work, the side USB ones not -> the mini Displayport on the laptop itself works -> tried DP to miniDP , DP to DP , - screen black , laptop screen flickers ones

thanks, worked, r3324 now

just downloaded r3324 - did # sudo diskutil corestorage revert / / is not a CoreStorage Logical Volume does not give EFI partition to install too did also mount with refi mounter, still the same - running r3320 , what the difference r3324

clover, how to check what version I'am running ?

of course, 2 weeks after I deliberately got the 5th gen cpu, they support the 6th gen. pfft do wanna see a dell with UHD screen running on el capitan

note on LCD replacement, - IPS instead of TN , more power consumption , down to ~5:40 on 40whr battery - get a new bezel , since it has glue on the edges - do like the Matte screen , questions: - anybody got the skylake 6th gen CPU working ? - since all the new E7000 series are now coming with 6th gen cpu's

update , replace lcd screen 1366x768 with FHD 1920x1080 LED IPS matte screen - works , bios still A07 strange that at boot is locked up 3 x before it booted into OS X. oh, dell just released today an A11 bios . is there an way to extract the .rom file, since I'am not running windows, and in vmware it does not extract. and should work flashing from usb or SD card

10.11.4 combo update, with new kext ->You need the new version of AppleHDA_ALC293.kext as noted in the Updates section of the guide. - thanks to the forum crew ! - after rebuilt kext manually - sound works !! hurray

tried 10.11.4 again, rebuilt caches via script - no sound , wifi works here is the log #kext built for E7450 in 10.11.4 /Volumes/ssd500-360-3/Z_El_Capitan/Tools/permission.sh rebuilding //System/Library/PrelinkedKernels/prelinkedkernel kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext IntelMausiEthernet.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext IntelBacklight.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakeSMC.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakePCIID_BCM94352Z_as_BCM94360CS2.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakePCIID.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext EAPDFix.kext kext file:///Library/Extensions/DisableTurboBoostBattery.kext/ is in hash exception list, allowing to load kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext BrcmPatchRAM2.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext ApplePS2Mouse.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext ApplePS2Keyboard.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext AppleACPIPS2Nub.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext ApplePS2Controller.kext kext-dev-mode allowing invalid signature -67030 0xFFFFFFFFFFFEFA2A for kext AppleHDA_ALC293.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext ACPIPoller.kext kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext ACPIBatteryManager.kext kxld[com.apple.driver.AppleHDA]: The following symbols are unresolved for this kext: kxld[com.apple.driver.AppleHDA]: IOPCIDevice::metaClass kxld[com.apple.driver.AppleHDA]: IOACPIPlatformDevice::metaClass Link failed (error code 5). Prelink failed for com.apple.driver.AppleHDA; omitting from prelinked kernel. kextcache updated critical boot files, requesting launchd reboot Finished

10.11.4 update , second boot , got up, -> no sound , everything else same went beck to 10.11.3 - my gigabit problem , might be old the airport extreme, ipv6 , have to try the AppleIntelE1000, 1000T full duplex, MTU 1500 - what kext files are for the touchpad , need to chase this one. other ideas, to put a backup boot on the SDXC card, thing a UHS-II 64GB for speed, should even fit 2 different boot, or use it for backup. - battery, initially said like 10hr, now after using it, it report 5hr+, seams to be more accurate now. - they make different batteries, any recommendations think I got the 34whr

update - ethernet slow as always thanks, with dsdt.aml and ssdt 0,7,10 in patched directory , so those are un-modified , just an extract with clover , and I only need those, it extracts a bunch that means I could use my unmodified dsdt and use A10 bios , have to try for touchpad, 2-finger on the pad don't do scrolling, got to hold the middle button, then scrollng works, it's usable ordered an FHD ips screen, let's see if that works -- gigabit is painfully slow at times, good times is 700mb / minute , sometimes crawling, disabled wifi when sneaker-net is faster, something is wrong note: -> update your serial in config.plist still need to find my docking station and test it. - and test dual screen, 1x HDMI 2560x1440 1x miniDP 2560x1440 / 3840x2160 - laptop fan is not running, need to test, that is comes on and works

back to bios A07 , found it , switched disk, flashed it. -> thanks ! with first boot it locked up , second boot worked. Fn 6 brightness works with karabiner lid close, -> sleep ; lid open -> need to use power button to wake sound works -> yeah , with hdmi cable it shows hdmi-sound mini-displayport works sd card reader works webcam works sound jack works, does that have microphone too !? CPU now it shows i7 , while I have i5-5200U , if the DSDT.aml is patched , be nice to have notes for patching clover fn 4 did dump all the dsdt - .aml files also have ssdt files for touchpad, don't have scrolling or multi-touch in vmware windows, don't have middle mouse click , need that for application. it's getting there, thanks next update to 10.11.4 install windows 8.1 on second partition

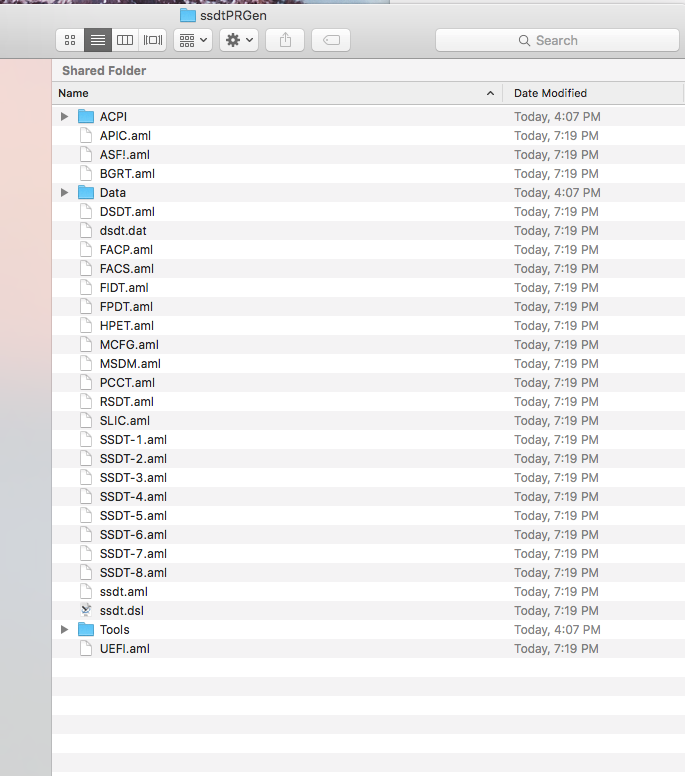

ssdt.aml regenerate with new /old script via curl copied ssdt.aml from me, and ssdt-7 and 10, from E7450_update even copied dsdt.aml from E7450_update , but kp, locked up. did have the OEM cpu flag to false did not copy ssdt-0.aml not sure I need it, since I put in my ssdt.aml ? --- right now , also copied dsdt.aml from my ssdtPRGEN directory boots up, but no change I can see, - no sound - no lcd brightness - no lid close, sleep = sleep works = graphics , screen saver is working, assuming qc/qi quartz working = moving window seems responsive my config file is in previous post screen shot attached from ssdtPRGen directory ---- - need to carbon copy - install windows on 2nd partition - try out display port cable - try out docking station -- sdhc reader not working -- webcam not working -- no scrolling and touchpad !? it is multi-touch capable attached boot.log maybe you can post your working boot.log bootlog.log.txt

did try to generate the ssdt with beta script - not sure it's good enough Roberts-MacBook-Pro:Documents rob$ sudo ./ssdtprgenbeta.sh ./ssdtprgenbeta.sh: line 178: ther: command not found ssdtPRGen.sh v0.9 Copyright © 2011-2012 by †RevoGirl v6.6 Copyright © 2013 by †Jeroen v18.2 Copyright © 2013-2016 by Pike R. Alpha ----------------------------------------------------------- Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues < System information: Mac OS X 10.11.3 (15D21) Brandstring: "Intel® Core i5-5200U CPU @ 2.20GHz" Notice: Downloading extractACPITables.zip ... Notice: Downloading Sandy Bridge.cfg ... Notice: Downloading Ivy Bridge.cfg ... Notice: Downloading Haswell.cfg ... Notice: Downloading Broadwell.cfg ... Version: models.cfg v160 / Ivy Bridge.cfg v0 ./ssdtprgenbeta.sh: line 1355: let: gLogicalCPUs=4*: syntax error: operand expected (error token is "*") ACPI Processor {} Declaration(s) found in DSDT Warning: No ACPI Processor declarations found in the DSDT! Using assumed Scope (\_PR) {} ./ssdtprgenbeta.sh: line 4048: let: modelSpecified=: syntax error: operand expected (error token is "=") Notice: Downloading Restrictions.cfg ... Notice: The LFM frequency in Mac-E43C1C25D4880AD6.plist is set to 1300MHz! This problem can be fixed with help of freqVectorsEdit.sh from: https://github.com/Piker-Alpha/freqVectorsEdit.sh Generating ssdt.dsl for a 'MacBookPro12,1' with board-id [Mac-E43C1C25D4880AD6] ./ssdtprgenbeta.sh: line 4135: [: -eq: unary operator expected Broadwell Core i5-5200U processor [0x306D4] setup [0x0606] With a maximum TDP of 15 Watt, as specified by Intel ./ssdtprgenbeta.sh: line 4212: [: -eq: unary operator expected Number logical CPU's: (Core Frequency: 2200 MHz) Number of Turbo States: 5 (2300-2700 MHz) Number of P-States: 20 (800-2700 MHz) ./ssdtprgenbeta.sh: line 4351: let: gLogicalCPUsPerScope=/1: syntax error: operand expected (error token is "/1") Injected C-States for CPU0 (C1,C3,C6,C7,C8,C9,C10) Injected C-States for CPU1 (C1,C2,C3,C6,C7) Warning: 'cpu-type' may be set improperly (0x0606 instead of 0x0906) Notice: Downloading iasl.zip ... Compiling: ssdt_pr.dsl Intel ACPI Component Architecture ASL Optimizing Compiler version 20140926-64 [Nov 6 2014] Copyright © 2000 - 2014 Intel Corporation ASL Input: /Users/rob/Library/ssdtPRGen/ssdt.dsl - 22 lines, 75 bytes, 0 keywords AML Output: /Users/rob/Library/ssdtPRGen/ssdt.aml - 36 bytes, 0 named objects, 0 executable opcodes Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations Do you want to copy /Users/rob/Library/ssdtPRGen/ssdt.aml to /Extra/ssdt.aml? (y/n)? n Do you want to open ssdt.dsl (y/n)? n Roberts-MacBook-Pro:Documents rob$ ls ssdtPRGen_beta.sh.rtf ssdtprgen.sh.rtf ssdtprgenbeta.sh xbench-ew7450-48.xbench Roberts-MacBook-Pro:Documents rob$ ls /Etra ls: /Etra: No such file or directory Roberts-MacBook-Pro:Documents rob$ cd /Users/rob/Library/ssdtPRGen/
