Hafaisy Posted December 10, 2018 Share Posted December 10, 2018 Hello, im having issues with my 3020M where the installation goes successfully but theres some issue im facing right now which is: 1. Audio is not working (ALC255/ALC3234) Heres the full spec: i5-4570T / H81 8GB DDR3L RAM 256GB SSD Intel HD4600 works Connected via DisplayPort More info : https://content.etilize.com/User-Manual/1035233250.pdf EFI Folder: https://drive.google.com/open?id=1HrsfaFvidaE0M7yods-w2A776Mn7lmfn Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 10, 2018 Moderators Share Posted December 10, 2018 Are you sure it''s ALC255 because on another thread with 3020, it's showing ALC280. Nevermind, the pdf shows ALC255. Change layout-id to 13 and and enable FixMutex in your Config In kexts/Other, remove Shiki.kext, IntelGraphicsFixup.kext, and AzulPatcher4600.kext and replace with WhateverGreen.kext. config.plist.zip Link to comment Share on other sites More sharing options...
Hafaisy Posted December 11, 2018 Author Share Posted December 11, 2018 11 hours ago, Jake Lo said: Are you sure it''s ALC255 because on another thread with 3020, it's showing ALC280. Nevermind, the pdf shows ALC255. Change layout-id to 13 and and enable FixMutex in your Config In kexts/Other, remove Shiki.kext, IntelGraphicsFixup.kext, and AzulPatcher4600.kext and replace with WhateverGreen.kext. config.plist.zip Yes this one is ALC255, still unable to get my audio works. Already use the config.plist u given, and delete Shiki.kext, Intel GraphicsFixup.kext and AzulPathcer4600.kext, also install the WhateverGreen.kext. Still no sign of audio. This PC have internal speaker and front audio jack / mic jack (no rear jack). Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 11, 2018 Moderators Share Posted December 11, 2018 Does speaker work? Does HDMI Audio work? All the ALC255 in AppleALC is for laptops. Try requesting for patching from InsanelyDeepak . Include everything he requested to get it started. Link to comment Share on other sites More sharing options...

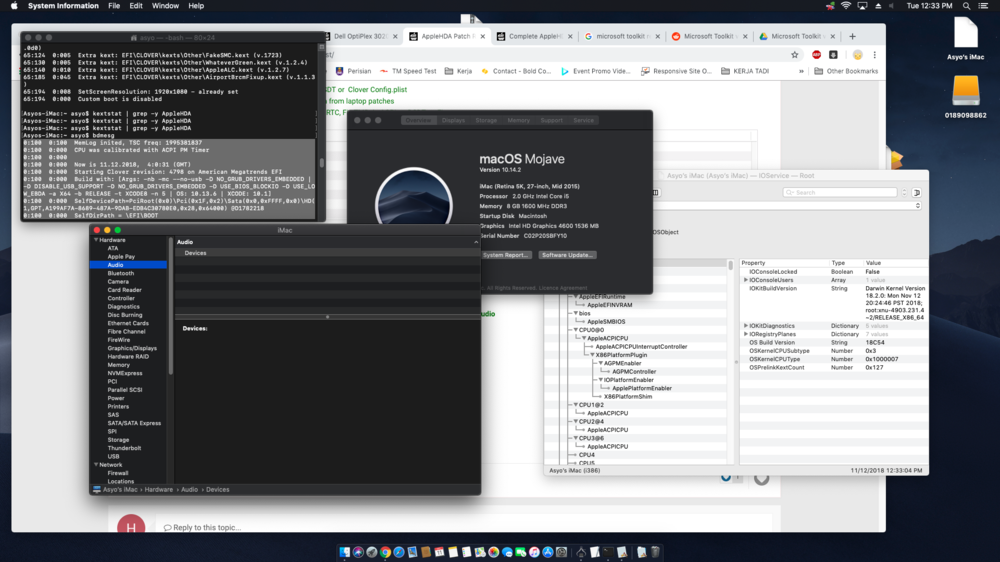

Hafaisy Posted December 11, 2018 Author Share Posted December 11, 2018 It doesn't work. Before this, the internal speaker works on Windows. This PC doesnt have HDMI audio out, just have VGA and DisplayPort. Ok looks like AppleHDA does not loads. When i type kextstat | grep -y AppleHDA on terminal it shows nothing. And at the System Information/Hardware/Audio/ shows nothing. I already include the files in the attachment. Thanks! Quote Clover config.plist IOregistery saved file using IOregisteryExplorer v2.1 Mac OS version you are on Screenshot of System Information/Hardware/Audio/Intel High Definition Audio Clover files i Clover config.plist ii Clover bootlog -> Type in Terminal below commands : save ouput bdmesg Type in Terminal below commands : save ouput kextstat | grep -y AppleHDA Items.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 11, 2018 Moderators Share Posted December 11, 2018 Sorry, I mean do you have audio out from Displayport. No IOReg file attached Link to comment Share on other sites More sharing options...
Hafaisy Posted December 11, 2018 Author Share Posted December 11, 2018 Doesn't work on DisplayPort. Sorry, here it is. Asyo’s iMac.ioreg Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 11, 2018 Moderators Share Posted December 11, 2018 Try this config config.plist.zip Link to comment Share on other sites More sharing options...
Hafaisy Posted December 12, 2018 Author Share Posted December 12, 2018 8 hours ago, Jake Lo said: Try this config config.plist.zip still doesn't work. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 12, 2018 Moderators Share Posted December 12, 2018 As I said, current ALC255 are for laptops, but you can get dp audio out from the monitor. Have you tested that? Please post new debug file. You can get request to patch your audio here as well. Link to comment Share on other sites More sharing options...
