Kernel Panics on Boot e6420

[someitalian123]

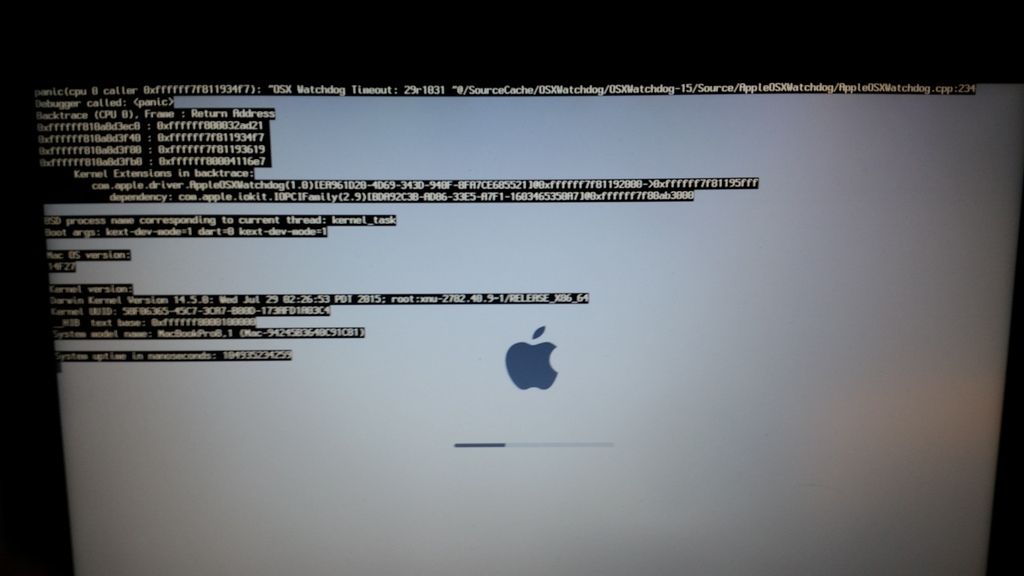

After finally fixing my graphics driver I now am having kernel panics on boot. I can avoid this by either booting into safe mode, or using nullcpupowermanagement.kext. But on the post-installation directions of Jake Lo's guide it says it's ok to "Rename NullCPUPowerManagement.kext to *.bak from /Extra/Extensions." as long as you "Restore it before doing any updates to prevent KP." After I updated to 10.10.5 and reinstalled the kexts from SLE, and the updated ones from Jake Lo's thread, I then renamed it back to NullCPUPowerManagement.kext.bak, it boots correctly if I boot into safe mode and sometimes if I do a normal boot after booting into safe mode, but after that I get kernal panics and I have to use NullCPUPowerManagement.kext to do a normal boot again, and my battery indicator of course no longer shows up. I know it's not as huge of an issue as before, but if anyone can help so I can get my battery indicator back it would be greatly appreciated. I already have an SSDT.dsl, but do I need to generate another one after installing updates, will that make a difference?





If it helps here is my Extra folder, is there anything wrong with the files in there?

Extra.zip

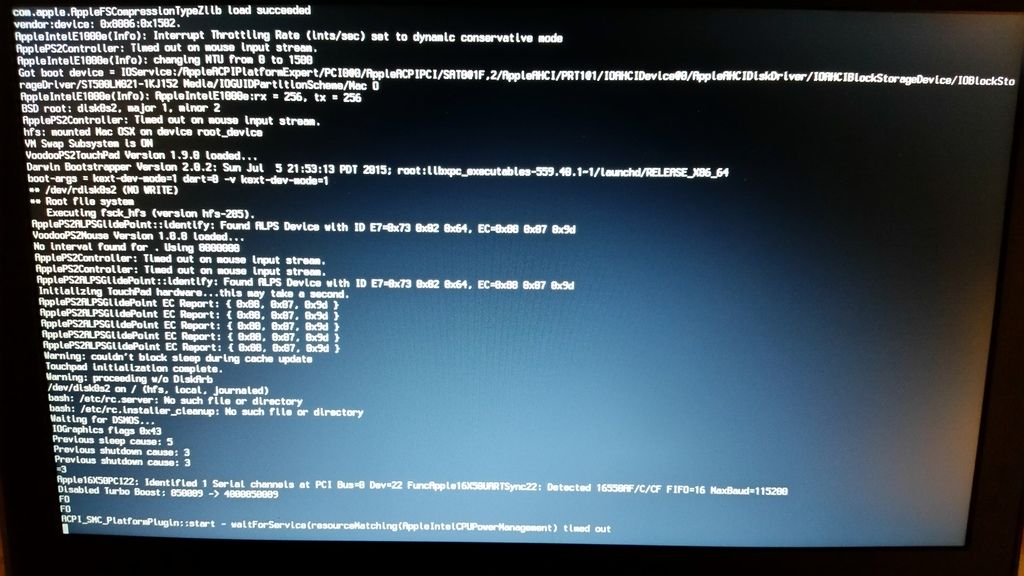

here's another pic this time booting using -v







Edit I found out how to look up the kernel log, so I'll post that here

Oct 11, 2015, 8:11:20 PM kernel[0]: Kext loading now disabled.
Oct 11, 2015, 8:11:20 PM kernel[0]: Kext unloading now disabled.
Oct 11, 2015, 8:11:20 PM kernel[0]: Kext autounloading now disabled.
Oct 11, 2015, 8:11:20 PM kernel[0]: Kernel requests now disabled.
Oct 11, 2015, 8:13:32 PM kernel[0]: Longterm timer threshold: 1000 ms
Oct 11, 2015, 8:13:32 PM kernel[0]: PMAP: PCID enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: Darwin Kernel Version 14.5.0: Wed Jul 29 02:26:53 PDT 2015; root:xnu-2782.40.9~1/RELEASE_X86_64
Oct 11, 2015, 8:13:32 PM kernel[0]: vm_page_bootstrap: 2002174 free pages and 78594 wired pages
Oct 11, 2015, 8:13:32 PM kernel[0]: kext submap [0xffffff7f80a00000 - 0xffffff8000000000], kernel text [0xffffff8000200000 - 0xffffff8000a00000]
Oct 11, 2015, 8:13:32 PM kernel[0]: zone leak detection enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: "vm_compressor_mode" is 4
Oct 11, 2015, 8:13:32 PM kernel[0]: multiq scheduler config: deep-drain 0, urgent first 1, depth limit 4, band limit 127, sanity check 0
Oct 11, 2015, 8:13:32 PM kernel[0]: standard timeslicing quantum is 10000 us
Oct 11, 2015, 8:13:32 PM kernel[0]: standard background quantum is 2500 us
Oct 11, 2015, 8:13:32 PM kernel[0]: mig_table_max_displ = 13
Oct 11, 2015, 8:13:32 PM kernel[0]: TSC Deadline Timer supported and enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: "name" not a kext
Oct 11, 2015, 8:13:32 PM kernel[0]: "Kernel-__SYMTAB" not a kext
Oct 11, 2015, 8:13:32 PM kernel[0]: NullCPUPowerManagement::init: properties=0xffffff8010fc2300
Oct 11, 2015, 8:13:32 PM kernel[0]: FakeSMCKeyStore: started
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleKeyStore starting (BUILT: Jul 29 2015 02:03:38)
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=1 LocalApicId=0 Enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=2 LocalApicId=2 Enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=3 LocalApicId=1 Enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=4 LocalApicId=3 Enabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=5 LocalApicId=4 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=6 LocalApicId=5 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=7 LocalApicId=6 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=8 LocalApicId=7 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=9 LocalApicId=8 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=10 LocalApicId=9 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=11 LocalApicId=10 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=12 LocalApicId=11 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=13 LocalApicId=12 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=14 LocalApicId=13 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=15 LocalApicId=14 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleACPICPU: ProcessorId=16 LocalApicId=15 Disabled
Oct 11, 2015, 8:13:32 PM kernel[0]: calling mpo_policy_init for AMFI
Oct 11, 2015, 8:13:32 PM kernel[0]: Security policy loaded: Apple Mobile File Integrity (AMFI)
Oct 11, 2015, 8:13:32 PM kernel[0]: calling mpo_policy_init for Sandbox
Oct 11, 2015, 8:13:32 PM kernel[0]: Security policy loaded: Seatbelt sandbox policy (Sandbox)
Oct 11, 2015, 8:13:32 PM kernel[0]: calling mpo_policy_init for Quarantine
Oct 11, 2015, 8:13:32 PM kernel[0]: Security policy loaded: Quarantine policy (Quarantine)
Oct 11, 2015, 8:13:32 PM kernel[0]: calling mpo_policy_init for TMSafetyNet
Oct 11, 2015, 8:13:32 PM kernel[0]: Security policy loaded: Safety net for Time Machine (TMSafetyNet)
Oct 11, 2015, 8:13:32 PM kernel[0]: Copyright (c) 1982, 1986, 1989, 1991, 1993
Oct 11, 2015, 8:13:32 PM kernel[0]: The Regents of the University of California. All rights reserved.
Oct 11, 2015, 8:13:32 PM kernel[0]: MAC Framework successfully initialized
Oct 11, 2015, 8:13:32 PM kernel[0]: using 16384 buffer headers and 10240 cluster IO buffer headers
Oct 11, 2015, 8:13:32 PM kernel[0]: IOAPIC: Version 0x20 Vectors 64:87
Oct 11, 2015, 8:13:32 PM kernel[0]: ACPI: sleep states S3 S4 S5
Oct 11, 2015, 8:13:32 PM kernel[0]: CPUSensors: CPU family 0x6, model 0x2a, stepping 0x7, cores 2, threads 4, TJmax 100
Oct 11, 2015, 8:13:32 PM kernel[0]: CPUSensors: setting platform keys to [k62     ]
Oct 11, 2015, 8:13:32 PM kernel[0]: CPUSensors: base CPU multiplier is 25
Oct 11, 2015, 8:13:32 PM kernel[0]: CPUSensors: started
Oct 11, 2015, 8:13:32 PM kernel[0]: pci (build 02:08:07 Jul 29 2015), flags 0xe3000, pfm64 (36 cpu) 0xf80000000, 0x80000000
Oct 11, 2015, 8:13:32 PM kernel[0]: [ PCI configuration begin ]
Oct 11, 2015, 8:13:32 PM kernel[0]: console relocated to 0xf80000000
Oct 11, 2015, 8:13:32 PM kernel[0]: [ PCI configuration end, bridges 6, devices 14 ]
Oct 11, 2015, 8:13:32 PM kernel[0]: RTC: Only single RAM bank (128 bytes)
Oct 11, 2015, 8:13:32 PM kernel[0]: ACPIBatteryManager: Version 1.53 starting.
Oct 11, 2015, 8:13:32 PM kernel[0]: ACPIBatteryManager: Using ACPI regular battery information method _BIF
Oct 11, 2015, 8:13:32 PM kernel[0]: ACPISensors (THM): 1 sensor added
Oct 11, 2015, 8:13:32 PM kernel[0]: ACPISensors (THM): started
Oct 11, 2015, 8:13:32 PM kernel[0]: OSMetaClass: Kext org.netkas.FakeSMC class FakeSMC is a duplicate;kext org.netkas.driver.FakeSMC already has a class by that name.
Oct 11, 2015, 8:13:32 PM kernel[0]: Kext org.netkas.FakeSMC start failed (result 0xdc00400a).
Oct 11, 2015, 8:13:32 PM kernel[0]: Kext org.netkas.FakeSMC failed to load (0xdc008017).
Oct 11, 2015, 8:13:32 PM kernel[0]: Failed to load kext org.netkas.FakeSMC (error 0xdc008017).
Oct 11, 2015, 8:13:32 PM kernel[0]: FakeSMC v6.11.1328 Copyright 2014 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
Oct 11, 2015, 8:13:32 PM kernel[0]: FakeSMC v6.11.1328 Copyright 2014 netkas, slice, usr-sse2, kozlek, navi, THe KiNG, RehabMan. All rights reserved.
Oct 11, 2015, 8:13:32 PM kernel[0]: FakeSMC: 13 preconfigured keys added
Oct 11, 2015, 8:13:32 PM kernel[0]: SMC: successfully initialized
Oct 11, 2015, 8:13:32 PM kernel[0]: FakeSMC: 16 preconfigured keys added
Oct 11, 2015, 8:13:32 PM kernel[0]: SMC: successfully initialized
Oct 11, 2015, 8:13:32 PM kernel[0]: SuperIODevice: [Fatal] found unsupported chip! ITE sequence ID=0x300, Winbond sequence ID=0xffff
Oct 11, 2015, 8:13:32 PM kernel[0]: mcache: 4 CPU(s), 64 bytes CPU cache line size
Oct 11, 2015, 8:13:32 PM kernel[0]: mbinit: done [96 MB total pool size, (64/32) split]
Oct 11, 2015, 8:13:32 PM kernel[0]: VoodooPS2TouchPad Version 1.9.0 loaded...
Oct 11, 2015, 8:13:32 PM kernel[0]: VoodooPS2Trackpad: Identify TouchPad command returned incorrect byte 2 (of 3): 0x00
Oct 11, 2015, 8:13:32 PM kernel[0]: com.apple.AppleFSCompressionTypeDataless kmod start
Oct 11, 2015, 8:13:32 PM kernel[0]: rooting via boot-uuid from /chosen: 8416F174-F10A-33AC-B61E-CF0EEF88F652
Oct 11, 2015, 8:13:32 PM kernel[0]: Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>
Oct 11, 2015, 8:13:32 PM kernel[0]: com.apple.AppleFSCompressionTypeZlib kmod start
Oct 11, 2015, 8:13:32 PM kernel[0]: com.apple.AppleFSCompressionTypeDataless load succeeded
Oct 11, 2015, 8:13:32 PM kernel[0]: com.apple.AppleFSCompressionTypeZlib load succeeded
Oct 11, 2015, 8:13:32 PM kernel[0]: vendor:device: 0x8086:0x1502.
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleIntelE1000e(Info): Interrupt Throttling Rate (ints/sec) set to dynamic conservative mode
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2Controller: Timed out on mouse input stream.
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleIntelE1000e(Info): changing MTU from 0 to 1500
Oct 11, 2015, 8:13:32 PM kernel[0]: Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/SAT0@1F,2/AppleAHCI/PRT1@1/IOAHCIDevice@0/AppleAHCIDiskDriver/IOAHCIBlockStorageDevice/IOBlockStorageDriver/ST500LM021-1KJ152 Media/IOGUIDPartitionScheme/Mac OSX@2
Oct 11, 2015, 8:13:32 PM kernel[0]: AppleIntelE1000e(Info): AppleIntelE1000e:rx = 256, tx = 256
Oct 11, 2015, 8:13:32 PM kernel[0]: BSD root: disk0s2, major 1, minor 2
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2Controller: Timed out on mouse input stream.
Oct 11, 2015, 8:13:32 PM kernel[0]: hfs: mounted Mac OSX on device root_device
Oct 11, 2015, 8:13:32 PM kernel[0]: VM Swap Subsystem is ON
Oct 11, 2015, 8:13:32 PM kernel[0]: VoodooPS2TouchPad Version 1.9.0 loaded...
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint::identify: Found ALPS Device with ID E7=0x73 0x02 0x64, EC=0x88 0x07 0x9d
Oct 11, 2015, 8:13:32 PM kernel[0]: VoodooPS2Mouse Version 1.8.8 loaded...
Oct 11, 2015, 8:13:32 PM kernel[0]: No interval found for . Using 8000000
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2Controller: Timed out on mouse input stream.
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2Controller: Timed out on mouse input stream.
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint::identify: Found ALPS Device with ID E7=0x73 0x02 0x64, EC=0x88 0x07 0x9d
Oct 11, 2015, 8:13:32 PM kernel[0]: Initializing TouchPad hardware...this may take a second.
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint EC Report: { 0x88, 0x07, 0x9d }
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint EC Report: { 0x88, 0x07, 0x9d }
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint EC Report: { 0x88, 0x07, 0x9d }
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint EC Report: { 0x88, 0x07, 0x9d }
Oct 11, 2015, 8:13:32 PM kernel[0]: ApplePS2ALPSGlidePoint EC Report: { 0x88, 0x07, 0x9d }
Oct 11, 2015, 8:13:32 PM kernel[0]: Touchpad initialization complete.
Oct 11, 2015, 8:13:34 PM kernel[0]: Waiting for DSMOS...
Oct 11, 2015, 8:13:36 PM kernel[0]: IOGraphics flags 0x43
Oct 11, 2015, 8:13:36 PM kernel[0]: Previous sleep cause: 5
Oct 11, 2015, 8:13:36 PM kernel[0]: Previous shutdown cause: 3
Oct 11, 2015, 8:13:36 PM kernel[0]: Previous shutdown cause: 3
Oct 11, 2015, 8:13:36 PM kernel[0]: Apple16X50PCI22: Identified 1 Serial channels at PCI Bus=0 Dev=22 Func=3
Oct 11, 2015, 8:13:36 PM kernel[0]: Apple16X50UARTSync22: Detected 16550AF/C/CF FIFO=16 MaxBaud=115200
Oct 11, 2015, 8:13:36 PM kernel[0]: Disabled Turbo Boost: 850089 -> 4000850089
Oct 11, 2015, 8:13:37 PM kernel[0]: FO
Oct 11, 2015, 8:13:38 PM kernel[0]: FO
Oct 11, 2015, 8:13:42 PM kernel[0]: ACPI_SMC_PlatformPlugin::start - waitForService(resourceMatching(AppleIntelCPUPowerManagement) timed out

I think this log was from the same attempt when I took the picture above, but at least it should be easier to read and have more information





Edit



Ok so tried deleting DisableTurboBoostBattery.kext from /System/Library/Extensions and I am now able to get in using -v but if I boot with no options I can't get in. I tried copying and pasting some text from the kernel log



after delete -v.rtf



after delete no -v.rtf







[vrondena]

boot with -f -v

[Bronxteck]

the reason you need nullcpu kext is because you need to patch AppleIntelCPUPowerManagement kext for your platform and os version. i am guessing sandy bridge

[someitalian123]

It boots fine with no nullcpu as long as I boot using the -v flag, I don't need -f or -x. So I just edited my org.chameleon.Boot.plist to always boot in verbose mode. I don't understand why it works only in verbose mood since I thought that all this did was show the log while booting, if anyone can explain it to me it would be helpful. I am aware that I need a patched AppleIntelCPUPowerManagement kext but there was one included in Jake Lo's bootpack and thats the one I've been using since before starting the thread.
