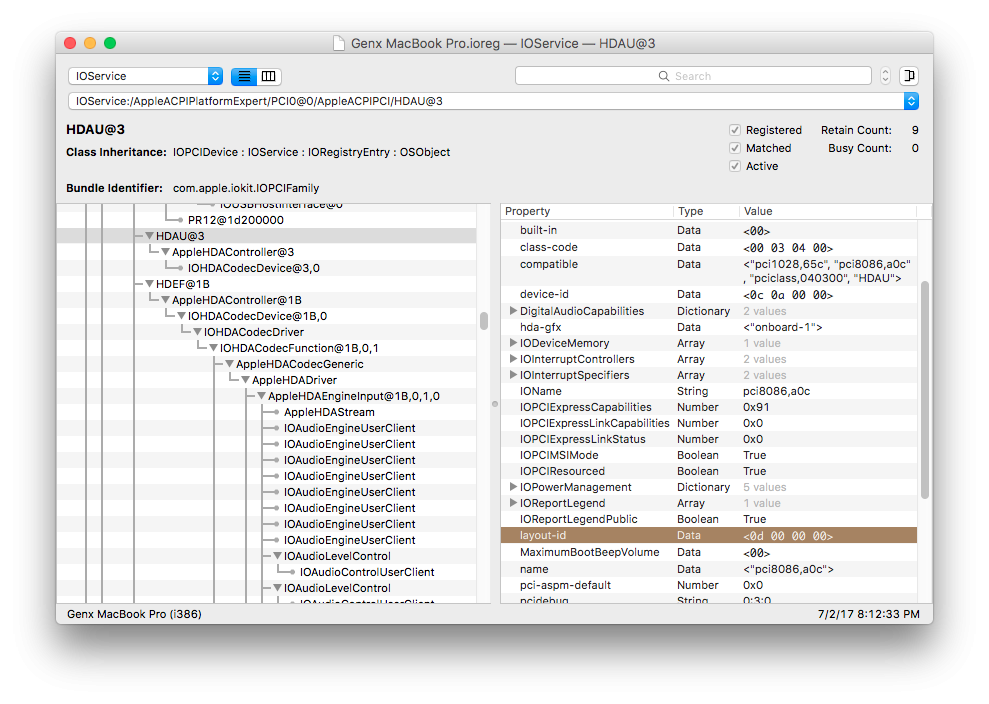

kekkei Posted July 3, 2017 Author Share Posted July 3, 2017 I am extremely sorry for what i mentioned , I beg pardon for that, i had decompiled my acpi tables 1 year ago.looked again and found that none of mentioned above flaws are from your side.i don't know why it has defined 8 cpu cores while i can see only 4 cores in ioreg working ,others are just dummy entries.again sorry for what i said,just forget it. But,i still cant see Intel Hdmi audio controller under Dpci manager below realtek audio .(see screenshots) I dont think it is necessary to add dsdt.aml in config.plist.is it necessary ? I have also attached my ioreg .is it correct for hdau from your view ? ioreg+dpci_screenshot.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 3, 2017 Moderators Share Posted July 3, 2017 The screen of the DPCIManager is same on my Haswell system, but HDMI audio works just fine. What happened when you plug into an HDMI monitor with audio capable? Your IOReg does not show you have anything plug in. Layout-id is definitely attached. 0x0D = Hex for 13 Strange I'm only seeing FB@0 and not FB@1 or FB@2 available under IGPU@2. Did you look in Sound preferences under Output tab to see if HDMI audio appeared? Link to comment Share on other sites More sharing options...
kekkei Posted July 3, 2017 Author Share Posted July 3, 2017 Yeah,i knew that layoutid is in hex,as like 0x11 is for 17 decimal,i am trying to see this property key & value and device id in IOHDSCODECDEVICE@3,0 instead. Further,i have disabled my both output other than lvds ,@1 and @2 (it is in 9mb cursor bytes patch).Because it cause a little lag while login and after sleep.Forget it . I just want to learn to patch for hdmi as i seen people with hdmi visible in dpci manager.(i have stated in first post that i want to know patching instead) Also,i have a single physical output other than lvds,which is vga no dp ,no hdmi.So will try someday with vga output(i know it has nothing to do with hdmi audio).also,you have confirmed that hdmi audio is working without visible under dpci,that is enough. And thanks a lot again for your concern. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 3, 2017 Moderators Share Posted July 3, 2017 see here https://github.com/toleda/audio_CloverHDMI Link to comment Share on other sites More sharing options...
kekkei Posted July 5, 2017 Author Share Posted July 5, 2017 Thanks again Jack Lo Sent from my Redmi Note 3 using Tapatalk Link to comment Share on other sites More sharing options...
kekkei Posted July 5, 2017 Author Share Posted July 5, 2017 An off topic , nothing happens when i press power button ,(power button is not configured) .Although ,eventually on pressing it for long time ,system turn off (which is hardware feature). further ,instead of alt+ctrl+delete key comb. ,i have alt+ctrl+insert as sudden reboot (described by Rehabman in voodookeyboard.kext ). Sent from my Redmi Note 3 using Tapatalk Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 5, 2017 Moderators Share Posted July 5, 2017 what do you expect pressing the power button to do besides the obvious? If you mean sleep, then no, you could either close the LID or select sleep from the menu bar drop down. Link to comment Share on other sites More sharing options...
kekkei Posted July 7, 2017 Author Share Posted July 7, 2017 Hi, Jack Lo ,sorry for late reply, I am expecting a power shutdown dialog menu on pressing power button or ctrl+powerbutton. Thanks Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 7, 2017 Moderators Share Posted July 7, 2017 What touchpad do it have? I'm using ApplePS2Controller (generic) on my system and the power button does provide dialog menu. So I guess you'll have to use the correct kext for your system or give ApplePS2Controller a try but it doesn't give you any multi touch function. Elantouch = Try Dinesh's VoodooPS2Controller Synaptics = Rehabman's VoodooPS2Controller Alps = Dr. Hurt's Refined VoodooPS2Controller Cypress. = won't support Sierra, causes KP unless the developer fixes it Link to comment Share on other sites More sharing options...
kekkei Posted July 9, 2017 Author Share Posted July 9, 2017 Its Rehabman's VoodooPS2Controller.kext (synaptics) Link to comment Share on other sites More sharing options...
