  1. Great debug work, Herve! This can definitely be one thing to try. One question: it's nice that your monitor actually tells you what the problem is! Mine just says "no signal". When the resolution was not correct and the monitor was blank, were you able to find the monitor in SysPref->Display? My problem is that I cannot see this monitor there and I don't know how I can change the resolution (the monitor does show up in IOReg). But you are absolutely correct, my monitors also have different resolutions. Another thing is that I can never get that display panel work correctly since I installed 10.13.6. It never shows the monitor info even if I use built-in HDMI and video works perfectly. All I get is this: No monitor or other options can be found.
  2. Yes, Sure. After removing the two video kexts, there are what I currently have in /L/E.
  3. Sorry forgot about the kexts. This time I removed WG and FakePCIIntel*. Tried different resolutions of built-in LCD but external display is still blank. I think when I plugin the the cable there IS some signal sent to the monitor, because the monitor wakes up and the built-in screen saver stops. However, immediately after that there is no signal and the monitor goes to sleep again. IOReg has the correct monitor information registered (vendor id, product id, EDID). But SysPref->Display cannot find another monitor. I also tried the sleep function and it still breaks (KP) At some point (several days ago) I was able to get the video out on the external display. But while trying to fix the sleep/shutdown KP I tried different things, and now I cannot even go back to that state. I can never get it NOT cause KP when the docking station video cable is plugged in. Although the specs are very similar between a E6440 and E7440, I'm wondering if there is some fundamental differences. I've searched for days but haven't found any E7440 working with docking station (while there might not be many users trying hackingtosh). My concern is if there is some "internal" bug that prevents it from working properly. But the laptop did work 100% with the dock and video when Windows was installed.
  4. Thanks again, @Herve! Warm docking would be nice to have but I don't care. As long as I can get the video out from the docking station and there is no KP on sleep/shutdown, I will be happy. That's correct. I have one copy of most kext in /L/E only. The only exception are FakeSMC and VoodooPS2Controller-R6. I was told these are considered "essential" and need to be placed in Clover folder as well (since Clover needs them too). I have no idea why it shows twice in the kextcache log. I might be wrong but I was told the Clover renaming patch only applies to DSDT. So the patched DSDT should have IGPU, same as SSDT-PNLF. I need to check on this. Thank you for pointing it out! Thank you for making these files for me. I tried it out. However, it seems it didn't fix it. The external monitor still gets no signal IOReg still shows the monitor but only internal display shows up in SysPref->Display. Attached are the files I have now.
  5. Thank you, @Herve. Attached zip has the files. I attached the kextcache output as well. As you can see in IOReg, port 0204 is correctly patched to 0002 (DVI). It can even detect the display after I plugged in the cable (there are entries in IOReg). However, no external display is found in Sys Pref->Display or Apple->About this Mac->Display. With the cable plugged in, I always get KP when trying to sleep or shutdown. port 0105 is patched to 0008 (HDMI) and it works for the most part. The only issue is, if I close the lid and boot the laptop with HDMI connected, I cannot open lid or put it to sleep or shutdown. Any of these action causes KP. If I boot it with lid open, everything works. I suspect DSDT may have special methods to handle dock and undock, and those code need to be patched. But it looks like it's all working for you. Any help is appreciated. Thank you for your time!
  6. Hi @Herve, Thanks for your reply. Yes I have followed your guide and HDMI works perfectly, both video and audio. However, I have a hard time getting any of the video port to work from the docking station (HDMI port is built-in). I have used the patch you suggested for the DVI: Find: 0204 0900 0004 0000 Replace: 0204 1200 0002 0000 I can confirm the port # is 0204, since ioreg shows that it has identified the display (it has all the vendor/product/EDID info). However, there is just no output in the monitor. Both the built-in and external display blacked out for a second when I plugged in the cable, but then the external display went blank (built-in display comes back and it works fine). I've tried different cables and multiple monitors to no avail. What kext do you have regarding video? Do you use IntelGraphicsFixup or WhateverGreen? Do you have any KP issue when DVI or DP port is plugged in? When I have this cable plugged in, it crashes (KP) every time when I put the laptop to sleep or trying to shutdown. I'm wondering if I need some special DSDT patch to make it work.
  7. Hi @Herve, That's good news! Thank you for your guide and update. Could you please share more information about how to patch AppleGraphicsDevicePolicy? I have been struggling to get the docking station video outputs work on my E7440. What kext to do you have? Do you need any special DSDT patch to make it work? I've tried different frame buffer patches but the result was inconsistent, and I haven't figured out why. The best result I managed to get was that I did get the video out on either DVI or DP, but sleep or shutdown don't work (both cause kernel panic when the cable is plugged in. Without the cable everything is fine). Does sleep/shutdown work for you? I'm using 10.13.6. Then after I tried several different things (mainly switching between IntelGraphicsFixup and WhateverGreen and boot options for WhateverGreen), I cannot even get the video out now. I believe I went back to the same kext/setting I had before, but now there is no video signal on the monitor. If I check ioreg it has detected the display, and all the vendor/product/EDID info are correct. However there is just no video out (monitor power blinks which means it's waiting for the signal). Plus the sleep/shutdown still cause KP. I don't know if this makes sense at all, but during my tests I found that the connector type does not matter that much. I could use one type (I don't remember if it was DP or DVI) to make both DP and DVI work (and both have the same KP issue :/). The "priority" bit you mentioned like 010509 does matter. For example 010512 works perfectly for my HDMI, but 010509 does not (it turns both displays blank). So does the activation delay. Is there any document talking about what priority bit we should use?
  8. I didn't try this solution directly but I did update to High Sierra (10.13.6). It looks like the bootpack has this method (layout id = 12) and this problem is gone. Thank you Jake! EDIT - sorry I spoke too fast. I still heard the sound after the most recent reboot. So it seems it's not happening every time but the problem is still there. Guess I will need to try out other layout ids?
  9. Thanks Jake. Unfortunately I didn't see your message in time. I did some thing more "radical": I updated to High Sierra (well the old system is not all working anyway, so I guess I would just give another version a try). Again I followed your guide. During installation, the weird part is that I lost my internal display for a couple of times (laptop screen just went black). I thought the installation was dead but after I hooked up the HDMI cable I found the video output was on the external display only. That's quite strange but I managed to complete the install. Then I unplugged the HDMI cable and tried the docking station. This time I used the DP port since I noticed your Clover config is already patching DP. Then.. for the first time, the external monitor received signal! It shows a "snowfall" for a couple of seconds (what you see on a old old analog TV without antenna). Then it shows the desktop. The resolution is correct, but the color is not :( It seems the black color has been changed to purple, and the whole screen feels like it's been covered with something. But, at least this is the first time I saw something through the docking station! I then replaced the DP patch with DVI patch and tired the DVI cable. Restarted and the monitor's build-in speakers made some loud noise for a few seconds, and the picture came up. Unfortunately it's the same as the DP port. The color is still wrong. Another problem I found is that with either DP or DVI port, I cannot shut down the laptop correctly. It just hangs there and I had to press and hold the power button to shut off. All these problems make DVI/DP port unusable. So I had to switch back to HDMI. The problem is that with HDMI I always lose my internal display. SysPrefs->Display does not show it at all. So I did more tests. One of those was that I completely disabled both patches for HDMI and DVI/DP. To my surprise, the external display still works through HDMI! IOreg shows the connector type is the default "0004 0000", yet my external monitor works fine. Also with both patches disabled I got the internal display back - sort of. The first time I boot up, there is no internal display. But if I do a sleep and come back, I have both displays. Again, not sure why. Finally I tried DVI/DP ports (without any patch), as expected, there is nothing at all showing up. So to sum up (I know there is a lot of info, sorry about that), with High Sierra (10.13.6): 1. With HDMI and DVI/DP patches, I don't have internal display with HDMI connection; wrong color/no power off with DVI/DP; 2. Without any patches, HDMI still works and so does internal display after recovering from sleep. 3. In either option I never get the mirroring options" button in the menu bar. Any insight on what is going on here? I'm more interested in #2 why internal display does not work on first boot but works after sleep. If this could be fixed, I think I can live without the docking station. Thanks
  10. Thank you, Jake! I'm currently using AppleHDA_ALC292.kext. Do I use AppleALC.kext to replace this one?
  11. That's bad news. The popping sound could be really loud and I even worried it could break the internal speaker. If I connect the HDMI cable, both the monitor (which has built-in speaker) and the laptop make this noise upon restarting or powering off. It seems it always shuts down the audio source before shutting down the speaker, which seems to be a bad design.
  12. OK to clean things up I did a re-install following Jake's guide again. This time I reused the kexts and config.plist from the current Clover folder (maybe a bad choice?). Well, I still don't have the DVI output from the dock. What's worse, it seems my HDMI output is having some problem too. This is the HDMI port built into the laptop, and it was working fine. After this reinstallation, the HDMI still works (external monitor), but I somehow lost my internal display! No matter which choice I use (mirror internal, mirror external, use separate), I only get output on the external display. If I disconnect the HDMI cable, I get nothing. Not sure what happened. Has anyone seen any problem like this? How to get the internal display back?

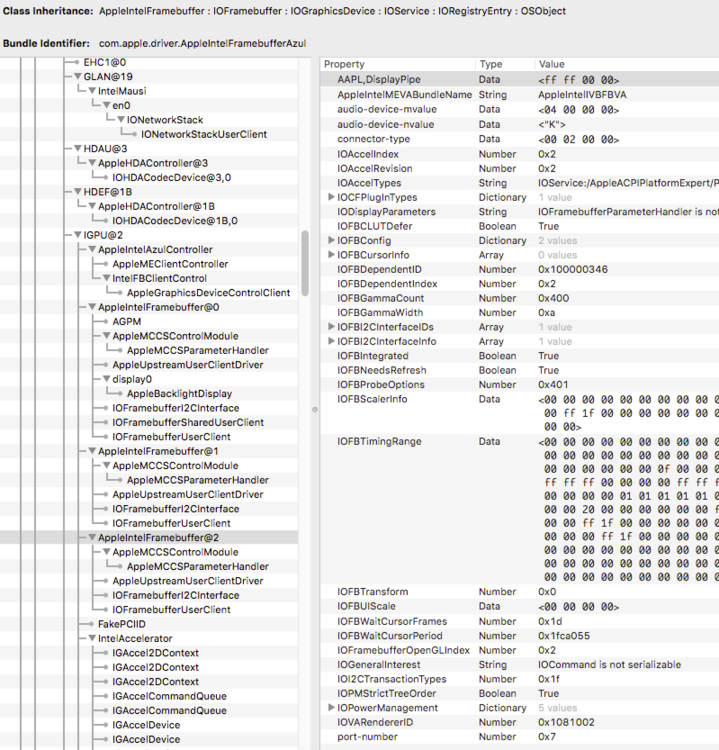

  13. Herve, Thank you so much for verifying your setup! Really appreciate you spent the time debugging someone else's problem. Yes I confirmed I have a good connection with the docking station. It actually has two positions and I happen to have both E5400 and E7440, which use different positions. I confirmed the eject button is lit blue. I tried port #7 and this is my patch: 0600260A 01030303 00000002 00003001 00009000 00000060 D90A0000 D90A0000 00000000 00000000 00000800 02000000 30000000 01051200 00080000 87000000 03061200 00020000 87000000 Note that I kept the 9MB cursor patch at the same time (not entirely sure what it does though). First I tried patching no the fly using Clover, and second tried patching directly on the binary on S/L/E (and disabled Clover patch). Both gave me the same result. Still no display My ioreg looks as follows: The Display Pipe is FFFF and there is no display detected. Could it be a problem of DSDT? I'm using the "default" DSDT comes with Jake's boot pack in his guide. I have not spent the time to re-compile my own one. Can that be the problem? Anyway, somehow port #6 gives me a display with no signal sending to it. And port #7 gives me nothing at all. Thanks,
  14. E7440 fresh El Capitan install following Jake's guide: I found when restarting or shutting down, the speaker makes a loud popping sound. It's like when you turn off the preamp before turning off the speaker, and the speaker makes that pop noise. I searched online and tried the antipop app, but it didn't work. Is there anyway to fix this issue? Thanks,
  15. That's right. This is what I changed to: 0600260A 01030303 00000002 00003001 00009000 00000060 D90A0000 D90A0000 00000000 00000000 00000800 02000000 30000000 01051200 00080000 87000000 02041200 00020000 87000000 FF000000 01000000 40000000 I also tried setting priority to "09", no change.
  16. Hi Herve, Thank you very much for your quick reply. I'm encouraged that you think El Capitan should work Sorry I didn't make it clear. I have been using Clover to patch the binary on the fly (this should be the final version used, correct?). I did NOT change the binary myself. So the first bullet you mentioned is what I'm doing now. So your docking station has even more video ports. When they worked for you, did the displays all come from one framebuffer? I was surprised that no matter which port I use on the docking station (DVI, DP, or even VGA), they were all from #6 with framebuffer2. My understanding is that one framebuffer is linked with only one port (DVI OR DP). If they all are mapped to one framebuffer, how can one use both DVI or DP at the same time (or maybe that's not possible?) Every time I can see the display being connected to the framebuffer in ioreg, but there is just no output. Also I found if I keep it plugged in to the docking station (DVI or DP) it usually causes crashes when I reboot the machine. Unplugging it and I don't have an issue. So I know the framebuffer patch is making a difference, but it's just not giving me the desired output. I read through all the posts in your guide. It seems the last reply (by metrobug) described the same problem as I'm having now. He is also using 10.11.6, which is the same OS. He has a slightly different e7240, but the iGPU is the same HD4400 as mine.
  17. First I would like to say Thank You to Jake Ho, Herve, and all other contributors to the forum. Not only you did all the research and experiment, but also you spent the time to put things together and made these wonderful guides. Really great work! My laptop is Dell E7440 and I followed this guide to install El Capitan (10.11.6): https://osxlatitude.com/forums/topic/8506-dell-latitude-inspiron-precision-vostro-xps-clover-guide/ HDMI works fine since Jake has has correct patch in the Clover config to begin with. Then I found the DVI/DP ports on the docking station (PR03X) don't work. I found Herve's guide: https://osxlatitude.com/forums/topic/8723-enabling-dvidphdmi-and-increasing-vram-with-intel-haswell4th-gen-hd420044004600etc-igpu/ So I tried to patch the Azul kext myself. It has 3 ports, #0, #5, and #6. With #0 assigned to built-in display and #5 to HDMI. #6 is currently assigned to DP and I changed it to DVI: before: 02040900 00040000 87000000 after: 03061200 00020000 87000000 This does not work. I found that the port is actually #6 not #7 so I did this: before: 02040900 00040000 87000000 after: 02041200 00020000 87000000 No go either. But at least, with this patch IOreg can detect the monitor. A "display0" was added to the table with correct vendorID, etc. But there is no signal received by the monitor. I then tried all kinds of patches. I found no matter which port I set to (I tried DVI, DP, and even VGA), it always goes to the #6 port (which is framebuffer2). Does that mean all the ports on the docking station share the same port? If that is the case, how would dual monitor work? So I went a step further and added the fourth port (#7). I tried different port number but no display is ever assigned to this port. They always go to #6. I think the patch was working to some extend, as the system can detect the monitor and retrieve some info. However, there seems to be some missing link that the video out is missing. Does anyone know what that could be? Can DSDT play a role here? How are these kext files interact anyway? At one point I tried replacing the HDMI port with a DVI port, then I found the audio stopped working. I thought that should be in AppleHDA kext. Why altering HDMI affects the internal speaker? I noticed Herve mentioned that dual monitor setup stopped working after a Sierra update. I'm using El Capitan though. Really appreciate any help or insight on debugging this issue.
