Hello,
I have thinkpad T440p and I have dw1820a:
I followed @Hervés guide (clover inject) first. In Windows, device properties in device manager shows:
Location Paths:
PCIROOT(0)#PCI(1C01)#PCI(0000)
ACPI(_SB_)#ACPI(PCI0)#ACPI(EXP2)#PCI(0000)
(no BIOS Path in the options)
I can't boot without:
1) brcmfix=1 in boot arguments
2) airportbrcmfixup.kext in c/k/o

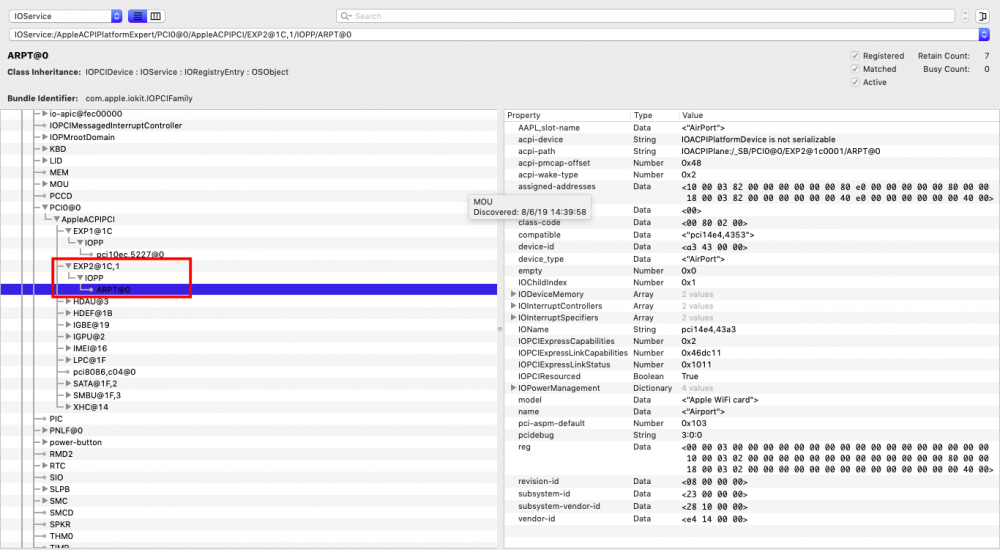

When checking FixAirport and AddDTGP in ACPI Fixes:

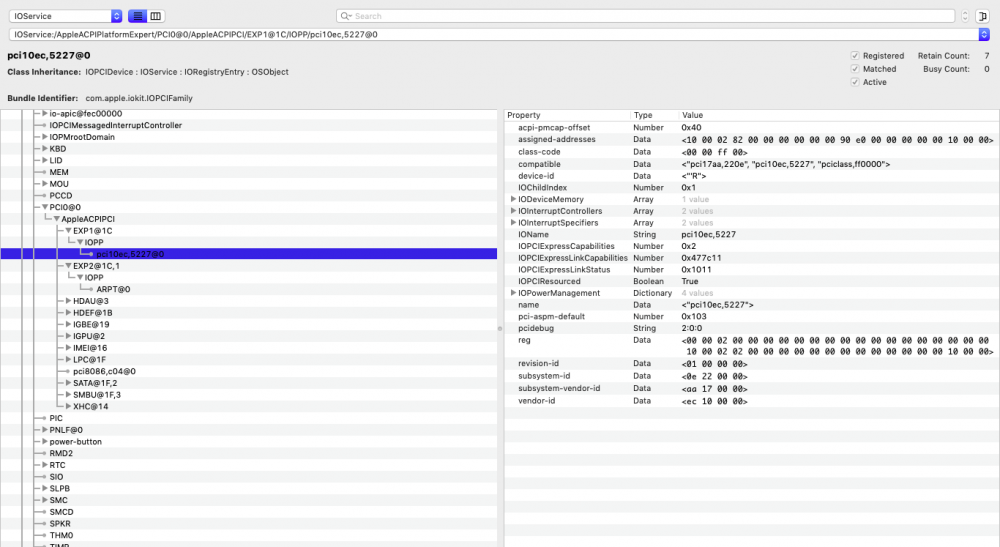

This path shows up: (without FixAirport and AddDTGP checked, only EXP1@1C shows up, which I think is the cardreader at least according to hackintool)

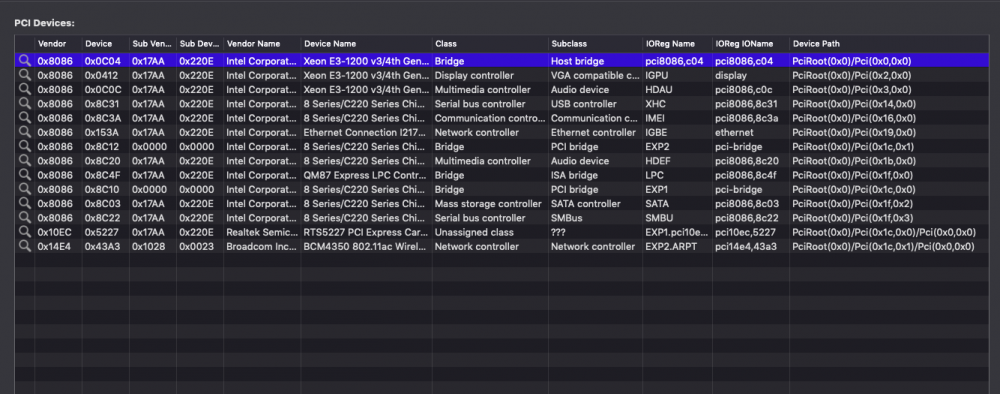

In system report:
Only put airportbcrmfixup.kext in /c/k/o, if Install it in /L/E I can't boot. Here are /c/k/o kexts: (i just tried adding BroadcomWiFiInjector.kext and FakePCIID_Broadcom_WiFi.kext because I thought clover is not properly injecting all data in the properties tab):
Please help. Been trying to fix this for 3 days and I'm stuck. Tried different combinations including trying other SMBIOS settings, trying different paths in devices properties (PciRoot(0x0)/Pci(0x1c,0x01)/Pci(0x0,0x0) to (PciRoot(0x0)/Pci(0x1c,0x1)/Pci(0x0,0x0) .... (PciRoot(0x0)/Pci(0x1cx0x0)/Pci(0x0,0x0) ... etc.
If I try (PciRoot(0x0)/Pci(0x1c)/Pci(0x0,0x0) clover injects the data properly into this address (cardreader) except the 'compatible|pcie14e4,4353', model, name, device_type are on point.. which is weird..
I can't seem to DSDT patch smoothly (I have tried before but I get too many errors) that's why I didn't try patching this.
Any help/suggestion would be greatly appreciated.
PS: I have a SSDT patch in my patched folder from a guide, without this I have no battery manager and brightness adjustment.
