truceFR

@Krushna Bhawar i will be happy to help you out mate to start off, delete every EFI you have downloaded so far and download the one @Jake Lo sent me link here NB: list all your hardware specs here, they might seem same but not all the time

@Jake Lo @Hervé Hi, good news! i got the touchpad working without any weird behaviours and discriminations. i used the VoodoooPS2Controller version found on my first post from github, which did the magic. i will attach it here should someone too facing similar problem on big sur could also try it. Here is my touchpad info when i used linux to check maybe it could help. I: Bus=0011 Vendor=0002 Product=0008 Version=0310 N: Name="AlpsPS/2 ALPS DualPoint TouchPad" P: Phys=isa0060/serio1/input0 S: Sysfs=/devices/platform/i8042/serio1/input/input6 U: Uniq= H: Handlers=mouse2 event9 B: PROP=9 B: EV=b B: KEY=e420 70000 0 0 0 0 B: ABS=260800001000003 E6430_Big_Sur_VoodooPS2Controller.kext.zip

i was able to locate it but i don't wanna mess anything there as i have no idea on where to begin and what to change. I will use wireless mouse it seems to be working perfectly. Thank you @jake lo @Hervéme too i don't know any touchpad that works that way. Thank you once again for your help

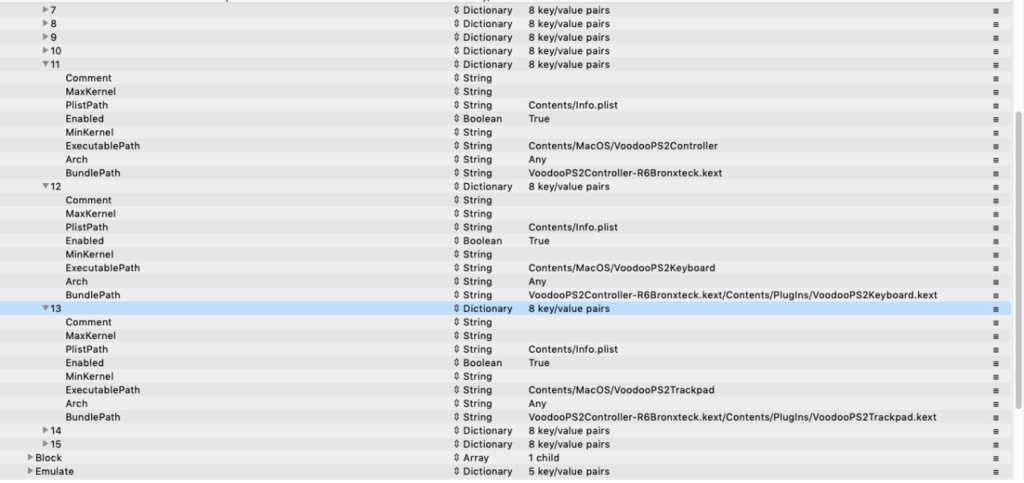

So basically with fingerZ i have to go down this road (attachment 1) There's no much settings in config.plist to adjust Voodoops2controller plugin voodoops2trackpad (attachment 2)

@Jake Lo @Hervé i tried the Dr. Hurt's Bronxteck compiled v6 from both link (they the same), guess what? it worked but with a strange or maybe not discriminations. Cursor won't move when i use my finger tips to control but moves when i use my "finger palm" or moves when my finger is horizontally positioned on the touchpad (how does the touchpad even knows which side of finger is controlling it?) Another weird or maybe not thing is, "two finger" gesture or tap does NOT discriminates. It works correctly no matter which side of the finger is controlling the touchpad. I tried going through accessibility maybe it could be some settings but nothing of such is in there. I mean of course i can manage and adapt to the "will" of the touchpad if there's no fix. Thank you.

@Hervé thanks for clarification on my Broadcom card, i have 2 intel alternative which is quite supported when i checked openintelwireless website. Please can you give me a link or search word to easily locate the version of voodooPS2controller you were referring? The EFI @Jake Lo made for me already contained the version of Dr Hurt's VoodooPS2Controller (see attachment) but not "compiled by Bronxteck". I went to several thread made by Bronxteck but couldn't locate it and also your E6230 thread.

@Jake Lo @Hervé Thank you, Olarila's big sur worked. I have some few issues or maybe some questions. After installation 1. My wireless is not working or perhaps not supported but bluetooth works perfectly (Broadcom BCM94313HMGB). Please is there a fix? 2. My touchpad kinda works but hardly, sometimes needs to touch it hard before responding and after few movement it stops. Something like not sensitive enough i guess and i try looking at settings maybe i could find something relating to sensitivity but nothing so i guess it is kext problem. 3. (Not all that important to me) Some of my apps overlaps the dock and its not resizable, is it a kext problem or apps problem? below is an attached screenshot. Thank you once again for your assistance.

@Jake Lo, @Hervé Hi, please after big sur download am facing an error when trying to create a bootable mac os x big sur drive. I have downloaded different big sur dmg (2) but i have the same error. 1. i used balena etcher on windows to create bootable then copied my efi folder, my laptop recognise it but no installer found on the bootloader. 2. used transmac to restore image but still wont recognised the installer on the drive only bootloader menu with no installer. 3 . i installed mac mojave and use the command to create the bootable drive but am facing an error which i don't know if my dmg files are corrupted or i need to install something to make it work. this is the command to create bootable i suppose sudo /Applications/Install\ macOS\ Big\ Sur.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled and this is my error temp$ sudo /Applications/Install\ macOS\ Big\ Sur.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled Password: dyld: Library not loaded: @executable_path/../Frameworks/IAESD.framework/Versions/A/IAESD Referenced from: /Applications/Install macOS Big Sur.app/Contents/Resources/createinstallmedia Reason: no suitable image found. Did find: /Applications/Install macOS Big Sur.app/Contents/Resources/../Frameworks/IAESD.framework/Versions/A/IAESD: stat() failed with errno=20 /Applications/Install macOS Big Sur.app/Contents/Resources/../Frameworks/IAESD.framework/Versions/A/IAESD: stat() failed with errno=20 Abort trap: 6 Temps-MacBook-Pro:~ temp$ sudo /Applications/Install\ macOS\ Big\ Sur.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled dyld: Library not loaded: @executable_path/../Frameworks/IAESD.framework/Versions/A/IAESD Referenced from: /Applications/Install macOS Big Sur.app/Contents/Resources/createinstallmedia Reason: no suitable image found. Did find: /Applications/Install macOS Big Sur.app/Contents/Resources/../Frameworks/IAESD.framework/Versions/A/IAESD: stat() failed with errno=20 /Applications/Install macOS Big Sur.app/Contents/Resources/../Frameworks/IAESD.framework/Versions/A/IAESD: stat() failed with errno=20 Abort trap: 6 Attached i did a few googling and i found out that this path is missing in the installer "Contents> Frameworks> IAESDFramework> Versions> A> IAESD", only contain "Contents> Frameworks> IAESDFramework" So i guess no fix and i have to re-download again. Please anyone with a known working big sur dmg should help me out. thanks.

@Hervéyah i downloaded hackintoshShop distro but am now downloading non modified from apple. i will test it immediately i finish downloading.

i have re-upload previous images again @Jake Lo The LowRes config works. i am able to boot big sur now without any panic error but the graphics transition is bit slow or not smooth enough. Is there something i need to check to make it okay? i got error when i tried to install it. Could it be corrupt big sur dmg or opencoure error?

@Jake Lo I tried it by making the following changes A23 bios and 1366x768 resolution so i did the following in propertree on windows Deleted these from ACPI folder 1. DSDT-A24.aml 2. SSDT-i5-3320M.aml 3. SSDT-i7-3520M.aml 4. ssdtPRGen.sh and i updated the your original config.plist file not the LoRe.plist with changes made above 1. ACPI>ADD changed DSDT-A24.aml to DSDT-A23.aml 2. left SSDT-i5-3340M.aml as it is same as mine I didn't succeed in booting to the installer interface. Had some errors which i screenshot for debugging and to track down the error. I am attaching them in their order of occurrences and a log from OC. After failure on bios A23 i upgrade it A24 and reversed the changes made earlier but i faced the same error. But i noticed ACPI>DELETE you have "Drop CpuPm" and "Drop Cpu0Ist" set to "false" Anyway i love the bootloader theme 00:000 00:000 AAPL: #[EB|LOG:INIT] 2021-04-29T11:28:09 00:071 00:071 AAPL: #[EB|VERSION] <"bootbase.efi 495.80.3~11 (Official), built 2020-12-21T21:13:03-0800"> 00:145 00:073 AAPL: #[EB|BUILD] <"BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"495.80.3~11","RecordUuid":"9D1BBDDB-A7A6-4B24-8D67-9F605C922885","BuildTime":"2020-12-21T21:13:03-0800","ProjectName":"eficrap (chameleon, stolen and rebranded)","ProductName":"bootbase.efi","SourceVersion":"495.80.3","BuildVersion":"11","BuildConfiguration":"Release","BuildType":"Official"}"> 00:218 00:073 AAPL: #[EB|CFG:DEV] r2 0x0 0x0 00:292 00:073 AAPL: #[EB|H:IS] 0 00:324 00:031 AAPL: #[EB|WL:MODE] 0 00:394 00:069 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:467 00:073 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:540 00:073 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:614 00:073 AAPL: #[EB|CFG:ARG] serial 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 00:645 00:031 AAPL: #[EB|CFG:ARG] embed-log-dt 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 00:715 00:069 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 00:788 00:072 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 00:861 00:073 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 00:935 00:073 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 01:008 00:073 AAPL: #[EB|H:IS] 0 01:040 00:031 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 01:110 00:069 AAPL: #[EB|BRD:NV] Mac-189A3D4F975D5FFC 01:183 00:073 AAPL: #[EB.B.IEP|!] Err(0xE) <- BS.LocP 8ECE08D8-A6D4-430B-A7B0-2DF318E7884A 01:256 00:073 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:330 00:073 AAPL: #[EB.BST.IDT|+] 01:403 00:073 AAPL: #[EB.BST.IDT|-] 01:435 00:031 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:505 00:070 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 01:578 00:073 AAPL: #[EB|BRD:NV] Mac-189A3D4F975D5FFC 01:652 00:073 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 01:725 00:072 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 01:756 00:031 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:826 00:069 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 01:900 00:073 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 01:940 00:040 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 02:052 00:111 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:313 00:261 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:629 00:315 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:713 00:084 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:794 00:080 AAPL: #[EB|H:NOT] 02:894 00:100 AAPL: #[EB|SB:P] 0x0 02:966 00:071 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(1D|0)/Usb(1, 0)/Usb(3, 0)/HD(Part2,Sig0006C16A) 03:039 00:072 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 03:109 00:070 AAPL: #[EB|LIMG:OPT] 03:140 00:030 AAPL: #[EB|RPS] 0 0 0 03:214 00:073 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:284 00:070 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 03:356 00:072 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 03:429 00:073 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 03:502 00:073 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 03:534 00:031 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 03:611 00:076 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:683 00:072 AAPL: #[EB|MBA:CL] <""> 03:756 00:072 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 -f alcid=12 -igfxnohdmi darkwake=0 -no_compat_check slide=67 "> 03:829 00:073 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:861 00:031 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 -f alcid=12 -igfxnohdmi darkwake=0 -no_compat_check slide=67 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 03:931 00:070 AAPL: #[EB|LOG:VERBOSE] 2021-04-29T11:28:13 04:005 00:073 AAPL: #[EB.CSR.S|VAR] 0x00000040 04:078 00:073 AAPL: #[EB|OPT:BM] 0x2 04:151 00:073 AAPL: #[EB|B:VAw] 04:225 00:073 AAPL: #[EB|P:CPR] N 04:257 00:031 AAPL: #[EB|P:MPI] N 04:327 00:069 AAPL: #[EB|P:BPI] N 04:400 00:073 AAPL: #[EB|KMR] 294166528 04:474 00:073 AAPL: #[EB.CS.CSKSD|+] 04:505 00:031 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 04:575 00:069 AAPL: #[EB.G.CS|-?] Ok(0) 04:651 00:076 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 04:869 00:217 AAPL: #[EB.B.SBS|SZ] 739896 04:946 00:077 AAPL: #[EB|B:SHA] <6c4c18c09ba51a04539131ed525a219a7a175c00> 05:020 00:073 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 05:052 00:032 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 05:123 00:071 AAPL: #[EB.WL.PWLFRTC|NONE] 05:197 00:073 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 05:270 00:073 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 05:344 00:074 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 05:376 00:032 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 18:287 12:911 AAPL: #[EB.LD.LKFS|-?] Ok(0) 18:362 00:074 AAPL: #[EB.LD.LKC|-?] Ok(0) 18:436 00:074 AAPL: #[EB|FWFM] 0x00000000FF1FFF7F 18:509 00:073 AAPL: #[EB|FWFT] 0x00000000EB0FF577 18:541 00:031 AAPL: #[EB|BST:REV1] 18:610 00:069 AAPL: #[EB|CSR:OUT] 0x00000040 18:687 00:076 AAPL: #[EB.BST.FBS|+] 18:760 00:072 AAPL: #[EB.BST.FBS|ADSZ] 0 18:833 00:073 AAPL: #[EB.BST.FBS|KSSZ] 0 18:906 00:073 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m 18:980 00:073 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 19:054 00:073 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> 19:086 00:031 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 19:156 00:070 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 19:229 00:073 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 19:303 00:073 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 19:335 00:031 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0 19:406 00:071 AAPL: #[EB|LOG:DT] 2021-04-29T11:28:28 19:489 00:082 AAPL: #[EB|LOG:EXITBS:START] 2021-04-29T11:28:29

Hey my "Hope" , thank you very much i will try it as soon as possible and get you feed back.

thanks mate, but i have decided to give up after reading, testing and failing for days on all kinds of tutorials and EFI folders. At a point my hdd and modular bay stopped working. My laptop wont boot anymore with those things mentioned above connected and i flash BIOS versions again, finally downgrading it to A03 saved my ass. Am gonna cool down for awhile and wait for someone's already working EFI folder for my model or someone generously prepare one for me. I understand i am a total noob to this that's why everything seems difficult and always failing. Even catalina won't install. Thank you man for your help. NB: i spent several days on dortania without success

hey sorry for late reply, i was reading to equip myself with some basic as am very dumb. 1. i removed SSDT-PLUG from the acpi 2. replace VoodooHDA with latest AppleALC from here 3. i update the config with Plist Editor Pro <dict> <key>BundlePath</key> <string>AppleALC.kext</string> <key>Comment</key> <string></string> <key>Enabled</key> <true/> <key>ExecutablePath</key> <string>Contents/MacOS/AppleALC</string> <key>MaxKernel</key> <string></string> <key>MinKernel</key> <string></string> <key>PlistPath</key> <string>Contents/Info.plist</string> </dict> and disabled VoodooHDA. 4.Since am good on Capri something, i left it untouched Lastly i am confused of this "It's important that you get NVRAM working as this will ensure active/selected screen brightness is retained throughout reboots or sleep/wake cycles." How do i make the nvram working?

Thanks for the reply, how do i apply "Capri framebuffer + SSDT-PNLF" to my efi folder to solve the issue.? Do i need to generate SSDT-PNLF for my model as i did with SSDT-PM.aml? I don't mind much about touchpad as i use external mouse most of the time. Glad to know bios version is not that much of a problem as am free to upgrade back to A23. I know i sounds lame as am kind of new to hackintosh world.
