[SOLVED] Dell Latitude E6540: audio issues under High Sierra

[huyparody]

Im running High sierra 10.13.3 on my E6540

i7-4800 MQ, intel hd4600, ALC 292



I followed JakeLo's guide and patched files



AppleHDA_ALC292.kext and FakePCIID_Intel_HDMI_Audio.kext installed in Library/Extension

layout-id = 1 in config.plist. but sound still doesn't work



here is my EFI. thanks in advance



https://drive.google.com/file/d/1QTGRSsUuhJW5EjwarplR7O_bt0OXj8Bu/view?usp=sharing

[Jake Lo]

run these and post the output

      sudo chmod -Rf 755 /L*/E*

      sudo chown -Rf 0:0 /L*/E*

      sudo touch -f /L*/E*

      sudo chmod -Rf 755 /S*/L*/E*

      sudo chown -Rf 0:0 /S*/L*/E*

      sudo touch -f /S*/L*/E*

      sudo kextcache -Boot -U /

[huyparody]

rebuilding //System/Library/PrelinkedKernels/prelinkedkernel



Kext with invalid signatured (-67062) allowed: <OSKext 0x7f9371663a10 [0x7fff9c081980]> { URL = "FakePCIID.kext/ -- file:///System/Library/Extensions/", ID = "org.rehabman.driver.FakePCIID" }

Kext with invalid signatured (-67062) allowed: <OSKext 0x7f9371829100 [0x7fff9c081980]> { URL = "FakePCIID_Intel_HDMI_Audio.kext/ -- file:///Library/Extensions/", ID = "org.rehabman.injector.FakePCIID-Intel-HDMI-Audio" }

Kext with invalid signatured (-67062) allowed: <OSKext 0x7f937180d090 [0x7fff9c081980]> { URL = "HDAEnabler.kext/ -- file:///System/Library/Extensions/", ID = "com.kext.HDAEnabler" }

Kext with invalid signatured (-67062) allowed: <OSKext 0x7f9371250e30 [0x7fff9c081980]> { URL = "FakePCIID_HD4600_HD4400.kext/ -- file:///System/Library/Extensions/", ID = "org.rehabman.injector.FakePCIID-HD4600-HD4400" }

Kext with invalid signatured (-67062) allowed: <OSKext 0x7f936ec17590 [0x7fff9c081980]> { URL = "CodecCommander.kext/ -- file:///System/Library/Extensions/", ID = "org.tw.CodecCommander" }

KernelCache ID: 80E9F55530060794E62D5D4D454E94DE

kextcache updated critical boot files, requesting launchd reboot

[Jake Lo]

Not seeing AppleHDA_ALC292.kext in the output.

Get rid of HDAEnabler.kext

FakePCIID_HD4600_HD4400.kext is old and had been replace with FakePCIID_Intel_HD_Graphics.kext



Add AppleHDA_ALC292.kext.zip to /L/E and rerun commands again until you see AppleHDA_ALC292 showing in the output

Then reboot

[huyparody]

you mean delete HDAEnabler.kext

[Jake Lo]

Yes, get rid of (delete)

If you are using it, make sure it's to enable layout-id 1 and nothing else

[huyparody]

i've tried and Apple_ALC292.kext showing in the output, when i reboot sound is now working, but headphone port not working

[Jake Lo]

Should be working fine with CodecCommander.kext in /L/E or /S/L/E, not both.

Repair permission and rebuild cache, reboot.

[huyparody]

i already installed CodecCommander in SLE

[Jake Lo]

Did you remove the HDAEnabler?

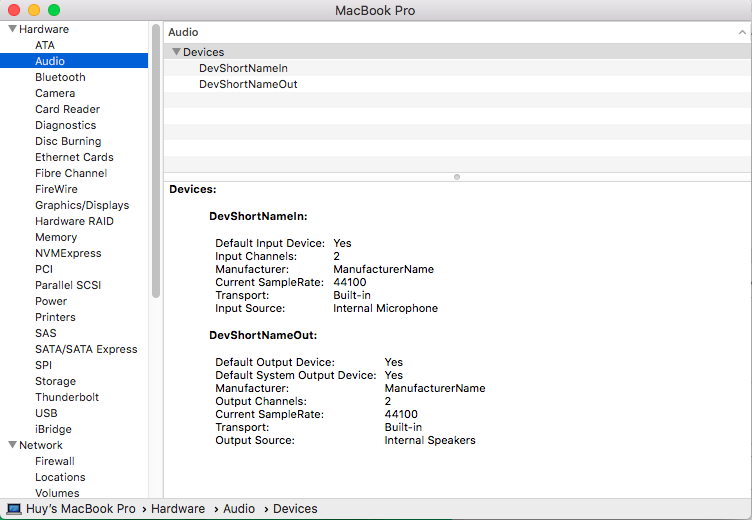

The Device naming looks strange from your screenshot



Check to see if it auto switches to Headphone...

Are you getting static noise or plain no sound at all?
