Catalina sleep problems

[sowhat4999]

Dell E7440

Wake function from sleep was fine, however sometimes the laptop just reboot after a long sleep, here is the error information:

####

panic(cpu 0 caller 0xffffff7f8a5ff238): "IOAHCIBlockStorageDriver::CommandTimeout! reallocated sectors = 0x0, pending sectors = 0x0, power on hours = 0x325, fBuiltIn = 1, LBA = 0x0, Block Count = 0x0, Tag = 0xC, Operation Type = 0x6 fis[0]=0xF58027, fis[1]=0x0, fis[2]=0x0, fis[3]=0x0, fis[4]=0x0"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/IOAHCIBlockStorage/IOAHCIBlockStorage-316.40.3/IOAHCIBlockStorageDriver.cpp:6311
Backtrace (CPU 0), Frame : Return Address
0xffffff818bee3a70 : 0xffffff8007139a3b
0xffffff818bee3ac0 : 0xffffff8007270fe5
0xffffff818bee3b00 : 0xffffff8007262a5e
0xffffff818bee3b50 : 0xffffff80070e0a40
0xffffff818bee3b70 : 0xffffff8007139127
0xffffff818bee3c70 : 0xffffff800713950b
0xffffff818bee3cc0 : 0xffffff80078d17f9
0xffffff818bee3d30 : 0xffffff7f8a5ff238
0xffffff818bee3de0 : 0xffffff7f8a5f6213
0xffffff818bee3e20 : 0xffffff8007844f79
0xffffff818bee3e90 : 0xffffff8007844e99
0xffffff818bee3ec0 : 0xffffff800717b625
0xffffff818bee3f40 : 0xffffff800717b151
0xffffff818bee3fa0 : 0xffffff80070e013e
      Kernel Extensions in backtrace:
         com.apple.iokit.IOAHCIBlockStorage(316.40.3)[D16B857E-1AFB-3E06-A190-6F0944BB81AF]@0xffffff7f8a5ee000->0xffffff7f8a615fff
            dependency: com.apple.iokit.IOAHCIFamily(290.0.1)[0456322C-3677-3442-8F74-3171483F3886]@0xffffff7f8a5c3000
            dependency: com.apple.driver.AppleEFINVRAM(2.1)[A86937B2-6177-3699-BE65-6762DDC120C6]@0xffffff7f8850b000
            dependency: com.apple.iokit.IOStorageFamily(2.1)[A9967DFD-FCB3-3536-B071-F8B46494895B]@0xffffff7f87d18000

BSD process name corresponding to current thread: kernel_task
Boot args: dart=0 kext-dev-mode=1 -xcpm abm_firstpolldelay=16000 brcmfx-country=#a

Mac OS version:
19B88

Kernel version:
Darwin Kernel Version 19.0.0: Thu Oct 17 16:17:15 PDT 2019; root:xnu-6153.41.3~29/RELEASE_X86_64
Kernel UUID: 7503CD47-851F-321E-8747-50DB4299165F
Kernel slide:     0x0000000006e00000
Kernel text base: 0xffffff8007000000
__HIB  text base: 0xffffff8006f00000
System model name: MacBookAir6,2 (Mac-189A3D4F975D5FFC)
System shutdown begun: NO
Panic diags file available: YES (0x0)

System uptime in nanoseconds: 19126341015721
last loaded kext at 12208880908245: |SCSITaskUserClient    422.0.2 (addr 0xffffff7f8a5b8000, size 45056)
loaded kexts:
org.tw.CodecCommander    2.7.1
com.intel.driver.EnergyDriver    2.0
pk.qwerty12.DisableTurboBoostBattery    2
as.acidanthera.BrcmPatchRAM3    2.5.0
org.rehabman.voodoo.driver.PS2Trackpad    6.0.0
org.rehabman.voodoo.driver.PS2Keyboard    6.0.0
com.insanelymac.!IMausiEthernet    2.4.1d1
org.rehabman.voodoo.driver.PS2!C    6.0.0
as.vit9696.!AALC    1.4.3
as.lvs1974.AirportBrcmFixup    2.0.4
com.hieplpvip.!ABacklightFixup    1.0.2
as.vit9696.WhateverGreen    1.3.4
ru.usrsse2.SMCBatteryManager    1
as.vit9696.VirtualSMC    1.0.2
as.vit9696.Lilu    1.3.9
as.acidanthera.BrcmFirmwareStore    2.5.0
|SCSITaskUserClient    422.0.2
@fileutil    20.036.15
@filesystems.msdosfs    1.10
>AudioAUUC    1.70
@filesystems.ntfs    3.14.3
@filesystems.autofs    3.0
>!APlatformEnabler    2.7.0d0
>AGPM    111.2.5
>X86PlatformShim    1.0.0
>!AHDAHardwareConfigDriver    283.14
>!AHDA    283.14
>!AUpstreamUserClient    3.6.8
>!AMCCSControl    1.13
>!AGraphicsDevicePolicy    4.5.9
@AGDCPluginDisplayMetrics    4.5.9
>!AHV    1
|IOUserEthernet    1.0.1
>!A!IHD5000Graphics    14.0.2
|IO!BSerialManager    7.0.1f1
>pmtelemetry    1
@Dont_Steal_Mac_OS_X    7.0.0
>ACPI_SMC_PlatformPlugin    1.0.0
>!A!IFramebufferAzul    14.0.2
>!ALPC    3.1
>!AFIVRDriver    4.1.0
>!A!ISlowAdaptiveClocking    4.0.0
@private.KextAudit    1.0
>!AFileSystemDriver    3.0.1
>!AVirtIO    1.0
@filesystems.hfs.kext    522.0.9
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@filesystems.apfs    1412.41.1
>AirPort.Brcm4360    1400.1.1
>!ASDXC    1.7.7
>AirPort.BrcmNIC    1400.1.1
>!AAHCIPort    341.0.2
>!ASmartBatteryManager    161.0.0
>!AACPIEC    6.1
>!ARTC    2.0
>!ABacklight    180.1
>!AACPIButtons    6.1
>!AHPET    1.8
>!ASMBIOS    2.1
>!AAPIC    1.7
$!AImage4    1
@nke.applicationfirewall    303
$TMSafetyNet    8
@!ASystemPolicy    2.0.0
|EndpointSecurity    1
@kext.triggers    1.0
>DspFuncLib    283.14
@kext.OSvKernDSPLib    529
>!AGraphicsControl    4.5.9
|IOAVB!F    800.17
>!ASMBus!C    1.0.18d1
>!ASSE    1.0
@!AGPUWrangler    4.5.9
@plugin.IOgPTPPlugin    810.1
|IOEthernetAVB!C    1.1.0
>IOPlatformPluginLegacy    1.0.0
@!AGraphicsDeviceControl    4.5.9
|IOAccelerator!F2    438.2.7
>X86PlatformPlugin    1.0.0
>!AHDA!C    283.14
|IOHDA!F    283.14
>!ASMBusPCI    1.0.14d1
>IOPlatformPlugin!F    6.0.0d8
|IOSlowAdaptiveClocking!F    1.0.0
>usb.IOUSBHostHIDDevice    1.2
|Broadcom!BHost!CUSBTransport    7.0.1f1
|IO!BHost!CUSBTransport    7.0.1f1
|IO!BHost!CTransport    7.0.1f1
|IO!B!F    7.0.1f1
|IO!BPacketLogger    7.0.1f1
>!UAudio    320.49
|IOAudio!F    300.2
@vecLib.kext    1.2.0
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
|IOSerial!F    11
|IOSurface    269.6
@filesystems.hfs.encodings.kext    1
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>!AXsanScheme    3
|IOAHCIBlock!S    316.40.3
|IO80211!F    1200.12.2b1
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
|IOSkywalk!F    1
|IOAHCI!F    290.0.1
>usb.!UEHCIPCI    1.2
>usb.!UEHCI    1.2
>!A!ILpssGspi    3.0.60
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
>!ABacklightExpert    1.1.0
|IONDRVSupport    568
|IOGraphics!F    568
|IOHID!F    2.0.0
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|IOSMBus!F    1.1
>DiskImages    493.0.0
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!AKeyStore    2
>!UTDM    489.41.1
|IOSCSIBlockCommandsDevice    422.0.2
>!ACredentialManager    1.0
>KernelRelayHost    1
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
|IOUSBMass!SDriver    157.40.7
|IOSCSIArchitectureModel!F    422.0.2
|IO!S!F    2.1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
|CoreAnalytics!F    1
>!AMobileFileIntegrity    1.0.5
@kext.CoreTrust    1
|IOTimeSync!F    810.1
|IONetworking!F    3.4
|IOReport!F    47
>!AACPIPlatform    6.1
>!ASMC    3.1.9
>watchdog    1
|IOPCI!F    2.9
|IOACPI!F    1.4
@kec.pthread    1
@kec.corecrypto    1.0
@kec.Libm    1

###

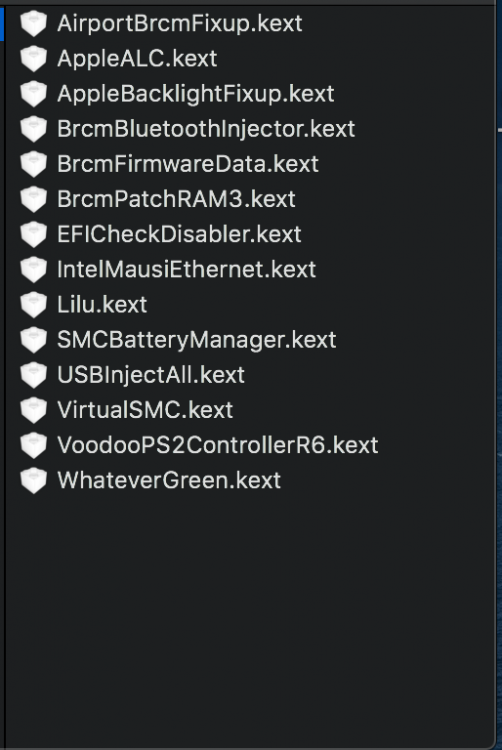

Kexts in EFI folder:







[Hervé]

Remove obsolete/defunct boot args kext-dev-mode=1 and -xcpm. Your Haswell platform only requires to set PluginType option and KernelPm patch.



Then set Sleep/Hibernation mode according to the settings detailed in the dedicated topic available in our FAQ section.

[sowhat4999]

Thank you for your reply. The config.plist has enabled PluginType option and KernelPm patch and the relative boot args have been deleted. The Sleep/Hibernation mode has set by following code:

sudo pmset hibernatemode 0

sudo rm -f /var/vm/sleepimage

sudo pmset hibernatefile /dev/null



Is there something should I be care?

[sowhat4999]

This error has occurred, and so as the error information, is there something should I do ?

[morpheousman]

Check your hibernation mode in Terminal with command:

sudo pmset -g

Is there anything showing in terminal, Sleep prevented by.....?
