ace3 Posted July 30, 2020 Share Posted July 30, 2020 Hello, currently i have an issue with this Wifi+Bluetooth hardware. I use a BCM943224PCIEBT2 in a Key A/E M.2 adapter board. I am using OpenCore. Without loading any kext, Wifi is not working, bluetooth is detected, but cannot pairing with my mouse. for the Wifi, i can fix it with adding the AirportBrcmFixup.kext , and update the config.plist. but for the Bluetooth, it's enable, it's written discoverable, but i cannot pair with my mouse. I already try the combination with BrcmPatchRam from https://github.com/acidanthera/BrcmPatchRAM -BrcmBluetoothInjector.kext -BrcmBluetoothInjector.kext, BrcmFirmwareData.kext -BrcmBluetoothInjector.kext, BrcmFirmwareData.kext , BrcmPatchRAM3.kext I can search the Bluetooth on IORegistrtyExplorer Still no luck Any help/idea is really appreciated. thanks Link to comment Share on other sites More sharing options...
Administrators Hervé Posted July 30, 2020 Administrators Share Posted July 30, 2020 As stated in our wireless cards inventories, BCM43224 (14e4:4353) cards such as your BCM943224PCIEBT2 are subject to whitelisting; so you either patch the associated kext to replace a supporting Mac model by that of your elected SMBIOS model you use or you change your SMBIOS by that of a model supported by the whitelist. Please consult the pinned dedicated patching guide on this matter which is available in this very Wireless & Bluetooth forum section. Re: Bluetooth, same story as for the Wireless,; it's an Apple card so no add-on kext required, it should be natively supported. Link to comment Share on other sites More sharing options...
ace3 Posted July 31, 2020 Author Share Posted July 31, 2020 Hi Hervé, As you suggested, i try to patch AIRPORTBRCM4360 , and now the wifi is working without any add-on kext. But the Bluetooth is still having an issue, Bluetooth is detected in System Information, but cannot connect / discovered. Is Bluetooth patching is required too ? thanks. Link to comment Share on other sites More sharing options...

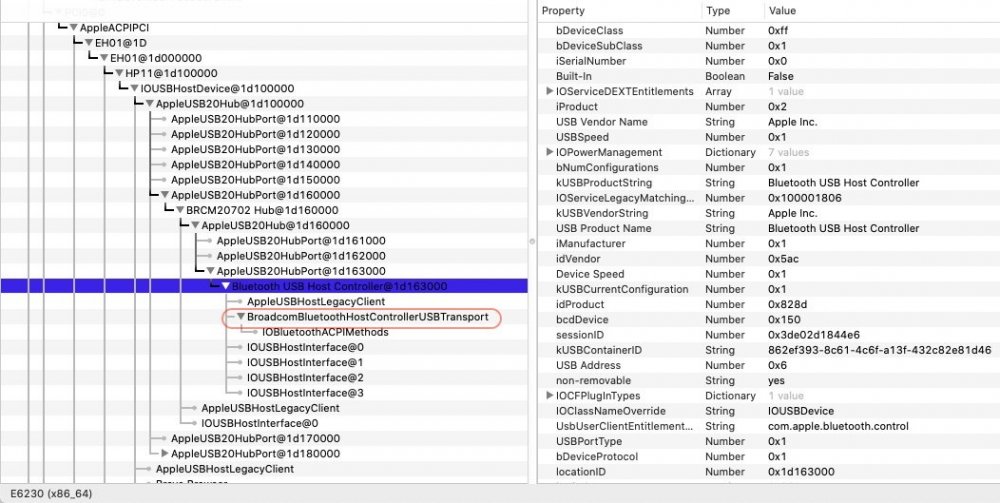

Administrators Hervé Posted July 31, 2020 Administrators Share Posted July 31, 2020 No, Bluetooth chipset BRCM20702 is supported OOB. Do you have any other built-in BT device in that computer? If so, disable Bluetooth in BIOS. Your screenshot does not show any transport controller kext loaded so there's clearly something wrong with the module or, maybe, your OC configuration (can't help you with that)... Did you connect your module to an internal USB port? That's obviously required. Here's what you would normally expect to see in IOReg: I've checked Catalina 10.15.6's BroadcomBluetoothHostControllerUSBTransport kext and it does cover your device (0x821f, i.e. 33311 in decimal) so all is Ok on that side. Could you please post a zipped copy of a saved output? Link to comment Share on other sites More sharing options...
ace3 Posted July 31, 2020 Author Share Posted July 31, 2020 Hi, My machine does not include built-in wifi/BT card. so i add it with BCM943224PCIEBT2 in a Key A/E M.2 adapter board. So i think its internal USB Port. Tried to disable on BIOS, the wifi& BT is unavailable. this in the zip of output thanks Ignasius’s iMac.zip Link to comment Share on other sites More sharing options...

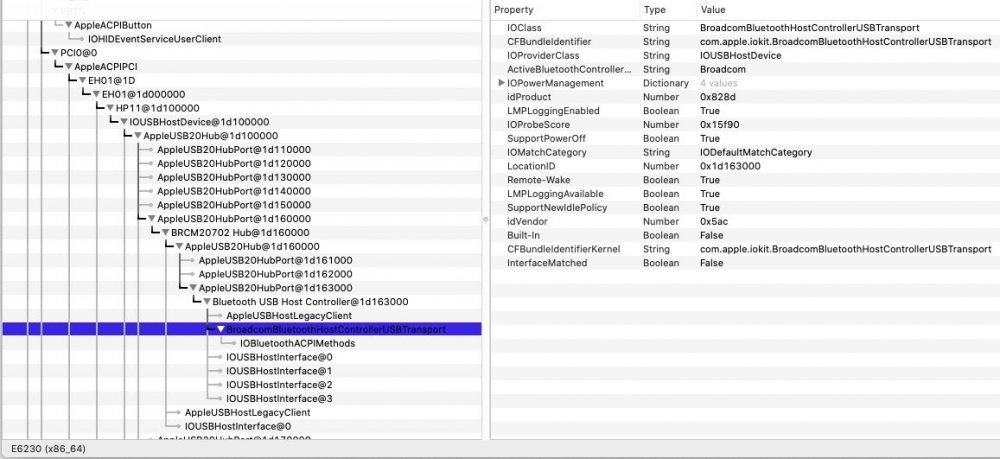

Administrators Hervé Posted July 31, 2020 Administrators Share Posted July 31, 2020 Everything looks good to me now in that IOReg of yours: Can't see why you'd have Bluetooth issues. Try and disconnect that wireless USB adapter just in case it interferes... Link to comment Share on other sites More sharing options...
ace3 Posted July 31, 2020 Author Share Posted July 31, 2020 The issue i have is, bluetooth is available, but i cannot pair the my mouse/ anything, and my hackintosh is not discoverable by my phone. maybe i will use this card for wifi only, and use cheap bluetooth dongle to pair with my logitech mouse. But will Apple Magic Trackpad 2 will be able to pair on non Apple Bluetooth ? Link to comment Share on other sites More sharing options...
