linuxchan6 Posted August 4, 2020 Share Posted August 4, 2020 I have a XPS 13 9343 with a 4k display and a DW1560 wifi card. Installed Mojave with wifi working; but not able to get sound and bluetooth to work. I've checked the usb tab in Hackintool and it doesn't seem to recognize any internal device attached. I have attached debug file and any help is appreciated. debug_2627.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 4, 2020 Moderators Share Posted August 4, 2020 Looks like there's issue with your USB ports. Get rid of SSDT-UIAC.aml Replace Config file config.plist.zip Link to comment Share on other sites More sharing options...

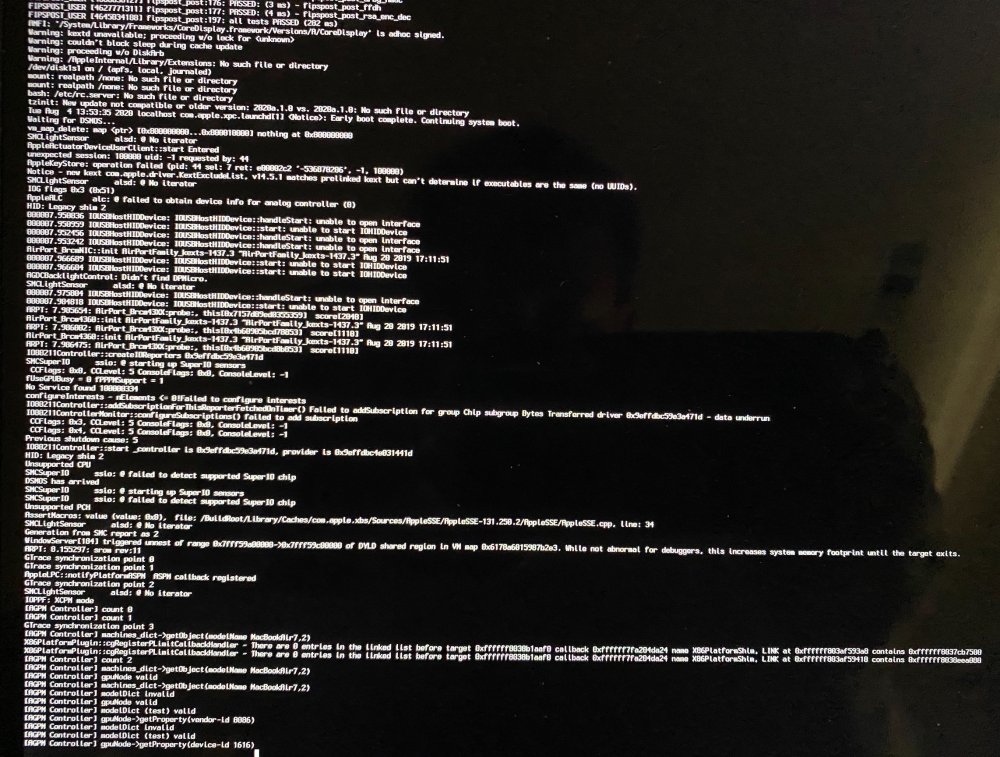

linuxchan6 Posted August 4, 2020 Author Share Posted August 4, 2020 I removed SSDT-UIAC.aml and tried the attached config.plist, but couldn't boot to desktop. Please see attached boot error. I had to remove Root->Devices->PciRoot(0x0)/Pci(0x2,0x0) in order to boot to desktop. But still couldn't see bluetooth nor audio device. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 4, 2020 Moderators Share Posted August 4, 2020 try different layout-id for audio 3, 13, 23 For Bluetooth, make sure your USB ports are configure correctly. Check under system information/USB if your Bluetooth device shows up. Use Hackintool.app to assist you with setting up the USB ports correctly Link to comment Share on other sites More sharing options...
linuxchan6 Posted August 6, 2020 Author Share Posted August 6, 2020 Update: I was able to fix bluetooth issue after USB ports were mapped correctly. The audio issue seems to be a known problem with this laptop. In order for audio to load in Mojave, I must first boot into Ubuntu. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 7, 2020 Moderators Share Posted August 7, 2020 Try ALC_Fix https://github.com/goodwin/ALCPlugFix/tree/master/alc_fix Link to comment Share on other sites More sharing options...
