Dell Vostro 5501, i7-1065G7: Big Sur 11.2 + Win 10 Pro


Baio77
 Share

Recommended Posts

                                                                                                                                               OPEN CORE Bootloader 0.6.7

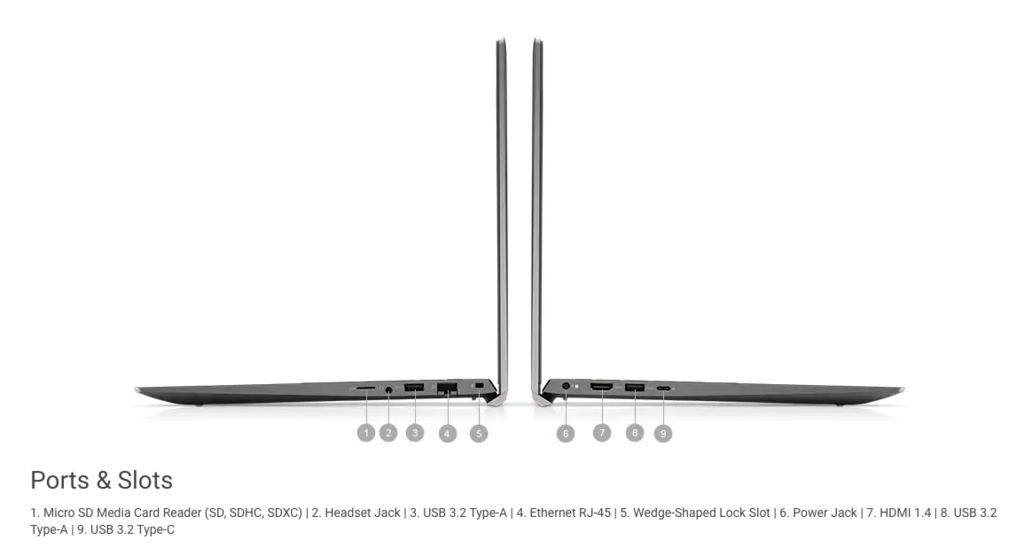

2016286467_Schermata2021-02-21alle08_33_45.thumb.png.bb0ee2c7f04dbb3afb18e51a2218b247.png



Specifications:

  • CPU Intel Ice Lake i7-1065G7 (4C, 8T, 8MB cache)
  • iGPU Intel Iris Plus Graphics
  • Lan Realtek RTL8111
  • AudioRealtek ALC236
  • RAM 16GB DDR4 3200 Mhz
  • Wifi + Bluetooth BCM943602BAED (DW1830)
  • NVMe HYNIX BC511 512GB (Windows)
  • NVMe SAMSUNG 970 Pro 500GB (macOS)
  • SmBios MacBookPro 16,2
  • Bootloader OpenCore 0.6.7



What works:

  • Full graphics acceleration on Iris Plus iGPU
  • ALC236 audio (Internal speakers & microphone, Combojack headphones & microphone)
  • All USB-A 3.1 Ports (Type-C 3.2 Included)

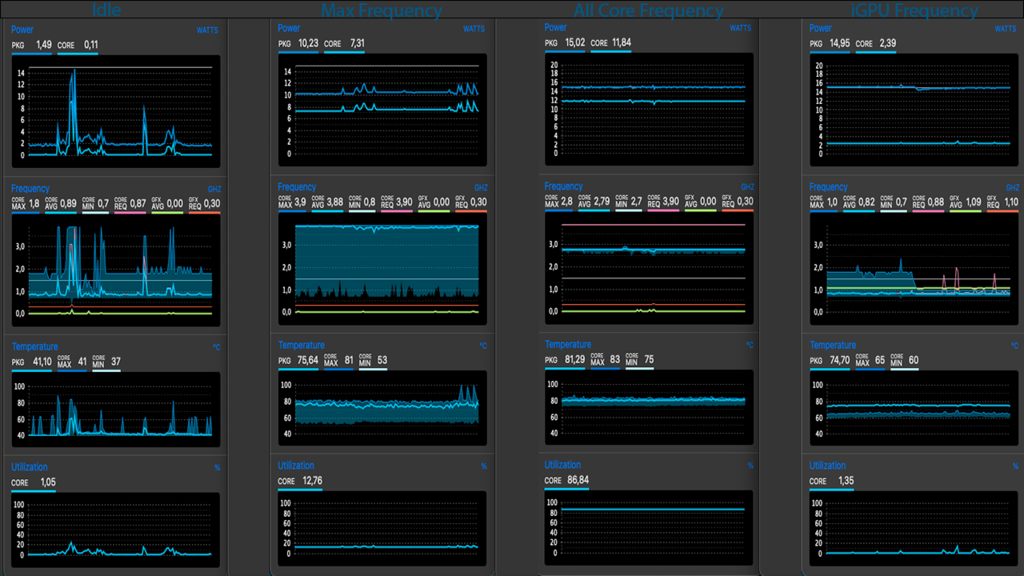

  • SpeedStep / Sleep / Wake
  • HID Key PWRB & SLPB
  • I2C Touchpad with gesture
  • Keyboard (PS2-Internal) with backlight
  • F6 & F7 Brightness Keys
  • F10 Print Screen Key
  • F1 & F2 & F3 Audio Keys
  • Wi-Fi and Bluetooth BCM943602BAED (DW1830) card
  • Realtek RTL8168 LAN
  • SSD NVME PCIe Gen3 x4  Slot-1 & 2
  • Micro SD Cardreader (USB-Internal)
  • WebCam (USB-Internal)
  • All Sensors CPU, IGPU, BATTERY, NVME, FAN
  • ACPI Battery
  • NVRAM (Native)
  • Apple VTD
  • Recovery (macOS) boot from OpenCore
  • Windows 10 boot from OpenCore



What doesn't work or WIP:

  • HDMI output (Not supported at the moment)
  • Type-C to HDMI output (Not supported at the moment)
  • HDMI audio output (Not supported at the moment)
  • Type-C to HDMI audio Output (Not supported at the moment)









Special Config:

  • USB port mapping performed
  • SSDT-Hack FULL patch
  • Applied PCI devices cosmetic patches



MacOS bootable USB creation:

  • Read the Dortania guide for creating your USB from Windows or macOS



Bios settings for Bios Version 1.4.4

  • SATA Operation : AHCI
  • Fastboot : Thorough
  • Integrated NIC : Enable
  • Secure Boot: disable
  • Absolute: disable
  • TPM2.0 Security: disable
  • Intel SGX: disable
  • SMM Security Migration: disable
  • Wake on AC: disable
  • Wake on Dell USB-C Dock: disable
  • Power On Lid Open: disable
  • Enable UEFI Network Stack: disable
  • Sign Of Life : Early Logo Display / Early keyboard backlight
  • cfg lock and DVMT: DO AT YOUR OWN RISK!!! It may brick your laptop.



Credits:

  • [Acidanthera] (https://github.com/acidanthera) for OpenCore and all the lovely Hackintosh work
  • [Apple] (https://apple.com) for macOS
  • [daliansky] (https://github.com/daliansky)
  • [Dortiana](https://github.com/dortania)
  • [Hackintoshlifeit] (https://github.com/Hackintoshlifeit)
  • [rehabman] (https://github.com/RehabMan)



EFI.zip DELL Vostro 5501 Ice Lake Baio77.zip
