Dell Inspiron 3558: lost TrackPad

[oldman20]

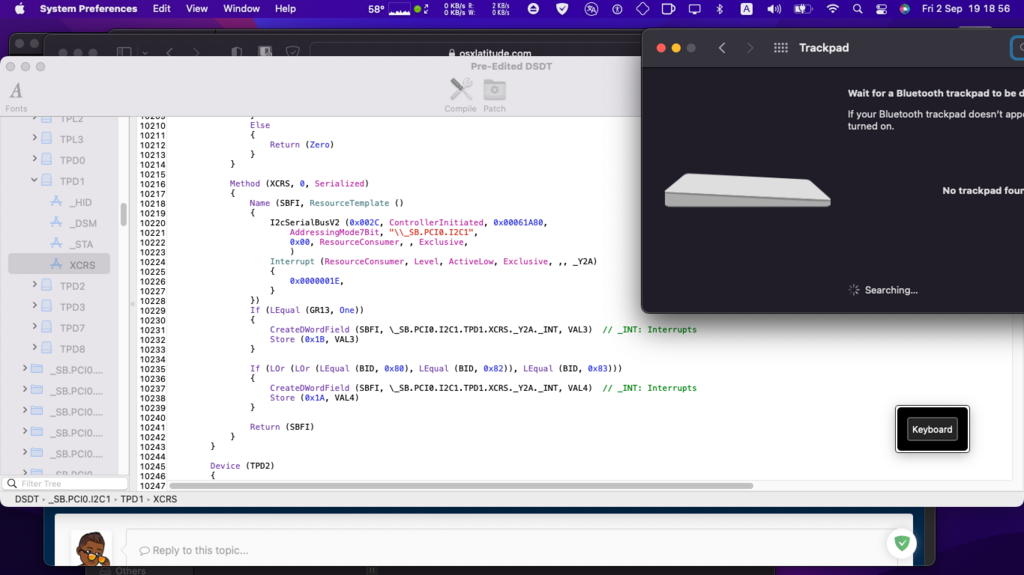

new issue: my trackpad can't showup setting like previous, what can I do? thank all again



[Lorys89]

revert to voodo ps2 and plugin trakpad and mouse  and remove kext i2c, or patch your i2c trakpad and use kext i2c

or try this patch for i2c trakpad :

 apply this rename



Current Path: \_SB.PCI0.I2C1.TPD1._CRS

-----> Find: _CRS - 08A40A0FA103A4001446085F435253

--> Replace: XCRS - 08A40A0FA103A40014460858435253



and add this ssdt

SSDT-TPD1.zip

and add this bootarg -vi2c-force-polling

after this test send log ioreg

[oldman20]

here Sir, but keyboard not working anymore

HackBook Pro-I2C.ioreg



[Lorys89]

Photo Kext ps2 and I2c Order list?

[oldman20]

I only used VoodooI2C.kext + VoodooI2CHID.kext, not ps2, am I wrong right?

[Lorys89]

I previously posted order of kext ps2 and I2c in the config, follow that order

[oldman20]

sorry my misstake, but I understand u said revert voodoops2 or patch i2c, so I leave voodoops2 to switch to i2c

[Baio77]

https://ibb.co/khDg77c

To activate I2C this is the order of the kext you need to use. Put them in configplist with this order.

https://ibb.co/VQmX4tH

For clarity I am attaching the complete list of kext and the order in which I put them in my Dell 5501 Ice Lake.

[Lorys89]

Have you tried with correct order of kext? If you pass me log Ioreg

and change this SSDT-TPD1.zip

[oldman20]

On 9/2/2022 at 9:22 PM, Baio77 said:

https://ibb.co/khDg77c

To activate I2C this is the order of the kext you need to use. Put them in configplist with this order.

https://ibb.co/VQmX4tH

For clarity I am attaching the complete list of kext and the order in which I put them in my Dell 5501 Ice Lake.



On 9/2/2022 at 11:45 PM, Lorys89 said:

Have you tried with correct order of kext? If you pass me log Ioreg

and change this SSDT-TPD1.zip

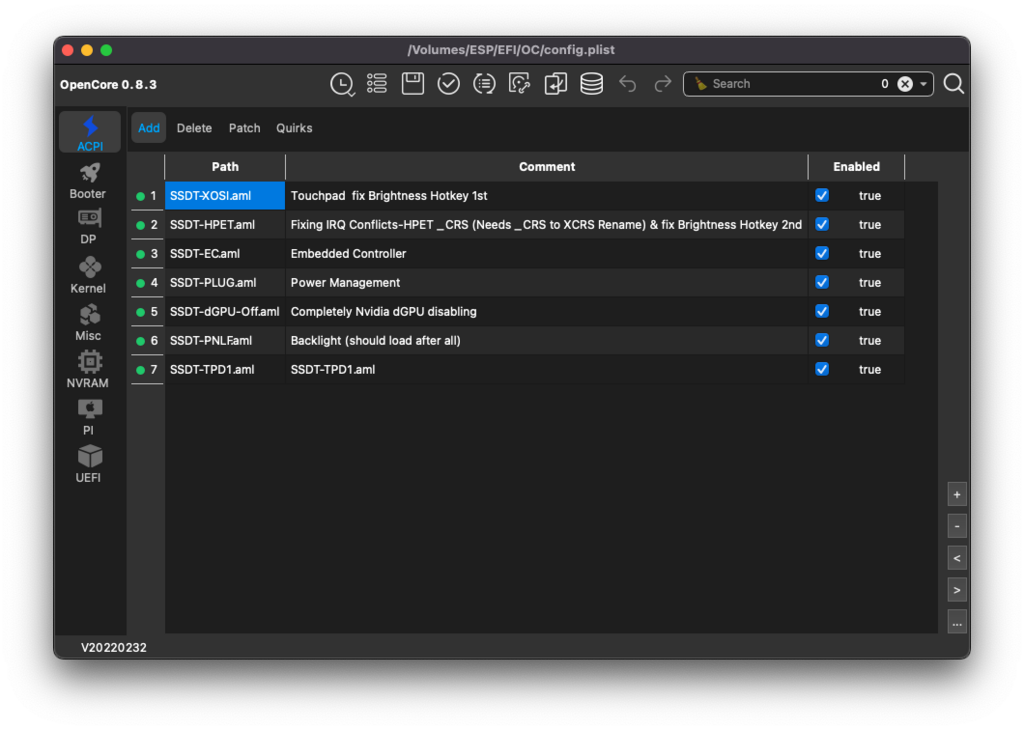

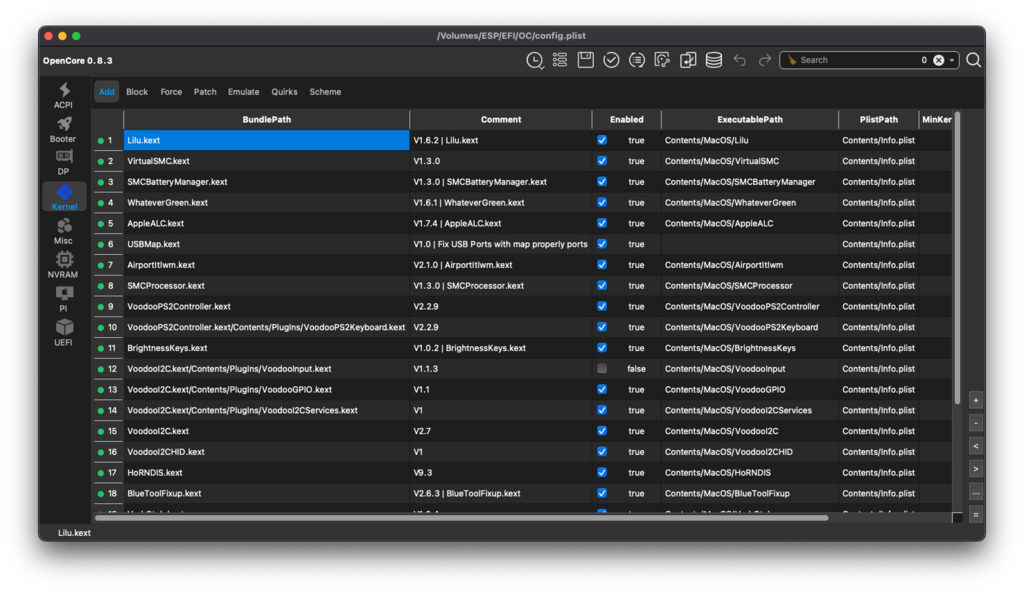

Thank all! I followed order kexts and add TDP1 new but trackpad still not found, just keyboard detected like firstime



HackBook Pro (2).ioreg

and I tried following The Guide Dortania

https://dortania.github.io/Getting-Started-With-ACPI/Laptops/trackpad-methods/manual.html#checking-gpi0

here my Device (GPI0)

Device (GPI0)
        {
            Method (_HID, 0, NotSerialized)  // _HID: Hardware ID
            {
                If (LEqual (PCHG, 0x02))
                {
                    Return ("INT3437")
                }

                Return ("INT33C7")
            }

            Name (RBUF, ResourceTemplate ()
            {
                DWordIO (ResourceProducer, MinFixed, MaxFixed, PosDecode, EntireRange,
                    0x00000000,         // Granularity
                    0x00000000,         // Range Minimum
                    0x000003FF,         // Range Maximum
                    0x00000000,         // Translation Offset
                    0x00000400,         // Length
                    ,, _Y1C, TypeStatic, DenseTranslation)
            })
            CreateDWordField (RBUF, \_SB.PCI0.GPI0._Y1C._MIN, BMIN)  // _MIN: Minimum Base Address
            CreateDWordField (RBUF, \_SB.PCI0.GPI0._Y1C._MAX, BMAX)  // _MAX: Maximum Base Address
            Method (_CRS, 0, Serialized)  // _CRS: Current Resource Settings
            {
                Store (GPMN, BMIN)
                Store (GPMX, BMAX)
                Return (RBUF)
            }

            Method (_HRV, 0, NotSerialized)  // _HRV: Hardware Revision
            {
                Return (^^LPCB.CRID)
            }

            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                If (LEqual (GPMN, Zero))
                {
                    Return (Zero)
                }

                If (LAnd (LEqual (OSYS, 0x07DC), LEqual (SMD0, One)))
                {
                    Return (Zero)
                }

                If (LLess (OSYS, 0x07DC))
                {
                    Return (Zero)
                }

                If (LEqual (SMGP, Zero))
                {
                    Return (Zero)
                }

                Return (0x0F)
            }
        }

 Followed The Guide,, I understand need change all LEqual (GPMN, LAnd (LEqual (OSYS, 0x07DC), LEqual (SMD0, One, LLess (OSYS, 0x07DC, LEqual (SMGP values? But these values not like example: I mean not Method like example, they have LEqual, LAnd, LLess,... I don't know how start change?
