Samsung NP-R620 (FS04-FR) - 10.7 => 10.7.5 (Final - CAM/VGA/HDMI/GFX/SND/MIC/KEYB/USBNET OK)

OOKAMI

By OOKAMI
in The Archive

 Share

Recommended Posts

OOKAMI Private

OOKAMI

Posted
Posted

-----------------UPDATE 2013/07/10-----------------------------



Additional research about network after found a way to have 88E8057 detected by the system but very unstable

(network cable not detected, reboot with -x and so on.....)



I'm currently sure something missing in the kext in order to have them detected and fully working

I made some screenshots in order to show them correctly and maybe someone will complete more fast than me a fully working kext





MARVELL YUKON GIGABIT 88E8057

post-11398-0-23255600-1373453348_thumb.png post-11398-0-46746900-1373453373_thumb.png



ATHEROS WIRELESS 5007EG

post-11398-0-53680000-1373453400_thumb.png post-11398-0-48507200-1373453405_thumb.png



-----------------UPDATE 2013/06/24-----------------------------



Ok, I think there all I can made for the moment about this OS X version



In result



APPLE USB NETWORK => WORK

Mouse => WORK

Keyboard => WORK (with some bug like numeric pad can be used with FN button)

Camera => Natively working since 10.7.0

Sound WORK => See http://www.osx86.net/view/3045-alc_272_fully_working_on_casper_intel_i_...html



SOUND UPDATE (FINAL)

NOW STABLE AND FIXED WITH 2.8.4 => http://www.osx86.net/view/2746-voodoohda_2.8.4_pkg_installer.html



Place in S/L/E with KEXTWIZARD

(Be carefull - work on 10.8.4 and 10.7.x - Fix permission is needed)

(Iinstall VOODOOHDAPREF and avoid set MIC to MAX)

(Set the IMIX to MAX for MIC working => 10.7.5 & 10.8.4 is now permanent)



Graphics => WORKING Thanks to my contact !!!! See attachment or http://www.osx86.net/downloads.php?do=file&id=3953

 - HDMI => WORKING (but no sound, maybe something missing)

 - VGA => WORKING



SEEM WORKING

Chipset => System Info show him working and show on other part which kexts he use





NOT WORKING

LAN => Kexts not found

WIFI => Kexts not found



Point is I don't find tutorial or guides about modify kext to be compliant with these devices

If anyone can afford help about, this will be great in order to find a way to have a full working system





This first WIP make me understand many things and allowed me to have a better understand about Hackintosh

I successfully made a Myhack USB 10.8.4 working with my laptop and it's a great new !!!







If you have any questions, I'll answer when it's possible



Also, thanks to all tried to help me about



-----------------UPDATE 2013/06/24-----------------------------





-----------------UPDATE 2013/06/23-----------------------------

-----------------UPDATE 2013/06/22-----------------------------

-----------------UPDATE 2013/06/21-----------------------------






Some issues to find lan and wifi

Used system info and don't really understand meaning of icons even if it's explained on insanity

I'll see with Champlist if I can have more fix



Work In progress

Wired ethernet work in progress

Wireless ethernet work in progress

Chipset Work in progress





Working Part

Camera => Natively working since 10.7.0

Sound WORKING => See http://www.osx86.net/view/3045-alc_272_fully_working_on_casper_intel_i_...html

Graphics => WORKING Thanks to my contact !!!! See attachment or http://www.osx86.net/downloads.php?do=file&id=3953

 - HDMI => WORKING (but no sound, maybe something missing)

 - VGA => WORKING

-----------------------------------------------------------------------





-----------------UPDATE 2013/06/13-----------------------------



New installation

BIOS reset fixed by this kext

http://www.osx86.net/downloads.php?do=file&id=1494

(thanks to them about)



Graphics not working for the moment but i have a contact who can maybe help me to have it

(thanks to him in advance)



Wired ethernet work in progress

Wireless ethernet work in progress

Sound work in progress

Chipset Work in progress



-----------------------------------------------------------------------





-----------------UPDATE 2013/06/06-----------------------------

New ML installation and successfully updated to 10.7.5 with the standalone update



Found a usefull tool called chameleon wizard that allow many things



Smbios.plist now edited like i wanted



Also saw how to configure automaticely some options

PciRoot=1 working

-f working

Graphics not working



Now laptop can boot with no error but still at 1024x768



Found DSDT AUTO PATCHER to create DSDT and choose generic but don't know if it works, don't wanna try again and must made a new install actually



I'm still need to set each boot the bios because bios reset and I will see this part later (seem some kext exist to prevent this)



Found how to setup Camplist and add the following (Just to look carefully to top right fo choose drive)



OSX as default drive

Graphic set but still on the 3mb fake graphic card

DSDT drop option On



-----------------------------------------------------------------------







-----------------UPDATE 2013/06/03-----------------------------

New ML installation done 2 time

Found some dsdt about sound card but seem no effect



Point is :

I don't successfully worked any drivers with kext way



If I copy DSDT file on Root and Extra folder, i have a crash who mean reinstall

DSDT is patched for sound but not for CMOS or any other device



More hard than expected and help is welcome in order to find a way to sort out this issue



-----------------------------------------------------------------------





-----------------UPDATE 2013/05/29-----------------------------





-----------------UPDATE 2013/06/02-----------------------------

Performed Windows installation in order to use AIDA64 (last version) and have now full specs of the laptop



In resume :



  Motherboard Name   Samsung R520/R522/R620



CPU Type  Mobile DualCore Intel Pentium T4200, 2000 MHz (10 x 200)

Motherboard Chipset  Intel Cantiga PM45

Intel 82801IB ICH9



Chipset Bus Properties:       Bus Type   Intel Direct Media Interface



North Bridge Properties:       North Bridge   Intel Cantiga PM45       Supported FSB Speeds   FSB533, FSB667, FSB800, FSB1066       Supported Memory Types   DDR2-667, DDR2-800, DDR3-667, DDR3-800, DDR3-1066 SDRAM       Maximum Memory Amount   8 GB       Revision / Stepping   07 / B3       Package Type   1329 Pin FC-BGA       Package Size   34 mm x 34 mm       Process Technology   65 nm       Core Voltage   1.05 V       TDP   7 W       In-Order Queue Depth   12



South Bridge Properties:       South Bridge   Intel 82801IM ICH9M       Revision / Stepping   93 / A3       Package Type   676 Pin mBGA       Package Size   31 mm x 31 mm       Process Technology   130 nm       Core Voltage   1.05 V       TDP   2.5 W









Video Adapter  ATI Mobility Radeon HD 4300 Series (512 MB)

3D Accelerator  ATI Mobility Radeon HD 4330 (M92)

Chip Type  ATI display adapter (0x9552)

PCI Device  1002-9552 / 144D-C050 (Rev 00)

Device Name  RV710

Device Description  ATI RV710/730/740 - High Definition Audio Controller

Bus Type  PCI





Graphics Processor Properties:       Video Adapter   ATI Mobility Radeon HD 4330 (Samsung)       GPU Code Name   M92 (PCI Express 2.0 x16 1002 / 9552, Rev 00)       GPU Clock   220 MHz (original: 450 MHz)       Memory Clock   250 MHz (original: 600 MHz)





Audio Adapter  ATI Radeon HDMI @ ATI RV710/730/740 - High Definition Audio Controller

Audio Adapter  Realtek ALC272 @ Intel 82801IB ICH9 - High Definition Audio Controller [A-3]



High Definition Audio:       Codec Name   Realtek ALC272       Codec ID   10EC0272h / 144DC050h       Codec Revision   1000h       Codec Type   Audio





Network Adapter (Wifi)  Atheros AR5007EG

Network Adapter (Lan)  Gigabit Ethernet Marvell Yukon 88E8057 PCI-E



  PCI Express Controller:       PCI-E 1.0 x1 port #1   In Use @ x1 (Atheros AR5006X Wireless Network Adapter)       PCI-E 1.0 x1 port #3   Empty       PCI-E 1.0 x1 port #4   In Use @ x1 (Marvell Yukon 88E8057 PCI-E Gigabit Ethernet Controller)





Namuga 1.3M Webcam



I add the full report in attachment

Also adding DSDT file extracted from AIDA64

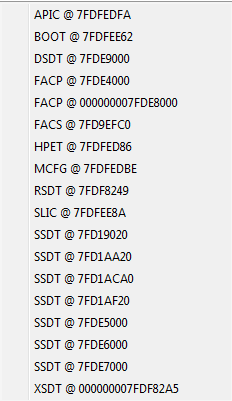

About SSDT, I have many and don't know wich one I must save




I will soon begin new ML Install

-----------------------------------------------------------------------





-----------------UPDATE 2013/05/30-----------------------------

Because USB working fine, i can use my official Apple USB 2 ETHERNET and I think this will also work for 3rd party device

I just notice i had a little time to make it run, I mean the first time, ethernet cable was detected as unplugged but after some minutes of waiting, it worked with no action on my side.



I can now go on internet with and launch updates :



done for itunes and remote desktop

not made update for 10.7.5 combo update until i am sure this update will work after reboot



 - dumped DSDT file empty of patch (sort of ORIG file)

 - shared ORIG DSDT of the laptop if someone can give me some help to make a good patched DSDT

 - added some results about hardware research for this laptop

 - Changed thread title in order to dedicate install only for 10.7.0



First test with DSDT EDITOR with the help of this video is a fail:



So now I need to make a new installation

I hesitate because I think if i make new windows install will allow me to use AIDA in order to have all hardware informations

-----------------------------------------------------------------------





-----------------UPDATE 2013/05/29-----------------------------



 - 10.8.2 install not working with any command with MYHACK (i'll make a new test when DSDT will be create)



 - 10.7.0 working fine but many problems to boot because of BIOS reset (will be fixed when the DSDT will be made)

If laptop reboot, enter in BIOS setup and check if all is correctly set



For my part, reboot cause CMOS reset each reboot, so :

set up the BIOS

when save is choose, enter again in bios menu in order to check again (make this twice in order to be sure)

If all parameters are correct, you can boot with USB HDD first, choose your AHCI HDD with -x PciRoot=1 command



-----------------------------------------------------------------------







Hello,



For my first post, i would like to share how i successfully installed OSX LION on this laptop :)



After many days of searching, I finally found a way to install it:

  • for begining, unifail is unable to boot properly (black screen and impossible to switch to VGA or HDMI)
  • I finally change for MYHACK and saw first error following : 0xdeadbeef on ati.c at line 980
  • it seem that the cause why unifail can't boot properly
  • so after many commands, using -x PciRoot=1 allow to launch installation



About BIOS setup :

Manually set up for AHCI

Disable Legacy Boot in order to allow BIOS to run as UEFI

Changed Legacy OS to OTHER for Unix compatibility



boot order :

USB HDD

AHCI HDD

AHCI DVD



If it crash the first time, check bios in order to change boot order for USB HDD first and let all. Normaly, the setup write early is good.



in final:

  • weird thing about keyboard : not recognized at first screen and used external KB. after => laptop KB seem working fine :)
  • camera working and took photo for login pic
  • video card use generic driver and don't find the correct drivers for the moment :P If someone can help me about. Mobility Radeon HD 4330 => found specs in internet but need to confirm with my original box. Mac show generic with 3mb
  • USB working
  • Touchpad Working with 2 buttons (left and right) + the Touchpad led color (Blue)



not tested :

  • VGA
  • HDMI



not working :

  • ethernet => need to define what driver i must use
  • wifi => need to define what driver use



Bug :

  • CMOS (BIOS) reset each time when i reboot laptop and multifail seem not resolve this.
  • I will search about when i'll found all about drivers

If you have solutions, it will be really good :)



Next steps :

  • after will be to create dsdt but I confess i'm a little lost on how to make it one :P Thanks for help about :)
  • => in progress


  • Also, I will try to install the last OSX version (Mountain Lion) because I have it and prefer to have it on (normal :lol:  )
  • => currently not working even with correct commands



Hope this can be helpfull for anyone who want to make their R620 laptop runing Mac OS X LION :)

In advance, sorry for my low level english :P

Report R620.htm

acpi_dsdt.zip

Kext HD4330m 10.7.5.zip

Link to comment
Share on other sites
Darvinko First Lieutenant

Darvinko

Posted
Posted

There is a resident DSDT person here, you can look at the forums and submit yours for editing which should resolve your BIOS reset issue. He offers service on a first come, first served basis as time allows or sponsered service (almost immediate). Ethernet is usually resolved by determining which card you have and locating the proper kext. Wi-Fi can be the same, however many wi-fi cards are unsupported in OSx and require replacement with a compatible card. Once you determine which ethernet and wi-fi hard ware you have, these should be easy to resolve

  • Like 1
Link to comment
Share on other sites
OOKAMI Private

OOKAMI

Posted
  • Author
Posted

There is a resident DSDT person here, you can look at the forums and submit yours for editing which should resolve your BIOS reset issue. He offers service on a first come, first served basis as time allows or sponsered service (almost immediate). Ethernet is usually resolved by determining which card you have and locating the proper kext. Wi-Fi can be the same, however many wi-fi cards are unsupported in OSx and require replacement with a compatible card. Once you determine which ethernet and wi-fi hard ware you have, these should be easy to resolve



Thanks for your feedback about, I appreciate :)



This will be not a big problem about ethernet for the moment because I have a ethernet USB I bought long time ago (in case my MBP have a dead ethernet port :P )



About your DSDT resident, I'll take a look again but I didn't find it before.

Anyway, looking for DSDT tutorials show something not really difficult for the first step :)

So, I will begin for the begining about patch and make some research in order to have a full compatible DSDT ;)



If it's allowed, I'll share the DSDT on this topic.



Have a nice day :)



----------------EDIT--------------------

this laptop is a test in order to learn about and earn skill (a test)

My real goal is to have my another laptop DELL E6400 NVIDIA QUADRO NVS 160M wirking perfectly with ;)

------------------------------------------

.

Link to comment
Share on other sites
OOKAMI Private

OOKAMI

Posted
  • Author
Posted

Hello :)



Successfully recovered my DSDT but can't upload it here :(

I will find another way to share it :)



Bios version 07LL

Micom version 05LL



SAMSUNG NP-R620

XE4V

FS04-FR



Now I will need some time to read how to patch this file :)

.

Link to comment
Share on other sites
OOKAMI Private

OOKAMI

Posted
  • Author
Posted

you should be able to attach a zip file with the advanced editor



I was so tired yesterday i didn't think about :lol:



Had it from DSDT EDITOR on ML



No patch added in order to have an ORIG file.



about graphics

from http://www.pcidatabase.com/vendor_details.php?id=240



device ID 0x9552



framebuffer currently not found

Track I follow in order to know about

http://www.insanelymac.com/forum/topic/245308-mobility-radeon-10667-guide-for-qeci-testing-107/page__st__20?do=findComment&comment=1646113



File found about ati.c seem to manage it

http://www.google.fr/url?sa=t&rct=j&q=&esrc=s&source=web&cd=4&cad=rja&ved=0CEkQFjAD&url=http%3A%2F%2Fforge.voodooprojects.org%2Fp%2Fchameleon%2Fsource%2Ffile%2F2225%2Fbranches%2Fchimera (chameleon, stolen and rebranded)%2Fi386%2Flibsaio%2Fati.c&ei=4SqnUYKEBZOThgec2ID4BA&usg=AFQjCNFyTMdPzILWgFMVsczjK9u0J5R06g&sig2=Tm0ZeCxo3D39Elf4J2XyfA&bvm=bv.47244034,d.ZWU



------------EDIT------------------------

Seem to be this framebuffer name

    { 0x9552,    0x04341028, CHIP_FAMILY_RV710,        "ATI Mobility Radeon HD 4330",        kShrike        },



    { 0x9552,    0x308B103C, CHIP_FAMILY_RV710,        "ATI Mobility Radeon HD 4330",        kShrike        },





------------------------------------------



dedicated RAM => 512mb





about processor

Intel Pentium T4200 / 2 GHz





about chipset

Intel PM45 Express





about sound

Realtek High Definition Audio

model unknow => I will check in driver files in order to find it





about SATA speed

Serial ATA-150





about screen

16" TFT

1366 x 768 ( WXGA )





Hope this can be helpfull for anyone want to :)

.

DSDT-Samsung_NP-R620_XE4V_FS04FR_ARM4330.zip

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
