[SOLVED] D630 X3100 myhack install/post install extension cannot be used issues

[Latentosh]

Hi Guys



First of all, great forum and thanks to all that contributed to the success.



I have issues with myHack.kext errors "System extension cannot be used".



I downloaded a fresh Lion 10.7.5 app from app store for install. Used my hack 3.3.1 to make usb installer. Installed "D630i_LoRes_10.7.5_Tuned_Pack." onto usb installer Extra folder. All went well.



Checked bios is correct as per this forum. Bios version A17. Installation of OSX Lion went well until just after I chose to use my own Extra folder. I pointed to the extra folder on the usb installer. A few minutes after that the installation returned failed with a log file. Can't work out from this log file what the issue is.



Anyhow, tried to boot the new installation and stopped at "Still waiting for root device". Next boot I used -f and succeeded to OSX configuration and into desktop. A few things didn't work, like sound, keyboard, trackpad, etc, so straight into my hack to run myfix (quick). During this a few popups came up with said "System extensions cannot............" In short, the myfix didn't fix my issues. Then, deleted myHack.kext and re-insalled myHack utilities. Same popup errors. Did a myfix (Full), and still same popup errors.



I also tried a suggestion from another post about the kext being quarantined. I used terminal with following commands

- cd S/L/E

- sudo xattr -c -r myHack.kext

- sudo touch S/L/E.

Get same popup errors using above.



Not sure what to do/try next..........any advice appreciated.



[Hervé]

Can you please post that /Extra folder with DSDT, plists and Extensions subfolder?

[Latentosh]

HI Hervè



Yes sure, .zip file attached



Just to give some more detail, I used this https://osxlatitude.com/index.php?/topic/7210-d630-w-intel-x3100-low-res-1280x800-dramas-with-edpv6-and-lion-1075/ for the install.



When I look at the SMbios (with chameleon wizard) i noticed mac 5.1 is selected. Not sure if it will make a difference, but with some research, I think i'm closer to a Mac 3.1.

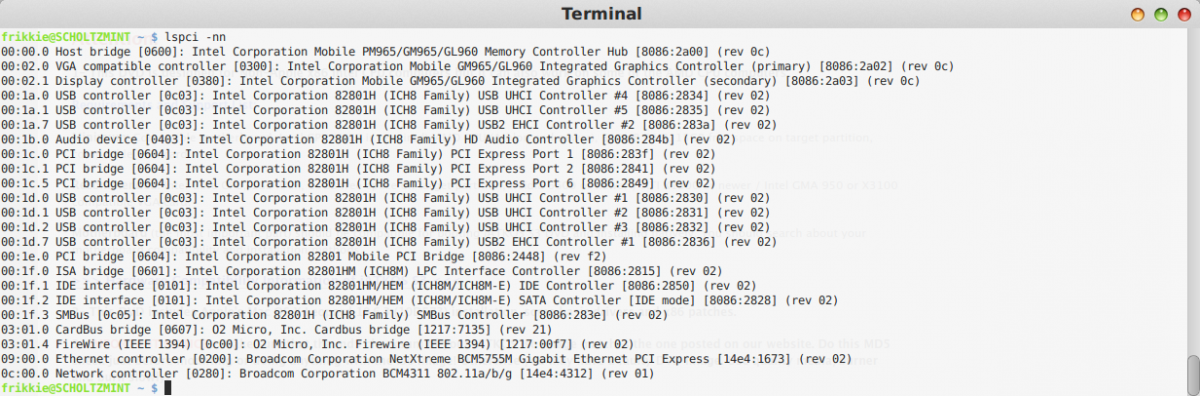

Also attached, a snap shot of my hardware.



D630i_LoRes_10.7.5_Tuned_Pack.zip

[Hervé]

Arf, it's my own stuff. Sometimes I forget things, even recent ones...



There's no issue with this pack, you can take my word for it. Make sure you partition your destination HDD as GUID with Mac OS X (journaled) format.



Regarding the error message, can you take a note of which kext it applies? Or does it apply to all kexts placed in /E/E? Re-installing myHack Utilities then reinstalling Extra would sound the right thing to do.



Regarding SMBIOS, yes MB3,1 would appear a better choice, but that model does not support native SpeedStep; MB5,1 does. We've tested this in all angles many many moons ago, so rest assured there's no mistake... Do a search on "performance tuning" and you'll understand.

[Latentosh]

Hi



I quickly did a myfix to note down the errors



First one

- myHack.kext

then........

- myHack.kextContents/PlugIns/ACPISensors.kext

-myHack.kext/Contents/PlugIns/

-myHack.kext/Contents/PlugIns/AppleACPIEC.kext

-myHack.kext/Contents/PlugIns/ (sorry i missed this one)

-myHack.kext/Contents/PlugIns/AppleACPIPS2Nub.kext

- myHack.kext/Contents/PlugIns/AppleHDA.kext

- myHack.kext/Contents/PlugIns/AppleHDAController.kext

- myHack.kext/Contents/PlugIns/AppleHDAHardwareConfigDriver.kext

- myHack.kext/Contents/PlugIns/AppleHDAPlatformDriver.kext

-myHack.kext/Contents/PlugIns/AppleMikeyDriver.kext

- myHack.kext/Contents/PlugIns/ApplePS2Controller.kext

- myHack.kext/Contents/PlugIns/ApplePS2Keyboard.kext

-myHack.kext/Contents/PlugIns/ApplePS2Mouse.kext

-myHack.kext/Contents/PlugIns/BCM5722D.kext

-myHack.kext/Contents/PlugIns/DspFuncLib.kext

-myHack.kext/Contents/PlugIns/FakeSMC.kext

-myHack.kext/Contents/PlugIns/FakeSTAC9205.kext

-myHack.kext/Contents/PlugIns/GPUSensors.kext

-myHack.kext/Contents/PlugIns/IOHDAFamily.kext

-myHack.kext/Contents/PlugIns/LPCSensors.kext

-myHack.kext/Contents/PlugIns/lspcidrv.kext

-myHack.kext/Contents/PlugIns/Patched_10.7_AppleRTC.kext

-myHack.kext/Contents/PlugIns/VoodooBattery.kext

-myHack.kext/Contents/PlugIns/VoodooPS2Trackpad.kext



It seams pretty much all of them.



I'll try deleting myhack, install my hack again and install extra after that then run myfix (quick)

[Hervé]

Permissions must be screwed. Indeed, reinstall myHack and start again or try fixing permissions manually (chmod 755 & chown 0:0).

[Latentosh]

Right Herve, an update



I tried re-install myhack, then install extra then run myfix (quick). Get the same result. (This was done on installed HDD). I also tried the chmod and chown. Chown gives me "Operation not permitted". Then i decided to start all over again.



Then I re-installed myhack on USB installer. This time the OSX installation was successful. Upon reboot I got "Still waiting for root device". Rebooted with -f -v and into configuration and into desktop. After a short period of time, I then get 2 system extension errors;

- myHack.kext/Contents/PlugIns/IOHDAFamily.kext

- myHack.kext/Contents/PlugIns/AppleHDAController.kext



Since no sound from D630, above kexts must be the culprits.



I decided since I get "Still waiting for root....." error, to run my fix again. Now I get all the kexts errors as mentioned in post #5 again.



I'm really stumped at this one......What else can I do or am I doing wrong?

[Latentosh]

Some snap shots/info to help troubleshoot

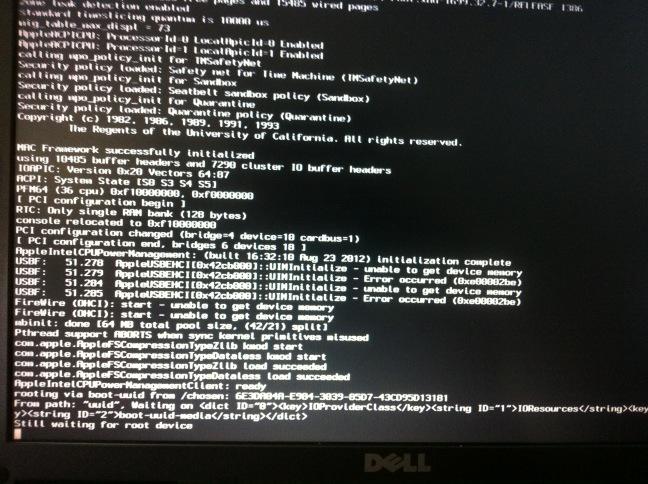

Snapshot of "Still waiting for root device"





Disk partitions





Hitachi HTS541680J9SA00:



  Capacity: 80.03 GB (80,026,361,856 bytes)

  Model: Hitachi HTS541680J9SA00

  Revision: SB2OC74P

  Serial Number:       SB2251SGK3VM7E

  Native Command Queuing: Yes

  Queue Depth: 32

  Removable Media: No

  Detachable Drive: No

  BSD Name: disk0

  Medium Type: Rotational

  Partition Map Type: GPT (GUID Partition Table)

  S.M.A.R.T. status: Verified

  Volumes:

disk0s1:

  Capacity: 209.7 MB (209,715,200 bytes)

  BSD Name: disk0s1

  Content: EFI

Mac OSX Lion:

  Capacity: 53.49 GB (53,485,129,728 bytes)

  Available: 44.34 GB (44,335,521,792 bytes)

  Writable: Yes

  File System: Journaled HFS+

  BSD Name: disk0s2

  Mount Point: /

  Content: Apple_HFS

Mac OSX Lion L2:

  Capacity: 26.06 GB (26,063,040,512 bytes)

  Available: 13.13 GB (13,127,794,688 bytes)

  Writable: Yes

  File System: Journaled HFS+

  BSD Name: disk0s3

  Mount Point: /Volumes/Mac OSX Lion L2

  Content: Apple_HFS

Note: Could disk0s1 = EFI be a problem?





Filesystem repair log



Filesystem repair log:



  Source: /var/log/fsck_hfs.log

  Size: 2 KB (2,276 bytes)

  Last Modified: 19/10/14 2:46 PM

  Recent Contents:

/dev/rdisk0s2: fsck_hfs run at Sat Oct 18 20:50:27 2014

** /dev/rdisk0s2 (NO WRITE)

** Root file system

   Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s2: fsck_hfs run at Sat Oct 18 20:51:22 2014

/dev/rdisk0s2: ** /dev/rdisk0s2 (NO WRITE)

/dev/rdisk0s2: ** Root file system

/dev/rdisk0s2:    Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s3: fsck_hfs run at Sat Oct 18 20:51:23 2014

/dev/rdisk0s3: ** /dev/rdisk0s3 (NO WRITE)

/dev/rdisk0s3:    Executing fsck_hfs (version diskdev_cmds-540.1~25).

QUICKCHECK ONLY; FILESYSTEM CLEAN



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:38:32 2014

** /dev/rdisk0s2 (NO WRITE)

** Root file system

   Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:39:01 2014

/dev/rdisk0s2: ** /dev/rdisk0s2 (NO WRITE)

/dev/rdisk0s2: ** Root file system

/dev/rdisk0s2:    Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s3: fsck_hfs run at Sun Oct 19 15:39:02 2014

/dev/rdisk0s3: ** /dev/rdisk0s3 (NO WRITE)

/dev/rdisk0s3:    Executing fsck_hfs (version diskdev_cmds-540.1~25).

QUICKCHECK ONLY; FILESYSTEM CLEAN



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:41:47 2014

** /dev/rdisk0s2 (NO WRITE)

** Root file system

   Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:42:01 2014

/dev/rdisk0s2: ** /dev/rdisk0s2 (NO WRITE)

/dev/rdisk0s2: ** Root file system

/dev/rdisk0s2:    Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s3: fsck_hfs run at Sun Oct 19 15:42:02 2014

/dev/rdisk0s3: ** /dev/rdisk0s3 (NO WRITE)

/dev/rdisk0s3:    Executing fsck_hfs (version diskdev_cmds-540.1~25).

QUICKCHECK ONLY; FILESYSTEM CLEAN



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:45:47 2014

** /dev/rdisk0s2 (NO WRITE)

** Root file system

   Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s2: fsck_hfs run at Sun Oct 19 15:45:59 2014

/dev/rdisk0s2: ** /dev/rdisk0s2 (NO WRITE)

/dev/rdisk0s2: ** Root file system

/dev/rdisk0s2:    Executing fsck_hfs (version diskdev_cmds-540.1~25).



/dev/rdisk0s3: fsck_hfs run at Sun Oct 19 15:46:00 2014

/dev/rdisk0s3: ** /dev/rdisk0s3 (NO WRITE)

/dev/rdisk0s3:    Executing fsck_hfs (version diskdev_cmds-540.1~25).

QUICKCHECK ONLY; FILESYSTEM CLEAN





[Hervé]

No idea, never seen issues like this. Did you notice the errors reported for USB/Firewire device? There's something wrong there, maybe your USB key is corrupt or something...



By the way, for permissions, the chmod/chown commands need to be run with sudo command.

[Latentosh]

Thanks for the help thus far Herve.....



I'll do some more research and try different things like change my usb installer, etc.



Weird one this
