Mate94

Oh, well... It was fun at least while it lasted. I have no way of modifying the files on my USB. And I have no way accessing another computer easily while trying modifications. I guess I am turned back to Windows for now. No problem here, I am eyeing with an XPS 9570, maybe better luck with that. Thank you for your help guys with this machine, I am sure it may be helpful for others with this config in the future.

I know. I mean that FWRuntime... is for OpenCore, but I was told that AptioMemoryFix and similar are deprecated now, and OcQuirks+FW should take their place instead. All according to its GitHub: https://github.com/ReddestDream/OcQuirks I am not trying to sound impudent or all high and mighty, I am just sharing my experience. I blocked the following kexts: ACPIBatteryManager, BRCMPatchram3, BRCMFirmwarerdata, BRCMBluetoothinjector, AirportBrcmfixup. I added the -igfxvesa boot argument, as debug 0x100 had already been added, as you said and it stopped here. It doesn't seem obvious what the problem is, to me at least :

Hey Jake, welcome back! Erhm..., I only installed Catalina to my SSD, nothing else. I cannot figure out whether the installation of Clover fails because I booted up in safe mode, or that is actually the Clover installer is the culprit. There are reports of it crashing on 10.15.1 during installation with r5098. I may as well did it again, but do you think that switching to FWRuntimeservices.efi+OCQuirks.efi instead of any AptioFix.efi would cause the booting process stuck at the apple logo with the loading bar?

Thank you, Hervé! After realising I was a fool, I managed to block the ACPIBatteryManager.kext and I installed Catalina successfully. Kinda. The thing is that I could only boot to the post-installation in Safe mode (-x). Choosing my hard drive from the Clover boot loader, blocking ACPIBM.kext (abreviation) and booting in verbose (-v) would only lead to the standard macOS loading animation, but the loading bar would never fill up and there are no indication of my SSD reading or writing anything as the indicator LED is not blinking or anything, it just stays black. So, the loading bar appears after all the debugging messages disappear, so I can't even tell you where it stops exactly At least I am in! Now, probably my best option would be to install Clover to my hard drive and copy my EFI folder and check whether I could boot from my drive without my USB. I feat the worst. My USB ports don't have enough power for my USB drive to attach. EDIT: I am unable to install Clover. Both dids' and CloverHackyColor's installer fails. This is unbelievable.

Hey @Hervé and @Jake Lo! Finally, this day has arrived! My Broadcom on WiFi has arrived! Of course, I rushed in to replace the old Intel and start installing macOS right away, if only for this warning message: "Your computer is not connected to a power source." Well, it certainly is, but I don't have any battery installed. I was expecting some kind of trouble having no battery to be honest. Would do you think removing the ACPIBattery.kext solve the problem or would it also require DSDT patching? Too bad, that I have already erased my drive and I don't have any other PC available until I think of something. PS.: I was wondering about this since I couldn't find a definitive answer: Would you recommend choosing APFS as Format when Erasing a drive or should it be Mac OS Extended (Journaled)? Does it make any difference? Going by the fact that with Journaled the installer would convert it to APFS anyway? As always, I really appreciate your help and wish you a very nice day!

No, I didn't. Nope. No. It... worked? (Starts loading again after "896mA of bus current is not available") ... No, please don't say a word. I am in the process of understanding how this is even possible, but... This is not how it is supposed to work, this not how any of this is supposed to work! If I ever were to make a detailed guide, this probably would be the most hilarious line of all: Step XY: After a few seconds the status messages start to appear, but they soon will stop. Don't worry, fast unplug and plug back the USB stick and the process will continue. But in all seriousness, what is this? Why? And more importantly, how? I tried this afterwards. No change , the statues messages stops as usual, but continues if I unplug and plug it back immediately. Verdict: When booting your USB drive in verbose mode the messages would seemingly stop, unplug and plug back your stick immediately, and hopefully the process will continue. (If you are sure that your DSDT/SSDTs are "correct".) This concludes then this issue again. Thank you guys for all of your patience and understanding. I swear that I will only waste your time next when I am ready to install.

In the beginning, I partitioned my USB drive following Rehabman's laptop guide: diskutil partitionDisk /dev/disk1 2 MBR FAT32 "CLOVER EFI" 200Mi HFS+J "install_osx" R And I copied the macOS Catalina.app to this partition with this command: sudo "/Applications/Install macOS Catalina.app/Contents/Resources/createinstallmedia" --volume /Volumes/install_osx --nointeraction When I swapped 10.15 with 10.15.1, I used the very same command with only changes to the name of the volume: sudo "/Applications/Install macOS Catalina.app/Contents/Resources/createinstallmedia" --volume /Volumes/Install macOS Catalina --nointeraction This command formats the target partition, therefore there it is easy to "update" the installer without recreating the whole thing with repartition, installing Clover and the macOS Catalina installer once again. Or so I thought. Nevermind. I appreciate you attentive nature and the heads up, thank you Hervé! As you said, it was time to redo the whole thing. I did. The results are still the same "still waiting for root device" error. The pictures of the KP are already attached. I am attaching my EFI folder reflecting its currents state. No further change will be applied until suggested otherwise. I cannot thank enough, but still, thank you very much! CLOVER EFI.zip

It wasn't me Hervé. That's not the original title of that thread I had created. One of your moderators are doing this without any announcement. You are not exactly alone. Colour my surprise when that happened. Hervé, pretty please, look at me and listen here carefully. There is no mac OS operating system installed yet. Nought. Zero. Only Windows is on my SSD. No other OS. I am not updating any system with a newly created mac OS bootable USB drive. I am only swapping the "Install macOS Catalina.app" - 10.15 to "Install macOS Catalina.app" - 10.15.1 on the partition created in my USB stick. I can clarify every time you want me to do so.

The whole saga starts from here. Our current and that topic were split by I guess one of you. Ignore the title being "10.15.1 Beta", that was 10.15. I don't really see what else is left to attach. I have already explained everything that happened. mac OS Catalina USB installer: Partition 1: CLOVER EFI Partition 2: 10.15 Catalina Result: Loads the installer without any issue. mac OS Catalina USB installer: Partition 1: CLOVER EFI - same as before: same ACPI, kexts, drivers folder, etc. Partition 2: 10.15.1 Catalina Result: "Still waiting for root device" - pictures attached in the beginning of the topic.

I apologize for the rookie mistakes, and making you guys run in unnecessary circles. Please let me try again, now with @Jake Lo made "patched" folder. He also sent me this config.plist, which by the looks use DropOEM SSDT and etc. I shamelessly hand over every responsibility to Jake regarding your criticism. But I definitely learned from this, thank you Hervé. CLOVER EFI.zip

You got the wrong idea as well! There is no macOS installed on my computer as of yet. I am only talking about my USB boot drive, and only the boot drive, nothing else. @Jake Lo was kind enough to patch my DSDT/SSDTs, create a config.plist and correct some of my kexts to make system finally boot from this USB stick, but now when I swapped 10.15 to 10.15.1, and even when everything remained the same, this drive will run into the same issue I had first asked help for here, meaning I get 'still waiting for root device" KP(?), where previously this was solved by Jake. So, once again, I am once again asking for help in making my Clover boot drive actually boot to the installation screen. Thank you guys for your kind attention to my problem!

No, nothing like that just yet. It may have been confusing, but we are still in booting the installer phase a.k.a booting from a USB stick. I can't install just yet since I don't have wired internet connection, and the usual Intel WiFI+BT combo doesn't work. I have tried different ports, stops at the very same message as previously attached. Clover... Next time I won't forget. Here we go! Thank you Jake! CLOVER EFI.zip

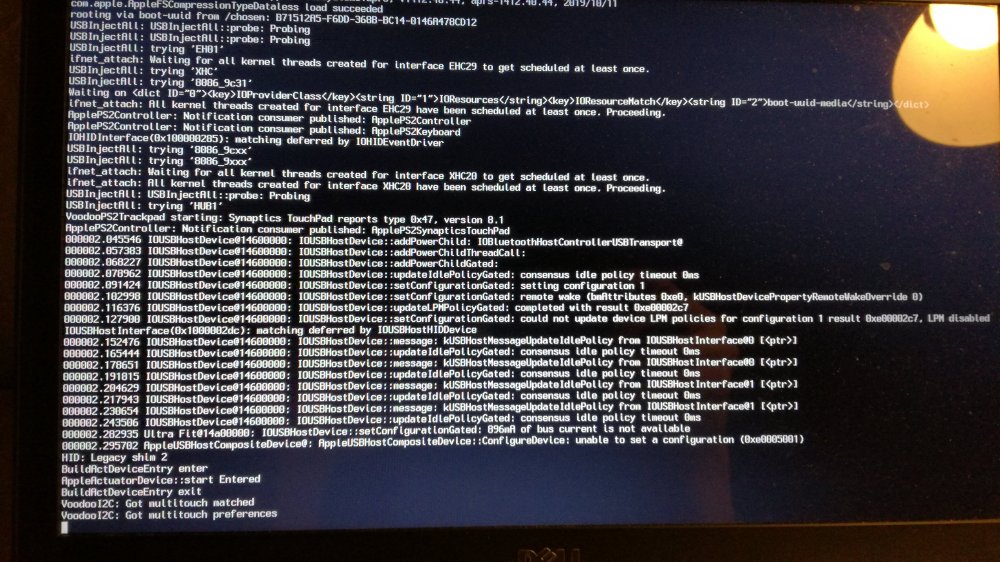

Hey @Jake Lo Long time no see, huh. As Apple released 10.15.1, I immediately downloaded and copied the new macOS Catalina installer to my USB stick. Just to have everything up to date when my WiFi card arrives. Or so I thought. Other than that, I updated my Others/kext folder on the stick with the new WhateverGreen.kext, Lilu.kext, VirtualSMC.kext., and SMCBatteryManager.kext. Although, I don't think that any of these have anything to do with the issue, namely again the lack of USB power and "still waiting for root device". Do we need some new ACPI/DSDT/SSDT patches for 10.15.1? I haven't seen anybody having to do so. Very strange. Disclaimer: I didn't modify anything from your patched ACPI folder. Why does it refuse to boot is beyond me right now. Your wise words are always welcome, thank you!

I think the consensus over hibernation is to disable it. You can read about it here: https://fewtarius.gitbook.io/laptopguide/correcting-sleep-problems

@Jake Lo Understood! ACPIBatteryManager went, SMCBatteryManager came! In all seriousness, I don't currently have a battery installed as it died a while ago, but let's pretend as if it was still there. Aren't BCM4322 and BCM4352 different? I might very well be mistaken and they are both controlled by AirPortBrcm4331.kext, but it just doesn't add up. So, after reading through the topic here: https://www.insanelymac.com/forum/topic/339175-brcmpatchram2-for-1015-catalina-broadcom-bluetooth-firmware-upload/ - It may seem that I will have to have include BrcmBluetoothInjector.kext, BrcmFirmwareData.kext, and BrcmPatchRAM3.kext into my kexts/Other folder. Aaand it's question time again: 1. Does FakePCIID_Broadcom_WiFi.kext still makes sense to include or it has nothing to with Broadcom WiFi, but to enable the IGP a.k.a. HD4400...?

Hey @Jake Lo! I took the liberty and tried to understand at least the kexts and drivers folder that you had assembled for me. 1. I switched the FakeSMC.kext with VirtualSMC.kext and deleted SMCHelper.efi, just because I read that FakeSMC is no longer maintained and VirtualSMC.kext its successor in that sense. I tried booting the installer, and it worked fine. Was it a good idea of my own or any drawbacks I may have to face? 2. I placed an order for an Azurewave AW-CE123H/Dell DW1550 (BCM94352HMB) as a replacement WIFI+BT card. I have seen that in my Other folder you had prepared for an eventual Broadcom Wifi card. At least the AirportBrcmFixup.kext and FakePCIID_Broadcom_WiFi.kext makes me think that they are for this reason. I tried myself to look up how to actually set up this card and got kind of confused what I actually need. I have Rehabman's github page here: https://github.com/RehabMan/OS-X-BrcmPatchRAM But then I stumbled upon this: https://www.insanelymac.com/forum/topic/339175-brcmpatchram2-for-1015-catalina-broadcom-bluetooth-firmware-upload/ and I am confused which one to really follow. Thank you again for your kind response!

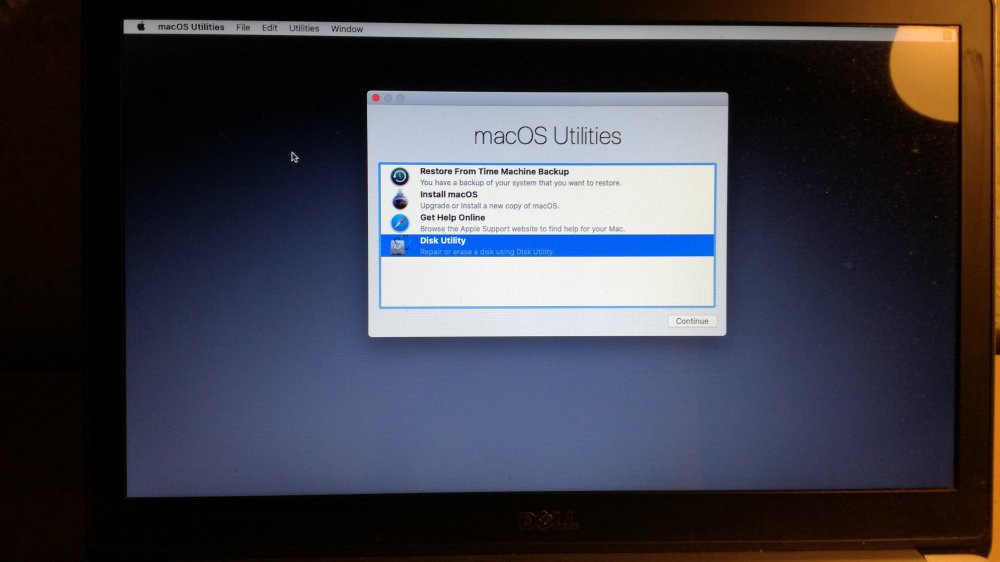

Hey @Jake Lo, thank you for coming back to me so fast after that DDOS attack! I am just flabbergasted at the magnificent work that you have done here! It booted up to the installer right away. Absolutely amazing. Just wow...! I am so happy, Jake! Would it be appropriate to donate some for your help? I have no idea how much time it may have taken to set up, but I would feel well if I couldn't honour your work. I am not going to install Catalina right away as I am yet to replace my WiFi card, and I am without any ethernet connection, so wouldn't like to risk anything. Big applause to you, Jake! Thank you for your help! PS.: Is there any way for me to actually learn what kind of changes you made to the config.plist and to all the DSDT/SSDT files? I just don't want to be completely clueless about the files I am using, and it probably would be quite educational. I hope there is a easy way to sort-of read them and show changes, like if I am not mistaken with Clover Configurator, I guess?

@Jake Lo It... It WORKED! I cannot believe it! *laughs and cries maniacally Here is my CLOVER EFI again. CLOVER EFI.zip

@Jake Lo Yes, that's what I was trying to tell. I cannot make Clover to dump my DSDT with F4 or any other keystroke combination command. I did choose UEFI-installation with ESP just to make sure. I'll trying creating an ACPI folder myself and see whether it changes anything. I will report back. Thank you, Jake!

@Jake Lo I did what you told me. Here is the whole EFI partition. Thank you once again! EFI.zip

Hey Jake! Thank you for your answer! I have tried to let Clover dump my DSDT, but never worked. There is no ACPI folder on my EFI partition. Not with a keystroke FN/Shift, etc. either. Though, I have never tried with F4+F2, but let's see. I have no idea about Voodool2C. I mean I don't even have the kext for it.

I tried the config.plist from this the attached config.plist_for_installer.zip of this older guide. It went on for a while, but ultimately stopped here. I guess it was no surprise. This config was probably old for Catalina's needs. So I think I may need a "good" config.plist. Can further help me? EDIT: From this guide: https://www.tonycrapx86.com/threads/guide-dell-inspiron-3x37-5x37-7x37-clover-yosemite-el-capitan.177410/

Hey everyone! First, thank you for reading my post and your time spent on my issue! Hardware: CPU: Intel Core i7-4200U GPU: Intel HD Graphics 4400 - NVIDIA GeForce GT 750M RAM: 2X4GB DDR3L 1600 MHz Storage: INTEL SSDSC2CW120A3 EFI/CLOVER/drivers/UEFI: ApfsDriverLoader.efi AptioInputFix.efi AptioMemoryFix.efi AudioDxe.efi DataHubDxe.efi FSInject.efi HFSPlus.efi PartitionDxe.efi SMCHelper.efi EFI/CLOVER/kexts/Other: Lilu.kext USBInjectAll.kext VoodooPS2Controller.kext WhateverGreen.kext Long story short, I am unable to boot to the Catalina installer, as when booting with -v the installer stops with the no entry sign saying "still waiting for root device". I know by now from research that it is a common issue, but I am unable to circumvent it. I am turning to you guys in hope of getting my installer to boot as you may have better understanding for laptop computer needs. This post is a continuation of this one on reddit: https://www.reddit.com/r/hackintosh/comments/dlpge1/dell_inspiron_7537_macos_catalina_10151_still/ FYI: Renaming EC devices as Catalina requires it is useless, as my EC device is called "EC" in my DSDT. The DSDT was dumped by AIDA64 as I am unable to get Clover to dump it to my USB drive. I am using Rehabman's config.plist titled: config_HD4600_4400_4200.plist as conflig.plist. Thank you once again. Any input is much appreciated!
