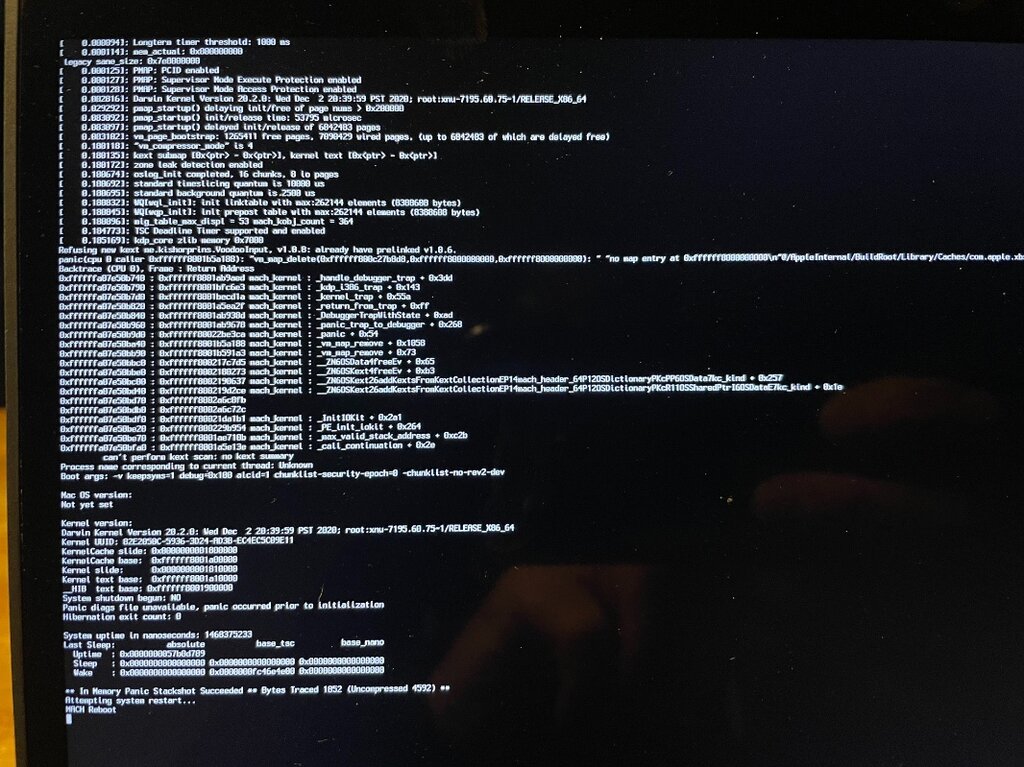

As requested here the EFI folder with settings which I used for my Thinkpad P1. I can create a working usb Big Sur 11.1 stick and install it on a second partition on the laptop. I used this open core guide https://dortania.github.io/OpenCore-Install-Guide/config.plist/coffee-lake.html#deviceproperties I did not find anything useful else. The laptop is installing and can be configured until desktop is shown. Not working yet WIFI - but can be solved with Heliport app. More concern for me is after first time reboot I get kernel panic about voodoo kext - cannot be solved by me - so after one first reboot I have to start from scratch again. Hope you can help me. Also added a picture of the KP as seen after the first time I reboot the laptop. EFI_BigSur-not_stable.zip

Hi Jake , I still have the laptop described above Thinkpad P1 with Xeon CPU. I am searching for a way to upgrade this laptop from Catalina latest version. Is it possible to upgrade to Big Sur ? I am searching on the different forums fo a working EFI with no luck. Do you have any suggestions for me? Thanks...

Hi Jake, thank you for your quick response and suggestion of your modified plist. I renamed the original and placed your plist in the folder , reboot laptop but no success But I think that the problem is a defect wifi card - I am getting in a few weeks a Hackintosh compatible wifi/bluetooth card and then everything will work then. ( I discovered that one of the cable connections on the card is not good.... The wifi on the card works with downloading but failed many times by test of speed upload. I ordered another one and will be delivered in a few weeks.. Do you have any info/ suggestion about the HDMI connection that does not work? No show stopper but would be nice if this also works. Another thing I noticed is that sometimes after boot of the laptop the sound card is grey out? a reboot and then it is solved Any comment/suggestion about this? Greetz.

Hi Jake for some reason I added files into last chat. Here they are again. Hope this will help. Greetz. OC.zip MacBook Pro-Lenovo P1.ioreg.zip

Hi Jake, as requested the IOregistry file of my Lenovo P1 sorry for previous message about kext for Bluetooth. I found your attachment, put the 3 files into folder EFI\OC\kexts, reboot the laptop , but did not work on my laptop. I created boot stick with OPEN CORE procedure. and not with Clover. Still message " Bluetooth not available" greetz

Hi Jake Lo. As promised hereby a update of our progress to install Catalina on my Lenovo P1. I found on Github a site within a guide for installation of Catalina 10.15.6 with also use of your Lenovo P1 installation files. State now is: laptop is booting from a created usb stick ( not without the stick sadly ) How to do this? Working : Full video intel 630 output and acceleration, usb-s audio , sleep mode, keyboard backlight trackpad, sd-card. Not working: i placed a DW 1560 Wifi/Bluetooth card , but bluetooth is not working ( WIFI works ) - any ideas how to install this , do i need some kext or files? HDMI not working any ideas about this? Thanks for your support in this.

Hi Jake Lo. thank you very much for your reply and effort to help me out. I will try this and will let you know the outcome. Have a nice day. Greetz.

Hi there, i got my hands on a nice laptop Thinkpad P1 with a XEON E-2176M CPU 2,70 GHz memory 32GB HD m.2 SSD 500 GB Build in Intel UHD Graphics P630. Combined with Nvidia video card (4K support) Screen 15” capable for 4K resolution Can someone tell me if there is possibility to install Mojave or even better Catalina on this laptop? Has someone tips for me? Thanks in advance .

Hi, We tried to create a debug file on the 7510 laptop but failed [ output is attached ] To test if we are doing something I tried the script on my macbook and script is running there completely so problem is sadly on the 7510 present. Is there another way to create a debug file? DEBUG log .zip

Hi, we created a debug file Hope this provide you more info The suggested WIFI BT card works out of the box or needs some kexts/adjustments? Any help will be appriciated preboot.log.zip

Hi , we managed to install Mojave on the Precision 7510. Used EFI (not included , could not upload it because size is 24MB). I used EFI used by ss2sameer in another topic. The specs 7510 as described are as earlier described in my post I added more memory RAM and is now 32 GB I also added a pci express M.2 Intel SSD 512 GB instead of a regular solid state of 256GB size Installation went without any problem. WORKING: Intel HD Graphics 530 card working Vram memory 1536 MB. Metal supported HDMI port working All 4 usb 3.0 ports working Display port not tested yet Audio working (except microphone). Keyboard lightning working but brightness cannot be adjusted using keyboard keys. NOT WORKING : Internal microphone Intel wifi bluetooth card inserted. Both not working ( Workaround usb wifi en bluetooth usb device) Suggestions for this? Sleep not working properly , when screen is closed I have to open and close 2 or 3 times and then I have a screen again. macOS 10.14.5 installed on laptop. During boot system I get an error message ( picture included ). It happened after update from 10.14.4 to 10.14.5 If there any solutions for the few errors feel free to tell me Overall I am very pleased with this hackingtosh laptop My goal to see if this laptop could be the successor of my MacBook Pro 2009 looks like a success. Thanks for all previous tips. Dell_Precision_7510-info.zip

Hi Jake lo first thank you for this. I have a question for you if you must choose between de m4800 or 7510 laptop both with amd firepro video card. What would you choose? I have both laptops and also two topics opened on this site. Please advice So then I can focus on one of these laptop Thanks..

We are rookies on this area so we try to read all topics and try to build a working boot stick en hopefully a working system on our laptop with the info we find on this site and other hackingtosh sites.

Sorry. this is the version we created and used with my tees Dell Precision 7510 laptop. EFI.zip

Hi, I got my hands on a Dell Precision 7510 ( the successor of the M4800 ) and trying to install High Sierra on it , and if this works good is my ultimate goal try to upgrade to Mojave. Together with a friend and use of the hints and tips of this great support side we managed to create a High Sierra boot stick and were able to boot the 7510 until a certain point during the installation, and then installation stops. ( video of this process ( in verbose mode ) is included. Hardware specs are : Hardware specs are: Intel i7 6820 2,7GHZ Cpu, 16 GB DDR4 ram 2133 hertz, 2 video cards, Intel Skylake Graphics 64MB inside and AMD Firepro W5710M GDDR5. 2 GB memory, 1 SSD 256 GB. and M.2 SSD 256GB drives, 15'6 inch IPS screen 1920x1080 resolution, Intel WIFI cad 8260 ( 802.110c) Audio card Realtek ALC3235 , 4x USB 3.0 , SD card slot, HDMI output. Included also are pictures of the boot stick and verbose boot of the stick with the 7510 laptop. Our questions are: Why stops the installations process at a certain point? If we are missing files/kexts needed for the process of the creation where can we find these? Is it possible to go directly to the Mojave installation and what files we need for that? Can somewhere point us to the right direction? Thanks. Verbose_boot_and_then_it_stops.docx.zip

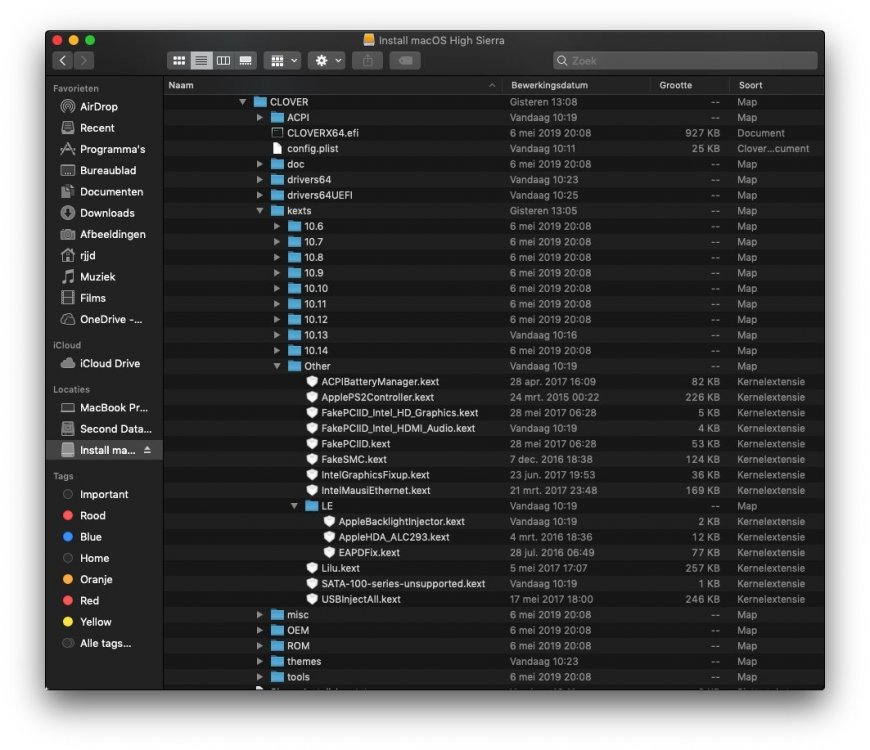

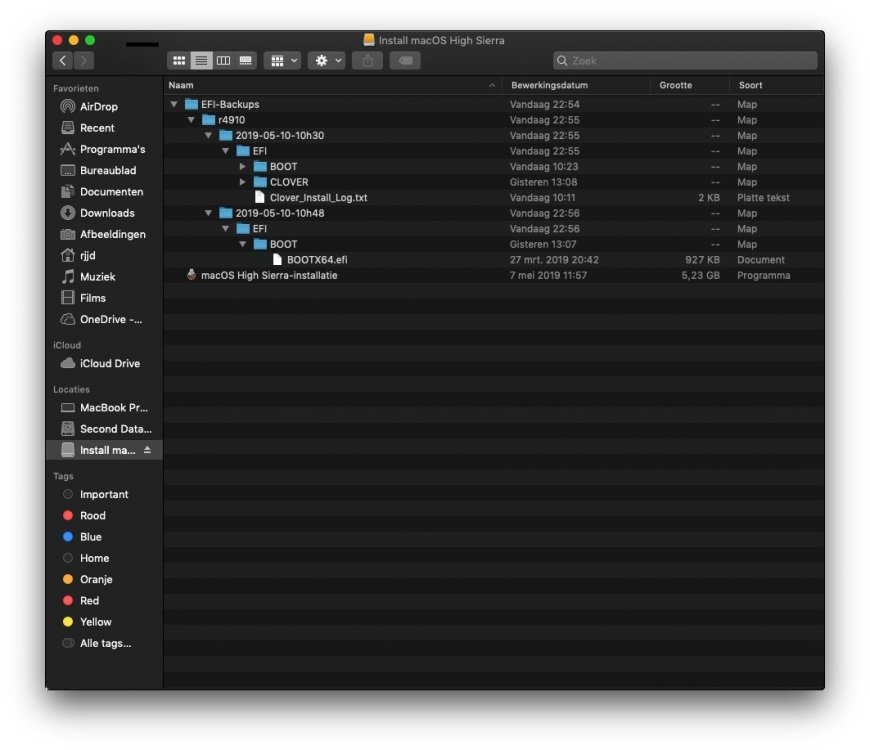

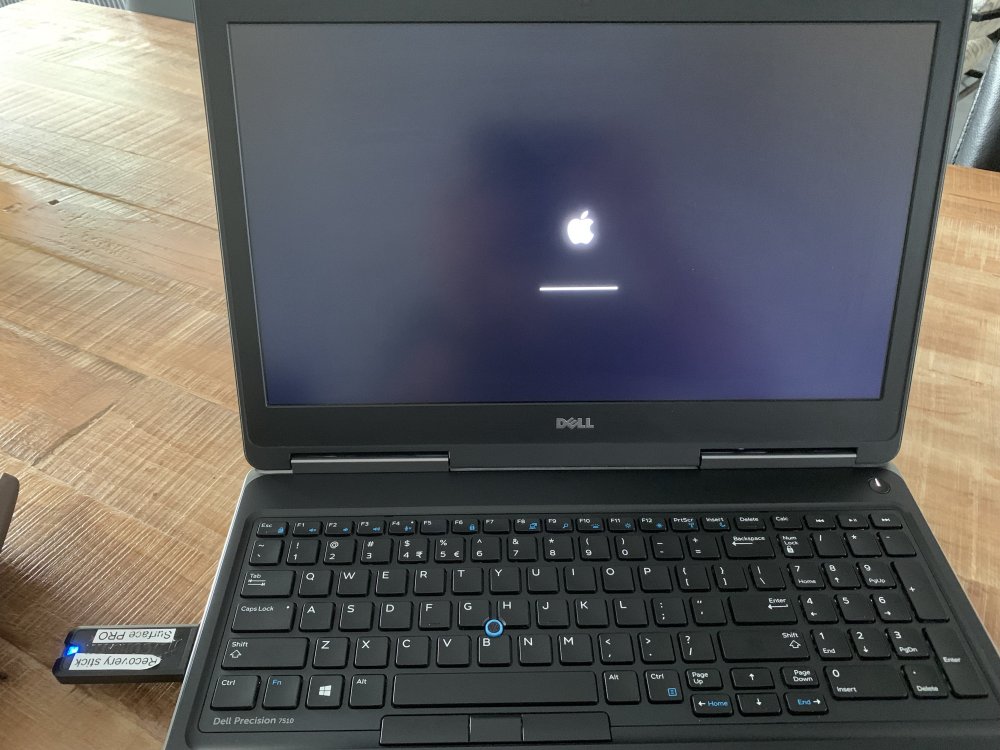

Hi we managed to create a working usb stick with High Sierra as OS. The stick is booting and starting all the way to the screen with the install bar , ( see picture ) and goes to the end of the install bar and then stops. This is just before we see the actual install screen. Why does the laptop install stops? included picture of usb boot stick. What is the next step or what we have to do to make the installation go further and end ? Thank for the tips config.plist.zip

Hi , no worries about the wireless internal card. I will disable it in the bios and use a external USB dongle with worked with all my previous other hackingtosh laptops 620. 630 and 830. My concern is the graphics card. I intent to use this laptop for video editing and if this is not possible then i have to look for another laptop which will work . My present macbook pro 2009 is getting sadly to old for editing stuff

Hi all, I got my hands on a DELL Precision M4800 Specs: CPU Intel i7-4710 MQ Quad core 2,5 GHz (Haswell) with HD Graphic 4600 intern 16GB memory 1600Mhz DDR3L, 15,6 UltraSharp FHD 1920x1080 screen, 256 GB SSD , Intel wireless card ( I will not use this) AMD Firepro M5100w 2GB memory GDDR5 I want to use this laptop for video editing in replacement of my MacBook Pro 2009. is this possible with this configuration? Can someone help me out with a working guide for this laptop? Thanks,

Hi Jake Lo, Thank you very much for your quick reply. Thus this mean I cannot use the AMD Firepro video card inside the laptop? That would be disappointing because this is a great video card with a lot of memory and fast memory and I want to use this laptop ( it it works ) for photo and video editing greets, rjjd

Hi, I am a newby and have a question about my Dell Precision 7510. I have received this fine laptop today and was wondering if it is possible to install Mojave on it. Hardware specs are: Intel i7 6820 2,7GHZ Cpu, 16 GB DDR4 ram 2133 hertz, 2 video cards, Intel Skylake Graphics 64MB inside and AMD Firepro W5710M GDDR5. 2 GB memory, 1 SSD 256 GB. and M.2 SSD 256GB drives, 15'6 inch IPS screen 1920x1080 resolution, Intel WIFI cad 8260 ( 802.110c) Audio card Realtek ALC3235 , 4x USB 3.0 , SD card slot, HDMI output. I have visit this site earlier was installed then succesfull a Mac system on a Dell Latitude 620 and 630. Hope someone can ( and is willing) or guide me, to help me out with this installation ( if it is possible ) on this laptop. Thanks in advance. Gr. rijd

Do you have an solution for the NullCPUPowermanagement error ?

Hello i created as described successfully 2 usb sticks with yosemite on it. I started this morning my dell with usb connected to it. Error message MACH_KERNEL error cannot find.. Check it with my macbook and discovered mistake. I copied mach_kernel in folder library/kernels/kernel instead of library/kernel. Problem solved desktop is booting now totally up with usb stick . Installed Chameleon and done all steps in chapter 4 except step 4 6 and 7 I do not understand with is being written (sorry) steps 6 and 7 i did not do because i would try first to bot the machine on itself. But i get KP with message about this NullCPUPowerManagement .. How can i some this? i can boot normally with usb stick and then choose me HD. other small question: When desktop is booting it startup in DOS screen can this being changed in an GUI look ? Thanks,.

Thanks you guys, i will get to work and keep you updated. Hope it all works..

I arranged an nice desktop Dell optlplex 790 SFF with Intel i7 16 GB ram and Asus GT slilent GT610 video card 2GB ddr3 ram memory and looks to me an good machine for video edting, CPU is 2 times faster an my mac pro 2008 wo i have now. Can someone tell me witch installation and extra package i must use to make this an succes? I included an CPU-Z file with the hardware components There is mentioned an standard graphic card -- i will buy and use video card described above Thanks. Dell-Optiplex-790-i7.txt

Thanks all , but i think this is beyond my scope. I will startup an new project with my optiplex 790 and see how far i will come.
