Agustin

I alredy have you in Skype I will contact you. Thanks!!!!

HI EMlyDinEsH, I have one issue with version 3.8.5 and my V4 Hardware with physical buttons. If I press right physical button once the system recognize it like if I press twice. Example pressing right button once on the desktop gives me the context menu but disappears almost immediately like if I had pressed twice. I hope I explain myself. Thanks you!!! Good Luck

If you have V4 hardware, change V4Hwhasphysicalbuttons option inside plist to YES. Good Luck

Thanks for all your hard work Dinesh. Now I have a very good reason to use touchpad instead of my magic mouse.

Hi EMlyDinEsH, first thank you for all the hard work, the new auto off feature is just awesome!!!, it works really great in my Asus G750JX. I like to report some issues I still have with the new 3.7 kext. Draggin.- The issue I have is related to dragging using the left physical button on the Trackpad (V4 Hardware). It behaves like the drag feature using touchpad tap. I mean it has the same timeout, If I do a drag using left physical button, and release the finger from the touchpad but keep pressing on the left button it´s supposed to maintain the drag (this is working dragging windows, but no dragging icon, selecting text) but is released instead after the timeout, like the touchpad drag feature. The drag using Left physical button no needs timeout, because as soon as you release the button the drag is over. Keyboard and touchpad lost after sleep.- This one is a little tricky, if I press some F Key a few seconds (maybe 1 or 2 seconds) after wake the machine from sleep I lost the keyboard and touchpad. If I press one of the F keys after 5 seconds after wake the machine from sleep everything works as it should. frame rate lagg on inertial scroll.- This one is a petition more than an issue, I feel the inertial scroll effect have some lagg, I feels like, it needs a little more momentum also. In the past with my Asus G74 I tried Rehabman´s Synaptics driver, and the inertial scroll effect worked great on the synaptics (too close to my magic mouse) . Please check Rehabman sources Thank you!!!! Good luck

Hey, I can't find any version 3.6 did you mean 3.5?? Thanks!!

Hi EMlyDinEsH, Thanks for all your support getting this driver, I like to report one issue with this kext version 3.5 and V4 physical button text selection. If I press the left button and start to do some text selection when I reach the edge with the first finger move and without releasing the left button I make a second move on the touchpad to continue with the selection I get the text selection reset and start over again. I disable one finger tap to avoid the second move on the touchpad gets detected as left click but no luck. Only way to select this amount of text is enable left clic to release dragging. I hope you can help with this issue. And I also like to know how does the new keyboard backlight feature integrated in this version works, I mean I have keyboard backlight working but with the AsusNBFnKeys kext. What do I need to get this to work. Thank youu!!

sorry for the big time delay, use this EFI string 920800000100000001000000860800002d00000002010c00d041030a000000000101060000010101060000007fff04002e000000400030002c004e005600440041002c0055006e006400650072007300630061006e004d0069006e00000008000000520000001e00000072006f006d002d007200650076006900730069006f006e0000000c00000037303236323930632c0000004e005600440041002c0069006e00760061006c00690064002d0063006f006e00660069006700000008000000000000002e000000400030002c004100410050004c002c0062006f006f0074002d0064006900730070006c006100790000000400000022000000400030002c0064006900730070006c00610079002d0063006600670000000800000003040800260000005600520041004d002c006d0065006d00760065006e0064006f007200490044000000060000000600200000004e005600440041002c0046006500610074007500720065007300000008000000ff160c0028000000400031002c0063006f006e006e006500630074006f0072002d0074007900700065000000080000000008000022000000400031002c006400650076006900630065005f00740079007000650000000b000000646973706c61790c00000072006500670000007c0000000000010000000000000000000000000000000000100001020000000000000000000000000000000214000142000000000000000000000000000000081c000142000000000000000000000000000000042400010100000000000000000000000080000000300001020000000000000000000000000000080014000000400030002c006e0061006d0065000000120000004e5644412c446973706c61792d41180000004100410050004c00300030002c0054003400000008000000c800000014000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d421c000000400030002c00660062006f006600660073006500740000000800000000000300160000006200750069006c0074002d0069006e000000050000000038000000400030002c007500730065002d006200610063006b006c0069006700680074002d0062006c0061006e006b0069006e0067000000040000002a0000004100410050004c00300030002c0044006100740061004a0075007300740069006600790000000800000001000000180000004100410050004c00300030002c0054003300000008000000c800000024000000400031002c00630061006e002d0068006f0074002d0070006c0075006700000004000000180000004100410050004c00300030002c005400370000000800000090010000280000004100410050004c00300030002c004c0069006e006b0046006f0072006d00610074000000080000000000000022000000400030002c006400650076006900630065005f00740079007000650000000b000000646973706c61791c000000400030002c00700077006d002d0069006e0066006f0000001c000000021800649059020008520000a51c00000004000001000000180000004100410050004c00300030002c00540032000000080000000100000022000000400031002c0064006900730070006c00610079002d00630066006700000008000000ffffffff240000004100410050004c00300030002c004400750061006c004c0069006e006b000000080000000100000028000000400030002c0063006f006e006e006500630074006f0072002d0074007900700065000000080000000204000014000000400030002c00450044004900440000008400000000ffffffffffff000daf26170000000002150103802615780ad895a3554d9d270f5054000000010101010101010101010101010101012e3680a070381f40302035007ed710000018000000fe004e3137334847452d4c32310a20000000fe00434d4f0a202020202020202020000000fe004e3137334847452d4c32310a200066240000004100410050004c00300030002c004c0069006e006b00540079007000650000000800000000000000180000004100410050004c00300030002c0054003600000008000000000000002e000000400031002c004e005600440041002c0055006e006400650072007300630061006e004d0069006e00000008000000520000001c0000006400650076006900630065005f00740079007000650000000f0000004e5644412c506172656e74100000006d006f00640065006c0000001a0000004e5649444941204765466f726365204754583536304d1c000000400030002c006200750069006c0074002d0069006e000000040000002e000000400030002c006200610063006b006c0069006700680074002d0063006f006e00740072006f006c0000000800000001000000180000004100410050004c00300030002c00540031000000080000000000000020000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d61632a0000004100410050004c00300030002c0050006900780065006c0046006f0072006d006100740000000800000000000000220000005600520041004d002c0074006f00740061006c00730069007a006500000008000000000000c0360000004100410050004c00300030002c0049006e007600650072007400650072004600720065007100750065006e006300790000000800000000000000100000004e00560043004100500000001c0000000400000000000100fe0000000000000a0000000000000000180000004100410050004c00300030002c00540035000000080000000100000020000000400031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d6163200000004100410050004c00300030002c004400690074006800650072000000080000000000000026000000670072006100700068006900630073002d006f007000740069006f006e0073000000080000000c000000 and use GE=NO Good Luck

You got a new PM thank you!!

Can you send me your system log and IOReg file, so i can take a look at your problem? Also how did you install the kexts? You need to remove my kexts before install as i have some changes to the kext identifiers in the new version so it may not work properly if you try to replace the kexts. It works for clicking. I don't get your problem, can you explain? Also there is a new mode for the v4 buttons in my next update which enables/disables the virtual buttons. If you disable the virtual buttons then it will work as only single Left button all over the touchpad in clicks. Sorry, I'll try to explain myself. I have an ASUS G750 laptop with an Elan touchpad at boot with your driver installed says is V4. This touchpad doesn't have any button in the touchpad area it has 2 physical buttons apart under the touchpad (like the old touchpad used to be) if I try to press left button to make primary mouse click it doesn't work, the same for right button press for secondary mouse click also doesn't work. But if I press left or right buttons and mantain press for draging it works. I hope you can understand my bad english. Thank you!!!

Please add support to enable v4 hardware physical buttons. I think your driver handles v4 hardware buttons as virtual that is why the do work for dragging but not for clic. As always keep the good work. Thank you!!!

Hi EMlyDinEsH I tried version 3.0.2 and previous 2.8.3 version and with both versions physical buttons doesn't work for left and right clic, but they work for drag this is in a Ver 4 hardware, this is from log with ver 2.8.3 Dec 27 10:32:05 localhost kernel[0]: ElanTech Touchpad driver v2.8.3 by EMlyDinEsH(OSXLatitude) © 2012-2013 Dec 27 10:32:05 localhost kernel[0]: Elan: Detecting the touchpad Dec 27 10:32:05 localhost kernel[0]: Elan: FirmWare Version 3542784 Dec 27 10:32:05 localhost kernel[0]: Elan: Touchpad found, Assuming hardware version 4 (with firmware version 0x360f00) Dec 27 10:32:05 localhost kernel[0]: Elan: Successfully placed touchpad into Absolute mode Dec 27 10:32:05 localhost kernel[0]: Elan: Setting touchpad Range Dec 27 10:32:05 localhost kernel[0]: Elan: Touchpad Pad CentreX 1795, CentreY 940 Dec 27 10:32:05 localhost kernel[0]: Elan: Touchpad range X_min 0 Y_min 0 X_max 3591 Y_max 1881 Dec 27 10:32:05 localhost kernel[0]: Elan: MouseInformation { 0x20, 0x03, 0xc8 } Dec 27 10:32:05 localhost kernel[0]: Elan: Enabling the touchpad Success and this with new 3.0.2 version Dec 27 13:04:29 Agustins-iMac kernel[0]: ElanTech Touchpad driver v3.0 by EMlyDinEsH(OSXLatitude) © 2012-2013 Dec 27 13:04:29 Agustins-iMac kernel[0]: Elan: Detecting the touchpad........ Dec 27 13:04:29 Agustins-iMac kernel[0]: Elan: Touchpad found, Assuming hardware version 4 (with firmware version 0x360f00) Dec 27 13:04:29 Agustins-iMac kernel[0]: Elan: Touchpad Enabled successfully please help Thanks!!!

this is a great price, but they charge $77 usd for shipping to mexico so not a great deal for me

the provided DSDT is not clean please provide a clean dsdt, boot in windows and extract your DSDT there.

The Efi string I give to you has all the needed info to inject so you can boot with GE=No, and yes this EFI string must be on org.chameleon.boot. I check your DSDT. Also check your Extra Folder, some modules can inject something else too and why are you using UseKernelCache= No????

For get HDMI working on Nvidia cards all you need is inject "hda-gfx" "onboard-1" to your GFX device, and add HDAU device after your GFX device, and inject "connector type" "00 08 00 00" to your channel B video output and all this is done already so you must have something interfering with this. Please check all your kext and look for any suspicious one may causing this. (Voodoo, hdaenbler etc). Please share a clean unmodified DSDT you can generate booting in windows and extracting using DSDT for windows. For the Dictation problem, maybe your Mic is not selected or not working check system preferences--sound and select Input and select Internal mic, check if the mics work with the input level adjust the volume and check uncheck use noise reduction. Hi EMlyDinEsH, is based in this info http://www.insanelymac.com/forum/topic/236835-updated-2012-genericbrightnesskext/?p=1598493, you need PNLF, and add/inject backlight-control and pwm-info to your GFX with and EFI String (this is what I use) or via DSDT. With this 2 values injected and with the PNLF device, you get brightness slider on display settings and sun effect, and I just use your FN driver for map them to Fn+F5 and Fn+F6 ( with the respective DSDT edits). Other useful info is the NVDA,UnderscanMin value for adjust the screen on HDMI. I share my plist I´m using to generate my EFI String. pruebaefi.plist.zip

yes in your IOReg file your hdmi (HDAU device) is not injected try this DSDT. dsdt.aml.zip

Please share an ioregistry save file, I need to take a look, I need to know how your system handles the info injected.

Should hdmi output show up in system profiler? It doesn't show up and EnableHDMIAudio=yes in org.chameleon.boot does nothing. Ill have a look at ioregistry. In system profiler yes in system preferentes - audio only shows when you have a HDMI cable connected.

you can't get HDMI with those quite old drivers 10.6.2 i suppose so, you need to use at least the AppleHDA from 10.8.3, and for the sleep IOAudio use the last one from EMlyDinEsH. I need some time to patch and correct your driver, the codec dump will help a lot, please as soon as you get it attach it here. Good Luck Edit: try the attached files I´m almost 100% sure this files with give you HDMI and full Working Sound, this files are based in your config, delete the HDAEnabler your won't need it anymore I had corrected the layout for sound inside your DSDT. Don't forget to correct permissions and update your kernel cache (sudo kextcache -system-prelinked-kernel). This drivers are for 10.8.4 and also will work on 10.8.5. Please report back g73beast-sound.zip

I need your current AppleHDA kext, it is all working?? Speakers, Headphone, internal and external Mic??? Where did you get this AppleHDA?? if you make by yourself I suppose you have the codec dump for your ALC 269 codec. Please share it here too. Good Luck

WOW!!! You are awesome!!! DO you accept donations? Would this same device properties fix hdmi audio? My hackbook pro is 99.5% finished!! Good to know I help you, I really apreciate your comments if you really want to donate please donate to the real gurus, I recommend donate to EMlyDinEsH you can do it at the first post of this topic. For the HDMI issue I can help but I need some info. Are you using AppleHDA or Voodoo for sound? I also need an untouched and your current file of your DSDT in dsl format. Are the Fn keys for brightness working? Good luck

Open org.chameleon.Boot.plist with PlistEdit Pro must be inside your Extra folder, and ad a new child String and name it "device-properties" and on the value insert this : 4907000001000000010000003d0700002a00000002010c00d041030a000000000101060000010101060000007fff04002e000000400030002c004e005600440041002c0055006e006400650072007300630061006e004d0069006e00000008000000520000002c0000004e005600440041002c0069006e00760061006c00690064002d0063006f006e00660069006700000008000000000000002e000000400030002c004100410050004c002c0062006f006f0074002d0064006900730070006c006100790000000400000022000000400030002c0064006900730070006c00610079002d0063006600670000000800000003040800260000005600520041004d002c006d0065006d00760065006e0064006f007200490044000000060000000600200000004e005600440041002c0046006500610074007500720065007300000008000000ff160c0028000000400031002c0063006f006e006e006500630074006f0072002d0074007900700065000000080000000008000022000000400031002c006400650076006900630065005f00740079007000650000000b000000646973706c617914000000400030002c006e0061006d0065000000120000004e5644412c446973706c61792d41180000004100410050004c00300030002c0054003400000008000000c800000014000000400031002c006e0061006d0065000000120000004e5644412c446973706c61792d421c000000400030002c00660062006f006600660073006500740000000800000000000300160000006200750069006c0074002d0069006e000000050000000038000000400030002c007500730065002d006200610063006b006c0069006700680074002d0062006c0061006e006b0069006e0067000000040000002a0000004100410050004c00300030002c0044006100740061004a0075007300740069006600790000000800000001000000180000004100410050004c00300030002c0054003300000008000000c800000024000000400031002c00630061006e002d0068006f0074002d0070006c0075006700000004000000180000004100410050004c00300030002c005400370000000800000090010000280000004100410050004c00300030002c004c0069006e006b0046006f0072006d00610074000000080000000000000022000000400030002c006400650076006900630065005f00740079007000650000000b000000646973706c61791c000000400030002c00700077006d002d0069006e0066006f0000001c000000021800649059020008520000a51c00000004000001000000180000004100410050004c00300030002c00540032000000080000000100000022000000400031002c0064006900730070006c00610079002d00630066006700000008000000ffffffff28000000400030002c0063006f006e006e006500630074006f0072002d00740079007000650000000800000002040000240000004100410050004c00300030002c004400750061006c004c0069006e006b0000000800000001000000240000004100410050004c00300030002c004c0069006e006b00540079007000650000000800000000000000180000004100410050004c00300030002c0054003600000008000000000000002e000000400031002c004e005600440041002c0055006e006400650072007300630061006e004d0069006e00000008000000520000001c0000006400650076006900630065005f00740079007000650000000f0000004e5644412c506172656e74100000006d006f00640065006c0000001b0000004e5649444941204765466f72636520475458203436304d1c000000400030002c006200750069006c0074002d0069006e000000040000002e000000400030002c006200610063006b006c0069006700680074002d0063006f006e00740072006f006c0000000800000001000000180000004100410050004c00300030002c00540031000000080000000000000020000000400030002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d61632a0000004100410050004c00300030002c0050006900780065006c0046006f0072006d006100740000000800000000000000220000005600520041004d002c0074006f00740061006c00730069007a006500000008000000000000c0360000004100410050004c00300030002c0049006e007600650072007400650072004600720065007100750065006e006300790000000800000000000000100000004e00560043004100500000001c0000000400000000000100fe0000000000000a0000000000000000180000004100410050004c00300030002c00540035000000080000000100000020000000400031002c0063006f006d00700061007400690062006c00650000000e0000004e5644412c4e564d6163200000004100410050004c00300030002c004400690074006800650072000000080000000000000026000000670072006100700068006900630073002d006f007000740069006f006e0073000000080000000c000000 Save the file, and if you are using the GraphicsEnabler=Yes inside your org.chameleon.Boot.plist file set it to GraphicsEnabler=No. This value will inject the values for you, but as I don´t have your hardware could always be the change to broke something so use it at your own risk. Restart your computer and try it, check inside display settings in system preferences for the brightness slide. Good Luck Good luck

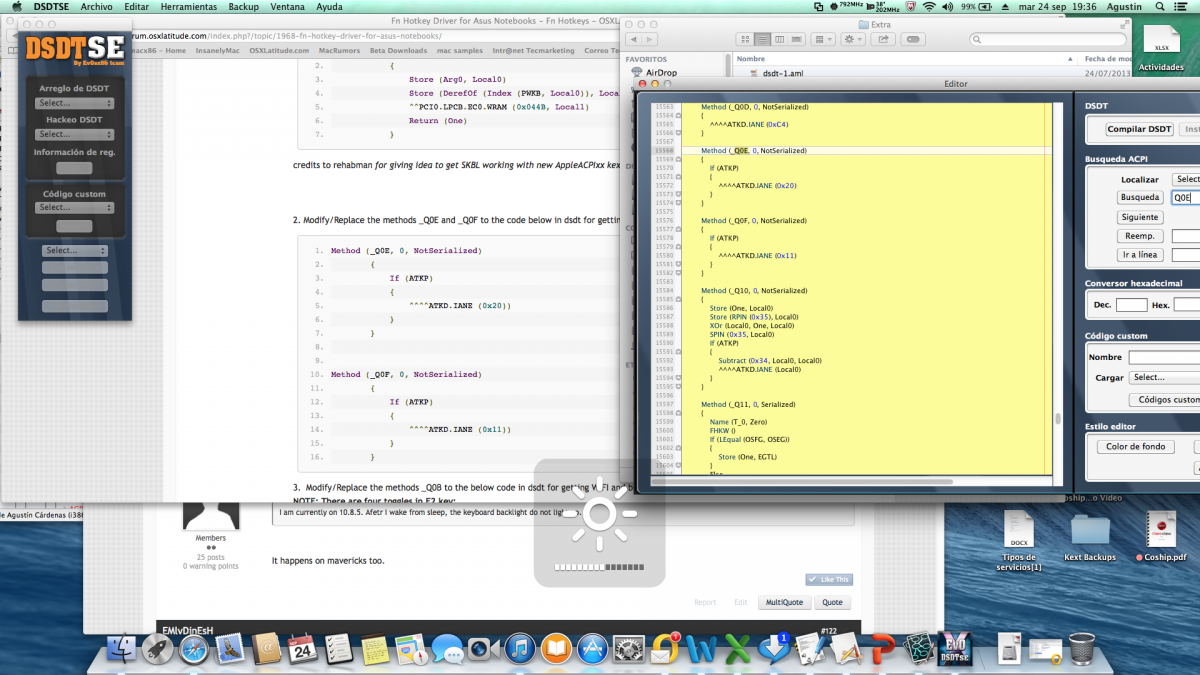

I have brightness and HDMI working, what you need to get brightness working is inject via DSDT or EFI string this values (I use EFI strings for this and inject a lot of other settings, for HDMI I use DSDT) @0,backlight-control @0,pwm-info (this one is the macbook pro 6,1, it work best for me you can try other values) with this values, you will get brightness working and the slide on display in system configuration. Make Q0E and Q0F edits in your DSDT and install EMlyDinEsH driver for get mapped to Fn+F5 for brightness down and Fn+F6 for brightness up. Even Sun effect on the screen!! Good luck and please update with your results, and if you need help with HDMI then let me know. Ohh and my backlight keyboard works great too. Thanks to EMlyDinEsH for that. this is where I get all the injecting info for brightness http://www.insanelymac.com/forum/topic/236835-updated-2012-genericbrightnesskext/page-31 P.D. I attach my plist, I´m injecting a lot of values but you can use what you need. Use them in EFI Studio for get your EFI string. Good luck pruebaefi.plist.zip

Hello there! I'm wondering if you where able to get your brightness control working yet Agustin? I've also noticed on my asus g73sw at the boot loader menu and even while the OS is loading, i can adjust brightness before the driver initilizes. I've even read the ACPI PDF and tried my own dsdt patches but I only get "bezel services assertion failed in console which I think means OSX cannot translate the brightness values over to ACPI methods? For the meanwhile i use the application shades. It applies a black (or any custom color) filter over the screen to adjust brightness and it can be used to somewhat help the brightness value reset after sleep. Also one question to EMlyDinEsH, if the brightness does work if you do find a way eventually, could the values be customized? Like being able to set a level below minimum? And will the "sun" bezel show up or is it the type where it just adjusts w/out OS? (Not that it matters lol) I have brightness working in my ASUS G74 after a year of work I recently find the answer. On Nvidia graphics all you need is inject the correct pwm-info and and some other values. I explain in details in the morning at work. Good luck
