Everything posted by johnstray2001

  1. I just tried manually setting the DNS server in Network Settings, but that didn't seem to make any difference. The log still shows: sent [IPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns3 0.0.0.0>] rcvd [LCP TermReq id=0x1]
  2. FYI: Here is the PPP log from a connection Mon Feb 13 11:12:30 2017 : Apple Base Script.ccl Version 3.3 Mon Feb 13 11:12:30 2017 : CCLWrite : AT\13 Mon Feb 13 11:12:30 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:12:30 2017 : Initializing device: AT&FE0Q0V1 Mon Feb 13 11:12:30 2017 : CCLWrite : AT&FE0Q0V1\13 Mon Feb 13 11:12:30 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:12:30 2017 : Initializing PDP context: AT+CGDCONT=1,"IP","internet" Mon Feb 13 11:12:30 2017 : CCLWrite : AT+CGDCONT=1,"IP","internet"\13 Mon Feb 13 11:12:30 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:12:30 2017 : Dialing: ATD*99***1# Mon Feb 13 11:12:30 2017 : CCLWrite : ATD*99***1#\13 Mon Feb 13 11:12:30 2017 : Waiting for connection Mon Feb 13 11:12:31 2017 : CCLMatched : CONNECT\13\10 Mon Feb 13 11:12:31 2017 : Connection established Mon Feb 13 11:12:34 2017 : CCLExit: 0 Mon Feb 13 11:12:34 2017 : Serial connection established. Mon Feb 13 11:12:34 2017 : using link 0 Mon Feb 13 11:12:34 2017 : Using interface ppp0 Mon Feb 13 11:12:34 2017 : Connect: ppp0 <--> /dev/cu.wwan Mon Feb 13 11:12:35 2017 : sent [LCP ConfReq id=0x1 <asyncmap 0x0> <magic 0x614daf3c> <pcomp> <accomp>] Mon Feb 13 11:12:35 2017 : rcvd [LCP ConfReq id=0x3 <auth chap MD5> <accomp> <pcomp> <mru 1500> <asyncmap 0x0> <magic 0x8a60d27d>] Mon Feb 13 11:12:35 2017 : lcp_reqci: returning CONFACK. Mon Feb 13 11:12:35 2017 : sent [LCP ConfAck id=0x3 <auth chap MD5> <accomp> <pcomp> <mru 1500> <asyncmap 0x0> <magic 0x8a60d27d>] Mon Feb 13 11:12:35 2017 : rcvd [LCP ConfAck id=0x1 <asyncmap 0x0> <magic 0x614daf3c> <pcomp> <accomp>] Mon Feb 13 11:12:35 2017 : rcvd [CHAP Challenge id=0x0 <7edf2cf58afb187156d7c4ade27330a92ecf5c653aeb48e106c7f41d92636019debf8cd5eadb7851b6b7248d425390898eafbc459acba8c166>, name = "Kermit"] Mon Feb 13 11:12:35 2017 : sent [CHAP Response id=0x0 <ac4085652a3b5eb3dff33770b25f6420>, name = "guest"] Mon Feb 13 11:12:35 2017 : rcvd [CHAP Success id=0x0 "Congratulations!"] Mon Feb 13 11:12:35 2017 : CHAP authentication succeeded: Congratulations! Mon Feb 13 11:12:35 2017 : sent [IPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns3 0.0.0.0>] Mon Feb 13 11:12:35 2017 : rcvd [LCP TermReq id=0x1] Mon Feb 13 11:12:35 2017 : LCP terminated by peer Mon Feb 13 11:12:35 2017 : sent [LCP TermAck id=0x1] Mon Feb 13 11:12:38 2017 : Connection terminated. Mon Feb 13 11:12:38 2017 : CCLWrite : +++ Mon Feb 13 11:12:46 2017 : CCLWrite : ATH\13 Mon Feb 13 11:12:46 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:12:48 2017 : CCLWrite : AT&F\13 Mon Feb 13 11:12:48 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:12:48 2017 : CCLExit: 0 Mon Feb 13 11:12:48 2017 : Serial link disconnected. Mon Feb 13 11:13:40 2017 : publish_entry SCDSet() failed: Success! Mon Feb 13 11:13:40 2017 : publish_entry SCDSet() failed: Success! Mon Feb 13 11:13:42 2017 : Apple Base Script.ccl Version 3.3 Mon Feb 13 11:13:42 2017 : CCLWrite : AT\13 Mon Feb 13 11:13:42 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:13:42 2017 : Initializing device: AT&FE0Q0V1 Mon Feb 13 11:13:42 2017 : CCLWrite : AT&FE0Q0V1\13 Mon Feb 13 11:13:42 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:13:42 2017 : Initializing PDP context: AT+CGDCONT=1,"IP","internet" Mon Feb 13 11:13:42 2017 : CCLWrite : AT+CGDCONT=1,"IP","internet"\13 Mon Feb 13 11:13:42 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:13:42 2017 : Dialing: ATD*99***1# Mon Feb 13 11:13:42 2017 : CCLWrite : ATD*99***1#\13 Mon Feb 13 11:13:42 2017 : Waiting for connection Mon Feb 13 11:13:43 2017 : CCLMatched : CONNECT\13\10 Mon Feb 13 11:13:43 2017 : Connection established Mon Feb 13 11:13:46 2017 : CCLExit: 0 Mon Feb 13 11:13:46 2017 : Serial connection established. Mon Feb 13 11:13:46 2017 : using link 0 Mon Feb 13 11:13:46 2017 : Using interface ppp0 Mon Feb 13 11:13:46 2017 : Connect: ppp0 <--> /dev/cu.wwan Mon Feb 13 11:13:47 2017 : sent [LCP ConfReq id=0x1 <asyncmap 0x0> <magic 0x44f760d0> <pcomp> <accomp>] Mon Feb 13 11:13:47 2017 : rcvd [LCP ConfReq id=0x3 <auth chap MD5> <accomp> <pcomp> <mru 1500> <asyncmap 0x0> <magic 0x71c1093f>] Mon Feb 13 11:13:47 2017 : No auth is possible Mon Feb 13 11:13:47 2017 : lcp_reqci: returning CONFREJ. Mon Feb 13 11:13:47 2017 : sent [LCP ConfRej id=0x3 <auth chap MD5>] Mon Feb 13 11:13:47 2017 : rcvd [LCP ConfAck id=0x1 <asyncmap 0x0> <magic 0x44f760d0> <pcomp> <accomp>] Mon Feb 13 11:13:47 2017 : rcvd [LCP ConfReq id=0x4 <accomp> <pcomp> <mru 1500> <asyncmap 0x0> <magic 0x71c1093f>] Mon Feb 13 11:13:47 2017 : lcp_reqci: returning CONFACK. Mon Feb 13 11:13:47 2017 : sent [LCP ConfAck id=0x4 <accomp> <pcomp> <mru 1500> <asyncmap 0x0> <magic 0x71c1093f>] Mon Feb 13 11:13:47 2017 : sent [IPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-dns3 0.0.0.0>] Mon Feb 13 11:13:47 2017 : rcvd [LCP TermReq id=0x1] Mon Feb 13 11:13:47 2017 : LCP terminated by peer Mon Feb 13 11:13:47 2017 : sent [LCP TermAck id=0x1] Mon Feb 13 11:13:50 2017 : Connection terminated. Mon Feb 13 11:13:50 2017 : CCLWrite : +++ Mon Feb 13 11:13:58 2017 : CCLWrite : ATH\13 Mon Feb 13 11:13:58 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:14:00 2017 : CCLWrite : AT&F\13 Mon Feb 13 11:14:00 2017 : CCLMatched : OK\13\10 Mon Feb 13 11:14:00 2017 : CCLExit: 0 Mon Feb 13 11:14:00 2017 : Serial link disconnected.
  3. Contacted my provider today, and they were very helpful... not... They say that because it's working under Windows and Ubuntu, that it is a compatibility issue with macOS and there is nothing they can do about it. So maybe it's something in the PPP negotiation script (if there is one). I haven't been able to figure out how to log the PPP data under windows 10 or under ubuntu 16.10 so that I can see if there are any differences (any suggestions? Google only has links for windows 7 [didn't work with win10] and for older versions of Ubuntu [again didn't work])
  4. @InsanelyDeepak: G'day mate! You've successfully helped me to create an AppleHDA patch for my laptop in the past and for that I am very grateful. I'm doing another hack for a mate of mine but have not been able to get the audio working. I've tried using AppleALC and all the layout-ids for the codec, and i've also tried using your cloverHDA, both without success. I was wondering if you would mind helping me once again? The computer in question this time around is an Acer Aspire Z3-605-UR22 All-In-One. Even though it's a desktop, it has mobile hardware. It's using Realtek ALC269VC for audio. It has the following physical ports: Internal Microphone Internal Stereo Speakers Front Headphone/Microphone combo jack (4-pin 1/8" iPhone style) Rear Stereo Line Out ( 3-pin 1/8" Jack ) [Line Level - No Amp] Rear Stereo Line In (3-pin 1/8" Jack) I have attached to this message a copy of the codec_dump.txt for it. If we can create a successful patch, I'd like to be able to add it to AppleALC so that I can keep it in the Clover kexts folder and /S/L/E remains vanilla (I find this to be the best approach). If you need any more information, please let me know. Thank-you in advance for any assistance you can provide. Yours truely, John. codec_dump.txt
  5. So, after some further reading of the system logs I think I've identified where the problem may lay: During PPP negotiation, my device requests an IP address, to which the provider responds with a terminate request. I doubt this would be an account issue as it works perfectly under Windows 10 and Ubuntu 16.10. Should I be contacting my provider about this, or is this something that can be fixed in MacOS (eg. configs somewhere)??
  6. I'm with Optus Australia. Their APN details are here. After reading that page, I discovered that the APN i was using was wrong. So, tried again with the correct one, but still no such luck.
  7. I've actually come across that post before, but I couldn't figure out how to export the profile under Windows. How do you do that? I have Windows 10 on it. A google search on how to do it was fruitless.
  8. I've tried connecting through all of them, except en1. All result in basically the same results in the console.
  9. I have attached screenshots of the various settings related to this. To inject my device into CellPhoneHelper.kext, I actually created an Codeless Injector kext which is loaded by Clover. Following is the content of the Info.plist file: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>CFBundleDevelopmentRegion</key> <string>English</string> <key>CFBundleGetInfoString</key> <string>Ericsson H5321gw 3G Wireless WAN Device Driver</string> <key>CFBundleIdentifier</key> <string>com.ericsson.h5321gw</string> <key>CFBundleInfoDictionaryVersion</key> <string>6.0</string> <key>CFBundleName</key> <string>Ericsson H5321gw 3G Wireless WAN Device Driver</string> <key>CFBundlePackageType</key> <string>KEXT</string> <key>CFBundleVersion</key> <string>1.0.0</string> <key>CFBundleSignature</key> <string>????</string> <key>IOKitPersonalities</key> <dict> <key>0x0BDB/0x1926 Ericsson H5321 gw</key> <dict> <key>CFBundleIdentifier</key> <string>com.apple.driver.AppleUSBHostMergeProperties</string> <key>IOClass</key> <string>AppleUSBHostMergeProperties</string> <key>IOProviderClass</key> <string>IOUSBHostDevice</string> <key>IOProviderMergeProperties</key> <dict> <key>DeviceModemOverrides</key> <dict> <key>AccessPointName</key> <string>connect</string> <key>ConnectionPersonality</key> <string>Sony Ericsson GPRS</string> <key>ConnectionScript</key> <string>Generic GPRS.ccl</string> <key>DeviceContextID</key> <string>1</string> <key>DeviceModel</key> <string>GPRS (GSM/3G)</string> <key>Device Vendor</key> <string>Sony Ericsson</string> </dict> <key>DevicePPPOverrides</key> <dict> <key>LCPMTU</key> <integer>1450</integer> </dict> <key>InfoCommands</key> <dict> <key>ATCommands</key> <dict> <key>DirectoryNumber</key> <string>+cnum</string> <key>IMEI</key> <string>+cgsn</string> <key>IMSI</key> <string>+cimi</string> <key>Manufacturer</key> <string>+cgmi</string> <key>Model</key> <string>+cgmm</string> <key>ModemSW</key> <string>+cgmr</string> </dict> <key>HiddenProperties</key> <dict> <key>CommandPortBaseName</key> <string>wwan</string> <key>ControlPortBaseName</key> <string>wwan</string> <key>DataPortBaseName</key> <string>wwan</string> <key>InterfaceDriver</key> <string>AppleUSBCDC</string> <key>StatusType</key> <string>CellPhoneGSM</string> </dict> </dict> <key>Initializing</key> <true/> <key>InterfaceMapping</key> <dict> <key>2</key> <dict> <key>name</key> <string>wwan</string> </dict> </dict> <key>WWAN</key> <true/> </dict> <key>bcdDevice</key> <integer>0</integer> <key>idProduct</key> <integer>6438</integer> <key>idVendor</key> <integer>3035</integer> </dict> </dict> <key>OSBundleLibraries</key> <dict> <key>com.apple.driver.AppleUSBHostMergeProperties</key> <string>1.0</string> <key>com.apple.iokit.IOUSBHostFamily</key> <string>1.0.1</string> <key>com.apple.kpi.iokit</key> <string>8.0</string> <key>com.apple.kpi.libkern</key> <string>9.0.0</string> </dict> </dict> </plist> This was created based on information in another post here. The F5521gw is virtually the same card as this one, with the only difference being that the F is the Full-height mPCI version where as the H is the Half-height version. From the information I have found; This device has these interfaces: - H5321 gw Mobile Broadband Modem - H5321 gw Mobile Broadband Data Modem - H5321 gw Mobile Broadband GPS Port - H5321 gw Mobile Broadband Device Management - H5321 gw Mobile Broadband USIM Port IORegistryEditor shows this device as having 10 interfaces? IOReg dump attached. You'll find it under [email protected] -> [email protected] -> H5321 [email protected] ThinkBook.ioreg.zip
  10. My APN settings are definitely correct. They work under Windows and Ubuntu. APN: connect UN: <blank> PW: <blank>
  11. I have an Ericsson H5321gw 3G Wireless WWAN device in my laptop that I'd like to get working, but I am in need of some help. So far, I have successfully got the device to appear as a wwan device by patching CellPhoneHelper.kext with the correct idVendor, idProduct, etc.. I setup the correct apn for my service in network settings, "connect", tried both the Generic and Sony Ericsson profiles. However, I have not been able to connect yet. The console is reporting errors from pppd; "LCP: timeout sending Config-Requests", which then results in the connection disconnecting again. Is anyone able to help me solve this problem so that I can successfully connect? Thanks in advance for your help. It will be greatly appreciated. PS: This device works perfectly when used under both Windows 7/8.1/10 and Ubuntu 15.04/16.10. Here is the output from my console:
  12. This one worked perfectly! Thank-you so much for all the help you have provided. It is greatly appreciated.
  13. Here is the results from the Codec-Info.command This was done while AppleALC.kext was in place with clover and the stock AppleHDA in S/L/E/ Codec-Info.zip
  14. That AppleALC you posted didn't work. No devices showed up in System Preferences > Sound > Output/Input, however, they did show up in System Information > Audio EDIT: The cloverHDA method also failed with the same results. Issue posted at GitHub here.
  15. WE HAVE A WINNER!!! The config.plist that you sent in that last zip caused issues with my graphics; It made the desktop appear 4x on the Laptop's LCD panel. So, I reverted back to using just the 4 patches you asked me to try earlier, but this time I did them 1 at a time. The first 3 all worked enabling HDMI audio, but the 4th one, the one with something about VGA in the comment, disabled my HDMI altogether (both Audio & Video). I also updated the DSDT.aml and AppleHDA.kext to the ones in your latest zip. Sound seems to work well. Sounds clear, and no interference of any kind that I can detect. Now all thats left to do is set it up so that I can load/patch the AppleHDA.kext from clover (Something like AppleALC.kext), leaving the stock AppleHDA.kext in place, keeping the system safe from updates. What ideas can you provide here? Thanks for everything you have done.
  16. Yes, the headphones worked properly with v1, v2 & v3. With the config.plist patches, HDMI did not work with v1, v2 or v3. Following is my config.plist. I am using the DSDT.aml that you last posted for me to use. I just dropped it in at "disk0s1/EFI/CLOVER/ACPI/patched/DSDT.aml"
  17. External out (headphones) did work, yes. Just applied your patch above, but it did not work. still no HDMI. PS: What was the DSDT patch you added earlier? I'm keeping a record of all DSDT patches that are done just in case I need to rebuild my DSDT, etc.
  18. Getting really close now! - Just the HDMI to get working. - v1, v2 & v3 all worked with internal in/out and external in/out, but no hdmi. - v4, v5 & v6 did not work at all. results attached. When I post results for you, what information do you actually need? So I don't post stuff that you don't need and save some of my attachment space. As seen in my signature, the iGPU is an Intel HD 3000 Graphics on a HM76 7-series chipset. Results_3.zip
  19. We're getting somewhere now. v2 & v3 were the closest match. - v1 had devices, but no sound output. - v2 & v3 had devices, working microphone and internal speaker, but no hdmi audio or headphone jack. - v4 didn't have any useable devices Results are attached. I used the DSDT.aml from the above zip you posted. Getting very close now. I appreciate your help mate. Results_2.zip
  20. @InsanelyDeepak: V2 seems to be the closest match. This one caused the correct list of device to show up in System Information > Audio under "Intel High Definition Audio", but nothing under "Devices", and there were still no devices in System Preferences > Sound. However, I have not been able to replicate this for some unknown reason. After I tested all of the versions, I tried V2 again, but nothing showed up this time. Strange... Any ideas? In the attached ZIP file, you will find the following taken after each version was tested: - IORegistryDump - Kextstat output - System Information - Text notes on what I observed. - DSDT.dsl -> as requested. Thank-you for all your help so far. results.zip
  21. My apologies, I suspect that I may have removed the kext by the time that I did that last IOreg dump. So I just re-installed it (still no sound devices) and I have attached another IOreg dump for you. I also did the kextstat, and this is what I got: 93 0 0xffffff7f8209d000 0x1e000 0x1e000 com.apple.driver.AppleHDAController (274.12) 5F94D8E3-B1E5-35D7-AB7A-6419C3AAC3B5 <92 91 76 12 7 6 5 4 3 1> Also, I came across and tried the AppleALC kext with a few of the layouts related to my codecs, but it didn't work either. However, it did give me an idea. Would it be possible to use a similar method when we can get mine working so that I can add the kext to clover and not have to touch any of the vanilla ones, making my install safe from updates?ThinkBook-26.09.2016.ioreg.zip

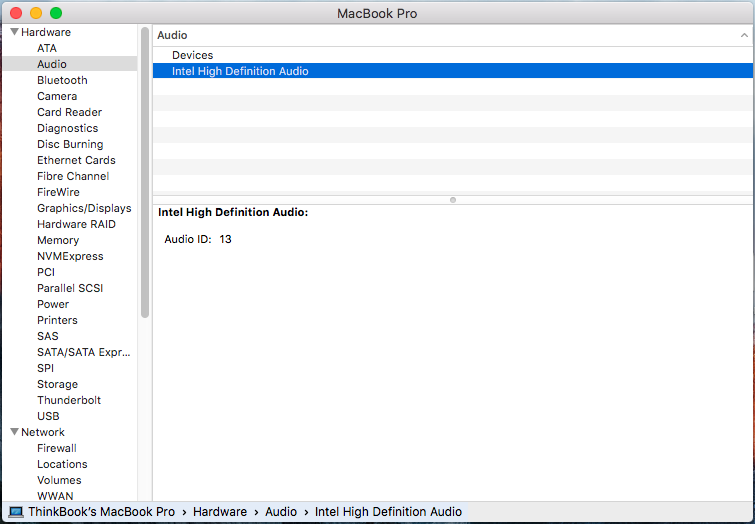

  22. Here is my latest IOReg dump and a screenshot from System Information ThinkBook.ioreg.zip
  23. IORegistryDump is included in the zip posted above. System Information (included in zip) -> Audio shows: - Devices - Intel High Definition Audio And that's it, nothing listed under each of the above.
  24. Thanks for that, but unfortunately, it did not work. No audio input or output devices. :'(
×
×
