E7440 i7 hangs before installer starts

Recommended Posts

Hello forum,

i have installed OSX 10.13.5 on my Desktop PC. Everything is fine here. Now I would like to bring my laptop to work here too.
I've already tried a few instructions from the Internet, but always stuck to the same point.


Here's the guide I came furthest with: osxlatitude.com/forums/topic/8...ab=comments#comment-74275



This is the point where I get stuck, no matter what the instructions.






What have I done:
- Bios changed to default, AHCI and security settings.
- Intel WLAN adapter removed and additionally deactivated in the BIOS
- Only one memory bar installed
- DEST read out of the bios with F4



Specs:
Latitude E7440
BIOS version: A20
CPU Type: Intel Core i7-4600U @ 2.1GHz
Processor ID: 40651
Memmory: 1 DIMM 8GB DDR3L 1600MHz

Video Controller: Intel HD Graphics
Video BIOS: 2178v15
Video Memory: 64MB
Panel: 14.0 "
Native Resolution: 1920x1080

Audio Controller: RealTek ALC3226

Wireless: Intel Wireless (replacement card is on the way)



On my desktop, this was not a problem, find the right Kexte, put in the appropriate folder and everything went fine, but here I can not get on. Unfortunately, I hardly understand what when it comes to patching, compile, etc.

Maybe someone can help me so that the installation goes through.

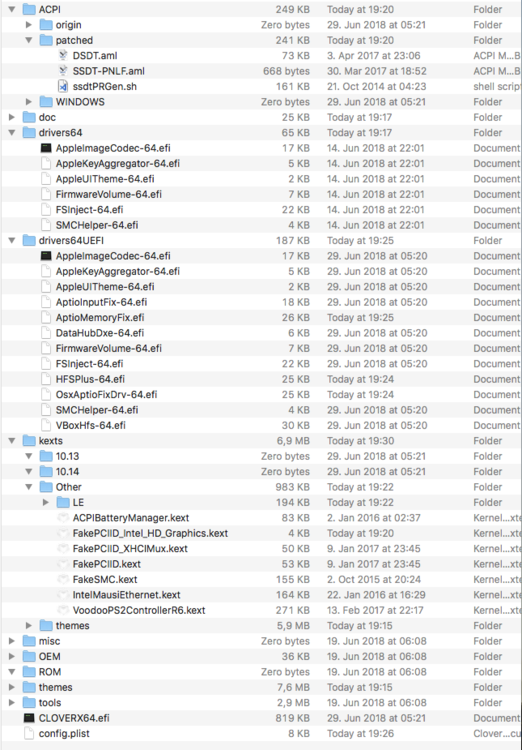

EFI.zip

origin.zip

Share this post


Link to post
Share on other sites

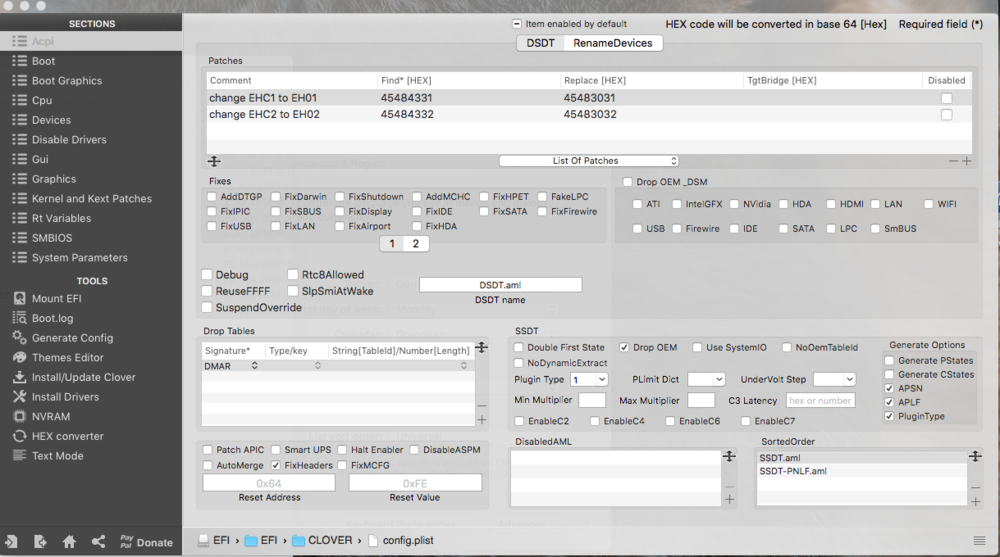

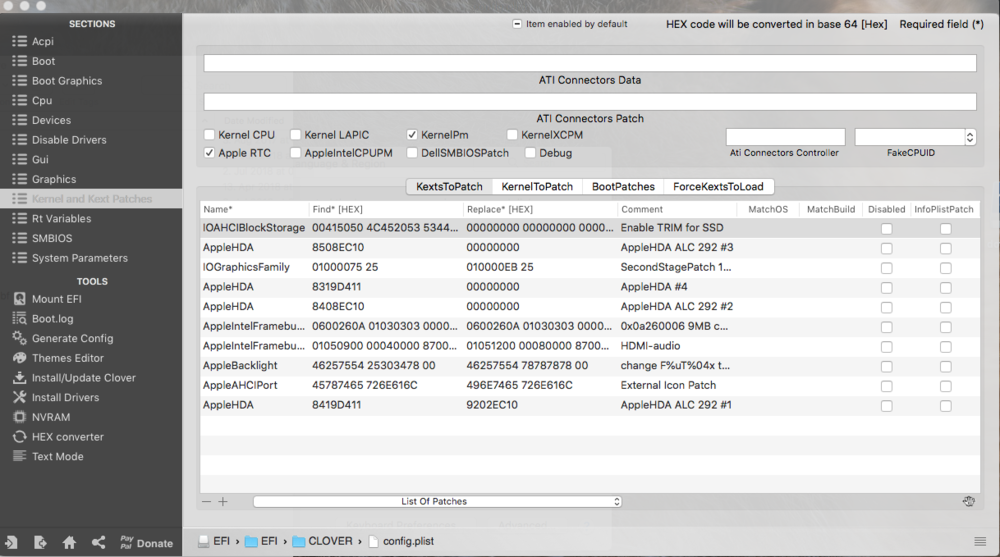

That last error usually means you don't have FixHeaders enabled, but the Config shows that it is. So could be the Clover version not detecting it.

Upgrade Clover with the latest version with these setting, remove the other Aptio Fixes if they are checked.

  • Install for UEFI booting only
  • Install Clover in the ESP
  • Drivers64UEFI\AptioMemoryFix

Share this post


Link to post
Share on other sites

thanks for your help.

Install for UEFI booting only - done

Install Clover in the ESP - done

Drivers64UEFI\AptioMemoryFix done








but the same error message comes up



Share this post


Link to post
Share on other sites

Installer is falling every time. Tomorrow morning i give El Capitan (a clone of an old installation for my desktop) a try and viola the system comes up with the fresh created USB Stick.






:)



Next steps:

- bring audio to run

- bring USB to run

- bring HDMI to run



much to do :D

regards

EFI v.01.zip

Share this post


Link to post
Share on other sites

For High Sierra, you need to drop tableID CpuPm and Cpu0Ist to prevent KP

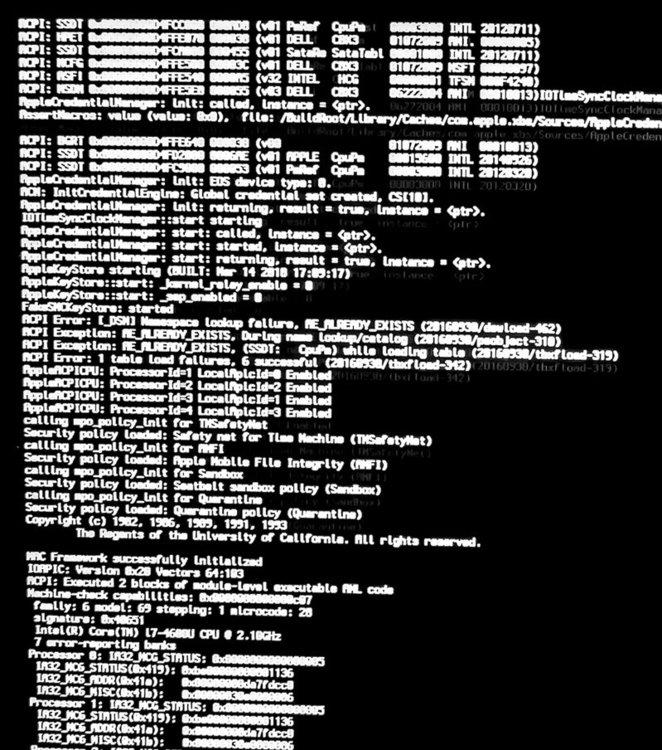

Boot with verbose + debug 0x100 to determine exact error

Share this post


Link to post
Share on other sites

Hi @Jake Lo

Based on the instructions linked by you I have created the USB stick. But unfortunately there is for OSX 10.13.x there is no template for my E7440.
I have now many attempts behind me, unfortunately I end up either a reboot or in a "silent waiting for root device"

I used Clover_v2.4k_r4586 for the installation of the USB stick

My steps were exactly as described in https://osxlatitude.com/forums/topic/8506-dell-latitude-inspiron-precision-vostro-xps-clover-guide/?tab=comments#comment-74275.

The files used were:
EFI_4558.zip
E7440_A20.zip - update with this AppleHDA_ALC292.kext

Share this post


Link to post
Share on other sites
