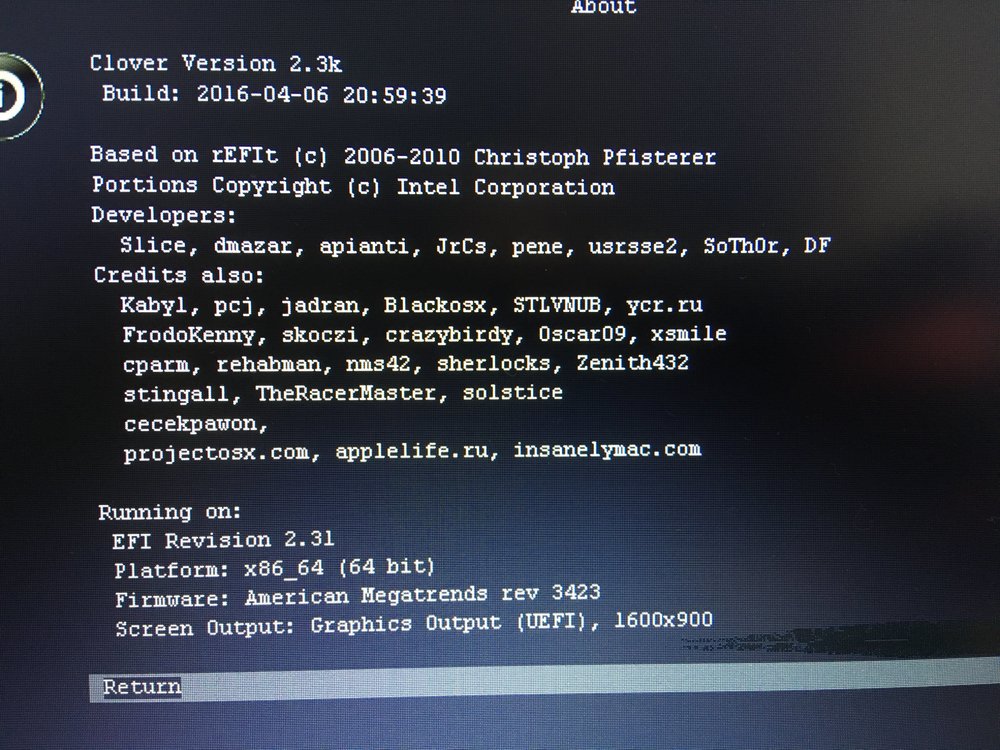

dpeixinho0 Posted July 13, 2018 Share Posted July 13, 2018 Hi. I'm having trouble trying to install Mac OS X El Capitan on the Dell Latitude E5430 non-vPro. The Dell restarting before you even complete the startup of the installer. I used unifail 6.2.0 to generate the installer. I was able to install Mac OS High Sierra perfectly, however my Wifi card is no longer compatible with the system. It's a board that can be taken at iMac 2008. It BCM94321MC. So my preference for El Capitan. I'm sending my CLOVER folder that I use to boot via USB if I need to parse. Thanks any kind of help! Sorry for my awful English. I'm brazilian. Specs Dell Latitude E5430 non-vPro 1600x900 core i5 3320m intel HD 4000 graphics 8GB BIOS: A18 CLOVER.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 13, 2018 Moderators Share Posted July 13, 2018 Try this. Replace to /EFI/Clover E5430_ElCapitan.zip Link to comment Share on other sites More sharing options...

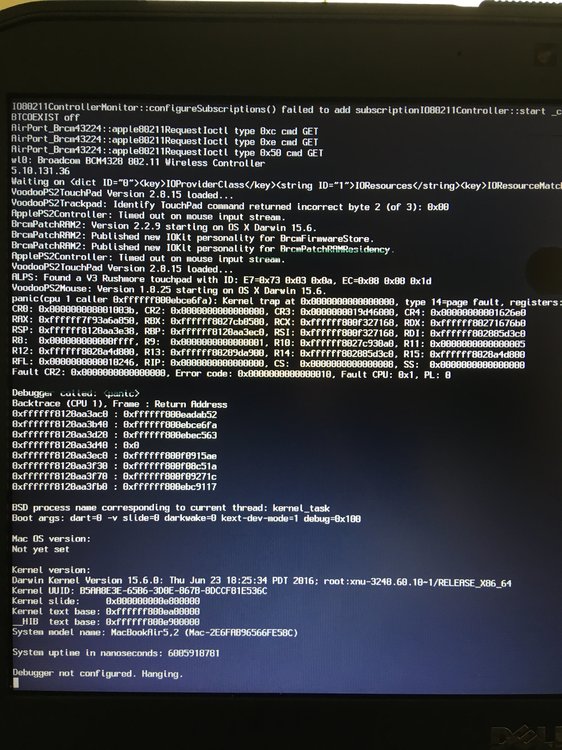

dpeixinho0 Posted July 14, 2018 Author Share Posted July 14, 2018 Hello. Look, now you have this error. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 14, 2018 Moderators Share Posted July 14, 2018 Try replacing VoodooPS2... with this one Link to comment Share on other sites More sharing options...
dpeixinho0 Posted July 14, 2018 Author Share Posted July 14, 2018 Hello. I was able to install El Capitan without problems after the VoodooPS2 fix. But I am out of signal via HDMI, when I close the LCD remains on and I do not recognize Bluetooth. What should I do? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 14, 2018 Moderators Share Posted July 14, 2018 Post debug file Link to comment Share on other sites More sharing options...
dpeixinho0 Posted July 14, 2018 Author Share Posted July 14, 2018 Hello. I followed your recommendation. It is attached. debug_2755.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 14, 2018 Moderators Share Posted July 14, 2018 Replace with this Config config.plist.zip Link to comment Share on other sites More sharing options...
dpeixinho0 Posted July 15, 2018 Author Share Posted July 15, 2018 Hello. After replacing the file now I have HDMI signal working perfectly, but the notebook display is showing several tracks. how can I solve? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 15, 2018 Moderators Share Posted July 15, 2018 Known issue for years. I had this posted in my Clover guide Notes3: To prevent artifacts with HD 4000, the following models should not exceed BIOS A11. Downgrade to A02/A03 and then upgrade to A11 if it has exceeded: E6x30, E5x30 Link to comment Share on other sites More sharing options...
