Trung Nguyen

Dell Latitude 7480 - No audio under Mojave 10.14.5

Recommended Posts


I am a new comer to Hackintosh.

I already installed successfully Mojave 10.14.5 with the working function below:

About sound I only can use speaker. I have tried many ways to fix, change AppleALC, Lilu, Commandcoder but I got no luck.

I already tried to copy DSDT.aml from some old post but it make me stuck at panic

Only way I can fixed is in here with ALCPlugFix but when I restarted the laptop, It stuck at panic.



Can I ask more about re-config the layout id by edit by Xcode to modify inject to 13,56 ?

I re-checked with Hackintool but still see layout id 11. I don't know how to modify by clover configuration, it make panic stuck when I tried to edit from clover>device>properties (layout id 13 with data type)

Please can you take a look to help ?


Many thanks


Work almost all:

CPU stepping

Touchpad with 2 finger gestures

Fn function work

Screen brightness

Sound (only speaker work, headphone show when plug but no sound).


Battery level/status


Not work:

Sound ( headphone, HDMI sound( I am using Sony Playstation 23" CECH-ZED1U-PB-R))



Share this post

Link to post
Share on other sites

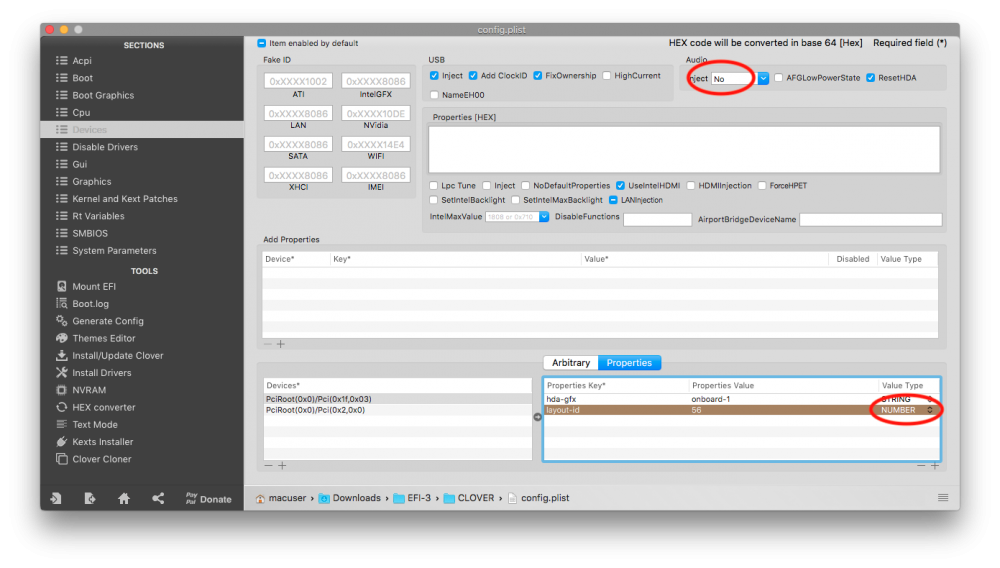

you should change data type to number and use 13 or 56,

Your config has 2 injections, 56 and 11.

you can remove the injection  under  properties and just use injections under Audio


Share this post

Link to post
Share on other sites

Inject Audio 13 or 56 and remove layout-id key


or Inject to No, and set layout-id value type to number, change properties value to 13 or 56



  • Thanks 1

Share this post

Link to post
Share on other sites

Many thanks for your help. I changed the layout id to 56,13 the headphone just piiiiii piiiii.

I changed to 28, it appear both speaker and headphone but still no sound.

I have attached the kexts and patched below:




Share this post

Link to post
Share on other sites

Make sure you have CodecCommander.kext in /L/E

and get rid of cloverHDA.kext.

you can try 5 and 21 as well


Note: No need to quote me on every reply.

  • Like 1
