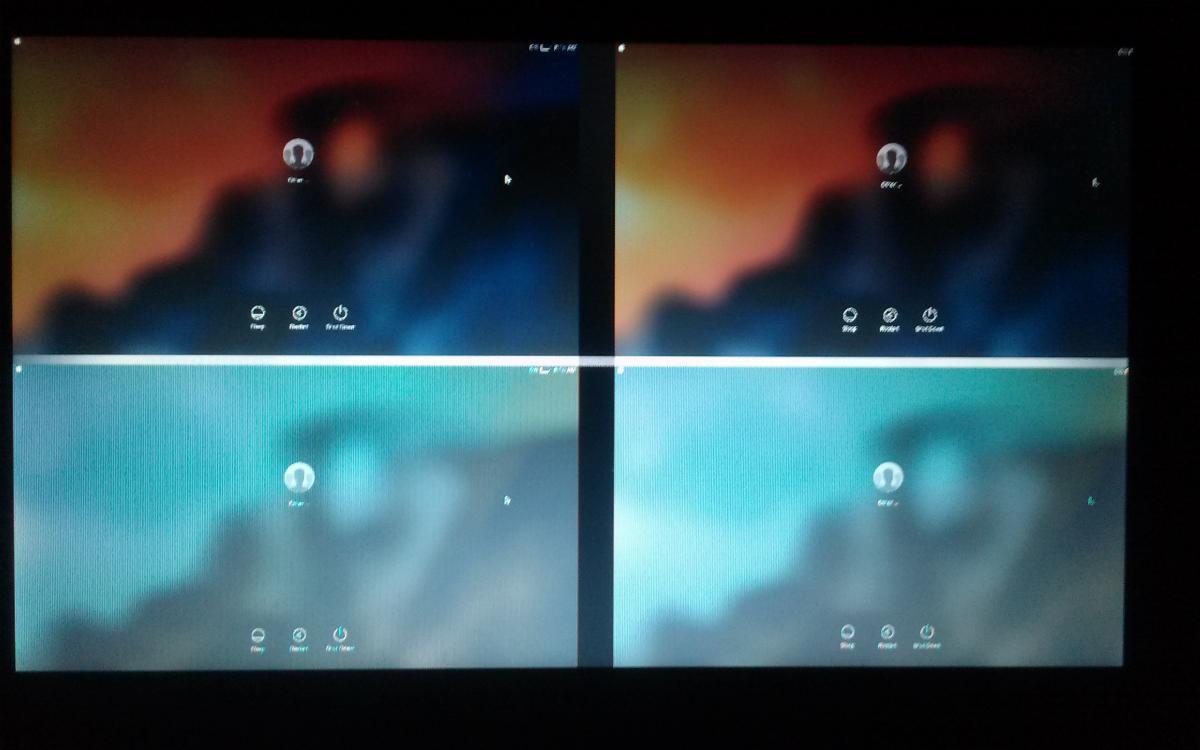

Asus VivoBook S200E screen splitter into 4 sections


sausage0
 Share

Recommended Posts

Thanks for quick reply.

CPU Intel Pentium C

GPU Intel Sandybridge/Ivybridge Accelerated VGA

I don't know what DSDT is but my clover config is (I can't upload plist):

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
		</array>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>dart=0 slide=0 kext-dev-mode=1</string>
		<key>DefaultVolume</key>
		<string>Yosemite Zone</string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>Devices</key>
	<dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<true/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>HideEntries</key>
		<dict>
			<key>Duplicate</key>
			<true/>
			<key>ExternalUEFI</key>
			<true/>
			<key>Gentoo</key>
			<false/>
			<key>Grub</key>
			<false/>
			<key>InternalUEFI</key>
			<true/>
			<key>OSXInstall</key>
			<false/>
			<key>OpticalUEFI</key>
			<true/>
			<key>Recovery</key>
			<false/>
			<key>Ubuntu</key>
			<false/>
			<key>WindowsEFI</key>
			<true/>
		</dict>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>YosemiteLogin</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Find</key>
				<data>SGVhZHBob25lcwA=</data>
				<key>Name</key>
				<string>VoodooHDA</string>
				<key>Replace</key>
				<data>VGVsZXBob25lcwA=</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AppleIntelCpuPM Kernel Panic fix</string>
				<key>Find</key>
				<data>4gAAAA8w</data>
				<key>Name</key>
				<string>AppleIntelCPUPowerManagement</string>
				<key>Replace</key>
				<data>4gAAAJCQ</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>still waiting for root device part1</string>
				<key>Find</key>
				<data>60wAAOoD</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>60wAAOgB</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>still waiting for root device part2</string>
				<key>Find</key>
				<data>dA5IjT2lkAAA</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>v8gAAACQkJCQ</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>fall back to old SMC mode for OS X 10.8.5</string>
				<key>Find</key>
				<data>SIXAdRBIjT19UA==</data>
				<key>Name</key>
				<string>AppleSMC</string>
				<key>Replace</key>
				<data>SIXA625IjT19VQ==</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>No Panic on MacPro4,1 - 5,1</string>
				<key>Find</key>
				<data>cgoATWFjUHJvNCwxAE1hY1BybzUsMQBY</data>
				<key>Name</key>
				<string>AppleTyMCEDriver</string>
				<key>Replace</key>
				<data>cgoAAAAAAAAAAAAAAAAAAAAAAAAAAABY</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<true/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

Link to comment
Share on other sites

  • Moderators

DSDT is found in EFI/Clover/ACPI/Patched. You have to compress the files before you can attach it.

And yes, please list the resolution of your display. SandyBridge has HD3000 and Ivybridge has HD4000, so specify your exact CPU will help.
