E7470: some issues with Sierra

[Jake Lo]

Update it and see if it still works properly.

As for DW1830, what kexts and patches are you using?

Are wireless /bluetooth showing in System information?

[seeker_pl]

No kext for DW1830. I'm aware of BrcmFirmwereRepo.kext and brcmPatchRAM.kext for Bluetooth. But Wifi should work anyway.



I removed patches from Clover Config.



IOBluetoothFamily (handoff 10.11)

BMC94532Z NGFF (fvco)

Broadcom 5Ghz US



system informations:



Bluetooth:

No information found.



Wifi:



  Software Versions:

  CoreWLAN: 11.0 (1200.25.1)

  CoreWLANKit: 12.0 (1200.25.1)

  Menu Extra: 12.0 (1200.41)

  System Information: 12.0 (1200.3)

  IO80211 Family: 12.0 (1200.12.2)

  Diagnostics: 7.0 (700.5)

  AirPort Utility: 6.3.7 (637.5)







I tried to run ssdtPRGen.sh-Beta, but I got kernel panic with new generated ssdt.aml.



Mareks-MBP:~ seeker_pl$ /Users/seeker_pl/Library/ssdtPRGen/ssdtPRGen.sh-Beta/ssdtPRGen.sh





ssdtPRGen.sh v0.9  Copyright © 2011-2012 by † RevoGirl

             v6.6  Copyright © 2013 by † Jeroen

             v21.5 Copyright © 2013-2017 by Pike R. Alpha

-----------------------------------------------------------

Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <



System information: Mac OS X 10.12.3 (16D32)

Brandstring: "Intel® Core i7-6600U CPU @ 2.60GHz"



Version: models.cfg v170 / Skylake.cfg v193





Scope (_PR_) {222 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)

Generating ssdt.dsl for a 'MacBook9,1' with board-id [Mac-9AE82516C7C6B903]

Skylake Core i7-6600U processor [0x406E3] setup [0x0705]

With a maximum TDP of 15 Watt, as specified by Intel

Number logical CPU's: 4 (Core Frequency: 2600 MHz)

Number of Turbo States: 6 (2700-3200 MHz)

Number of P-States: 28 (500-3200 MHz)

Adjusting C-States for detected (mobile) processor

Injected C-States for CPU0 (C1,C3,C6,C7)

Injected C-States for CPU1 (C1,C2,C3,C6,C7)

Warning: Model identifier (MacBook9,1) not found in..: /S*/L*/CoreServices/PlatformSupport.plist



Warning: 'cpu-type' may be set improperly (0x0705 instead of 0x0905)

- Clover users should read https://clover-wiki.zetam.org/Configuration/CPU#cpu_type

Compiling: ssdt_pr.dsl

Intel ACPI Component Architecture

ASL Optimizing Compiler version 20140926-64 [Nov  6 2014]

Copyright © 2000 - 2014 Intel Corporation



ASL Input:     /Users/seeker_pl/Library/ssdtPRGen/ssdt.dsl - 305 lines, 9612 bytes, 49 keywords

AML Output:    /Users/seeker_pl/Library/ssdtPRGen/ssdt.aml - 1865 bytes, 16 named objects, 33 executable opcodes



Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations

Do you want to open ssdt.dsl (y/n)? n

Mareks-MBP:~ seeker_pl$ /Users/seeker_pl/Library/ssdtPRGen/ssdtPRGen.sh-Beta/ssdtPRGen.sh





ssdtPRGen.sh v0.9  Copyright © 2011-2012 by † RevoGirl

             v6.6  Copyright © 2013 by † Jeroen

             v21.5 Copyright © 2013-2017 by Pike R. Alpha

-----------------------------------------------------------

Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <



System information: Mac OS X 10.12.3 (16D32)

Brandstring: "Intel® Core i7-6600U CPU @ 2.60GHz"



Version: models.cfg v170 / Skylake.cfg v193





Scope (_PR_) {222 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)

Generating ssdt.dsl for a 'MacBook9,1' with board-id [Mac-9AE82516C7C6B903]

Skylake Core i7-6600U processor [0x406E3] setup [0x0705]

With a maximum TDP of 15 Watt, as specified by Intel

Number logical CPU's: 4 (Core Frequency: 2600 MHz)

Number of Turbo States: 6 (2700-3200 MHz)

Number of P-States: 28 (500-3200 MHz)

Adjusting C-States for detected (mobile) processor

Injected C-States for CPU0 (C1,C3,C6,C7)

Injected C-States for CPU1 (C1,C2,C3,C6,C7)

Warning: Model identifier (MacBook9,1) not found in..: /S*/L*/CoreServices/PlatformSupport.plist



Warning: 'cpu-type' may be set improperly (0x0705 instead of 0x0905)

- Clover users should read https://clover-wiki.zetam.org/Configuration/CPU#cpu_type

Compiling: ssdt_pr.dsl

Intel ACPI Component Architecture

ASL Optimizing Compiler version 20140926-64 [Nov  6 2014]

Copyright © 2000 - 2014 Intel Corporation



ASL Input:     /Users/seeker_pl/Library/ssdtPRGen/ssdt.dsl - 305 lines, 9612 bytes, 49 keywords

AML Output:    /Users/seeker_pl/Library/ssdtPRGen/ssdt.aml - 1865 bytes, 16 named objects, 33 executable opcodes



Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations

Do you want to open ssdt.dsl (y/n)? n

Mareks-MBP:~ seeker_pl$



[Jake Lo]

See here, perhaps one of the country code patch would help

<dict>
    <key>Comment</key>
    <string>AirPortBrcm4360 5Ghz US-FCC</string>
    <key>Disabled</key>
    <false/>
    <key>Find</key>
    <data>QYP8/3QsSA==</data>
    <key>MatchOS</key>
    <string>10.11,10.12</string>
    <key>Name</key>
    <string>AirPortBrcm4360</string>
    <key>Replace</key>
    <data>ZscGVVPrKw==</data>
</dict>

or

           <dict>
                <key>Comment</key>
                <string>AirPortBrcm4360 5Ghz #a country code</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                QYP8/3QsSA==
                </data>
                <key>MatchOS</key>
                <string>10.11,10.12</string>
                <key>Name</key>
                <string>AirPortBrcm4360</string>
                <key>Replace</key>
                <data>
                ZscGI2HrKw==
                </data>
            </dict>

[seeker_pl]

I set Broadcom 5Ghz PL Patch, all kext patches on the screen from CCV, but still no WiFi or Bluetooth.



https://ibb.co/iMwjgQ

[seeker_pl]

Strange, my e7470 seems to be not compatible with DW1830, at least with the one I have.

I asked Hervé for help, but he was not able to make it work too.

I put now DW1560 to m.2 slot, but still same problem. No Wifi, Bluetooth is working.

Latest Bootpack and BIOS installed E7470_BIOSv10.15.4.zip

Clover updated to latest version

In system Information:

I got info about MacBook Pro 13.1 (two thunderbolt ports), why?



I had to disable LegacyBoot, when it’s enable Ethernet is not present.

Intel Core i7-6600U

16G (2 X 8G) DDR4 Memory

M.2 512GB SATA Class 20 Solid State Drive

My EFI:

https://www.dropbox.com/s/5s3udj41rcl2z74/EFI.ZIP?dl=0

Bootlog

https://www.dropbox.com/s/mzm3xi2b4n1pzq0/bootlog.log.txt?dl=0

IOregistryExplorer

https://www.dropbox.com/s/fi05e1hlmetevbl/IORegistryExplorer.ioreg?dl=0

System Information:

https://www.dropbox.com/s/hiiaum9x3k29yk7/system%20information.spx?dl=0

[Jake Lo]

I see you have Windows installed as dual Boot. Does either wireless work on Windows?

Does it even show in the BIOS?

I have DW1830 on E7470 and both Bluetooth and Wireless are working.

[seeker_pl]

Wifi nad bluetooth works fine with Dw1830 and Dw1560, on windows no issues.

On mac Only bluetooth is available. To make sure There is no problem with kexts etc. I reinstalled macOS partition after I switched to DW1560. Both card were checked on e7450 and there are no problems.

[Jake Lo]

Update to the latest BIOS, install DW1830 card, extract the raw file through F4 in Clover. Send me the origin folder and I'll patch them for you to test.

Might be some differences in our hardware that make it not work with my DSDT/SSDT.

You could test this by following this:



Try booting to Clover GUI ->Options

ACPI patching -> DSDT name: Change it to BIOS.aml

Tables dropping -> Uncheck Drop all OEM SSDT, place check next to all the Drop "SSDT-xx.aml" below it.

Return to main menu and boot up OS X.

Note: This disables all the patched SSDT/DSDT.

[Jake Lo]

Seems DSDT/SSDT are different with mine and seeker_pl as does Felix Ye (OP).

Use alternate bootpack if my bootpack prevents wireless.

[Flykai]

Hi at all,



instead of opening a new thread to the same topic, I hope to get a little bit support here (I think I'm just too silly for Clover...).

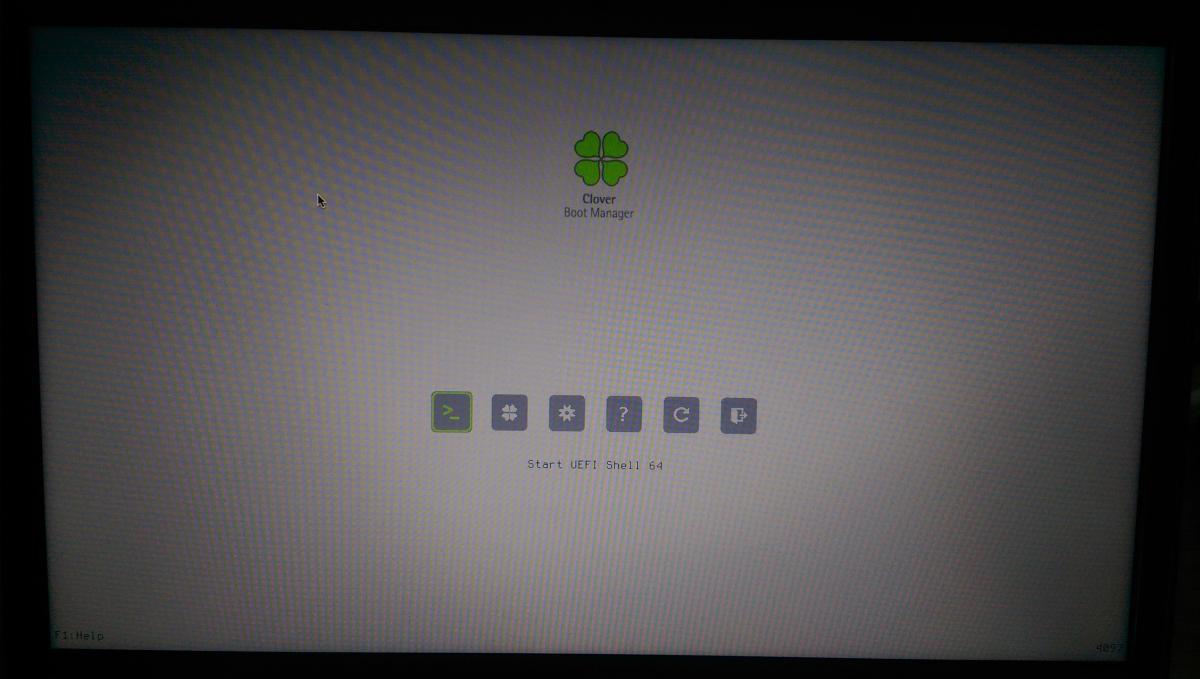

I followed the guide how to create the USB drive with bootpack, DVMT is set, but everytime I boot into Clover, I don't see the "Install OS X Sierra" drive...just "Start UEFI Shell 64" and the other five standard options, but no boot device.



I have the newest BIOS installed, 1.15.04 or something like this, may this be the fault?



Ideas are welcome, many thanks!!



Flykai



Edit: I used already the alternate bootpack, but got the same issue.
