SOJAY Posted December 19, 2016 Share Posted December 19, 2016 Dell Inspiron 17r 5721 Intel core i7-3537U 2.0GHz Intel HD 4000 1TB HDD 6GB RAM Please help on how to create the El Capitan bootable USB Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 20, 2016 Moderators Share Posted December 20, 2016 Start with this guide to get Bootable Clover. Temporarily use Latitude E6430 bootpack in post #2.Once you get the Clover to boot, hit F4. Compress and attach the Origin folder /EFI/Clover/ACPI/Origin. What LAN device does it have?What wireless device? Link to comment Share on other sites More sharing options...
SOJAY Posted December 20, 2016 Author Share Posted December 20, 2016 Here is my origin file. When i try booting with the installer i got this error http://imgur.com/Yoy3ILe http://imgur.com/sZ5X0C0 Lan is Realtek RTL8168/8111 WLAN Intel centrino® Wireless-N 2230 origin.zip Link to comment Share on other sites More sharing options...

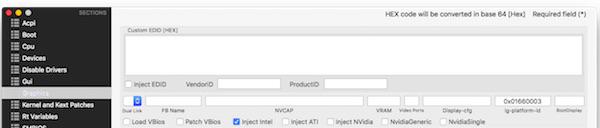

Administrators Hervé Posted December 20, 2016 Administrators Share Posted December 20, 2016 By now, you should know that no Intel wireless cards are supported in OS X. Replace it by a supported card or USB dongle. Consult the non-exhaustive list of supported models in the R&D forum section. Reload BIOS settings, then set HDD mode to AHCI and check that LAN/Ethernet is enabled. You may disable wireless until you change your card. You graphics card is not initialising so you need to inject the correct Capri framebuffer and enable InjectIntel in Clover configuration. You can use CloverConfigurator to that effect. For mobile HD4000, it should be FB #3, i.e. layout-id 0x01660003. Alternatively, you may choose to patch your DSDT to inject the Capri-specific information under GFX0 (iGPU) device located at address 0x00020000. If your screen res is higher than 1600x900, you need to set DualLink to 1. Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { If (LEqual (Arg2, Zero)) { Return (Buffer (One) { 0x03 }) } Return (Package () { "AAPL,ig-platform-id", Buffer (0x04) { 0x03, 0x00, 0x66, 0x01 }, "hda-gfx", Buffer (0x0A) { "onboard-1" } }) } Since your system is Ivy Bridge, you also need to enable Asus AICPUPM patch in Kernel & Kext Patches tab. You'll find the LAN kext through a Google search. It's widely available, especially at InsanelyMac. For audio, identify your codec with DPCIManager app once you're up & running. Link to comment Share on other sites More sharing options...
SOJAY Posted December 20, 2016 Author Share Posted December 20, 2016 still the same issue Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 20, 2016 Moderators Share Posted December 20, 2016 There's an older guide here, should work for El Capitan too. Link to comment Share on other sites More sharing options...
SOJAY Posted December 20, 2016 Author Share Posted December 20, 2016 i tried it but i got blank screen Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 20, 2016 Moderators Share Posted December 20, 2016 Boot with verbose mode. Hit the spacebar when you see the Clover GUI, then select verbose. Post your error here. Please use the More Reply Options to attach files, don't use external sites. Link to comment Share on other sites More sharing options...
SOJAY Posted December 20, 2016 Author Share Posted December 20, 2016 I successful install it, everything works i think but i cant get the sound working any help? here is my EFI EFI.zip Link to comment Share on other sites More sharing options...
Administrators Hervé Posted December 20, 2016 Administrators Share Posted December 20, 2016 [...] For audio, identify your codec with DPCIManager app once you're up & running. Please pay attention... Link to comment Share on other sites More sharing options...
