fasta Posted October 5, 2017 Share Posted October 5, 2017 Hello everyone! I'm running OS Sierra 10.12.6 on Asus UX360u. Everything works, except for WiFi card (Intel) but I need help with some DSDT edits: -I use AsusFnKeys.kext but some Fn keys (brightness, backlight) don't work. -I want use Fn Keys but without typping Fn (Fn keys as functional keys patch doesn't work) -Also, my touchpad is Elan1200 i2c, so I don't use SmartTouchpad.kext (I use voodooi2c). -I use also USB WiFi (DWA-131 E) and can't get working iMessages, because this USB is not listed as BuiltIn (nullethernet works but doesn't make my USB WiFi act as built-in device). -When I turn off the machine, which is plugged on AC adapter, machine gets restarted, also machine can't go to sleep. So, I'll be really grateful if someone can help me with my DSDT, I don't know whitch patches I need and when I apply some patches, I get KP or some non-functional kexts (like audio). HW: -Intel HD520 8GB RAM -Intel Core i5 6200U SkyLake, 512GB SSD -Clover UEFI CLOVER.zipMacBook Pro.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 5, 2017 Moderators Share Posted October 5, 2017 what patches had you applied so far? For Fn keys re-assignment, use Karabiner-Elements.app and set the Fn keys Try enabling FixShutdown_0004 for reboot issue. If you want DSDT patching, extract new raw files by executing F4 during Clover boot. Compress and attach the Origin folder. Link to comment Share on other sites More sharing options...
fasta Posted October 5, 2017 Author Share Posted October 5, 2017 Jake Lo, thank you. I'm sorry I don't remember which patches I used. It is possible detect all used patches? I generated DSDT and also attach all generated files. FixShutdown_0004 didn't help Archív.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 5, 2017 Moderators Share Posted October 5, 2017 Try this, replace all to /EFI/Clover by the way, what BIOS version are you running? Files updated: UX360u.zip Link to comment Share on other sites More sharing options...
fasta Posted October 5, 2017 Author Share Posted October 5, 2017 Nothing happened :/ BIOS v. 300 Link to comment Share on other sites More sharing options...

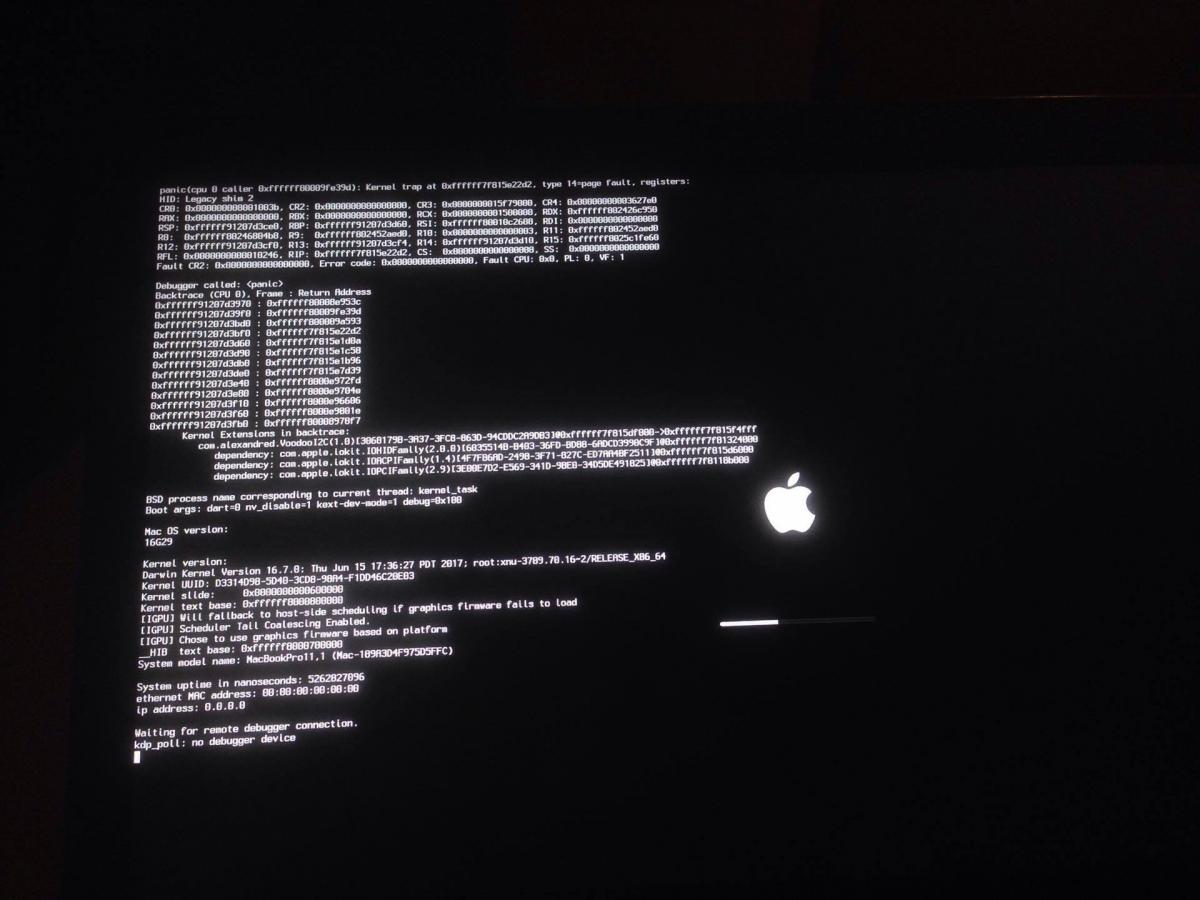

Moderators Jake Lo Posted October 5, 2017 Moderators Share Posted October 5, 2017 it's crashing on voodooI2C.kext did this happened before? Link to comment Share on other sites More sharing options...
fasta Posted October 5, 2017 Author Share Posted October 5, 2017 ok, I uninstalled voodooi2c, now can boot to OS. But there's nothing new, fnkeys don't work at all. but panel for backlight display adjustments inside the displays settings is gone Link to comment Share on other sites More sharing options...
Administrators Bronxteck Posted October 5, 2017 Administrators Share Posted October 5, 2017 want to try cool star branch of VoodooI2c? I compiled it from todays available sources. seems to be the most active branch at the moment. VoodooI2C.kext.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 5, 2017 Moderators Share Posted October 5, 2017 Added I2C patches from your DSDT and added SSDT-PNLF.aml. Also include voodooI2C from Bronxteck See updated files in post #4 Link to comment Share on other sites More sharing options...
fasta Posted October 6, 2017 Author Share Posted October 6, 2017 Hi Jake Lo!Thank you for help...So, after updating EFI, there is nothing new. Also, I have touchscreen connected to one i2c controller so I dissabled it in DSDT by adding (Zero) in _STA methods of touchscreen(FTSC1000). After that I apply this patch:https://github.com/haimann951/ACPI-Patches/blob/master/VoodooI2C/ELAN1200.txtAfter that, touchpad is working.What is new:-slide panel for brightness is on settings back-all FnKeys working (sleep, brightness, audio UP,DOWN and mute)-it seems, sleep work like a charm -but, FnKeys for keyboard backlight F3,F4 and F7-9 don't work Thank you again DSDT and ioreg.zip 1 Link to comment Share on other sites More sharing options...
