BatteryDie Posted October 20, 2018 Author Share Posted October 20, 2018 (edited) System has rebooted during Apple logo loading. Clover reported the system was panic. I'll try upgrade to BIOS A22. I'll let you know. I updated BIOS A22 then done set load default. (Changed ACHI. Legacy Option ROMs, UEFI and Secure Boot are same default after Load Defaults.) but the system got still panic. I do not catch fast scroll up on verbose boot. Edited October 20, 2018 by BatteryDie Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 20, 2018 Moderators Share Posted October 20, 2018 At Clover, press spacebar, select verbose + debug 0x100 Link to comment Share on other sites More sharing options...
BatteryDie Posted October 20, 2018 Author Share Posted October 20, 2018 (edited) Here are info plus zipped crash log on attached log.zip Edited October 20, 2018 by BatteryDie added zipped crash log if you needed Link to comment Share on other sites More sharing options...

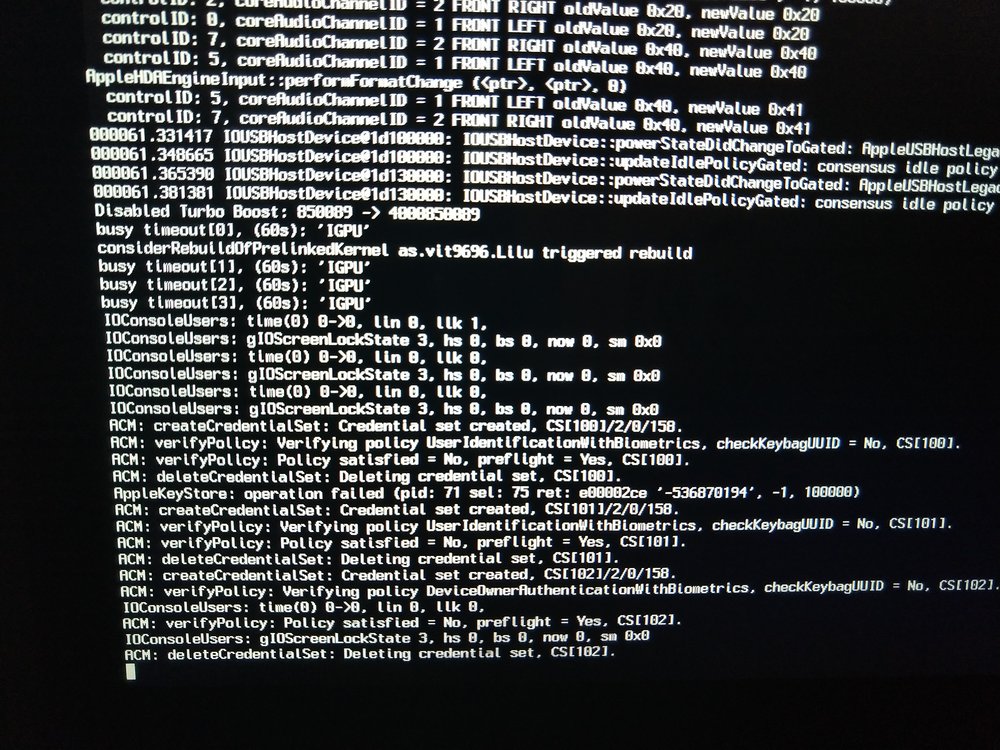

BatteryDie Posted October 20, 2018 Author Share Posted October 20, 2018 All right, I found out KP is causing by Intel backlight fixup kext. I removed it from folder. KP is gone but I still can't get on desktop due to timeout IGPU error. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 21, 2018 Moderators Share Posted October 21, 2018 My mistake, I'm on BIOS version A25. You can try booting without the DSDT.aml Link to comment Share on other sites More sharing options...

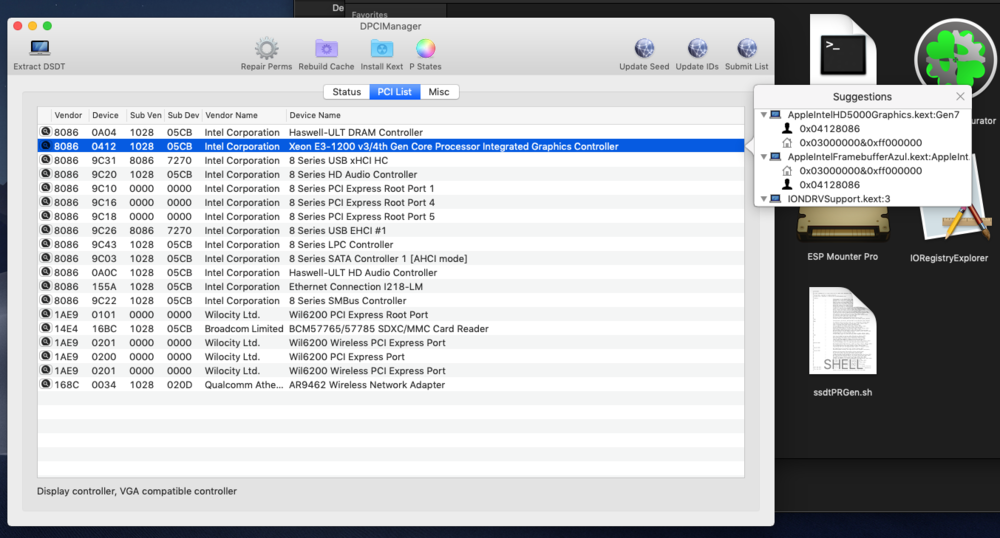

BatteryDie Posted October 21, 2018 Author Share Posted October 21, 2018 I tried boot without DSDT.aml. No luck. Tried upgraded BIOS A25. Same issue. For now, I am using -igfxvesa mode boot. I am seeing macOS is using Intel HD 5000 kext for HD 4400 like this screenshot, is it normal? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 21, 2018 Moderators Share Posted October 21, 2018 Looks like you might have a discrete card? Post debug file Link to comment Share on other sites More sharing options...
BatteryDie Posted October 21, 2018 Author Share Posted October 21, 2018 just HD 4400. BIOS info screenshot is on my first post. here is zipped file debug_32479.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted October 21, 2018 Moderators Share Posted October 21, 2018 Do you have the following 2 kexts in /S/L/E at least? AppleIntelFramebufferAzul.kext AppleIntelHD5000Graphics.kext Link to comment Share on other sites More sharing options...
BatteryDie Posted October 21, 2018 Author Share Posted October 21, 2018 (edited) Yes, I do have them. Edit: I think Intel HD 4400 may needed 2x4GB ram DRR3L because all E7440 hackinotsh users who have 8GB ram total without problem. I've never seen anyone get working hackintosh with single 4GB RAM before. I am using single 4GB DRR3L RAM. @Jake Lo, can you test single 4GB ram on your E7440? Edit: HD 4400 with 4GB RAM DRR3L is not issue because Someone confirmed it is works on his E6440. Edited October 23, 2018 by BatteryDie Link to comment Share on other sites More sharing options...
