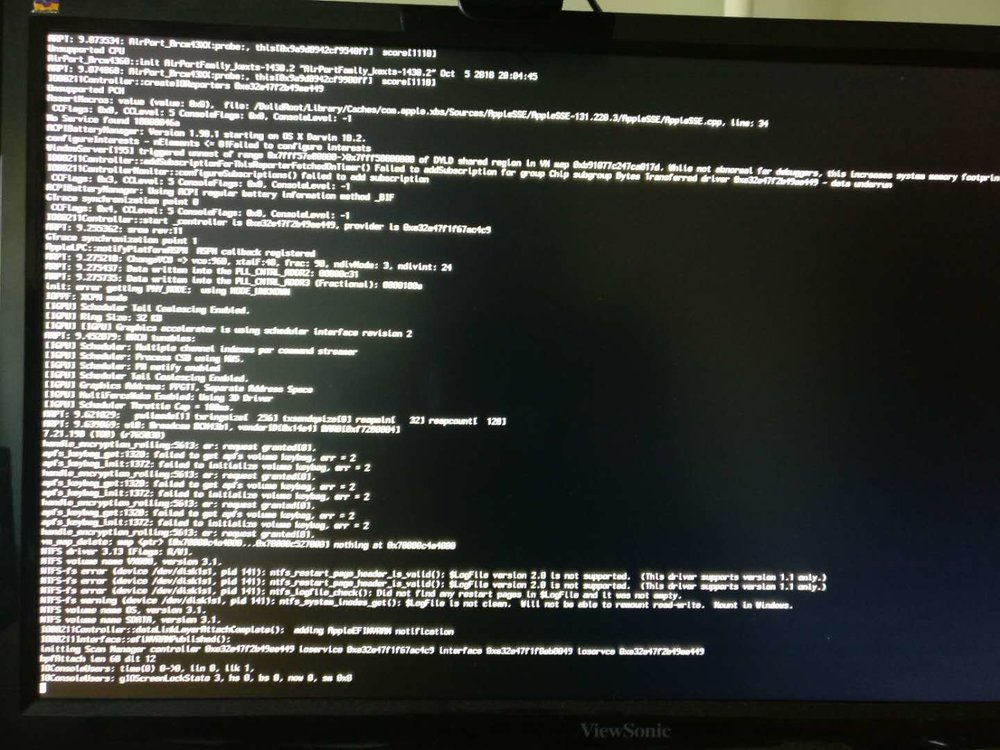

SlashJiang Posted December 16, 2018 Share Posted December 16, 2018 My E5250 works fine with Mojave, sound, touchpad etc. But if I plug it to PR03X with two monitors connected, I can not boot up my Mojave, my CLOVER and error screen attached. Thanks.e E5250.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 16, 2018 Moderators Share Posted December 16, 2018 What's the system's specs? This model comes in 4th and 5th CPU. Your Config includes both Skylake and Broadwell graphics injection...I guess you're using my Skylake bootpack and made some changes for Broadwell. Will it boot with one monitor and then plug in the second? What connections are the monitors connecting to? DP or VGA or DVI? Link to comment Share on other sites More sharing options...
SlashJiang Posted December 16, 2018 Author Share Posted December 16, 2018 My CPU is 5200U. ViewSonic connect to DP port and Dell Monitor connect to DVI port of PR03X. I just tested with two monitor connected, lid was closed, when I tried to boot, I got the that screen information, in this situation, if I press some keys on keyboard, I can hear some keypress sound from speaker, after I open lid, system completely stopped, no display on both monitors and laptop display. If I open the lid and turn on the computer, no display on both monitors connected to PR03X. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 16, 2018 Moderators Share Posted December 16, 2018 Can you boot and then dock the system? Try with only DP port, then add DVI Try with DVI, then add DP Please post IOReg file using IORegistryExplorer with monitors connected even though blank screen. Can find app here Link to comment Share on other sites More sharing options...
SlashJiang Posted December 16, 2018 Author Share Posted December 16, 2018 Thank you, I will try it when I am at home. Link to comment Share on other sites More sharing options...

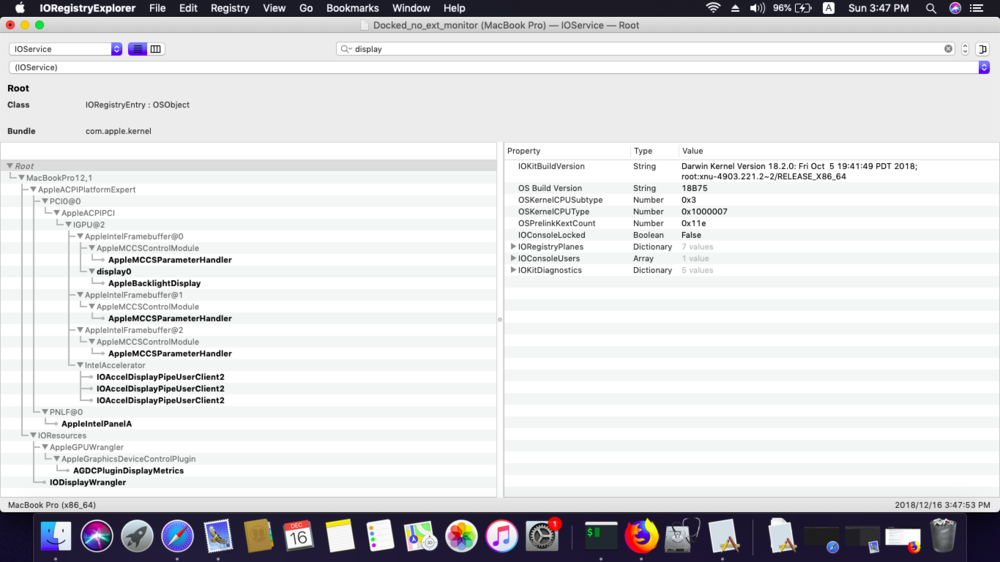

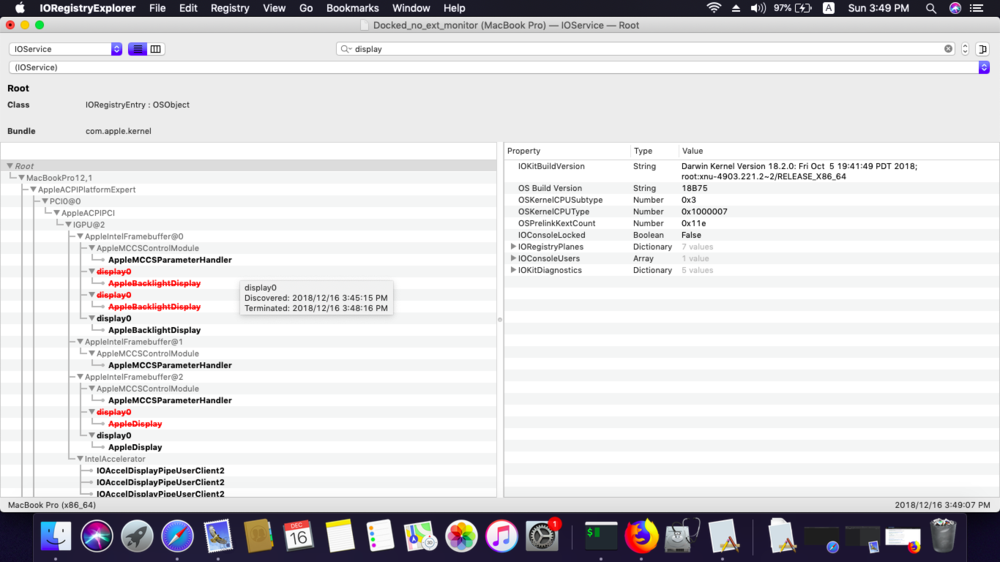

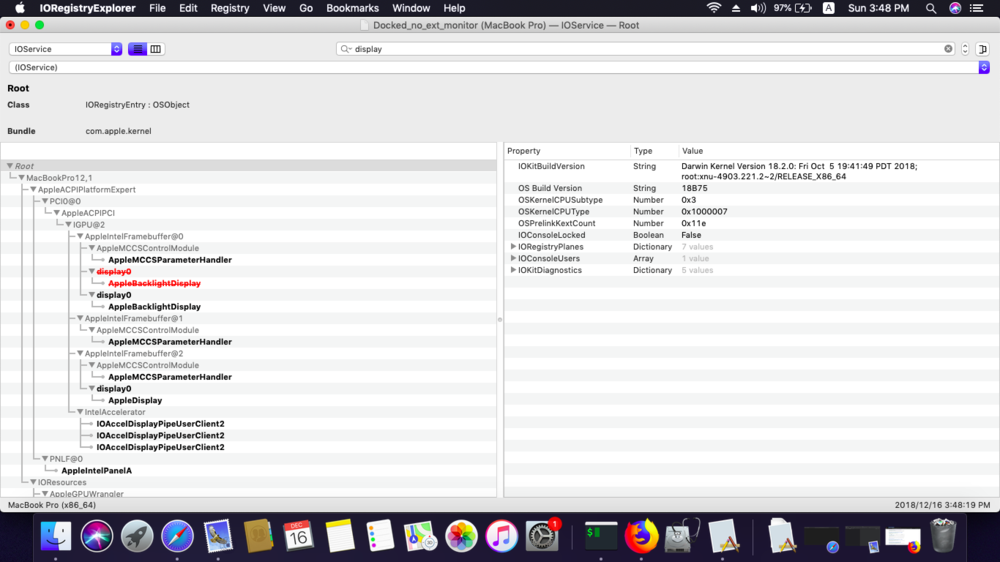

SlashJiang Posted December 16, 2018 Author Share Posted December 16, 2018 I docked my laptop to PR03X: 1. Connect to DP (with DVI convertor) to ViewSonic. 2. Connect to DVI to Dell Monitor. Got the same result as both monitors connected, system can not boot. 3. Without both monitor, system boot up. Then I run IORegisterExplorer and take three screenshots 1. No monitor connected. 2. Connect to DP. 3. Connect to DP and DVI. Please help me to check it. Thank you. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 16, 2018 Moderators Share Posted December 16, 2018 Please provide the IOReg file, screenshots in this case are not very useful Link to comment Share on other sites More sharing options...
Administrators Hervé Posted December 16, 2018 Administrators Share Posted December 16, 2018 What you need to do is identify which framebuffer port relates to each docking station physical display output (DP, DVI, etc.). I expect that you'll then need to patch your specific BDW framebuffer layout, at least for DVI, in a similar fashion as I detailed for HD4600 in the R&D->Graphics forum subsection. Link to comment Share on other sites More sharing options...
SlashJiang Posted December 17, 2018 Author Share Posted December 17, 2018 I am new to this IORestryExplorer, I'll try it. I learned something from https://osxlatitude.com/forums/topic/10305-e5470docking-stationport-replicator-pr03x/?tab=comments#comment-76468 I found @1 port 5 is 08 HDMI, @2 port 6 is 04, DP port, when I connect each monitor individually, some information change on @2 port 6, no changes on @1 port 5. Also, I checked AppleIntelBDWFrameBuffer file via vi in hex mode for layout 0x16260006, I found port 5 and 6 are both 04, means it's DP port. 16260006 is for HD 6000? But mine is HD5500, whether I need to change my ig-platform to 0x16160002 (HD5500, 1.5G VRAM) and patch layout 16160002? Also, I found someone says I need to patch it through Whateverygreen? I am confused, keep trying. Than you for your tips. Still working on it. Link to comment Share on other sites More sharing options...
Administrators Hervé Posted December 17, 2018 Administrators Share Posted December 17, 2018 If you look at layout 0x16160002 in the BDW framebuffer kext, you'll see something like: 02001616 01030303 00002002 00005001 00000060 6C050000 6C050000 00000000 00000000 00000000 00000800 02000000 30020000 01050900 00040000 07050000 02040A00 00040000 07050000 FF000000 01000000 40000000 024B0000 05050600 02000000 04000000 80DF1710 00000000 78050000 D2050000 40060000 00000000 00000000 C8000000 i.e. a layout that supports the following 3 x output ports: 00000800 02000000 30020000 // FB@0, port #0, LVDS (built-in LCD) 01050900 00040000 07050000 // FB@1, port #5, DP 02040A00 00040000 07050000 // FB@2, port #6, DP If you want support for DVI output alongside DP output, you have to patch one of the above output ports for it. Since you already got DP out of port #6, you could expect the patch to be: \/\/ \/ Find: 01050900 00040000 07050000 Replace: 03060900 00020000 07050000 /\/\ /\ ` Try that, knowing that you may have to experiment according to those principles I detailed in my guide for Haswell/4th gen graphics. Link to comment Share on other sites More sharing options...
