aliuzunnn61 Posted August 28, 2019 Share Posted August 28, 2019 I have got a DW1820A wireless card but I have a problem. I can not using bluetooth (in last photo writing English "bluetooth device not found") Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 28, 2019 Moderators Share Posted August 28, 2019 Move BrcmPatchRAM2 and BrcmFirmwareRepo to /L/E Repair permissions and rebuild cache If you want to keep all kexts in Clover kext, then replace BrcmFirmwareRepo with BrcmFirmwareData.kext Link to comment Share on other sites More sharing options...
aliuzunnn61 Posted August 28, 2019 Author Share Posted August 28, 2019 unfortunately it didn't work Link to comment Share on other sites More sharing options...

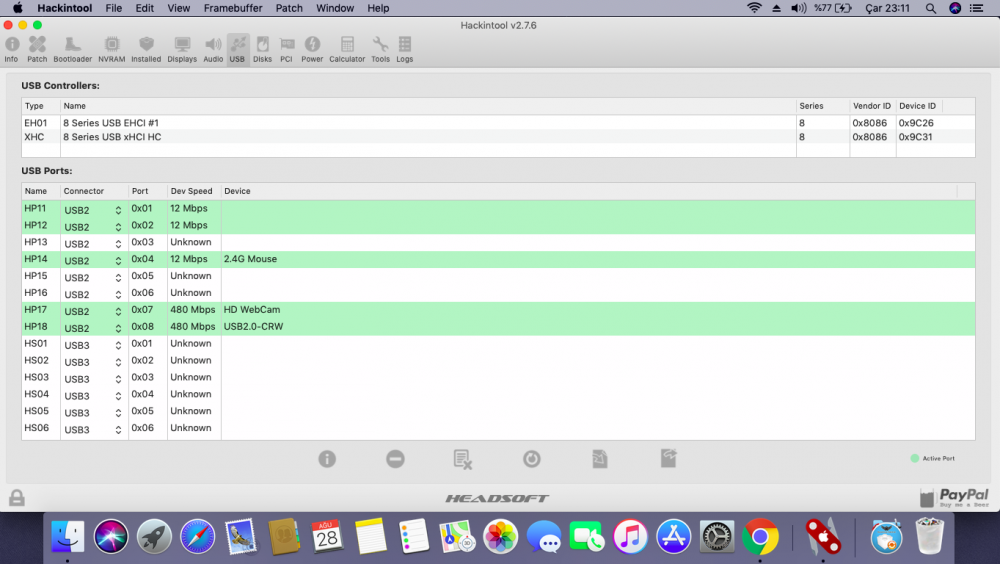

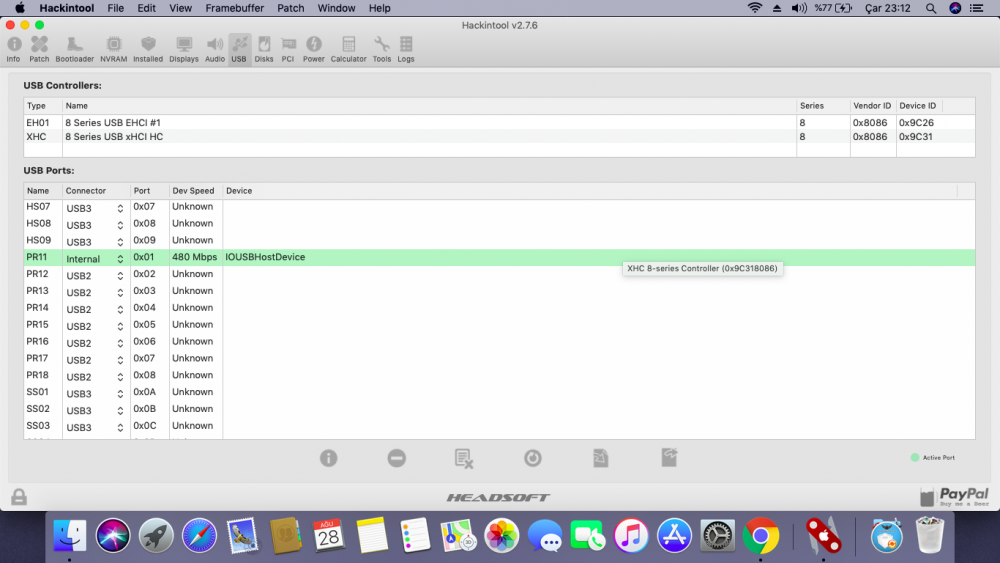

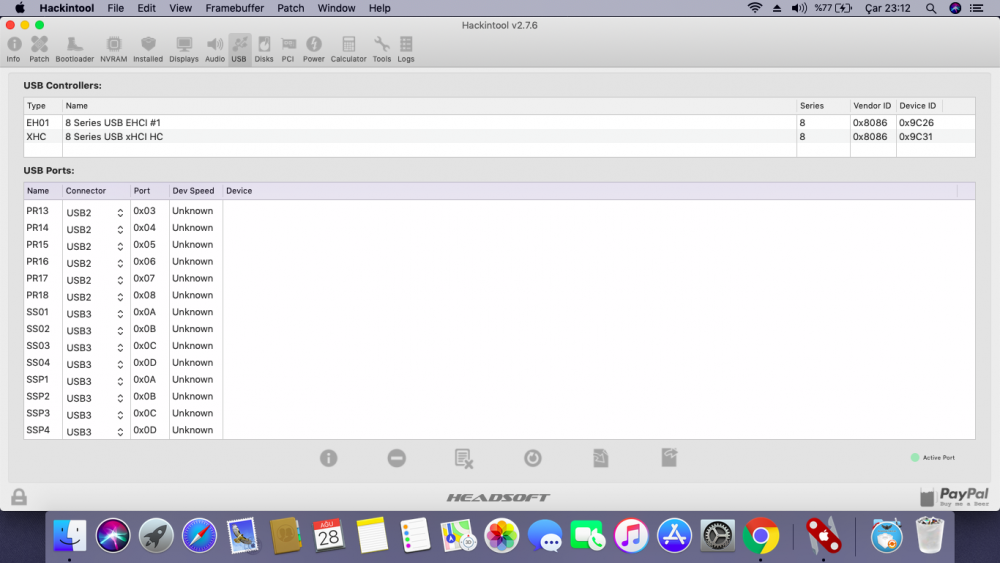

Moderators Jake Lo Posted August 28, 2019 Moderators Share Posted August 28, 2019 Make sure you have your USB ports setup correctly in MacOS...use Hackintool.app Check system information if it shows under Bluetooth or USB Link to comment Share on other sites More sharing options...
Administrators Hervé Posted August 28, 2019 Administrators Share Posted August 28, 2019 Definitely sounds like a USB-related issue. If your laptop has older USB2.0 controller, temporarily boot with USBInjectAll kext before running Hackintool so that you do not miss any controller/ports. Link to comment Share on other sites More sharing options...
aliuzunnn61 Posted August 28, 2019 Author Share Posted August 28, 2019 I don't know exactly what to do Link to comment Share on other sites More sharing options...
aliuzunnn61 Posted August 28, 2019 Author Share Posted August 28, 2019 Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 28, 2019 Moderators Share Posted August 28, 2019 You'll need to add the port limit patch(s) to your Config under KextToPatch Spoiler <dict> <key>Comment</key> <string>USB port limit patch #1 10.14.x modify by DalianSky(credit ydeng)</string> <key>Disabled</key> <false/> <key>Find</key> <data> g/sPDw== </data> <key>InfoPlistPatch</key> <false/> <key>MatchOS</key> <string>10.14.x</string> <key>Name</key> <string>com.apple.iokit.IOUSBHostFamily</string> <key>Replace</key> <data> g/s/Dw== </data> </dict> <dict> <key>Comment</key> <string>USB port limit patch #2 10.14.x modify by DalianSky(credit PMHeart)</string> <key>Disabled</key> <false/> <key>Find</key> <data> g+MP0w== </data> <key>InfoPlistPatch</key> <false/> <key>MatchOS</key> <string>10.14.x</string> <key>Name</key> <string>com.apple.iokit.IOUSBHostFamily</string> <key>Replace</key> <data> g+M/0w== </data> </dict> <dict> <key>Comment</key> <string>USB Port limit patch #3 10.14.x modify by DalianSky(credits PMheart)</string> <key>Disabled</key> <false/> <key>Find</key> <data> g/sPDw== </data> <key>InfoPlistPatch</key> <false/> <key>MatchOS</key> <string>10.14.x</string> <key>Name</key> <string>com.apple.driver.usb.AppleUSBXHCI</string> <key>Replace</key> <data> g/s/Dw== </data> </dict> <dict> <key>Comment</key> <string>USB Port limit patch #4 10.14.x modify by DalianSky(credits PMheart)</string> <key>Disabled</key> <false/> <key>Find</key> <data> g/8PDw== </data> <key>InfoPlistPatch</key> <false/> <key>MatchOS</key> <string>10.14.x</string> <key>Name</key> <string>com.apple.driver.usb.AppleUSBXHCI</string> <key>Replace</key> <data> g/8/Dw== </data> </dict> Install USBInjectall.kext to Clover kexts Reboot, launch Hackintool Test each port with USB 2.0 and USB 3.0 devices. Change Connector type accordingly Make sure Webcam, Bluetooth, SD card shows as Internal When done, delete all non highlighted ports. Click the export button. This generates an USBPorts.kext and SSDT-xxx.aml Use only 1 or the other, not both. If use USBPorts.kext, then place in Clover kext, remove USBInjectAll.kext and disable the port limit patches If use SSDT-xxx.aml, then place them in ACPI/Patches, keep USBInjectAll.kext and disable the port limit patches Link to comment Share on other sites More sharing options...
aliuzunnn61 Posted August 28, 2019 Author Share Posted August 28, 2019 problem is improved when you remove the card and insert it again Link to comment Share on other sites More sharing options...
aliuzunnn61 Posted August 28, 2019 Author Share Posted August 28, 2019 Thanks for your help Link to comment Share on other sites More sharing options...
