acquarius.13 Posted August 20, 2020 Share Posted August 20, 2020 Hi everyone, I successfully installed Big Sur beta 4 on my Latitude E 7450 using OpenCore 0.6.0. The machine is already running Catalina 10.15.6 based on Jake Lo's guide, so I will not repeat the same story (especially for specs). I only underline that this is the iGPU only model (no dGPU to be disabled here). Working: - keyboard, trackpad and trackstick (only with ApplePS2Controller provided in Jake Lo's packages. Latest VoodooPS2Controller will not be useful for this ALPS touchpad) - Wifi (thanks to Jake Lo patch) using a Dell DW1560 (as per signature) - Graphic card acceleration - Screen backlight - Bluetooth - Audio - SD card reader Not working - Bluetooth (and webcam) - Audio - Fingerprint sensor (of course, as always) - SD card reader Not tested - SD card reader (supposed not working) Hackintool (and IORegistry, of course) is able to recognize both audio and EH01 usb controller, but they seems to be "inactive" and I don't know how to fix them. Fortunately, USB3 is working, otherwise I couldn't install macOS since I used an external WD HD on a USB3 caddy. In any case, I share my EFI for development and further testing, especially for @Jake Lo. Credits: Jake Lo (and all the guys and teams who inspired him for his original clover guide) EDIT: Bluetooth, webcam and Audio work fixing IRQ issues by adding SSDT-HPET (and related patches) to ACPI. SSDT-PLUG is actually useless (you can even turn it off from the config.plist). I updated the EFI folder. EDIT 2: Properly injected device properties made the SD card reader working again. Thanks Jake! I uploaded the working EFI Updates: Big Sur Beta 5 (20A5354i) installed through software updates Big Sur Beta 6 (20A5364e) installed through software updates Big Sur Beta 7 (20A5374g) installed through software updates Big Sur Beta 9 (20A5384c) installed through software updates Enjoy! E7450-OC060-BSb-EDIT2.zip 1 Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 22, 2020 Moderators Share Posted August 22, 2020 You can add this to device properties to enable SD Card reader 1 Link to comment Share on other sites More sharing options...

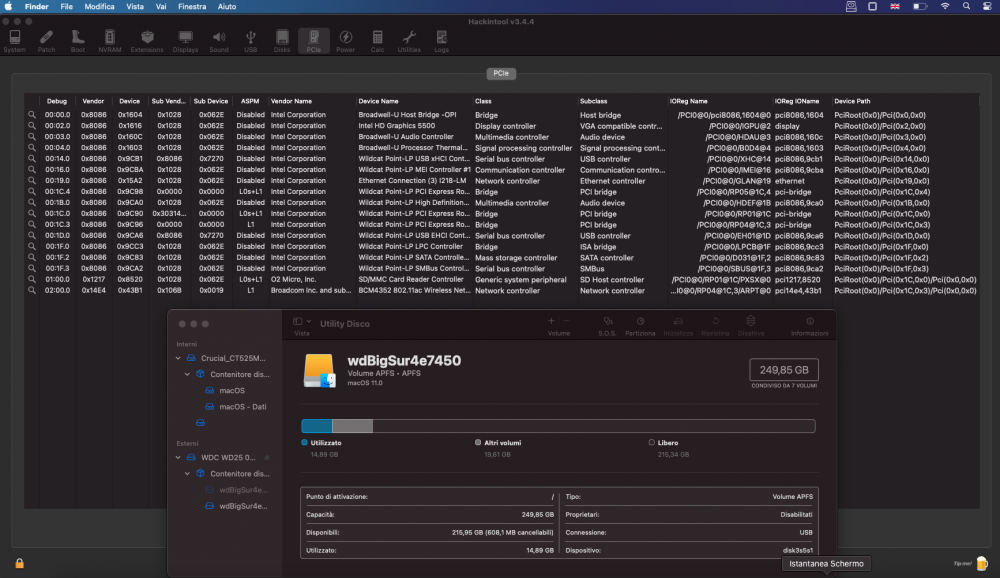

acquarius.13 Posted August 24, 2020 Author Share Posted August 24, 2020 Hi Jake, Thanks a lot! I had a first trial yesterday but it seemed to me not to work. Hackintool is recognizing it properly but it seems not work. I would like to try with another SD card ASAP (I had only one available yesterday) and then give a complete feedback. EDIT: I confirm that with other SD cards I have no working reader. It is properly recognised but it isn't working. In the attached picture it is clearly shown: I have a 16GB SD card attached (yesterday it was a 32GB SDHC card). I attach also my ioreg file for research and development. marco’s MacBook Pro.ioreg Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted August 26, 2020 Moderators Share Posted August 26, 2020 Assuming you have added the patch correctly, it's not reflecting in the IOReg file. Please note when you make any changes in OC, you need to select 'Reset NVRam' during OC picker. If it's not display, then press the spacebar. If it's still not working, then post your Config file for review Link to comment Share on other sites More sharing options...
acquarius.13 Posted August 26, 2020 Author Share Posted August 26, 2020 Hi Jake, you were doubly correct: I didn't add the patch correctly and I didn't perform a NVRAM reset. So, after doing those 2 things, SD card reader is working again in Big Sur. I updated the EFI folder in post #1. Thanks again! Link to comment Share on other sites More sharing options...
ThanhNguyen Posted September 15, 2020 Share Posted September 15, 2020 Help me, How do I display the Apple logo instead of the command line display (At boot) ? Thank you. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted September 15, 2020 Moderators Share Posted September 15, 2020 In Config file, change PickerAttributes=1, change PickerMode = External, Add OpenCanopy.efi under Drivers Remove -v from boot-arg under NVRam/Add/7C436110-AB2A-4BBB-A880-FE41995C9F82 Add OpenCanopy.efi to Drivers folder if you don't already and download the attached replace it into Resources folder Image.zip Link to comment Share on other sites More sharing options...
ThanhNguyen Posted September 15, 2020 Share Posted September 15, 2020 This is my boot file, I changed but it can't boot, can you edit it for me? thank you very much EFI.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted September 15, 2020 Moderators Share Posted September 15, 2020 Here, replace the Config. Add the OpenCanopy.efi to Drivers and add the Image folder to Resources from above E7450_OC.zip 1 Link to comment Share on other sites More sharing options...
ThanhNguyen Posted September 15, 2020 Share Posted September 15, 2020 Thank you so much I have done, can you advise me the wifi card for dell E7450? Link to comment Share on other sites More sharing options...
