CroJack Posted January 3, 2023 Author Share Posted January 3, 2023 Yes, I replaced the SSDT. May I ask where did you place the wrong kernel limit for the AirportItlwm_Monterey.kext? SSDT or config.plist? And why is it important to place kernel limit? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted January 3, 2023 Moderators Share Posted January 3, 2023 it's in the config file for the kext. Reason for the limit is to prevent it to load for any other MacOS other than Monterey. There's a difference version for different MacOS. Ok. I'll check the SSDT again to see why PM and PNLF is not working. Try replacing with this SSDT Post new IOReg file SSDT-L570.aml.zip 1 Link to comment Share on other sites More sharing options...

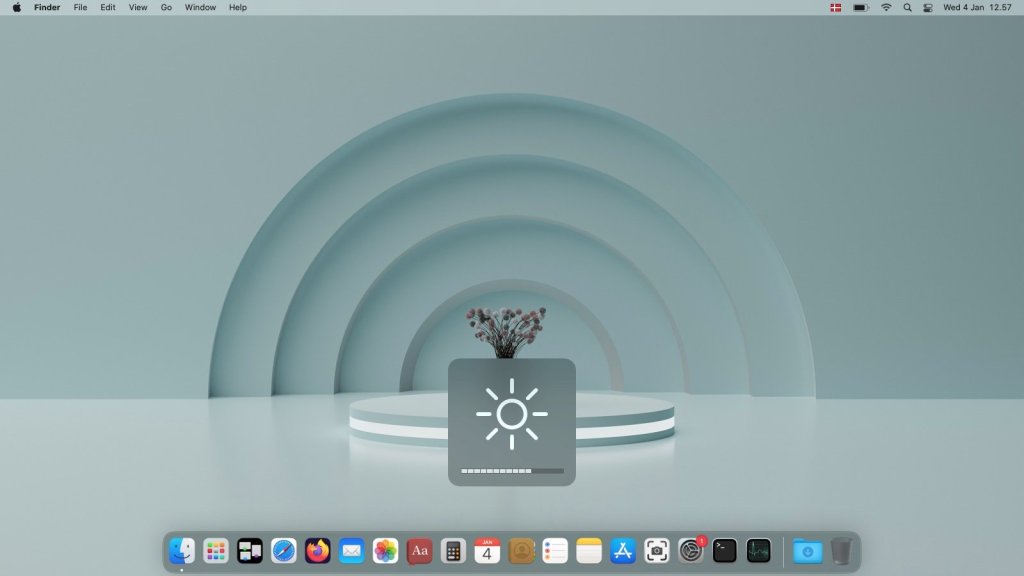

CroJack Posted January 4, 2023 Author Share Posted January 4, 2023 Brightness control is working now MacBook Pro.ioreg Link to comment Share on other sites More sharing options...
CroJack Posted January 4, 2023 Author Share Posted January 4, 2023 Once again thanks for you help Jake Lo . Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted January 4, 2023 Moderators Share Posted January 4, 2023 Looks like Powermanagement is working too. Are the brightness control Fn keys working too? Sleep / Wake with lid open and close? HDMI / HDMI Audio? Link to comment Share on other sites More sharing options...
CroJack Posted January 5, 2023 Author Share Posted January 5, 2023 - Are the brightness control Fn keys working too? Yes - Sleep / Wake with lid open and close? Yes - HDMI / HDMI Audio? Can't tell. I don't have a miniDP to HDMI cable. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted January 5, 2023 Moderators Share Posted January 5, 2023 Oh, so the laptop has a miniDP connector, no HDMI? if you want to use the rest of the Fn keys, see my T14 gen1 guide on my signature. Just need to add thinkpad assistant app 1 Link to comment Share on other sites More sharing options...
CroJack Posted January 5, 2023 Author Share Posted January 5, 2023 Here is the status for the Fn keys: F1 mute sound is working F2 decrease sound volume is working F3 increase sound volume is working F4 mute microphone is working F5 decrease brightness is vorking F6 increase brightness is working F7 print web site to PDF is working F8 & F9 I don't know what these two ones are used for. F10 Bluetooth is not working F11 Activates Mission control is working F12 I don't know what this one is for. It has a star on the key. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted January 5, 2023 Moderators Share Posted January 5, 2023 This is what they are set to if you install the ThinkpadAssistant.app F1: Mute Audio (with Status LED indication) F2: Volume Down F3: Volume Up F4: Mute / Unmute Microphone (with Status LED indication) F5: Brightness Down / Dim F6: Brightness Up F7: Screen mirroring / Screen extending F8: Activate / Deactivate Wi-Fi F9: Open System Preferences F10: Activate / Deactivate Bluetooth F11: Show Destop F12: Open Launchpad FN+Spacebar: Toggle Keyboard Backlight 1 Link to comment Share on other sites More sharing options...

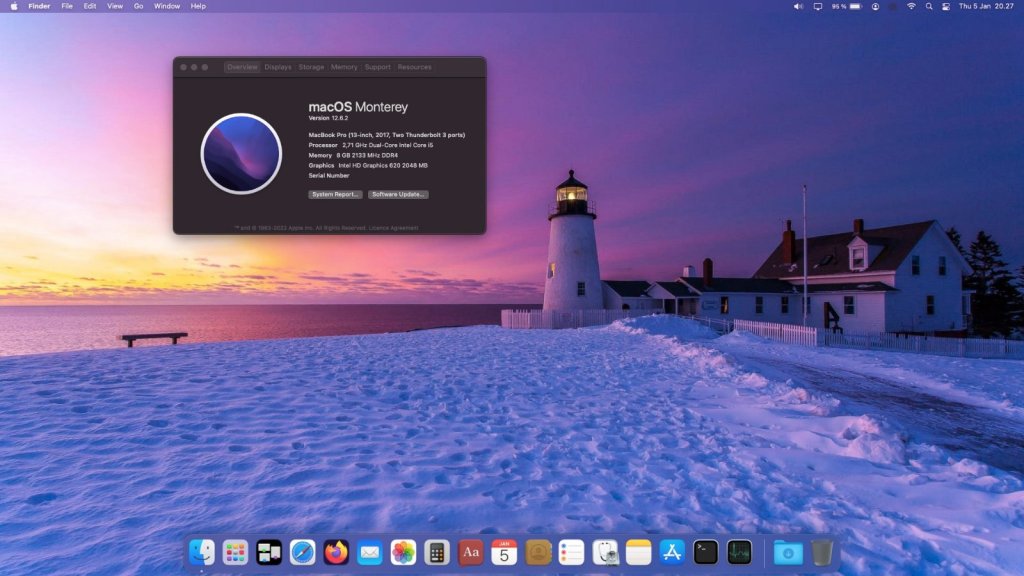

CroJack Posted January 5, 2023 Author Share Posted January 5, 2023 Successfully updated to Monterey 12.6.2 Link to comment Share on other sites More sharing options...
