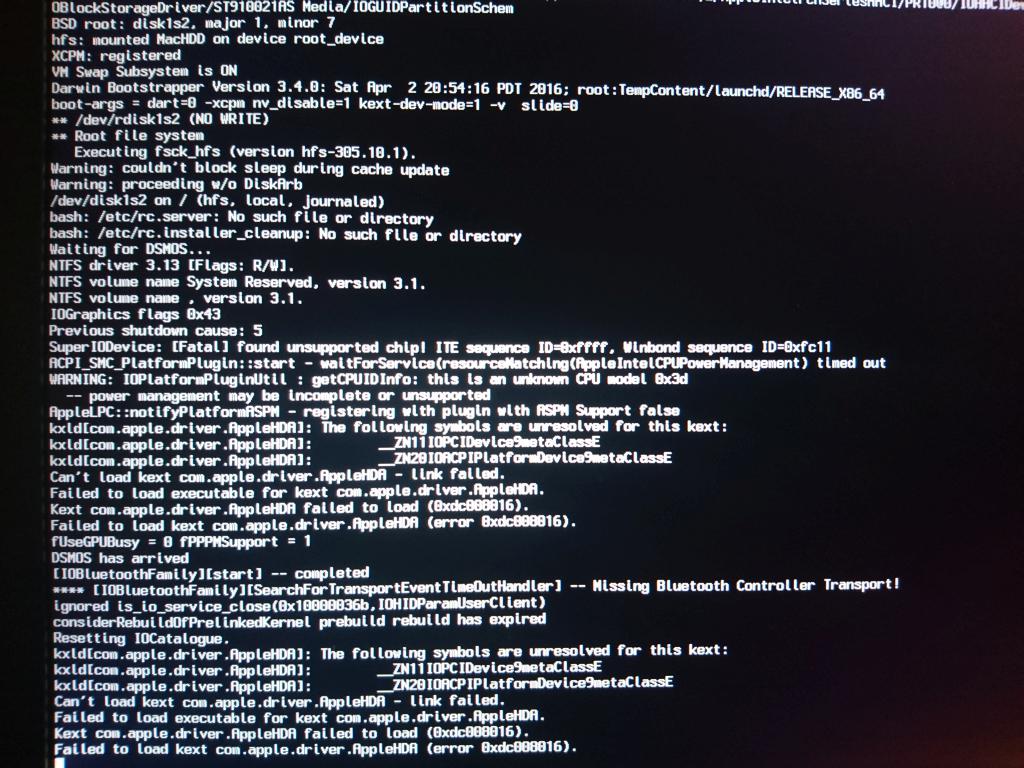

flyingfishfinger Posted December 15, 2016 Author Share Posted December 15, 2016 Yes, currently using fakeID. I do have the DVMT prealloc set using the BIOS setup_var hack. That's what let me boot the installer in the first place, otherwise it just gave me a KP in all instances. Even so though, without fakeID the installed version won't boot (no KP, just hangs with the same messages as in my first message). Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 15, 2016 Moderators Share Posted December 15, 2016 Maybe try different ig-platform-id https://www.firewolf.science/2015/04/framebuffer-data-extracted-from-appleintelbdwgraphicsframebuffer-binary/ You could change it in Clover option during boot to test them Link to comment Share on other sites More sharing options...

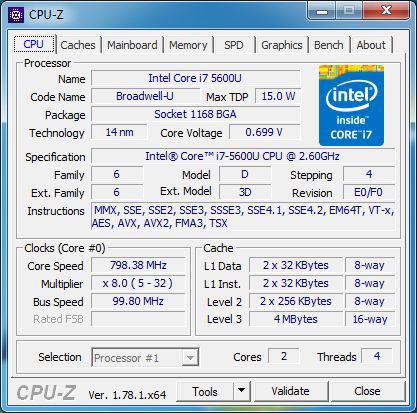

flyingfishfinger Posted December 15, 2016 Author Share Posted December 15, 2016 For my CPU, the only two listed are 16160002 and 16160000, neither of which appear to make any difference. I'm guessing I should change fakeID back to 0x00000000 for this test? R Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 15, 2016 Moderators Share Posted December 15, 2016 Yes, remove the fakeID, then test. Make sure to enter 0x in front of the value. I can't remember which take precedence, the Config or DSDT. If necessary, remove ig-platform-id from DSDT and then test the difference values in Clover option Link to comment Share on other sites More sharing options...
flyingfishfinger Posted December 15, 2016 Author Share Posted December 15, 2016 Ok, I'll give that a shot. However, I'm trying to open the dsdt.aml file that was included in the "Lenovo" folder you sent (which I think I'm using) but MaciASL just shows it as "empty" (even though the file isn't empty, it's 81KB...although that seems a bit small). Attempting to decompile it with Chameleon Wizard results in a bunch of errors in the log and "Could not parse ACPI tables, AE_ALREADY_EXISTS" in the output... Thoughts? R Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 16, 2016 Moderators Share Posted December 16, 2016 Use this version Link to comment Share on other sites More sharing options...
flyingfishfinger Posted December 18, 2016 Author Share Posted December 18, 2016 Was able to edit the file, but subsequent attempts at changing the platform-id from Clover don't affect anything. I don't know enough about this to know what to try next. In your signature you have an E7450 with the same CPU / GPU, what id did you use for it? Also: - Does the platform-id have to match any particular DVMT setting? - Does it have to match what display connections are actually available? R Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 18, 2016 Moderators Share Posted December 18, 2016 use 0x16260006 DVMT only needs to be set to 96MB, might be more for some other system to get pass the memory preallocation else you get a KP. 0x16260006 has been known to work best for HD5500, but you could also try 0x16160000 or 0x16160002 Link to comment Share on other sites More sharing options...
flyingfishfinger Posted December 20, 2016 Author Share Posted December 20, 2016 None of them work make any difference whatsoever. Is there a way to figure out exactly what it's blocking on? Someone mentioned that Clover might have (badly documented) options to force certain displays, do we know more about them? FWIW, If I boot with an external screen all it does is mirror the internal LCD all the way through to the Desktop (in VESA mode) and I don't have the ability to change anything. In other OSes, both displays are detected and I can adjust them as normal once they're fully booted... R Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 20, 2016 Moderators Share Posted December 20, 2016 Does it have 4K display? Link to comment Share on other sites More sharing options...
