catmater

Yes. sudo pmset hibernatemode 0 sudo rm -f /var/vm/sleepimage sudo pmset hibernatefile /dev/null

Sure. High Sierra 10.13.4. Config in attach : MacBook Air.zip origin.zip

Helo! Someone try to hackinoshing such notebook (my wife nb) Asus X202E (S200E) Motherboard: Intel Panther Point HM76, Intel Ivy Bridge CPU: Mobile DualCore Intel Core i3-3217U, 1800 MHz Video: Intel(R) HD Graphics 4000 Sound: Realtek ALC269 WiFi: Qualcomm Atheros AR9485WB-EG Wireless Network Adapter (changed to AR5BHB92) Lan: Qualcomm Atheros AR8162/8166/8168 Update 2019.07.29 - Here is latest config Work everything, almost sleep, bt and batt. 1. NB can't reboot, sleep - hang on. 2. BT cant see other BT devices and invisible fo others. (may be i change wifi to another card, wifi working is too slow) 3. Batt show only zero: charging/0 (if charging) or simple 0 (if batt) Here my config. Please help, if you can Asus_S200e-X202e.zip

Done, here is debug. second monitor plugged after booting. debug_21204.zip

Yes, tired. No luck, monitor had no signal from DP and going into sleep. May be I go some mistake in conf file? Or miss framework. P530 has a 0x191D Id.

Welcome back, Latitude forum Nice to meet you again online! Jake LO - here iOreg with two monitors connected. And added my conf, not sure what i do all right - please, can you check my video and CPU setting? P.S Added ig-platform-id 0x191B0000 framebuffer (for P530), booting ok, but when i added patch for 4 mon: Got KP on display kexts load. After booting without 4th display patch - system.log full such events: Apr 24 16:37:02 COMP com.apple.xpc.launchd[1] (com.apple.displaypolicyd[1061]): Service exited with abnormal code: 1 Apr 24 16:37:02 COMP com.apple.xpc.launchd[1] (com.apple.displaypolicyd): Service only ran for 0 seconds. Pushing respawn out by 10 seconds. But graphics work fine - 3D and 2D without gliches. config.plist T3620.zip

See right bios settings. I see something like that, then thunderbolt are switched on in bios. switch it off!

Thank you for you help, Jake Lo! But i can do it only in monday (it's work PC). Have a nice weekend

CPU and Mic are working now. layout id 1 - is the best. But dual monitor can't work. work only one DP port, second DP an HDMI - not. i think need some patch for enabling 4 port.

Dell Precision Tower 3620 CPU: QuadCore Intel Xeon E3-1245 v5, 3700 MHz (37 x 100) Motherboard: Intel Sunrise Point C236, Intel Skylake-S WS Video: Intel HD Graphics P530 (two DP port and one HDMI) Audio: Realtek ALC899 (codec id 10EC0899h / 102806B7h, ver 1000h) Network: Intel I219-LM Today i install HighSierra 10.13.3 , and almost work fine, but some things are not properly work: 1. CPU - can't wake from sleep, do a KP reboot. 2. Can't work with two monitor, work only one - this is important for me. Can i do 2 monitor with enhanced desktop? 3. mic a noice , may be AppleALC will be more good when VooDooHDA?

Some gestures, not all. List supported gestures in topic, second post.

You always can remove wrong kext from HDD, booting into clover, and load EFI shell menu in clover. Go in EFI shell and type: FS0: cd EFI/ClOVER/kexts/Other rm badkext.kexts

here is kexts - i use https://osxlatitude.com/applications/core/interface/file/attachment.php?id=12274

For closing the lid , you don't have wait enough, nb not completely going into sleep. For scrolling gestures try to replace vooodoo2pc.kexrts to smarttouchpad.kexts

Many fanx ! Try tomorrow in work, in home i dont have dock. But now, TV in kitchen work with my notebook! You are the genius, man! Respect from Russia fun Tested D1000 today Yes!!!! Working now! All monitor are visible! But have one nuance - if i close lid - notebook are going to sleep in 30 sec and dock switched off. May be this glitch of D1000 and 10.13.4 Legal is here in top : http://www.displaylink.com/downloads/macos (white on black) and D1000 work only with one USB.

vrebatta816 , after notebook sleep - you have working touchpad ?

ok, but i think is VoodooPS2.kexst glitch... Yes, glitch. Trying to use smarttouchpad.kexts - is better work for me, and insert key working properly. With my Notebook a have dock station - DELL D1000 with display link. All work in this dock Station, even LAN Card, Audio, mic. But no luck with HDMI or Display port out to monitor. I think Notebook can't detect monitor on dock station HDMI or Display port. Can you make some magick? Debug with connected Dell D1000 and Display Port monitor in attach. Display link drivers installed http://www.displaylink.com/downloads/file?id=1085 Many fanx for you help with it! debug_8751.zip

Ok, i got it! So its normal. last question - why 1 (only one) pressing to ket INSERT - do 2 symbols (v and eject)?

Hm, realy, in /S/L/E . may be forgot, when i put into. My bad. Clover update to 4438 from prev 4428. CC already 4.61.0.0 So, exist some solution with Fn+ F11-F12 for brightness? And Insert key to

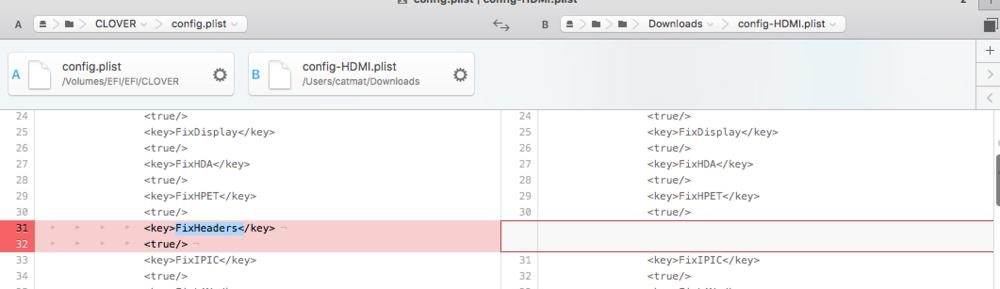

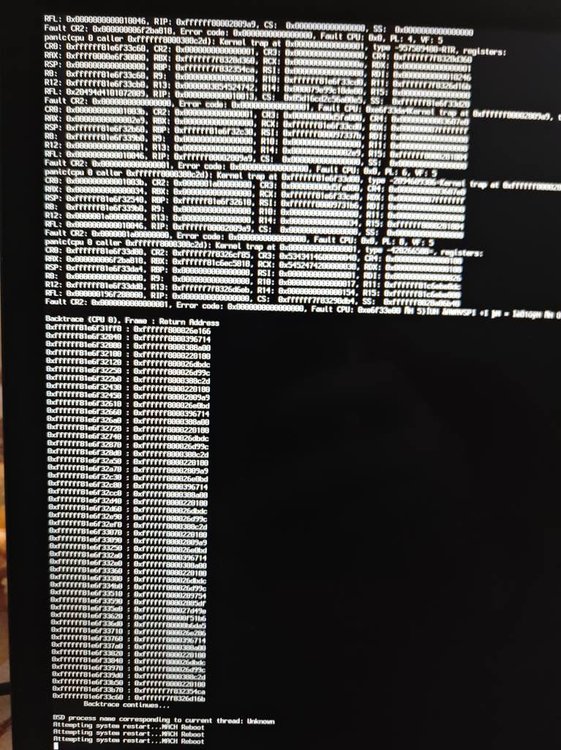

Got KP You remove FixHeaders from ACPI - DSDT. No mistake? Or is it clover configurator bug? Fix config - got back FixHeaders - and now booting fine, and without this option enabled - KP. But in current version Clover configurator i dont get this option in GUI. What is mistic option - FixHeaders? HDMI Sound - is great! Cool, man! Wow! But F11-F12 still are not usable , and insert key too. P.S. You added two kexts patch, one of these for AppleBacklightInjector.kext . but i'm not use AppleBacklightInjector.kext ?

What not to be work with DW1820a ? Here is debug with not working touchpad (after sleep) and HDMI TV connected (for sound on tv test)

Just fix model in SMBIOS and HDMI work! Sound are stay in Speaker NB. Great, work everything now Work 1.Graphics, 2D-3D. 2. CPU - modes, turbo, sleep, sensors, thermo , e.t.c. 3. Sound - Speaker, Headphones, Mic, autoswitch. 4. Touchpad, touchscreen, trackpad, keyboard 5. Usb ports 6. HDMI (Mirroring, Split, etc) 7. Smartcard reader Not Work 1. Wifi and BT (intel of course, temporary replaced to TP-Link 725n , and after that - DW1820a or DW1830 replaced ) 2. Card reader 3. Biometric fingerprint sensor 4. Cant do brightness to fn + F11-F12 (even with Karabiners)

Wow!!!! You are great, man! Wonderful sound in headphones!!! Worked only after move CodecCommander to L/E , from /EFI/Clover/kexts/Other - not worked. So, almost hardware are worked. Not work - HDMI Not tested - cardreader.

Great ! layout 13 and 56 work fine! Now, sound work (but may be just a little low, i don't remember for compare), and mic working to (Siri heared me!) But headphones - not Sound are switched off from speaker, when i put jack into hole, but no sound in headphones. And after notebook sleep - lost touchpad and sound until power off

with you conf - CPU kp. with my conf - WOWWWWW!!!! TP are work now!!! You are genius , man! 1. What are you change ? 2. Сan you make sound for phone jack and mic are working ?
