Felix Ye

I want to install the macOS on XPS13 9360, but I can't enter the installation interface. Is it because my DSDT is wrong? Can someone help me? i5 8250U / NVMe 256G / 8G / DW1830 CLOVER.zip

Can I have some log to define the problem?

Oh, I think my E7470 still crash, the screen suddenly froze.

Oh, It works. I used a wrong config file. Thank you so much!

The audio is working when I use BIOS 1.5.3 and your E7x70_Sierra.zip. After I update BIOS to 1.12.3, the macOS could not find wireless, ethernet adapter and audio. And then I try to downgrade to 1.5.3, it show me: ME Firmware EndUpdate Failed Error: 0x00002200. My current version is 1.12.3 DSDT/SSDT was extracted from 1.12.3 Working: sleep, wireless, bluetooth, ethernet adapter The audio still not working, after repair permission and rebuild cache.

The file work with my wireless! Thank you Jake But I found that the audio not work. I think it is because I don't know how to fix the WIFI last week, so I have tried update the BIOS to 1.12.3

Yes, I repatch the files. can not sleep, sometimes freezes (halt). I dont know how to fix it. can you help ? patched.zip

I have some problem with the export of DSDT/SSDT, can not sleep, sometimes freezes (halt), and sometimes can not find Bluetooth.

This problem is completely solved, after I use MaciASL export DSDT and SSDT. Thank you everybody.

I tried DW1830 (BCM943602BAED), Bluetooth working, WIFI not working, very strange. Is the DSDT/SSDT not suitable for me?

BIOS version is 1.5.3, Updating BIOS will help?

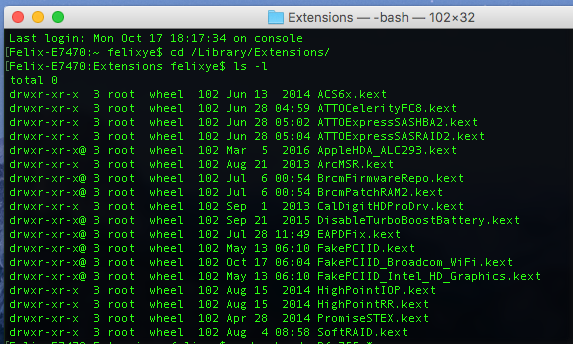

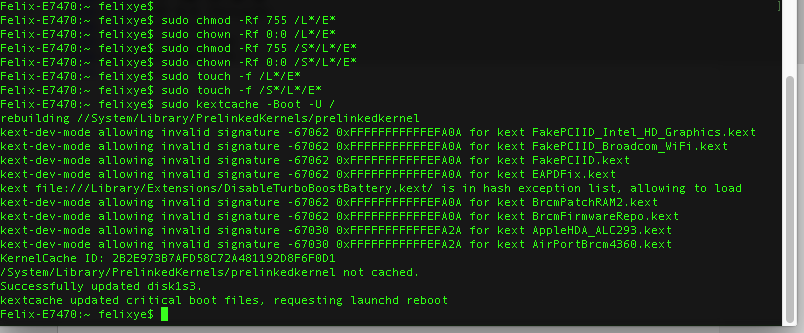

I ran kextcache, after I copy kext. Will DSDT file affect? Such as some IDs. But I can not see allowing invalid signature BrcmFirmwareRepo.kext and BrcmPatchRAM2.kext

Still not working, is there any other wireless card can be used? USB wireless?

Already added

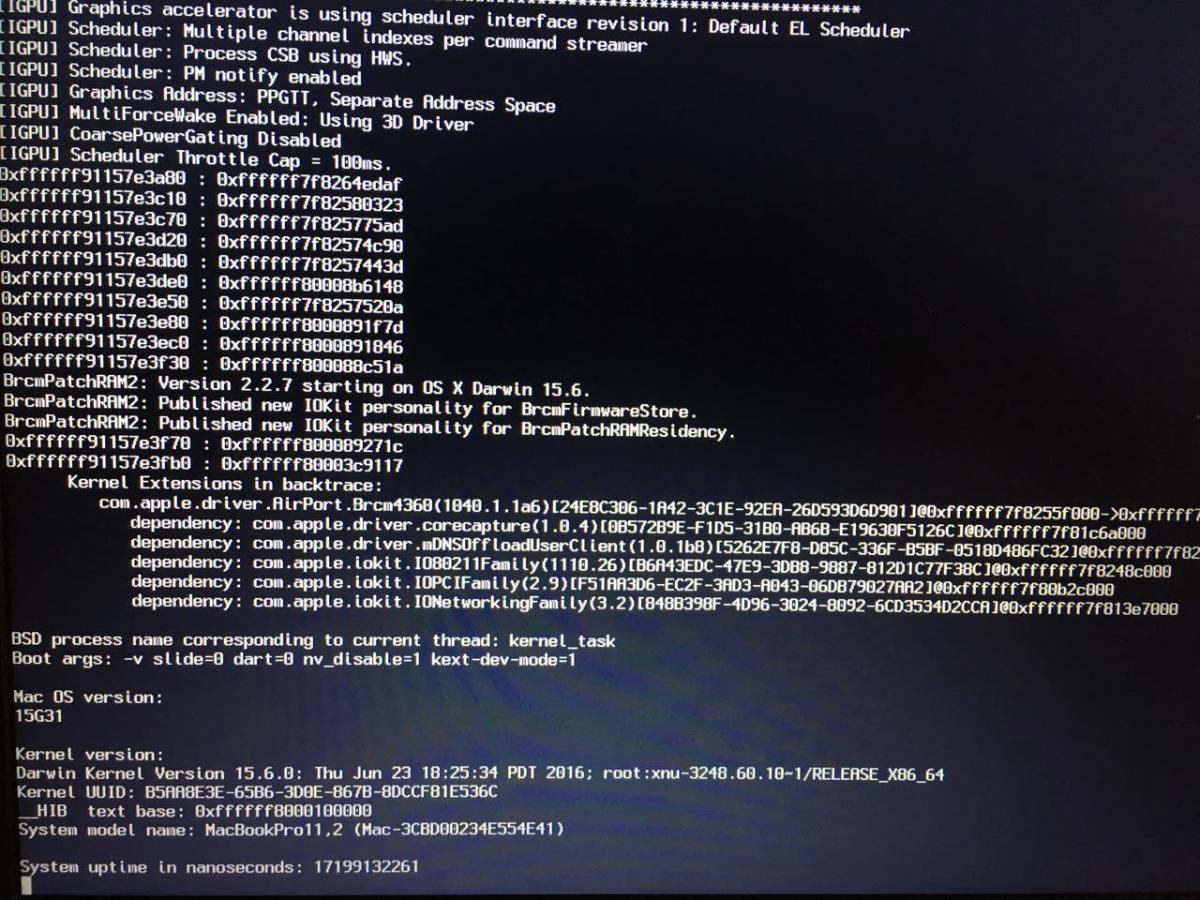

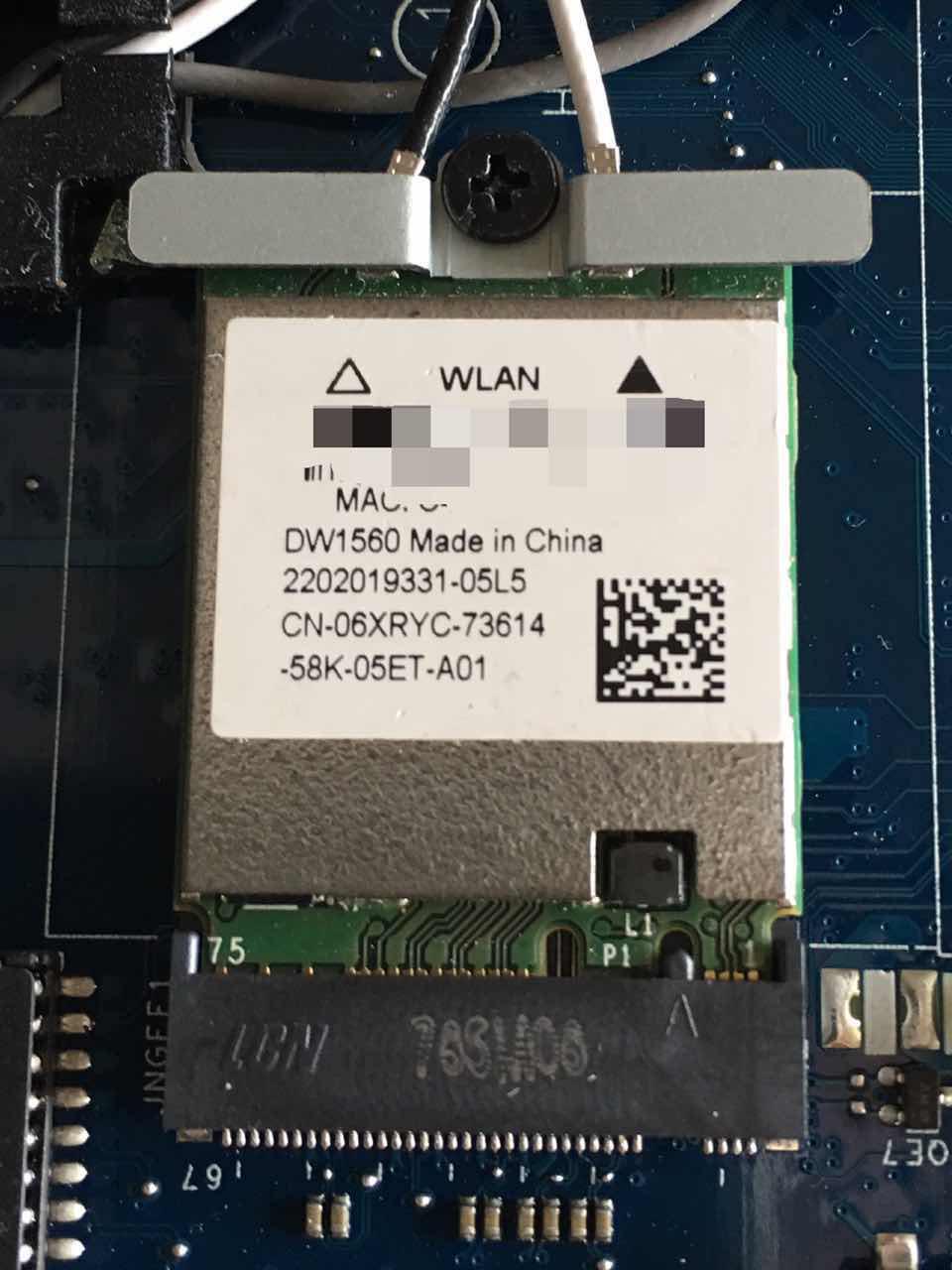

I replaced another DW1560 from seller, it show this error. Can we solve it? And Bluetooth doesn't work. AirPort_Brcm43XX::start: Failed PCIe configuration, this[0xb9cda7ec4edc74d] vendor[0x000014e4] device[0x000043b1], chip: vid[0x14e4] did[0x43a0] baro[0xe1200004]

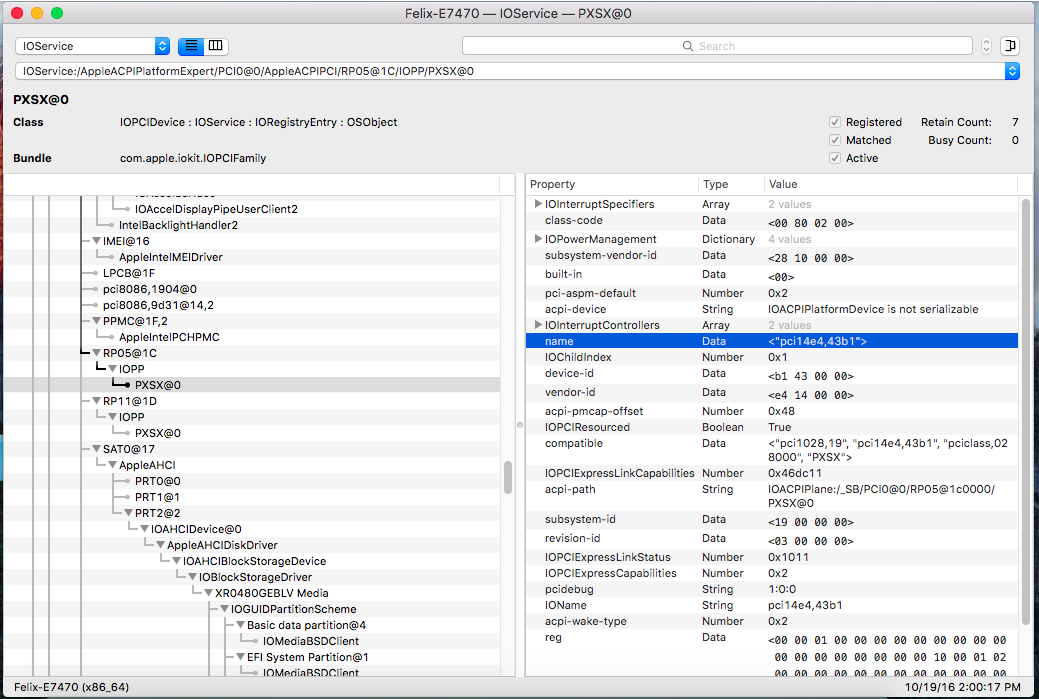

I restored a vanilla version, rebuild cache, it not show in System information. I check IORegistryExplorer, is this device?

I think AirportBrcm4360.kext no use, and I delete it. If I boot EI Capitan will display error

Is it means update cache fail?

I am sure: 1. Placed #2 config file 2. Installed kext to /L/E 3. Not disabled in the BIOS 4. Not turned off with Fn+PrtScr (Bluetooch will also turned off) I have exchanged the white and black antennas.

Thank you very much! Audio working now. How can I make the WIFI (BCM94352Z) to work? The bluetooth is ok, I missed some steps?

I installed Sierra following the guide. Generally is ok, but some issues. Please give me some advice. Not working: Not found WiFi (Replaced with DW1560) Audio with patched AppleHDA Display : 1336x768 At the top of the display, has a black area (flashing). I have attached bootpack (EFI) EFI.zip

HD 520 need to set DVMT to 96MB ?
