Tường Nguyễn

Dell 7480, help me!!!

Recommended Posts

hello, I've successfully install High Sierra on E7480 i6600U. But i don't know choose what kext, now the touchpad does not working, i can't adjust brightness and sleep



Processor : i7-6600U Processor
Graphics Processor(GPU) : Intel® Integrated HD Graphics 520
Chipset : 6th Generation Intel® Core
Storage : 256GB Drive M2 2280 SATA
RAM : 8GB DDR4 SDRAM 2133 MHz; 2 slots supporting up to 16GB
Wifi : Intel
LAN : Intel I219-LM PCI-E Gigabit Ethernet Adapter
Audio : Realtek® High Definition Audio ALC293 (ALC3235)
USB 3.0 : Intel USB 3.0/3.1 xHCI Controller
Touchpad : Alps Multi-touch Touchpad v7 Hardware
Webcam : USB3.0 UVC HD WebCam
Card reader : Dual Pointing, 82 key with Smartcard, Contactless Smartcard, Fingerprint Reader,Thunderbolt 3
Monitor : 14" FHD (1920 x 1080) Anti-Glare, Camera & Mic, WLAN Capable

CLOVER.zip

debug_30579.zip

Share this post


Link to post
Share on other sites

Are you sure your audio is ALC293 and not ALC256?

Here, replace the Config file and DSDT.aml with the attached



Once booted, do the following:

Remove the following kexts from /L/E

AppleHDA_ALC293.kext



Remove from /S/L/E <- duplicate from /L/E

EAPDFix.kext

AppleBacklightInjector.kext

ACPIBacklight.kext



Add to /S/L/E

VoodooI2CHID.kext & VoodooI2C ( you already got this one)

https://github.com/alexandred/VoodooI2C/releases



Repair permission and rebuild cache

Reboot

7480_Tuóng.zip

Share this post


Link to post
Share on other sites

Disable Legacy Option ROMs if you have it enabled

You still have duplicates kexts, look at the kextcache log...

Remove from /S/L/E

  • AppleBacklightInjector.kext
  • AppleALC.kext
  • FakePCIID_Intel_HD_Graphics.kext
  • FakePCIID.kext
  • FakePCIID_Broadcom_WiFi.kext
  • BrcmPatchRAM2.kext
  • BrcmFirmwareRepo.kext

Remove EAPDFix.kext from /L/E and replace it with CodecCommander.kext for audio

Repair permission and rebuild cache

Share this post


Link to post
Share on other sites

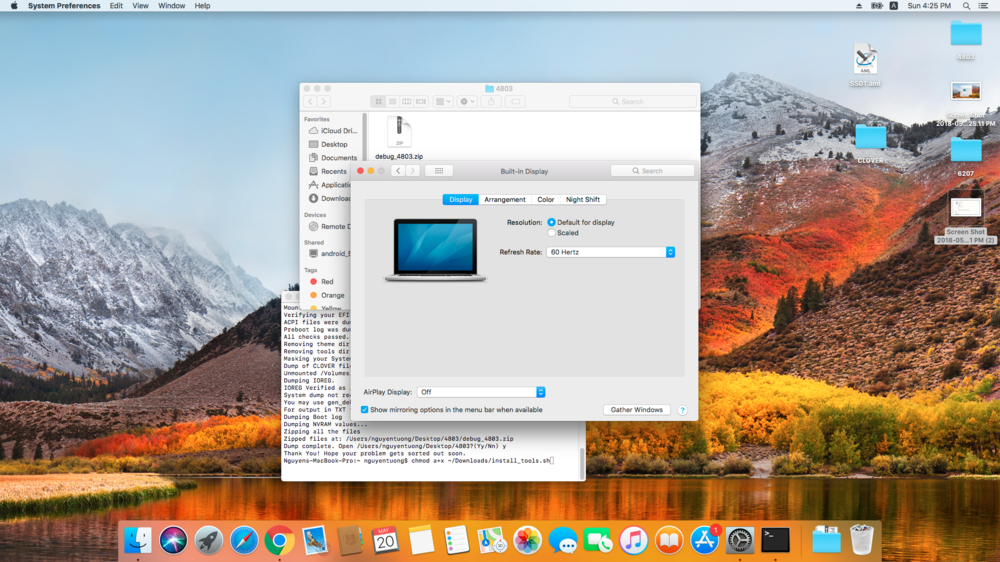

Oh sorry, because i boot from USB, trackpad, battery, audio, and brightness not work, so now i try again and boot susses, audio work, but adjust brightness not work and display laptop turn off, i have to use out display through hdmi. What do you think about speedtcep?153924144_ScreenShot2018-05-20at6_44_47PM.png.6ba6be279c2c35d8701d0060a6bc5cd0.png

debug_251.zip
