please help with dell inspiron 17N5721 built-in display problem---with clover-most work now

[kvonlinee]

Hi all!

I got a dell inspiron 17N5721

cpu is I5-3317U with HD4000

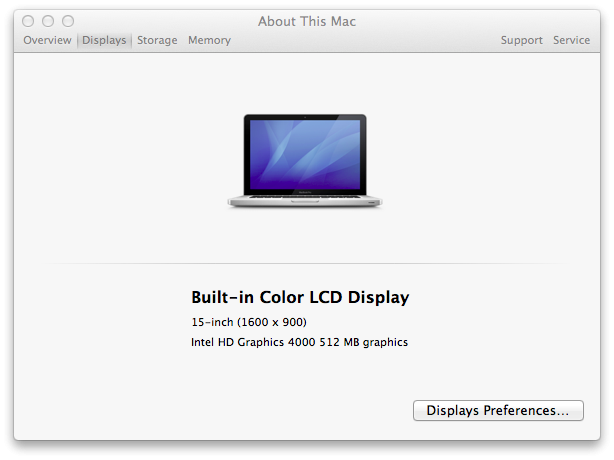

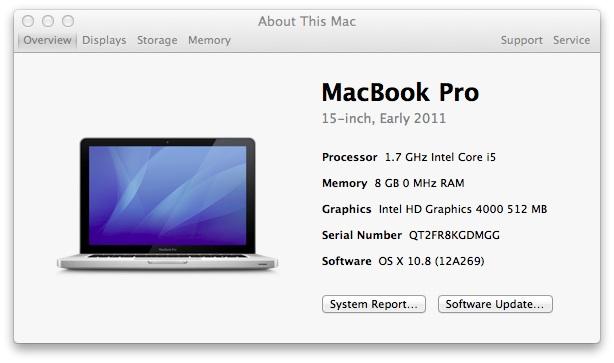

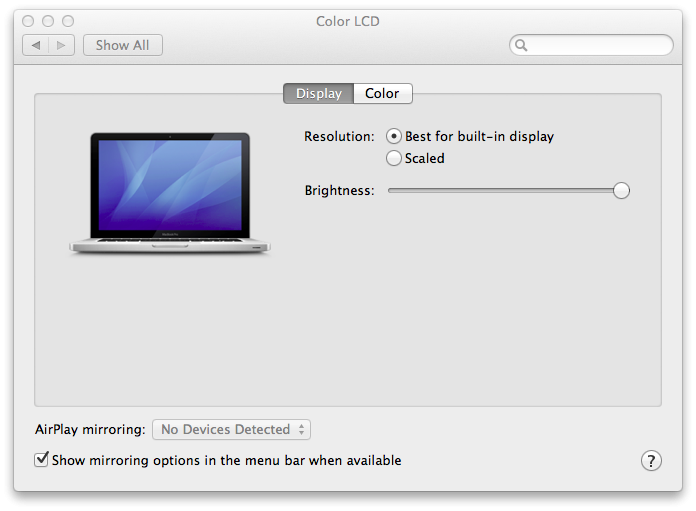

I try to put osx 10.8 on it. and I could get HD4000 show up as in "about this mac" but the built-in display have a little light and I can't see anything from the built-in display that.

I know it got HD4000  512 MB by share screen connect and it show nice desktop.



please hlpe me, what can I do and where can i start.



thank you very much first



[EMlyDinEsH]

You see Mac uses one of the four id's to detect HD4000 correctly with the connectors data, so this issue is common and for solving this you have to patch dsdt with four id's or try to inject device properties into boot.plist and try to see which one works for you. Send me your dsdt/ssdt dump based from here :https://osxlatitude.com/index.php?/topic/1945-dsdtssdt-patching/ and I'll patch it then let you know

[kvonlinee]

thank you very much for your reply EMlyDinEsH.
I will do that, I can't do it right now because the laptop need some repair on the hardware. when i have it back I will do that.

Edited May 3, 2013 by iMick
Please don't use special fonts / colors.

[EMlyDinEsH]

I've sent patched files to your mail so test those and let me know.

[kvonlinee]

thank you for your help

finally It work now with a little twist and few other kext it is able to sleep and wake no problem now.



I any one need my extra folder i will give to you.

[Jake Lo]

thank you for your help

finally It work now with a little twist and few other kext it is able to sleep and wake no problem now.



I any one need my extra folder i will give to you.

Can you list what works or not works for the system with your kexts and dsdt file.

ie. hdmi, multitouch touchpad...

Please attach your Extra so we could add this model to EDP. Thanks.

[kvonlinee]

hi everyone!



now it run 10.8 and I could not get any update success so it is ok of me.

with the hardware I swap the mini intel centrino 2230 for HP Atheros AR5BHB92-H AR9280 it reconisg as airpot extreme.



what is work:

Hd 4000 full acceleration qe/qi

trackpad with 2 fingers scrolling

Fn audio (volume up and down), brightness control Fn key, wireless switch on or off.

webcam

mic

audio with voodoohda 2.8.2  (internal speaker and head phone)

sleep and wake respond

dvd drive

usb read both usb2 or usb3



what is not work:

HDMI (both video and audio)



don't know or has not test:

LAN

card reader

battery





note:



when display go to sleep and when it wake its brighter.

Extra.zip

[kvonlinee]

hi everyone!

I have it last time and it is stuck to 10.8  and can't be update anything at al.

I try clover bootloader on stumble, and it is running 10.9.3 now, it is works everything, even lan, except the SD card and HDMI is unkown.

the clover bootloader require a bit of learning but turn out it is great.

if anyone like to try, I will write what i have and learn.



PS: I just clone OS from other desktop drive I have, and I have not DSDT also.

[pokenguyen]

hi everyone!

I have it last time and it is stuck to 10.8  and can't be update anything at al.

I try clover bootloader on stumble, and it is running 10.9.3 now, it is works everything, even lan, except the SD card and HDMI is unkown.

the clover bootloader require a bit of learning but turn out it is great.

if anyone like to try, I will write what i have and learn.



PS: I just clone OS from other desktop drive I have, and I have not DSDT also.

https://osxlatitude.com/index.php?/topic/6544-guide-dell-inspiron-3x21-5x21-clover-install-guide/
