Administrators Hervé Posted March 24, 2016 Administrators Share Posted March 24, 2016 1) you identify your hardware device in IOReg with a tool such as IORegistryExplorer. 2) then you look up that device in your DSDT 3) you add the ACPI code under that device in your DSDT. All this is already mentioned in the post... Link to comment Share on other sites More sharing options...
mariano Posted March 24, 2016 Author Share Posted March 24, 2016 Hello, I tried to patch the dsdt to sd card reader, but I get the following error. What am I doing wrong? thank you. I enclose the dsdt.aml not patched and the patched dsdt.aml (I commented on the error, to save him) P.S SDXC devices did not exist in my dsdt.aml and in the dsdt.aml that I patched, I have added a "}" at the end of the code added. DSDT_original.aml.zip DSDT_DTGP_error.aml.zip Link to comment Share on other sites More sharing options...
Administrators Hervé Posted March 24, 2016 Administrators Share Posted March 24, 2016 You're trying to add a SDXC device when your DSDT already has a PXSX device under RP08 (assuming that's where you've located your SD card reader). That's wrong. Then, you're missing the DTGP method, so you need to add that too. Anyway, can't really do anything without your IOReg to verify things! Link to comment Share on other sites More sharing options...
mariano Posted March 25, 2016 Author Share Posted March 25, 2016 I have attached all in previous post (post 98). you can see them please? Link to comment Share on other sites More sharing options...

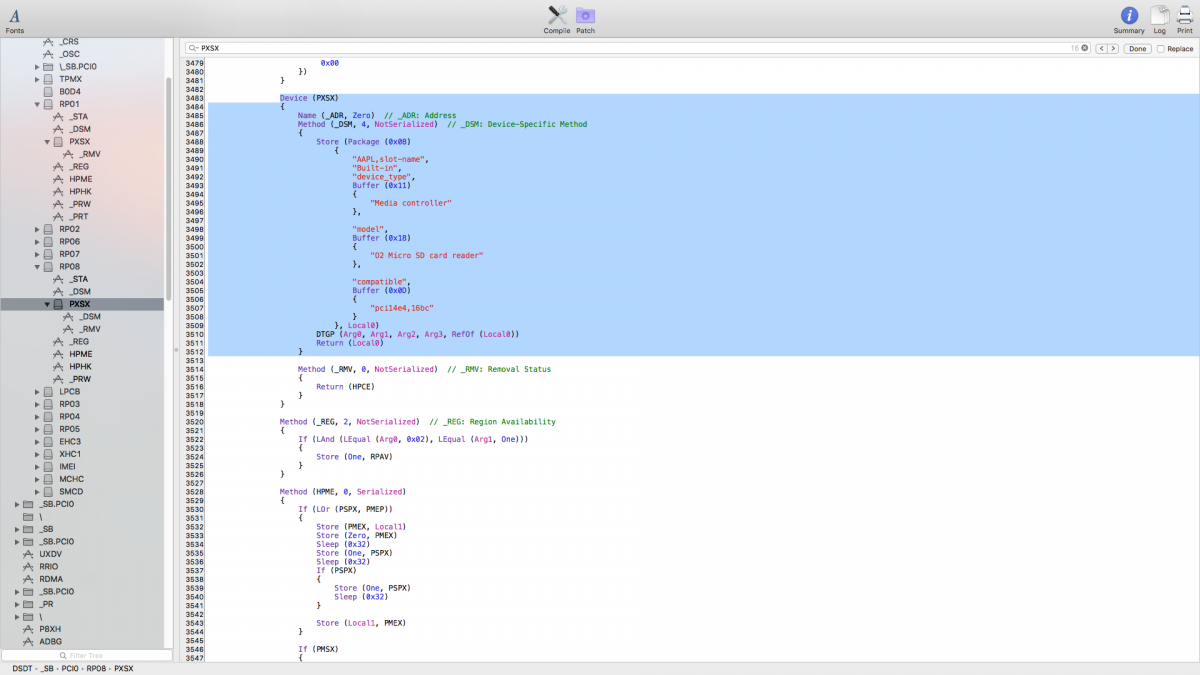

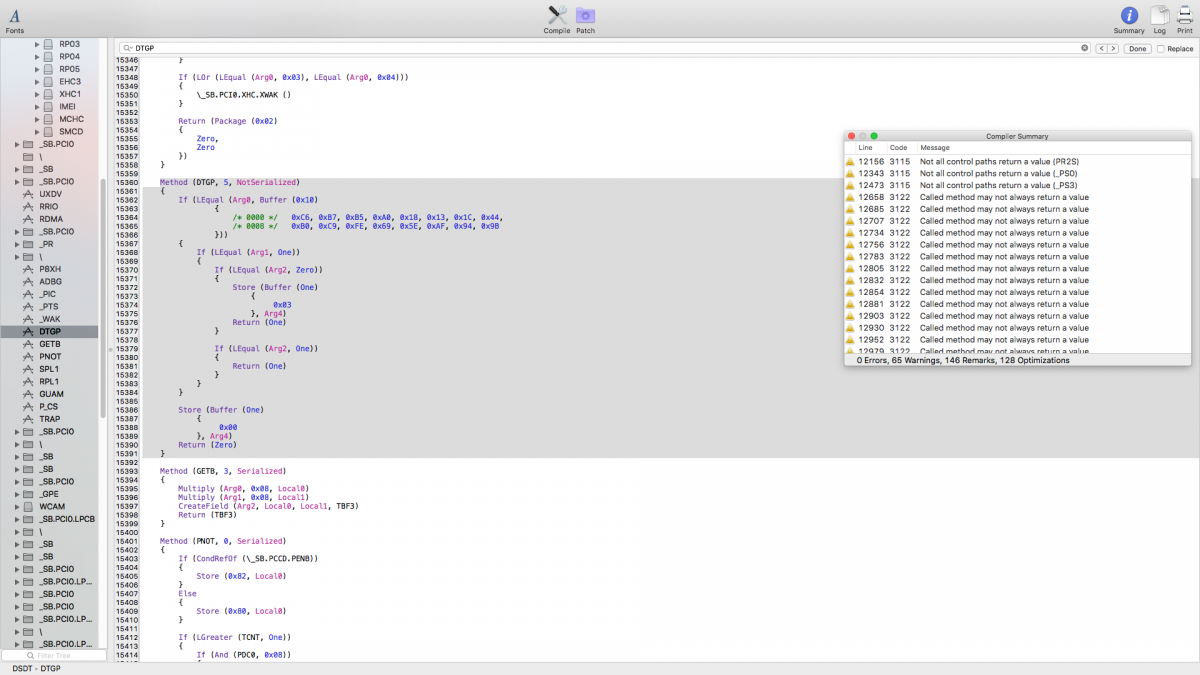

mariano Posted March 25, 2016 Author Share Posted March 25, 2016 ok, I added the DGTP code and I modified the PXSX. I include photos and dsdt.aml patched and IOREG. The card reader is still not recognized, but I have no errors in dsdt.aml Where am I wrong? thank you. IOREG_sdcard.zip DSDT_patched.aml.zip Link to comment Share on other sites More sharing options...
mariano Posted March 25, 2016 Author Share Posted March 25, 2016 I made another change: I tried to replace the code in RP05 (I include photos) Still does not work, but now appears in the system profiler, the item PCI (I include photos) Also enclose in this case, and IOREG system_profiler. P.S kindly see also previous post. DSDT_RP05_modified.aml.zip Resoconto_system_sd_card.zip IOREG_RP05.zip Link to comment Share on other sites More sharing options...
mariano Posted March 25, 2016 Author Share Posted March 25, 2016 Now I tried to install the drivers: I added the VoodooSDHC.kext (patched with pci14e4,16b; I even tried pci10ec, 5227). Now resoconto_system drivers are installed and IOREG is active SD Card Reader; but unfortunately it still does not work .. Why? Some solution? thanks. I enclose in this case also IOREG, resoconto_system, etc. etc. P.S kindly see also previous post. VoodooSDHC.kext.zip Resoconto_system_driver_installed.zip IOREG_driver_installed.zip Link to comment Share on other sites More sharing options...
Administrators Hervé Posted March 25, 2016 Administrators Share Posted March 25, 2016 Please try and understand what you're doing. Why would you patch the VoodooSDHC kext with Broadcom card reader id 14e4:16b when that device is natively supported by OS X? You only patch the VoodooSDHC kext with your own card reader id (i.e. 10ec:5227 ), nothing else. 1) You patch the VoodooSDHC with your own hardware id so that you try to get the card reader working through that kext /driver or (and only OR, not AND) 2) you patch your DSDT to declare your own card reader compatible with OS X natively supported/default model; the idea is that OS X then loads its native SDXC kext/driver to handle your own hardware. Bottom line is that you must not mix the VoodooSHDC kext + DSDT patch for native SD card reader recognition. You use one OR the other. Bear in mind that there's no guarantee at all that this will work. SD card readers are like webcams: some work, some just don't. Link to comment Share on other sites More sharing options...
mariano Posted March 25, 2016 Author Share Posted March 25, 2016 I understand what I did. In the previous post I wrote that I have made an attempt to add the kext because now recognizes pci card reader but drivers were not loaded. as I wrote before (please if you can read) I patched before all the kext 10EC, 5227 of course, to no avail. I was aware that if I do not need the patch dsdt.aml kext, but it was an attempt to load the drivers. If you encounter any mistake in my dsdt I have attached ioreg in previous posts. If you feel like it, if you want to see them kindly. Thank you have a nice day P.S before that I patch the dsdt.aml loading the kext VoodooSDHC.kext, this was not loaded, but now, with dsdt.aml patched, is loaded Link to comment Share on other sites More sharing options...
mariano Posted March 30, 2016 Author Share Posted March 30, 2016 HI,in this moment I use the dsdt.aml and ssdt.aml that I enclose.The problem with a new SMBios is that stop does not work, and I have to put in the energy-saving setting: computer to sleep = "never." Then in the program: FaceTime, webcam is black. The problem will be in change of the Board ID in config.plist which is now Mac-3CBD00234E554E41. First hand in SMBios3.1 the Board ID was: Mac-F42C88C8The webcam works with Skype, however.Thanks.Any Solution for sleep and FaceTime? config.plist.zip ssdt.aml.zip DSDT.aml.zip Link to comment Share on other sites More sharing options...
