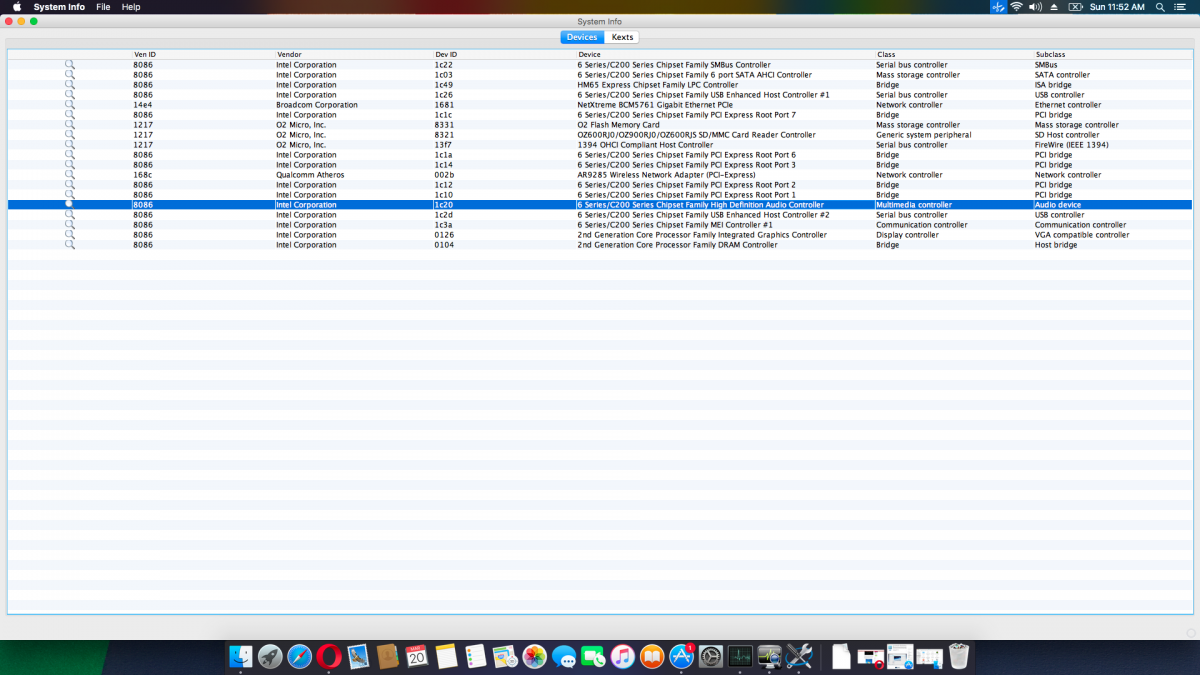

Malevolus Posted March 20, 2016 Share Posted March 20, 2016 I am using a hdmi cable to test , so that the audio is not working Model Notebook : dell e5520 hd 3000 i7 8 gb 500 gb Audio information : Ven ID : 8086 Dev ID : 1c20 Device : 6 Series / C200 Series Chipset Family Hight Audio Definition Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 20, 2016 Moderators Share Posted March 20, 2016 What kext did you install for audio? VoodooHDA or patched AppleHDA? For HDMI Audio, you'll need a patched AppleHDA and patched FB. Your audio device should be 92HD90bxx. Link to comment Share on other sites More sharing options...
Malevolus Posted March 20, 2016 Author Share Posted March 20, 2016 VoodooHDA I dont have appleHDA, hey man my ports usb dont work I looked this connection but NOT understand anything http://www.osxlatitude.com/how-to-enable-vga-and-hdmi-on-intel-hd-3000/ Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 20, 2016 Moderators Share Posted March 20, 2016 Like I said, HDMI audio won't work with VoodooHDA on most systems. What bootpack did you use? Upload your Clover folder. Link to comment Share on other sites More sharing options...
Malevolus Posted March 20, 2016 Author Share Posted March 20, 2016 I used this bootpack Clover : Here Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 20, 2016 Moderators Share Posted March 20, 2016 Which version of OS X are you running? Display resolution? I need to know to fix your config and dsdt to allow patch AppleHDA to work. Link to comment Share on other sites More sharing options...
Malevolus Posted March 20, 2016 Author Share Posted March 20, 2016 Resolution : 15.6†FHD (1920x1080) Anti-Glare LED Version osx : 10.11 El Captain Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 20, 2016 Moderators Share Posted March 20, 2016 Remove VoodooHDA and AppleHDADisabler in /S/L/E and Kexts/10.11 Replace DSDT and Config with attached Copy AppleHDAIDT to /Library/Extensions, click ok on the error message Run the permission fix and rebuild cache, reboot sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / HDMI.zip 1 Link to comment Share on other sites More sharing options...
Malevolus Posted March 21, 2016 Author Share Posted March 21, 2016 As did everything , but did not work out , is it must be installed with a voodoo ? As did everything , but did not work out is it must be installed with a voodooHDA.kext ? As did everything , but did not work out , is it must be installed with a voodoo ? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 21, 2016 Moderators Share Posted March 21, 2016 Nope, must leave out VoodooHDA and AppleHDADisabler. Did you remove AppleHDA from /S/L/E? If you did, you need to restore it. Output the terminal result after you run this sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / So you're not getting audio? ​I'm not seeing your second tab. Link to comment Share on other sites More sharing options...
