wonder2 Posted December 14, 2016 Share Posted December 14, 2016 Latitude 6430u, i7-3687U BIOS A4, AHCI, UEFI Intel HD 4000 (1366x768) Hi guys, I am following instructions from Dell Latitude/Inspiron/Precision - El Capitan Clover Guide. I used bootpack for E6230, Clover boots, after I press Install OS X, the progress bar reaches about 50% and then I get black screen. What can I do next? Any help is really appreciated. Thank you, Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 14, 2016 Moderators Share Posted December 14, 2016 Did you replace the PS2 and audio kext found in the Update section of post #4? Link to comment Share on other sites More sharing options...
wonder2 Posted December 15, 2016 Author Share Posted December 15, 2016 Yes I did, makes no difference Thank you, Link to comment Share on other sites More sharing options...
Administrators Hervé Posted December 15, 2016 Administrators Share Posted December 15, 2016 Boot in verbose mode to se when it hangs. Link to comment Share on other sites More sharing options...

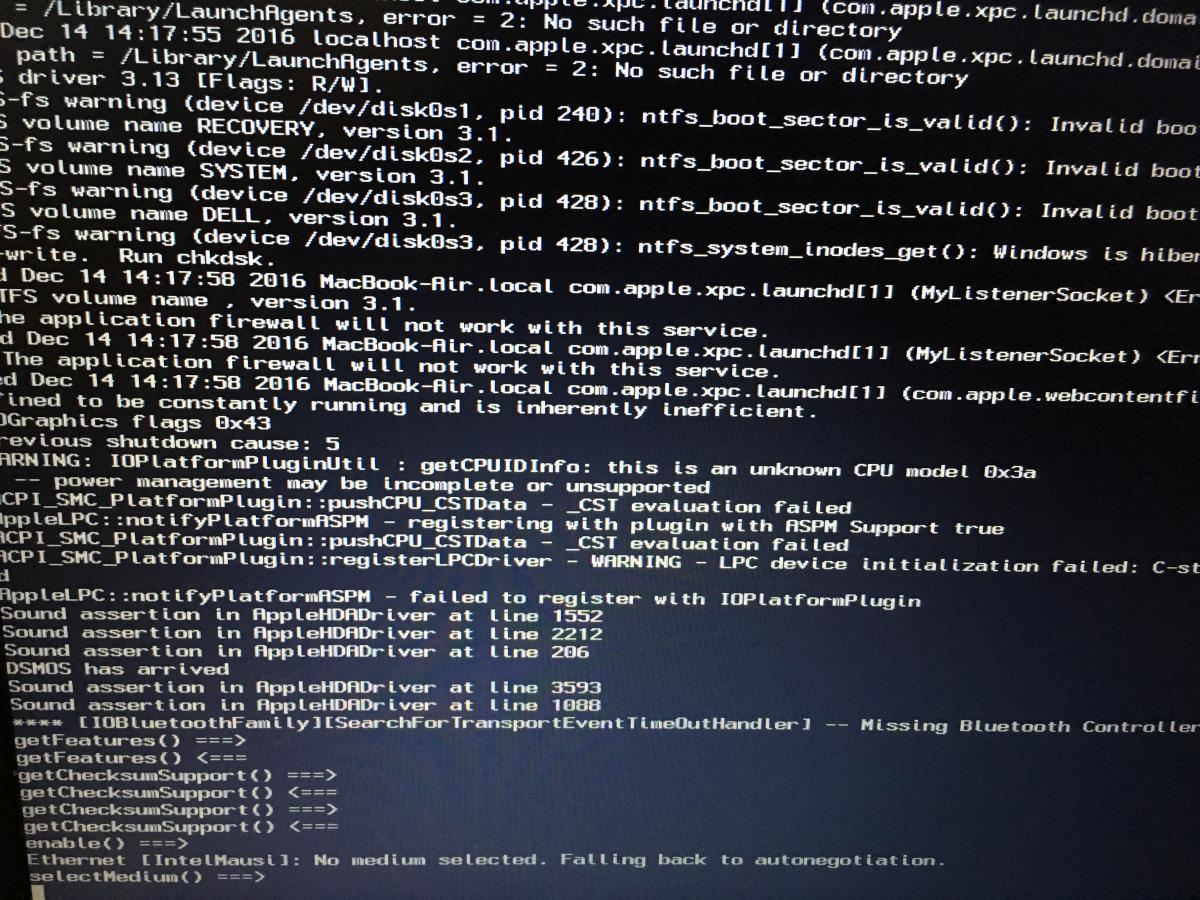

wonder2 Posted December 15, 2016 Author Share Posted December 15, 2016 Here you go Let me know if you need more Thank you, Link to comment Share on other sites More sharing options...
Administrators Hervé Posted December 15, 2016 Administrators Share Posted December 15, 2016 Seems your graphics are not initialising. You seem to run a really old BIOS version on that 6430u. I'd invite you to update but remember that you may not be able to run past a given version like on the E6x30 Series. Try out latest version A11 anyway. Bear in mind that the Latitude 6430u is not an 'E' model even though it's close in terms of specs (it's specifically based on ULV CPUs). As such, I'm not 100% certain that you can re-use the DSDT of the E6x30 series. Have a look at the existing threads related to the Latitude 6430u in this very section. Refer to this old Mavericks guide for reference (especially DSDT): https://osxlatitude.com/index.php?/topic/7133-dell-latitude-6430u-with-i7-3667u-hd-4000-mavericks-1094/?hl=6430u Link to comment Share on other sites More sharing options...
wonder2 Posted December 15, 2016 Author Share Posted December 15, 2016 Thanks. I tried the latest BIOS A10, same result. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 15, 2016 Moderators Share Posted December 15, 2016 Remove the DSDT/SSDT from /EFI/Clover/ACPI/Patched Reboot to Clover GUI, hit F4, then continue with the Installation Compress and attach /EFI/Clover/ACPI/Origin folder here for patching Link to comment Share on other sites More sharing options...
wonder2 Posted December 16, 2016 Author Share Posted December 16, 2016 here it is Thank you! PS this time the progress bar went up to 70% ... e6430u origin.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted December 16, 2016 Moderators Share Posted December 16, 2016 I successfully install Sierra on 6430u with Clover loader. Had to use BIOS A06, anything over is causing artifacts like the E6x30 series. Follow my Clover guide and use bootpack in post #2 Working: HD4000 QE/CI SDcard reader HDMI Video/audio internal speaker/headphone Sleep/Wake LAN Wireless - have to be replace with a supported card Using generic mouse until full support Alps touchpad from DrHurt is tested. Link to comment Share on other sites More sharing options...
