  1. LexHimself

    Patch AppleHDA For audio

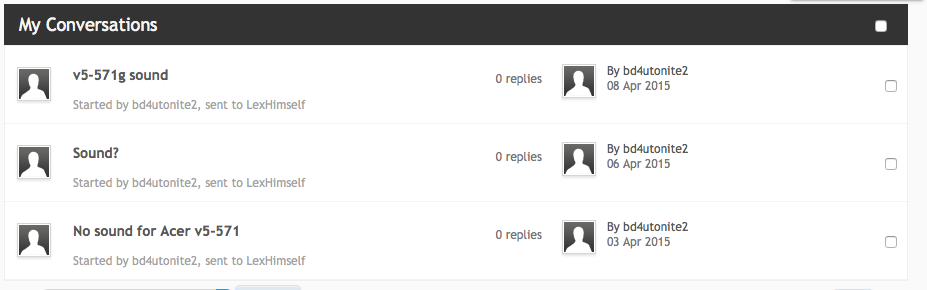

    Hi, I receive the request a lot after posting the V5-571 topic: I do not have the time anymore to write a guide on how to convert a codec0 file to an AppleHDA.kext. Perhaps someone can pick this up,
  2. LexHimself

    Asus K53SV - hdmi audio HD3000 doesn't work

    Ah ok, thought it could also work with the HD3000, my bad
  3. LexHimself

    Bash script for mobile Intel HD 4600 support in Yosemite

    Something in those lines. I tried defaults read 0412 which extracts the IOPCIPrimarymatch line and prints it in terminal, lets say i called it check. That worked, it's the comparison where i get stuck, can't find the right command. Modified the command of example since my kext has been patched: bash-3.2# defaults read /System/Library/Extensions/AppleIntelHD5000Graphics.kext/Contents/Info | grep 0416 IOPCIPrimaryMatch = "0x0d268086 0x0a268086 0x0a2e8086 0x0d228086 0x04168086"; bash-3.2# This output needs to be compared to, how would i go about that? Thanks in advance.
  4. LexHimself

    DELL INSPIRON 3542 (Clover-Yosemite)

    How did you fix the unexpected PARSEOP_EXTERNAL expecting ) ? Anyway, nice job. The Optimus card does not, and perhaps never will work on OS X86, unless you can disable the internal graphics from bios. To prevent overheating the system, since the card is detected and running on full power without drivers, but unusable, it is recommended to disable the card.
  5. LexHimself

    Yosemite on Toshiba Satellite P70-A-11N

    Do i need to provide the original ACPI tables to get this added to EDP? The original files really are a mess. To disable the Optimus card, various lines need to be removed from the DSDT, it kept me busy for a day or 2 Also, i do not know if it will work with Chameleon.
  6. LexHimself

    Yosemite Clover pack for Acer Aspire V5-571G-53316G

    Is it possible to add this model to EDP? All V5-571x share the same bios, and i can provide the ACPI tables unmodified if needed. Older versions of OS X should work also, since most of the files used in this model are from EDP. I used Clover because i have no knowledge of Chameleon after 2013.
  7. LexHimself

    kextwizard

    No. I recommend using Kext Utility.
  8. LexHimself

    Help Me regarding Mac OS X Update

    When booting with -s mount -uw / rm -rf /System/Library/Extensions/somename.kext cp -r /somehd/somefolder/somefile.kext /System/Library/Extensions/somename.kext Just the basics. Like Jake Lo said, provide a screenshot of the error and some system specs.
  9. LexHimself

    Asus K53SV - hdmi audio HD3000 doesn't work

    Hi, For future reference, open up hex friend and load AppleIntelFramebufferCapri, /System/Library/Extensions/AppleIntelFramebufferCapri.kext/Contents/MacOS/ Find: 03 00 66 01 01 02 04 02 00 00 00 04 00 00 00 01 00 00 00 40 10 07 00 00 10 07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 05 03 00 00 02 00 00 00 30 00 00 00 02 05 00 00 00 04 00 00 07 04 00 00 03 04 00 00 00 04 00 00 81 00 00 00 04 06 00 00 00 04 00 00 81 00 00 00 Change it to: 03 00 66 01 01 02 04 02 00 00 00 04 00 00 00 01 00 00 00 40 10 07 00 00 10 07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 05 03 00 00 02 00 00 00 30 00 00 00 02 05 00 00 00 08 00 00 07 04 00 00 03 04 00 00 00 08 00 00 81 00 00 00 ​04 06 00 00 00 08 00 00 81 00 00 00
  10. LexHimself

    Bash script for mobile Intel HD 4600 support in Yosemite

    No, not in the frame buffer binary, only in the plist. The frame buffer is injected through DSDT: If (LEqual (Arg2, Zero)) { Return (Buffer() { 0x03 } ) }\n Return (Package()\n {\n "device-id", Buffer() { 0x16, 0x04, 0x00, 0x00 },\n "AAPL,ig-platform-id", Buffer() { 0x06, 0x00, 0x26, 0x0a },\n
  11. LexHimself

    Bash script for mobile Intel HD 4600 support in Yosemite

    Hi, The azul binary patch is to fix artifacts and increase the vram, the value that is being changed belongs to 06 00 26 0A, and only is found once in the binary. 06 00 26 0A 01 03 03 03 00 00 00 02 00 00 30 01 00 00 60 00 00 00 00 60 D9 0A 00 00 D9 0A 00 00 Edit: I'm patching on Yosemite indeed, but as stated, the patch works, just want the failsafe mode added
  12. Hi, I'm currently working on a script to automatically patch the files to get the HD4600 working. The script works as intended, but has no checks. What i would like to do is check for a value in a plist or binary, if present, continue patching, if the value is not found, skip the file. Did some research, but failed to get it working. Any help would be appreciated. #!/bin/bash #Definitions p5000=/System/Library/Extensions/AppleIntelHD5000Graphics.kext/Contents/Info.plist b5000=/System/Library/Extensions/AppleIntelHD5000Graphics.kext/Contents/MacOS/AppleIntelHD5000Graphics pazul=/System/Library/Extensions/AppleIntelFramebufferAzul.kext/Contents/Info.plist bazul=/System/Library/Extensions/AppleIntelFramebufferAzul.kext/Contents/MacOS/AppleIntelFramebufferAzul if [ $(id -u) != 0 ]; then echo "You need to run this script as root. Type sudo -s, enter password and run this script again." exit fi #Inject ID to AppleIntelHD5000Graphics Info.plist echo "Patching $p5000" sudo sed -i.bak 's/0412/0416/g' $p5000 echo "Info.plist patched" #Patch AppleIntelHD5000Graphics.kext binary echo "Patching $b5000" sudo perl -pi -e 's|\x86\x80\x12\x04|\x86\x80\x16\x04|g' -i.bak $b5000 echo "AppleIntelHD5000 binary patched" #Inject ID to AppelIntelFramebufferAzul Info.plist echo "Patching $pazul" sudo sed -i.bak 's/0412/0416/g' $pazul echo "Info.plist patched" #Patch AppleIntelFramebufferAzul binary echo "Patching $bazul" sudo perl -pi -e 's|\x60\x00\x00\x00\x00\x60\xD9|\x90\x00\x00\x00\x00\x80\xD9|g' -i.bak $bazul echo "AppleIntelFramebufferAzul binary patched" #Update caches echo "Updating caches" sudo touch /System/Library/Extensions sudo kextcache -u / echo "Finished" Example: #Inject ID to AppleIntelHD5000Graphics Info.plist echo "Patching $p5000" if 0412 found then sudo sed -i.bak 's/0412/0416/g' $p5000 echo "Info.plist patched" else skip file echo " file skipped"
  13. LexHimself

    Yosemite Clover pack for Acer Aspire V5-571G-53316G

    Hi, Could be, still works
  14. Hi, Attached the files for this model. V5-571G.zip
  15. Hi, System specs: CPU: Intel Core i7-4700MQ (Haswell) Memory: 16GB DDR3 1600Mhz HDD: SATA: 1,5TB 5400RPM (1Empty SATA and 1 Empty SSD slot.) Graphics: Intel HD4600/Nvidia Geforce GT 745M Touchpad: Synaptics Audio: Conexant CX20751-11Z Wireless+BT: Intel Wireless-N 7260 Lan: Atheros AR8161/8165 So the wireless module does not work, i've replaced it with an Atheros AR5B93 which works OOB. Kexts injected by clover: Battery management works with Rehabman's ACPIBatterymanagement.kext and the default DSDT, no edits needed. Touchpad works with Rehabman's VoodooPS2Controller.kext. Just the kext, multitouch works and can be managed from the Trackpad panel. Ethernet works with ALXEthernet.kext. Kexts in S/L/E: AppleHDA.kext needs to be patched, files attached. AppleIntelFramebufferAzul.kext and AppleIntelHD5000Graphics.kext to correct the model, vram size and fix artifacts. Changes in AppleIntelFramebufferAzul.kext Config.plist: IOKitPersonalities > IOPCIPrimaryMatch > 0x04128086. Change to: 0x04168086 AppleIntelFramebufferAzul.kext/Contents/MacOS/AppleIntelFramebufferAzul: Binpatch: 06 00 26 0A 01 03 03 03 00 00 00 02 00 00 30 01 00 00 60 00 00 00 00 60 D9 0A 00 00 Change to: 06 00 26 0A 01 03 03 03 00 00 00 02 00 00 30 01 00 00 90 00 00 00 00 80 D9 0A 00 00 Changes in AppleIntelHD5000Graphics.kext Config.plist: IOKitPersonalities > Gen7 > IOPCIPrimaryMatch > 0x04128086. Change to: 0x04168086 AppleIntelHD5000Graphics.kext/Contents/MacOS/AppleIntelHD5000Graphics Binpatch: 86 80 12 04 Change to: 86 80 16 04 The DSDT has been sorted, some SSDT information has been added to disable the Optimus card. Patches applied: Inject audio ID: into method label _DSM parent_label HDEF remove_entry; into device label HDEF insert begin Method (_DSM, 4, NotSerialized)\n {\n If (LEqual (Arg2, Zero)) { Return (Buffer() { 0x03 } ) }\n Return (Package()\n {\n "layout-id", Buffer() { 0x03, 0x00, 0x00, 0x00 },\n "hda-gfx", Buffer() { "onboard-1" },\n "PinConfigurations", Buffer() { },\n })\n }\n end; Backlight/Brightness fix: into_all device label PNLF remove_entry; into_all device name_adr 0x00020000 code_regex (OperationRegion\s\(RMPC,\sPCI_Config[^\}]*\}) remove_matched; into device name_adr 0x00020000 insert begin OperationRegion (RMPC, PCI_Config, 0x10, 4)\n Field (RMPC, AnyAcc, NoLock, Preserve)\n {\n BAR1,32,\n }\n Device (PNLF)\n {\n // normal PNLF declares (note some of this probably not necessary)\n Name (_ADR, Zero)\n Name (_HID, EisaId ("APP0002"))\n Name (_CID, "backlight")\n Name (_UID, 15)\n Name (_STA, 0x0B)\n //define hardware register access for brightness\n // lower nibble of BAR1 is status bits and not part of the address\n OperationRegion (BRIT, SystemMemory, And(^BAR1, Not(0xF)), 0xe1184)\n Field (BRIT, AnyAcc, Lock, Preserve)\n {\n Offset(0x48250),\n LEV2, 32,\n LEVL, 32,\n Offset(0x70040),\n P0BL, 32,\n Offset(0xc8250),\n LEVW, 32,\n LEVX, 32,\n Offset(0xe1180),\n PCHL, 32,\n }\n // LMAX: use 0xad9/0x56c/0x5db to force OS X value\n // or use any arbitrary value\n // or use 0 to capture BIOS setting\n Name (LMAX, 0xad9)\n // KMAX: defines the unscaled range in the _BCL table below\n Name (KMAX, 0xad9)\n // _INI deals with differences between native setting and desired\n Method (_INI, 0, NotSerialized)\n {\n // This 0xC value comes from looking what OS X initializes this\n // register to after display sleep (using ACPIDebug/ACPIPoller)\n Store(0xC0000000, LEVW)\n // determine LMAX to use\n If (LNot(LMAX)) { Store(ShiftRight(LEVX,16), LMAX) }\n If (LNot(LMAX)) { Store(KMAX, LMAX) }\n If (LNotEqual(LMAX, KMAX))\n {\n // Scale all the values in _BCL to the PWM max in use\n Store(0, Local0)\n While (LLess(Local0, SizeOf(_BCL)))\n {\n Store(DerefOf(Index(_BCL,Local0)), Local1)\n Divide(Multiply(Local1,LMAX), KMAX,, Local1)\n Store(Local1, Index(_BCL,Local0))\n Increment(Local0)\n }\n // Also scale XRGL and XRGH values\n Divide(Multiply(XRGL,LMAX), KMAX,, XRGL)\n Divide(Multiply(XRGH,LMAX), KMAX,, XRGH)\n }\n // adjust values to desired LMAX\n Store(ShiftRight(LEVX,16), Local1)\n If (LNotEqual(Local1, LMAX))\n {\n Store(And(LEVX,0xFFFF), Local0)\n If (LOr(LNot(Local0),LNot(Local1))) { Store(LMAX, Local0) Store(LMAX, Local1) }\n Divide(Multiply(Local0,LMAX), Local1,, Local0)\n //REVIEW: wait for vblank before setting new PWM config\n //Store(P0BL, Local7)\n //While (LEqual (P0BL, Local7)) {}\n Store(Or(Local0,ShiftLeft(LMAX,16)), LEVX)\n }\n }\n // _BCM/_BQC: set/get for brightness level\n Method (_BCM, 1, NotSerialized)\n {\n // store new backlight level\n Store(Match(_BCL, MGE, Arg0, MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n Store(Or(DerefOf(Index(_BCL,Local0)),ShiftLeft(LMAX,16)), LEVX)\n }\n Method (_BQC, 0, NotSerialized)\n {\n Store(Match(_BCL, MGE, And(LEVX, 0xFFFF), MTR, 0, 2), Local0)\n If (LEqual(Local0, Ones)) { Subtract(SizeOf(_BCL), 1, Local0) }\n Return(DerefOf(Index(_BCL, Local0)))\n }\n Method (_DOS, 1, NotSerialized)\n {\n // Note: Some systems have this defined in DSDT, so uncomment\n // the next line if that is the case.\n //External(^^_DOS, MethodObj)\n ^^_DOS(Arg0)\n }\n // extended _BCM/_BQC for setting "in between" levels\n Method (XBCM, 1, NotSerialized)\n {\n // store new backlight level\n If (LGreater(Arg0, XRGH)) { Store(XRGH, Arg0) }\n If (LAnd(Arg0, LLess(Arg0, XRGL))) { Store(XRGL, Arg0) }\n Store(Or(Arg0,ShiftLeft(LMAX,16)), LEVX)\n }\n Method (XBQC, 0, NotSerialized)\n {\n Store(And(LEVX,0xFFFF), Local0)\n If (LGreater(Local0, XRGH)) { Store(XRGH, Local0) }\n If (LAnd(Local0, LLess(Local0, XRGL))) { Store(XRGL, Local0) }\n Return(Local0)\n }\n // Use XOPT=1 to disable smooth transitions\n Name (XOPT, Zero)\n // XRGL/XRGH: defines the valid range\n Name (XRGL, 25)\n Name (XRGH, 2777)\n // _BCL: returns list of valid brightness levels\n // first two entries describe ac/battery power levels\n Name (_BCL, Package()\n {\n 2777,\n 748,\n 0,\n 35, 39, 44, 50,\n 58, 67, 77, 88,\n 101, 115, 130, 147,\n 165, 184, 204, 226,\n 249, 273, 299, 326,\n 354, 383, 414, 446,\n 479, 514, 549, 587,\n 625, 665, 706, 748,\n 791, 836, 882, 930,\n 978, 1028, 1079, 1132,\n 1186, 1241, 1297, 1355,\n 1414, 1474, 1535, 1598,\n 1662, 1728, 1794, 1862,\n 1931, 2002, 2074, 2147,\n 2221, 2296, 2373, 2452,\n 2531, 2612, 2694, 2777,\n })\n }\n end; Inject HD4600: into method label _DSM parent_adr 0x00020000 remove_entry; into device name_adr 0x00020000 insert begin Method (_DSM, 4, NotSerialized)\n {\n If (LEqual (Arg2, Zero)) { Return (Buffer() { 0x03 } ) }\n Return (Package()\n {\n "device-id", Buffer() { 0x16, 0x04, 0x00, 0x00 },\n "AAPL,ig-platform-id", Buffer() { 0x06, 0x00, 0x26, 0x0a },\n "hda-gfx", Buffer() { "onboard-1" },\n "model", Buffer() { "Intel HD 4600" },\n })\n }\n end; IMEI and MCHC devices added, and the default Haswell fixes. SSDT has been generated using using Piker-Alpha's script. Clover folder has been attached, it includes the injected kexts, DSDT and SSDT. CLOVER.zip Codec files for the AppleHDA codec.txt
×
