abraxis Posted November 21, 2017 Author Share Posted November 21, 2017 Ok removed the kexts u mentioned. Does VoodooI2C go in L/E. OR S/L/E ??? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 21, 2017 Moderators Share Posted November 21, 2017 just load it from where you have it so to determine if it'll cause KP and see if it'll work before moving it to /L/E or Clover Kexts Link to comment Share on other sites More sharing options...

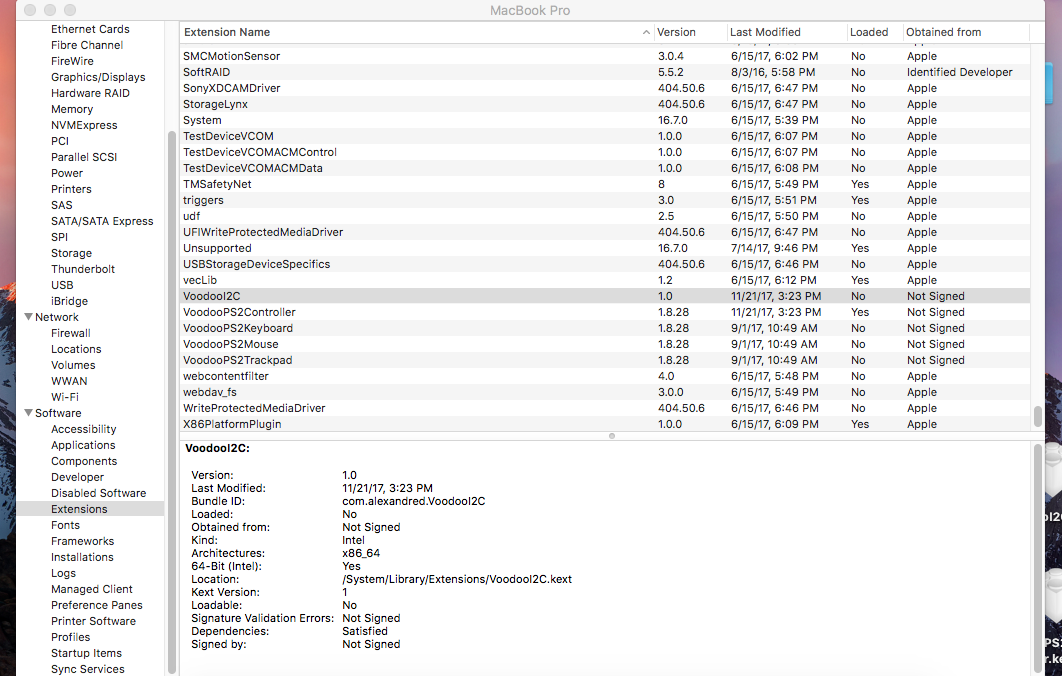

abraxis Posted November 21, 2017 Author Share Posted November 21, 2017 just load it from where you have it so to determine if it'll cause KP and see if it'll work before moving it to /L/E or Clover Kexts Tried loading it into L/E after permission Nothing Used kext tool to load into S/L/E properly but extensions panel says not loaded screenshot attached. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 22, 2017 Moderators Share Posted November 22, 2017 run sudo kextload /S*/L*/E*/VoodooI2C.kext 1 Link to comment Share on other sites More sharing options...
abraxis Posted November 22, 2017 Author Share Posted November 22, 2017 Ran the sudo kextload. System profiler shows loaded. No input from trackpad or keyboard. Reset and found the kext to be unloaded again. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 22, 2017 Moderators Share Posted November 22, 2017 Correct, it'll just load with that command until you reboot unless you have it in /L/E or /S/L/E or /Clover/kexts So from your answer, I guess your touchpad is currently not supported. Link to comment Share on other sites More sharing options...
abraxis Posted November 22, 2017 Author Share Posted November 22, 2017 Unfortunately, no trackpad. BUT i have keyboard functional with voodooPS2Controller in EFI/C/K/O !!! All i need is trackpad and sound. I used voodoohda for sound but no HDMI audio. Seems like a workaround. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 22, 2017 Moderators Share Posted November 22, 2017 Did you have to remove ApplePS2Controller before Keyboard starts to function? Did you copy kexts from /EFI/Clover/kexts/Other/LE to /Library/Extensions? Repair permissions and rebuild cache sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / Looking at the debug folder you attached, you are not using the Config file I attached. Launch DPCIManager Look under CodecID, is it 0x10EC0256? If it is, I had included the layout-id for audio and audio hotpatches. For HDMI audio, we need to determine port is your HDMI port. Connect your HDMI monitor, and launch IOReg IORegistryExplorer_v2.1.zip Save and attach the file here 1 Link to comment Share on other sites More sharing options...
abraxis Posted November 22, 2017 Author Share Posted November 22, 2017 Did you have to remove ApplePS2Controller before Keyboard starts to function? Did you copy kexts from /EFI/Clover/kexts/Other/LE to /Library/Extensions? Repair permissions and rebuild cache sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / Looking at the debug folder you attached, you are not using the Config file I attached. Launch DPCIManager Look under CodecID, is it 0x10EC0256? If it is, I had included the layout-id for audio and audio hotpatches. For HDMI audio, we need to determine port is your HDMI port. Connect your HDMI monitor, and launch IOReg IORegistryExplorer_v2.1.zip Save and attach the file here Yes had to remove ApplePS2Controller for keyboard to respond. checked your L/E files and copied. ran permissions sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / error regarding AppleHDA_ALC256.kext improperly installed...etc ATTACHED IOREG KCioreg.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted November 22, 2017 Moderators Share Posted November 22, 2017 try this config. I think this is the one you're using from the debug file you had attached. I've added HDMI audio and hot patches for the audio Rerun the permission fix and rebuild cache config.plist.zip Link to comment Share on other sites More sharing options...
