Moderators Jake Lo Posted July 1, 2018 Moderators Share Posted July 1, 2018 no, that's a DW1550, you need an M.2 card. DW1560. Here, use this Config for Skylake, should fix the graphics issue config.plist.zip Link to comment Share on other sites More sharing options...
Bruce Smith Posted July 1, 2018 Share Posted July 1, 2018 @Jake Lo, Graphics Fixed, Wifi ordered, Touch pad doesn't do 3 finger swipes, and didn't work after sleeping also.. This patch from earlier does that apply to my touchpad? This fix? https://osxlatitude.com/applications/core/interface/file/attachment.php?id=18098 note* I tried it, without updating my config.plist and my touchpad isn't working at all now. I was a bit fearful, since of the graphics change. Also Is there a place to donate? Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 1, 2018 Moderators Share Posted July 1, 2018 Try this, replace DSDT.aml to /E/C/A/Patched Add the 2 kexts to /Library/Extensions Remove from /S/L/E AppleHPM AppleIntelLpssI2C AppleIntelLpssI2CController Repair permissions and rebuild cache sudo chmod -Rf 755 /L*/E* sudo chown -Rf 0:0 /L*/E* sudo touch -f /L*/E* sudo chmod -Rf 755 /S*/L*/E* sudo chown -Rf 0:0 /S*/L*/E* sudo touch -f /S*/L*/E* sudo kextcache -Boot -U / Donate can be found on the top right of the Home page https://osxlatitude.com I2C_v2.0.3.zip Link to comment Share on other sites More sharing options...
Bruce Smith Posted July 2, 2018 Share Posted July 2, 2018 @Jake Lo, I tried Your suggestion but now on boot my touchpad doesn't work at all. Here is What I replaced, Removed. https://gist.githubusercontent.com/Smithx10/f2c57f9700ee8c4e8f028c9c7e6b3c3f/raw/65bd95ce4160dd36867803f759aaef3908629e7f/gistfile1.txt I don't know if this helps, but I believe my touch pad is an Alps, https://www.dell.com/support/home/us/en/04/drivers/driversdetails?driverId=NVCF6 Perhaps I did something wrong? Thank You, Smithx10 Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 2, 2018 Moderators Share Posted July 2, 2018 Can you upload IOReg? Try this DSDT DSDT.aml.zip Link to comment Share on other sites More sharing options...
Bruce Smith Posted July 3, 2018 Share Posted July 3, 2018 @Jake Lo, ioreg output: https://gist.github.com/Smithx10/c85fc52591e908dd9dd398c2d294fb87 Thank You, Smithx10 Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 3, 2018 Moderators Share Posted July 3, 2018 that's really hard to read. Usually when asked for IOReg we meant from IOregistryExplorer.app Link to comment Share on other sites More sharing options...

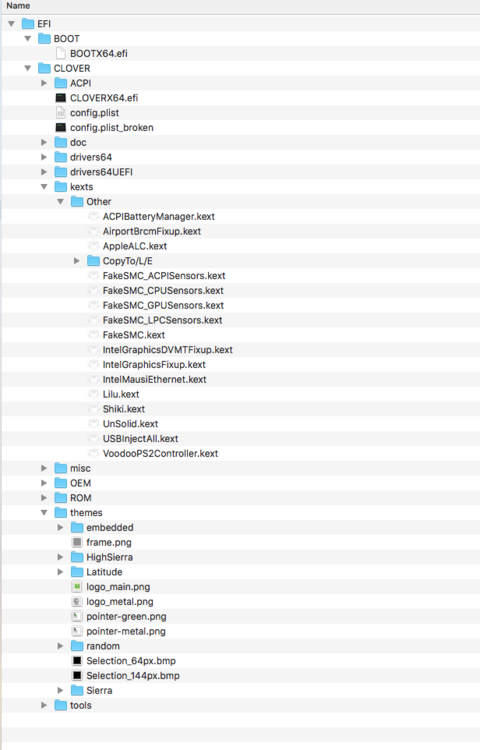

Bruce Smith Posted July 3, 2018 Share Posted July 3, 2018 @Jake Lo, My Apologies, I'm new to Hackintosh. Is this more in line with what you wanted? See attached. Thank You, Smithx10 Bruce’s MacBook Pro.ioreg Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 3, 2018 Moderators Share Posted July 3, 2018 There's no sign of VoodooI2C and VoodooI2CHID installed. Make sure you have it in /S/L/E or /L/E Repair permissions and rebuild cache Link to comment Share on other sites More sharing options...
Bruce Smith Posted July 3, 2018 Share Posted July 3, 2018 @Jake Lo, Ahhh ok. Also, am I supposed to move these over also? Link to comment Share on other sites More sharing options...
