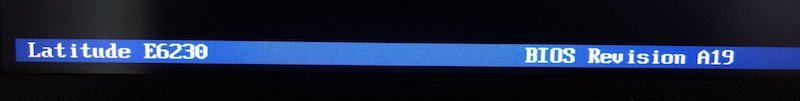

Guest Posted July 26, 2018 Share Posted July 26, 2018 Hello, i've installed High Sierra on my Dell Latitude E6230 (i7 3520m, BIOS A19) this afternoon using this post, and fixed all the bugs i've encountered, but now the lid doesn't put the computer in sleep mode (it was working after the installation) I think that the problem occured when I replaced the DSDT.aml with this one. My EFI folder is attached here, thanks in advance ^^ EFI.zip Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 26, 2018 Moderators Share Posted July 26, 2018 Try this one. Rename to DSDT.aml DSDT-FixLidClose.zip Link to comment Share on other sites More sharing options...
Guest Posted July 26, 2018 Share Posted July 26, 2018 It doesn't work, the screen still stays on I've verified that the sensor is working and in the BIOS Setup the screen is turning off correctly If you need any log ask me Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 26, 2018 Moderators Share Posted July 26, 2018 Ok, try this one DSDT_A19.aml.zip Link to comment Share on other sites More sharing options...
Guest Posted July 26, 2018 Share Posted July 26, 2018 Still no luck, sorry EDIT: Maybe a kext problem ? I don't really know which ones can be responsible for that, I'm new to this world Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted July 26, 2018 Moderators Share Posted July 26, 2018 post debug file Link to comment Share on other sites More sharing options...
Guest Posted July 26, 2018 Share Posted July 26, 2018 Here it is, I've rebooted, then directly closed/opened the lid and ran gen_debug debug_28906.zip Link to comment Share on other sites More sharing options...
Administrators Hervé Posted July 26, 2018 Administrators Share Posted July 26, 2018 I've no issue with my modified DSDT from BIOS A19 and based on the above exchanges, your issue is clearly not DSDT related. Something else has changed. Did you check your hibernation configuration? What mode are you on? Please post output of Terminal command pmset -g Refer to the FAQ forum section for Sleep configuration. Link to comment Share on other sites More sharing options...
Guest Posted July 26, 2018 Share Posted July 26, 2018 Can you upload a copy of your EFI folder so I can try it ? Maybe I'm missing something I did some experimentations and when I boot from the Clover in my USB installation driver rather than my SSD, the lid isn't working at first but works after the computer goes randomly into sleep mode Link to comment Share on other sites More sharing options...
Administrators Hervé Posted July 26, 2018 Administrators Share Posted July 26, 2018 Your Clover config file looks Ok to me; it's identical to what I use on my own E6230 High Sierra USB installer. What differs though is the set of kexts... All I use is: ACPIBatteryManager AppleHDA_IDT92HD93 CodecCommander AppleIntelE1000e FakePCIID FakePCIIDXHCIMux FakeSMC VoodooPS2Controller (R6 by Bronxteck) On the other hand, you've added: AppleALC + dummy IDT92HD93 kexts (you should only use one or the other, not both and since your DSDT inject layout 12, I'd say you must run on dummy IDT kext + patched AppleHDA) IntelGraphicsFixup AppleBackLightInjector DisableTurboBoostBattery I choose to cache my add-on kexts through installation in /L/E rather than inject through EFI/Clover/kexts/Other at boot time. You use SSDT-PNLF whereas I injected a PNLF device in my DSDT, but they should be (and do) the same. The code differs between the two... I suggest you clean up your kexts and verify behaviour again thereafter. Link to comment Share on other sites More sharing options...
