Nancy10

Dell lattitude 7480 - Mojave install : need help

Recommended Posts

11 hours ago, Jake Lo said:

Try rebooting a couple of times.

post debug files if still fails

Thanks I did make the touchpad and backlight work. the problem now is that HDMI just freezes the computer the instant I insert it. I am using @catmater latest posted here config.

an other issue is that the trackpad is not recognized by macOs thus can't use the nice gestures of switching between the virtual desktops.
here are my debug files ( I don't have an EFI partition yet so I always boot from USB ).



23326.zip

CLOVER.zip

Share this post


Link to post
Share on other sites
25 minutes ago, catmater said:

inject right layot  in conf, and put codeccommander.kext in to SLE , and rebuild cache

i put the code commander in L/E because of some problem in permissions in my the backlight works due to that (i think!).
is my layout different form yours because i didn't try to change anything. And how the hell did you make HDMI work on an smbios with 4 thunderbolts??

Share this post


Link to post
Share on other sites

@Jake Lo , need you advice again...

After few days normal works in mojave - after normal poweroff or reboot i see message - what my computer reboot after proublem.

 in details message i see this error:

Spoiler

Anonymous UUID:       9B2F822E-0BC5-FF6D-94C8-54BD3684374F

Sat Feb 16 14:02:47 2019

*** Panic Report ***
panic(cpu 2 caller 0xffffff7f9722f239): [email protected]/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.4.7.2/Common/IONDRV/Intel/KBL/AppleIntelFramebuffer/AppleIntelController.cpp:28012
Backtrace (CPU 2), Frame : Return Address
0xffffff8212163aa0 : 0xffffff80137aeb0d
0xffffff8212163af0 : 0xffffff80138e8653
0xffffff8212163b30 : 0xffffff80138da07a
0xffffff8212163ba0 : 0xffffff801375bca0
0xffffff8212163bc0 : 0xffffff80137ae527
0xffffff8212163ce0 : 0xffffff80137ae373
0xffffff8212163d50 : 0xffffff7f9722f239
0xffffff8212163db0 : 0xffffff7f9722bf98
0xffffff8212163e40 : 0xffffff8013e2ca1b
0xffffff8212163e80 : 0xffffff8013e2c761
0xffffff8212163f00 : 0xffffff8013e2bcb7
0xffffff8212163f50 : 0xffffff8013e2d786
0xffffff8212163fa0 : 0xffffff801375b0ce
      Kernel Extensions in backtrace:
         com.apple.driver.AppleIntelKBLGraphicsFramebuffer(12.0.4)[A92553BB-0EBB-3B39-BDD6-3DD8A41A7273]@0xffffff7f97203000->0xffffff7f97406fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[5C9A453F-559B-3683-9E81-D288D13A33CE]@0xffffff7f940ce000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[67079254-1B34-31D2-8C7B-B138E26BFDD8]@0xffffff7f9482c000
            dependency: com.apple.iokit.IOAcceleratorFamily2(404.2.2)[3F0DBC5F-414B-379E-8C7B-A2F50B278A2A]@0xffffff7f969ab000
            dependency: com.apple.iokit.IOReportFamily(47)[5F165AE5-F4F2-3415-857C-34F2462A730E]@0xffffff7f94d1a000
            dependency: com.apple.AppleGraphicsDeviceControl(3.28.4)[E80DEB91-2401-31C2-901F-CA63B4342337]@0xffffff7f94cac000
            dependency: com.apple.iokit.IOGraphicsFamily(530.14)[D44517BE-2B53-3BD5-826E-4E78B55E3B73]@0xffffff7f943a9000

BSD process name corresponding to current thread: kernel_task
Boot args: dart=0 debug=0x100 -cdfon -igfxnohdmi -v

Mac OS version:
18D109

Kernel version:
Darwin Kernel Version 18.2.0: Thu Dec 20 20:46:53 PST 2018; root:xnu-4903.241.1~1/RELEASE_X86_64
Kernel UUID: 1970B070-E53F-3178-83F3-1B95FA340695
Kernel slide:     0x0000000013400000
Kernel text base: 0xffffff8013600000
__HIB  text base: 0xffffff8013500000
System model name: MacBookPro14,2 (Mac-B4831CEBD52A0C4C)

System uptime in nanoseconds: 6306140017
last loaded kext at 5791565836: com.apple.driver.AppleIntelKBLGraphics    12.0.4 (addr 0xffffff7f96a60000, size 1220608)
loaded kexts:
(none)

EOF
Model: MacBookPro14,2, BootROM 184.0.0.0.0, 2 processors, Intel Core i7, 2,90 GHz, 16 GB, SMC 2.44f1
Graphics: Intel HD Graphics 620, Intel HD Graphics 620, Built-In
Memory Module: BANK 0/DIMM0, 16 GB, DDR4, 2400 MHz, Kingston, K821PJ-MID
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x623), Broadcom BCM43xx 1.0 (7.21.190.32 AirPortDriverBrcm4360-1315.1)
Bluetooth: Version 6.0.10f1, 3 services, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: SK hynix SC311 SATA 256GB, 256,06 GB
USB Device: USB 3.0 Bus
USB Device: 5880
USB Device: Touchscreen
USB Device: BCM20702A0
USB Device: Integrated_Webcam_HD
Thunderbolt Bus:


 What may be wrong ?

interesting thing - i don't use this boot argument : Boot args: dart=0 debug=0x100 -cdfon -igfxnohdmi -v

This is arg from USB flash

I think is old error, then i try to optimize config.

How i can clear tis error ?

Kernel_2019-02-16-152632_7480.zip

Share this post


Link to post
Share on other sites

That's your graphics relating to DVMT. There's a patch in the Config already to fix the problem but the Skylake FB kext must be cached to be hotpatched. So that tells me your cache is broken. You can try 2 things:

1) Set the DVMT in the BIOS and you won't have to deal with the hotpatching anymore. See here

2) At Clover boot, go to Options, set the ig-platform-id to 0x12345678, this will allow you to boot into OSX without QE/CI. Once there, rebuild your cache

Reboot normally

  • Thanks 1

Share this post


Link to post
Share on other sites

Can't  help.

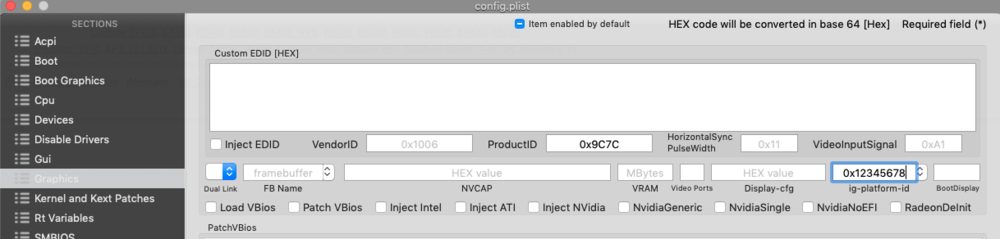

1. here i set 0x12345678


2. Boot without normal graphics card init (14mb)

3. and i do sudo touch /System/Library/Extensions && sudo kextcache -u /

4. Reboot and  have same error

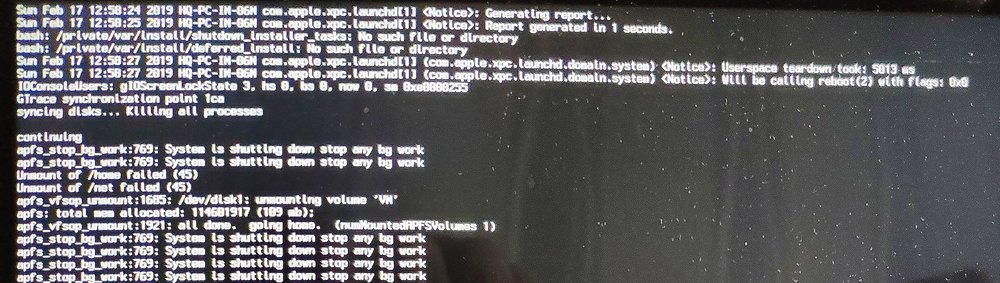

Shutdown process generate some report:


Share this post


Link to post
Share on other sites
