Administrators Hervé Posted March 10, 2019 Administrators Share Posted March 10, 2019 Use macIASL app. Link to comment Share on other sites More sharing options...

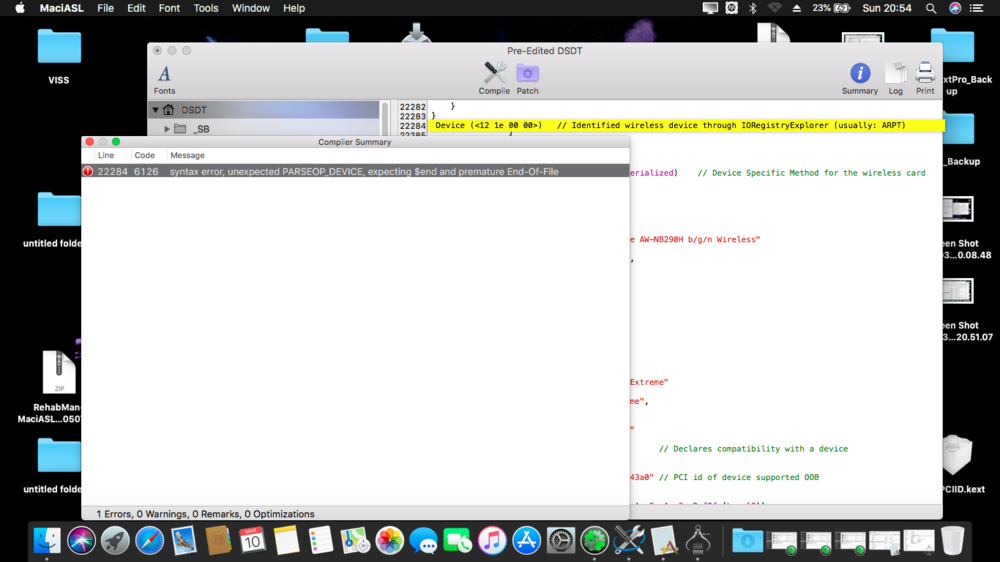

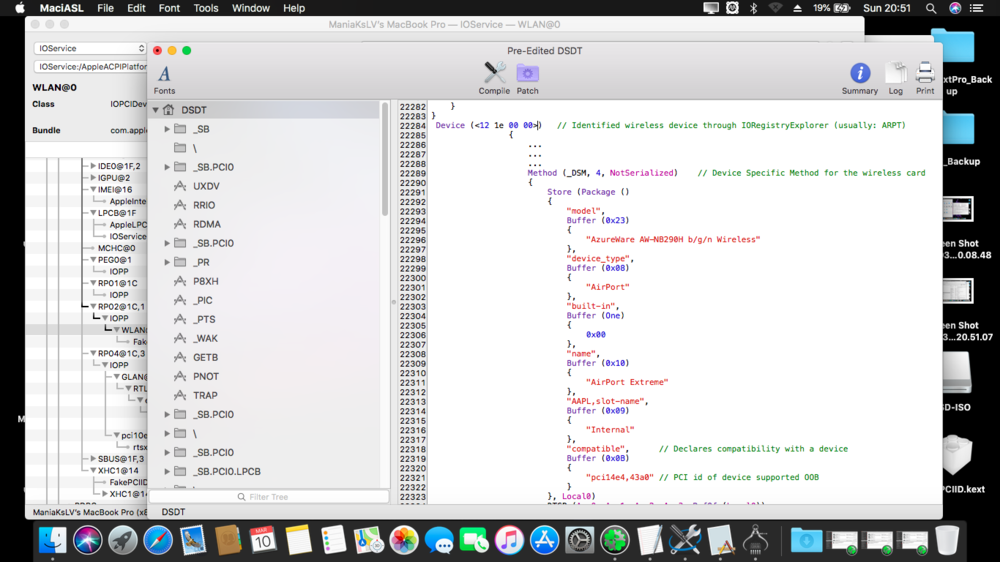

ManiaKsLV Posted March 10, 2019 Author Share Posted March 10, 2019 Is there that whats needed? i have this error... Link to comment Share on other sites More sharing options...
ManiaKsLV Posted March 10, 2019 Author Share Posted March 10, 2019 @Hervé Maybe fresh install of High Sierra is needed? And start all from fresh. Link to comment Share on other sites More sharing options...

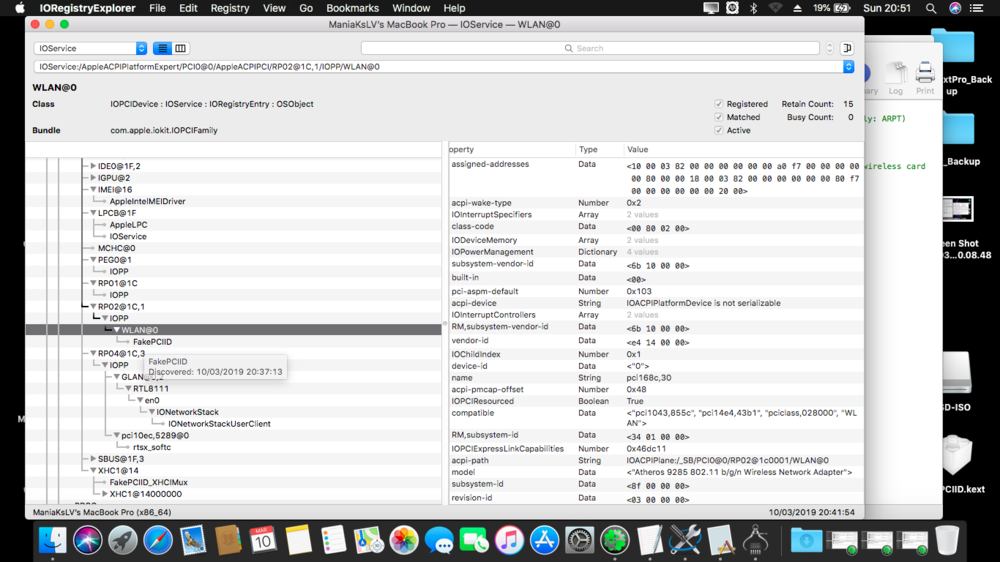

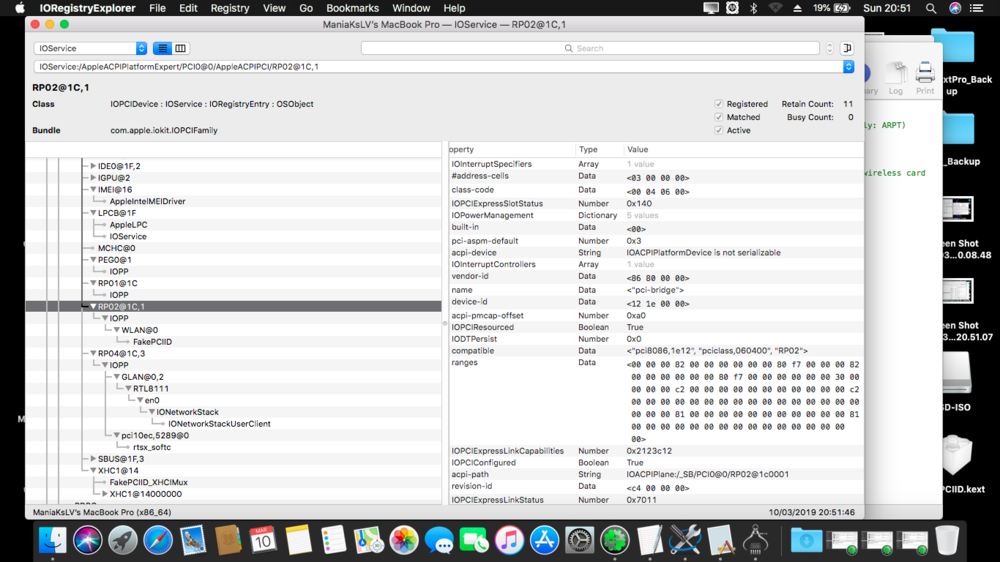

Administrators Hervé Posted March 10, 2019 Administrators Share Posted March 10, 2019 Why on earth would you re-install High Sierra? Clearly you just have to adjust the code a little so that you can patch your DSDT... Your IOREg shows that your wireless card appears to be attached to device called WLAN, itself located under parent device RP02; so that your target device for patching. Then you simply don't just copy paste the sample I posted, especially the "..." lines! They're meant to summarize code to ignore. Instead, under the device called WLAN, copy/paste the _DSM method, adjusting the name of the model to AW-CE123H, instead of what's provided in my sample code. You won't be able to recompile your DSDT properly until you do that. But, by all means, post your initial DSDT file for patching. Link to comment Share on other sites More sharing options...
ManiaKsLV Posted March 10, 2019 Author Share Posted March 10, 2019 @Hervé Because i don't understand what i'm doing... Pre-Edited DSDT.7z i try understand what info from that all i need. i try understand the code you mentioned in wifi post. i try find info about everything might help me. Link to comment Share on other sites More sharing options...
Moderators Jake Lo Posted March 11, 2019 Moderators Share Posted March 11, 2019 Try adding this to FakeID Wifi 0x43A014E4 in the Config file under Devices Add these kexts to Clover kext folder Lilu + AirportBrcmFixup.kext FakePCIID.kext + FakePCIID_Broadcom_WiFi.kext Link to comment Share on other sites More sharing options...

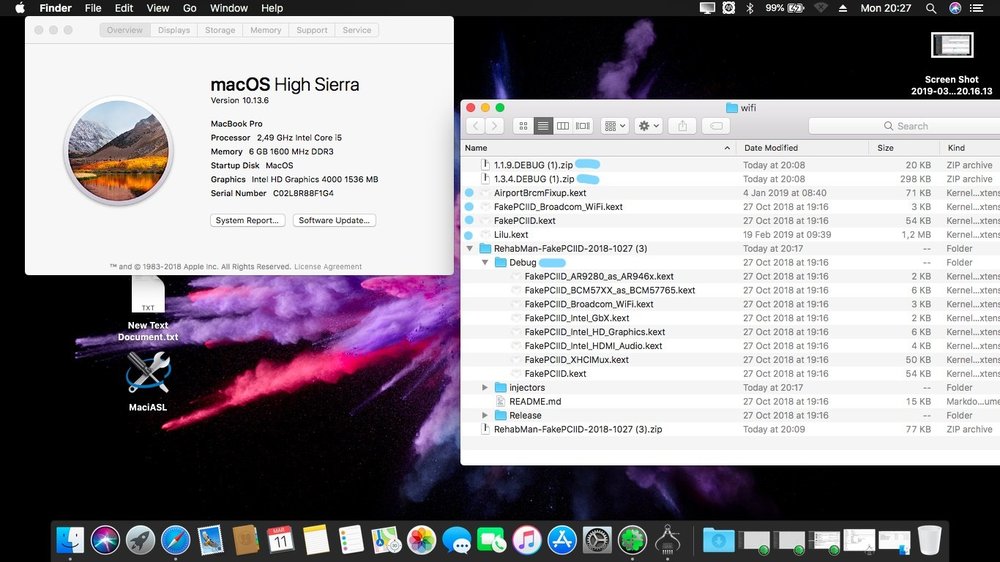

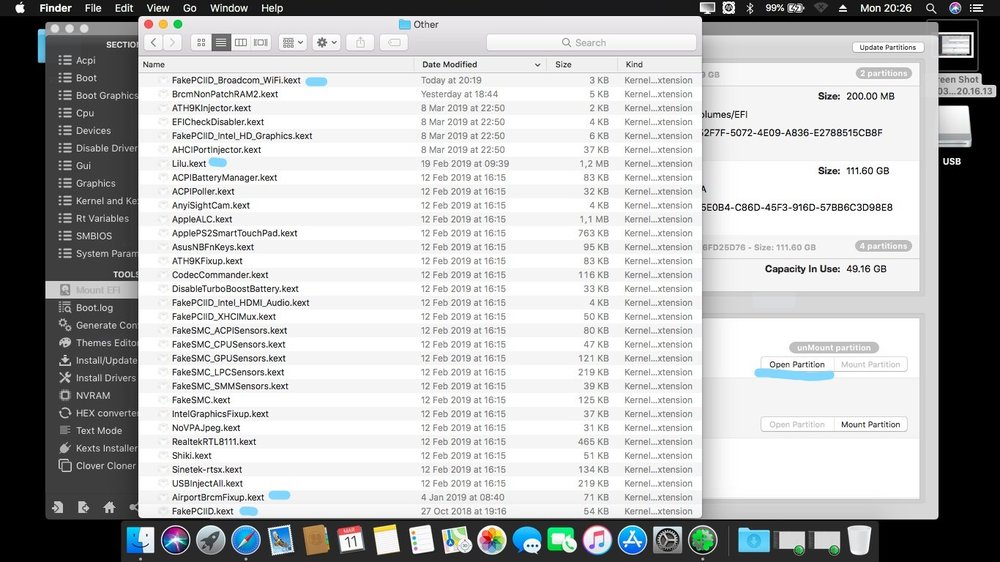

ManiaKsLV Posted March 11, 2019 Author Share Posted March 11, 2019 @Jake Lo So..... i will try explain what i did step by step... So i downloaded Lilu.kext 1.3.4 + AirportBrcmFixup.kext 1.1.9 and RehabMan-FakePCIID-2018-1027.zip who contains FakePCIID.kext + FakePCIID_Broadcom_WiFi.kext i used this folders then i add fake id then copy files in CLOVERS kext folder then for no reason i rebuild S/L/E folder cache and premisions and restarted PC Did i do something wrong? or all i mention is right. Link to comment Share on other sites More sharing options...
Administrators Hervé Posted March 11, 2019 Administrators Share Posted March 11, 2019 @ManiaKsLV, can you please confirm what wireless card is currently fitted in your laptop? Reason I ask is because, on looking at your DSDT, I could not help but notice the following DSM method under device WLAN which basically injects properties of an Atheros AR9285 card! So... Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { If (LEqual (Arg2, Zero)) { Return (Buffer (One) { 0x03 }) } Return (Package (0x0E) { "device-id", Buffer (0x04) { 0x30, 0x00, 0x00, 0x00 }, "name", "pci168c,30", "AAPL,slot-name", Buffer (0x08) { "AirPort" }, "device_type", Buffer (0x08) { "AirPort" }, "model", Buffer (0x33) { "Atheros 9285 802.11 b/g/n Wireless Network Adapter" }, "subsystem-id", Buffer (0x04) { 0x8F, 0x00, 0x00, 0x00 }, "subsystem-vendor-id", Buffer (0x04) { 0x6B, 0x10, 0x00, 0x00 } }) } If you wish to inject properties for the AzureWave AW-CE123H, the above has to be replaced! By something like the following... Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { If (LEqual (Arg2, Zero)) { Return (Buffer (One) { 0x03 }) } Return (Package () { "compatible", Buffer () { "pci14e4,43a0" }, "model", Buffer () { "AzureWave AW-CE123H 802.11b/g/n/ac Wireless" } }) } Faking Broadcom device 14e4:43a0 whilst retaining your current Atheros properties injection will not work... Remove the Clover faking and try the DSDT attached below.DSDT.zip Link to comment Share on other sites More sharing options...
ManiaKsLV Posted March 11, 2019 Author Share Posted March 11, 2019 @Hervé Now it's AzureWave AW-CE123H previous one was DW1702.... that mean something left from previous patching while DW1702 were in. I should use macIASL app for this yes? i should find lines in first row and then replace them with second row? Link to comment Share on other sites More sharing options...
Administrators Hervé Posted March 11, 2019 Administrators Share Posted March 11, 2019 It would have been useful to remember that in the fist place! You would have saved yourself some time... For your AW-CE123H, just follow the instructions at the end of my previous post. You may also cleanup your kexts folder and remove all those related to Atheros hardware. If you also update to the latest Lilu + WhateverGreen + AppleALC, you should no longer need those old Shiki + IntelGraphicsFixup kexts that are now outdated. Link to comment Share on other sites More sharing options...
